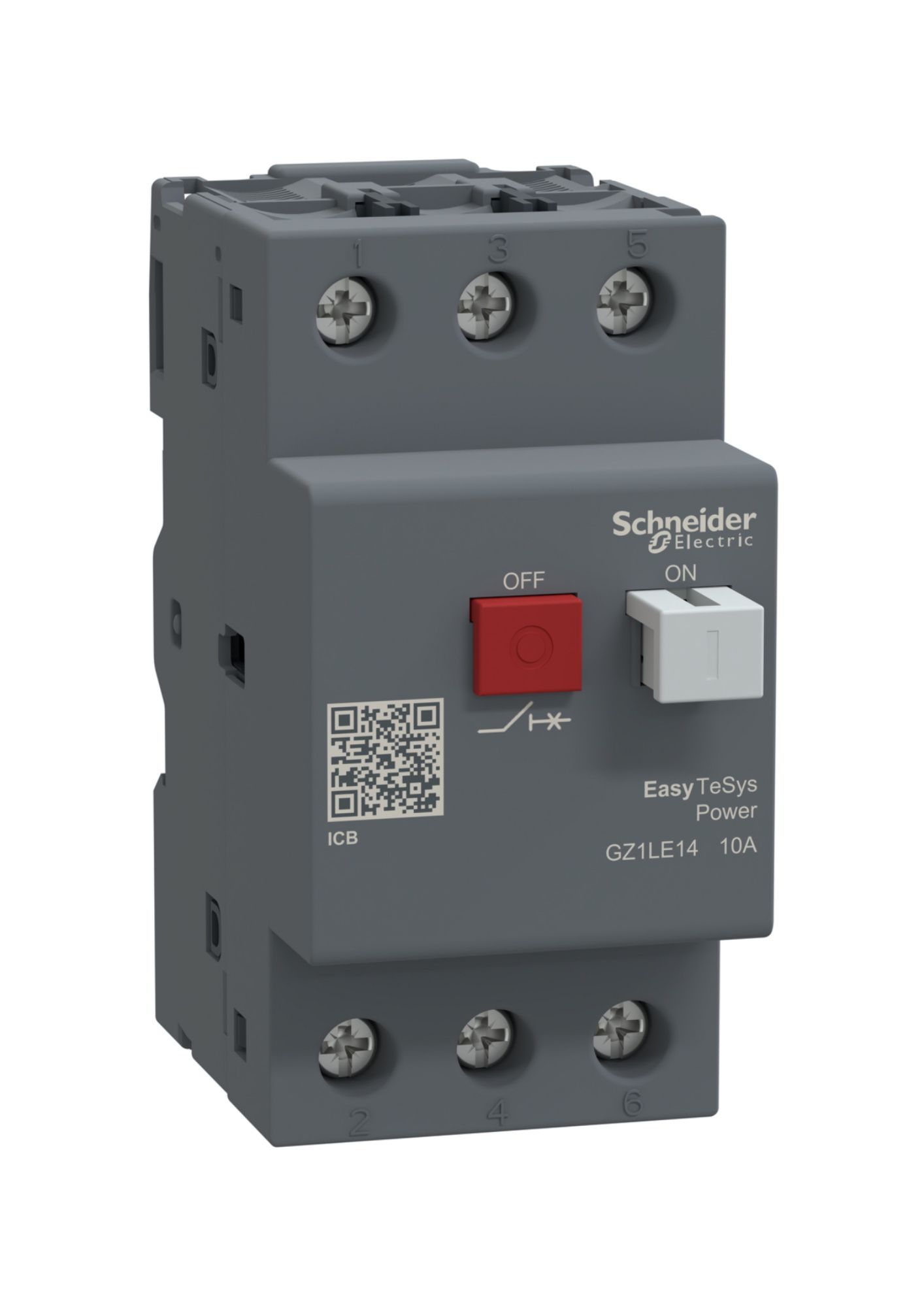

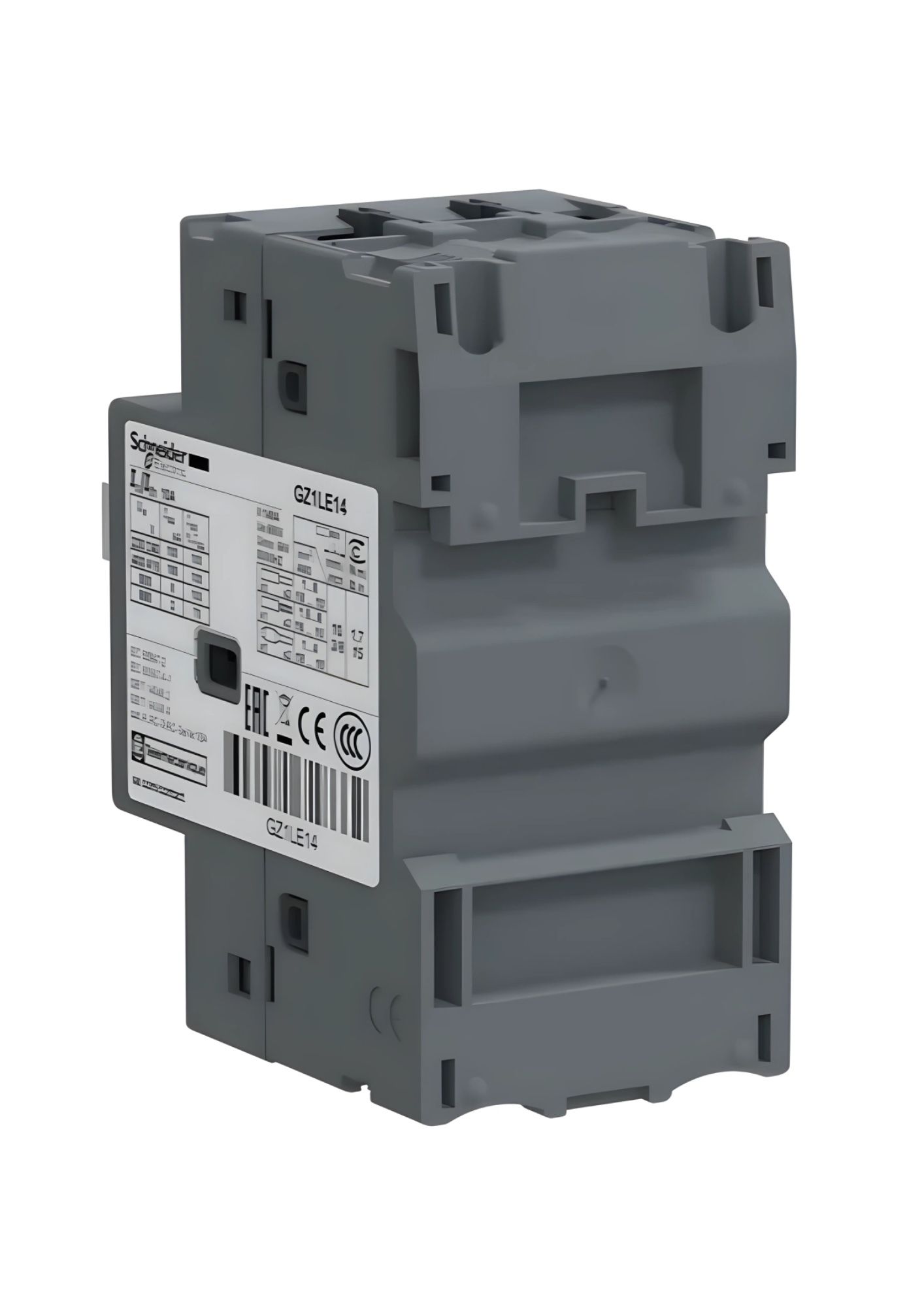

Schneider GZ1LE14, Motor Circuit Breaker, Easy TeSys Power, GZ1LE, 3 Pole, Push-Button, 10A, Magnetic Trip
In stock
SKU
GZ1LE14
Special Price
₹1,331.90
Regular Price
₹3,505.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | Easy TeSys |
| Range of product | Easy TeSys Power |
| Product or component type | Circuit breaker |
| Device short name | GZ1LE |
| Device application | Motor |
| Trip unit technology | Magnetic |
| Suitability for isolation | Yes (IEC 60947-1 appendix 7.1.6) |
| Colour | Grey (RAL 7011) |
| Complementary | |
| Poles description | 3P |
| Network type | AC |
| Utilisation category | AC-3 |
| Network frequency | 50/60 Hz (IEC 60947-2) |
| Mounting mode | By clips, By screws |
| Mounting support | Rail |
| Mounting position | Any position |
| Motor power kW |
2.2 kW at 230 V AC 4 kW at 400 V AC 4 kW at 440 V AC 5.5 kW at 500 V AC 7.5 kW at 690 V AC |
| Breaking capacity |
Icu ≥ 100 kA at 230/240 V AC Icu ≥ 100 kA at 400/415 V AC Icu = 10 kA at 440 V AC Icu = 8 kA at 500 V AC Icu = 2 kA at 690 V AC |
| [Ics] Rated service short-circuit capacity |
100% at 230/240 V AC 100% at 400/415 V AC 100% at 440 V AC 100% at 500 V AC 75% at 690 V AC |
| Control type | Push-button |
| [In] Rated current | 10 A |
| Magnetic tripping current | 138 A |
| [Ue] Rated operational voltage | 690 V AC 50/60 Hz |
| [Ui] Rated insulation voltage | 690 V AC |
| [Uimp] Rated impulse withstand voltage | 6 kV |
| Power dissipation | 2.5 W (per pole) |
| Mechanical durability | 100,000 cycles |
| Electrical durability | 100,000 cycles (AC-3) |
| Maximum operating rate | 25 cycles/h |
| Connections - terminals |
Screw clamp terminals 2 × 1…6 mm² (solid) Screw clamp terminals 2 × 1.5…6 mm² (flexible without end) Screw clamp terminals 2 × 1…4 mm² (flexible with end) |

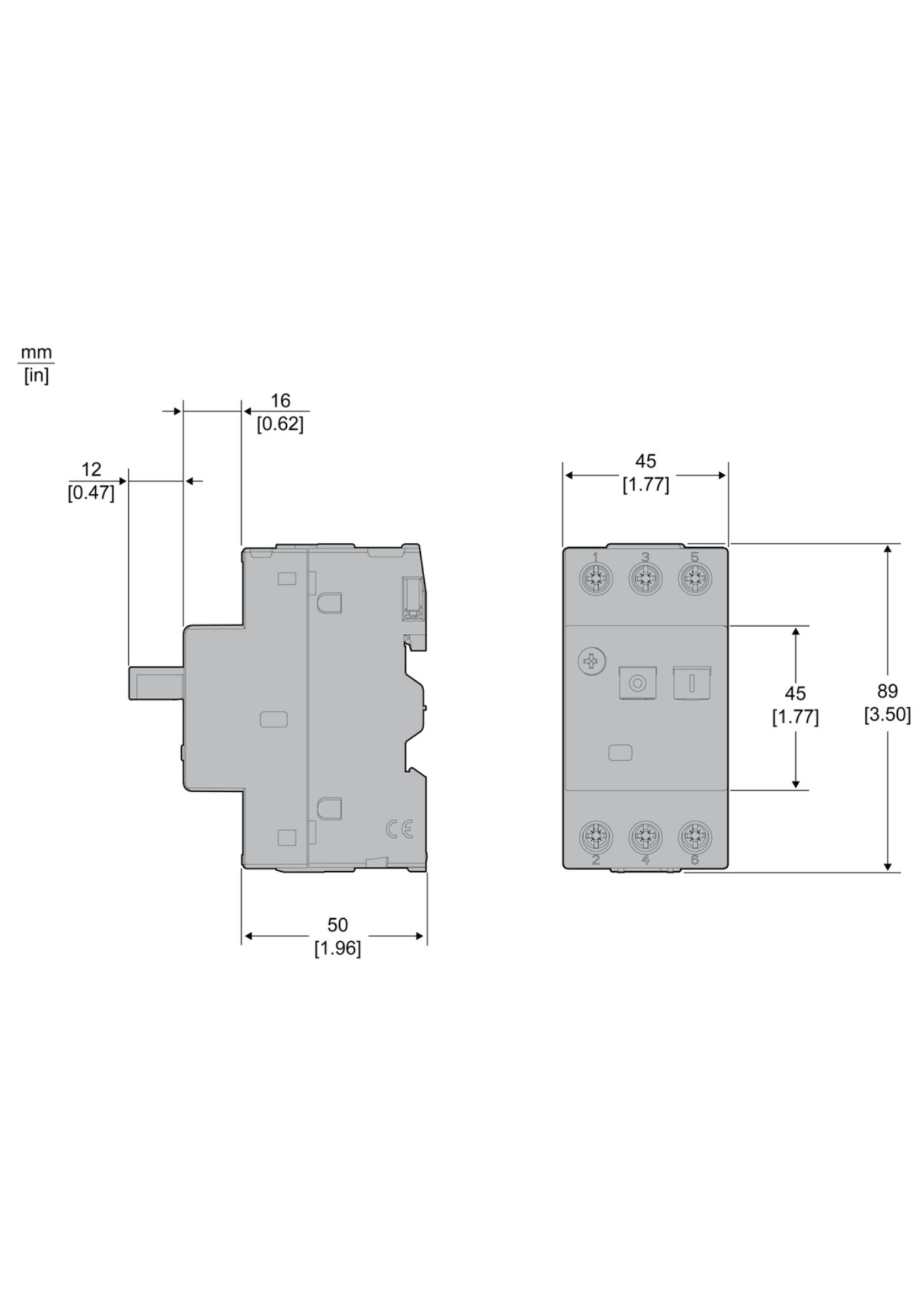

| Dimensions (HxWxD) | 89 × 44.5 × 78 mm |
