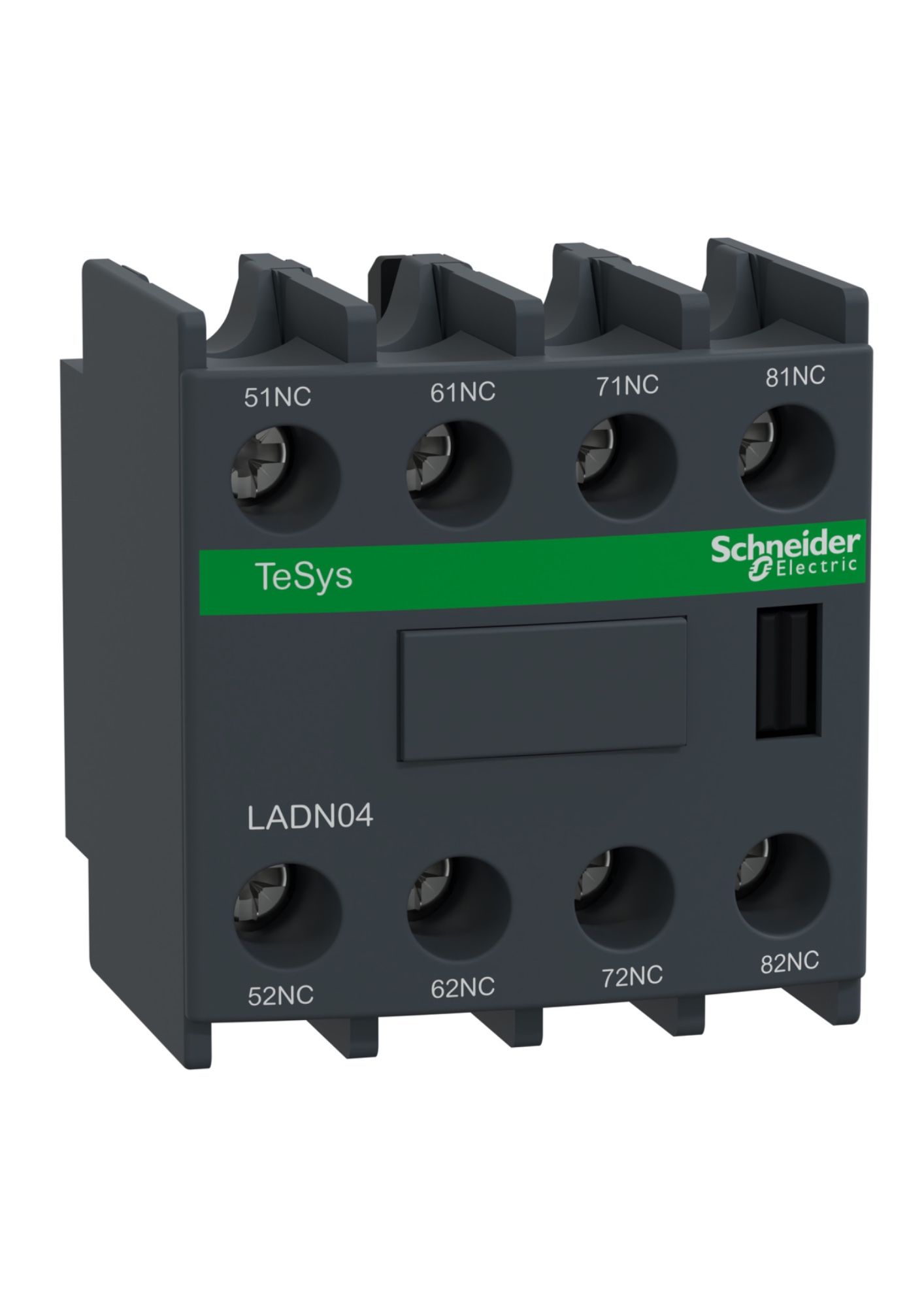

Schneider LADN04, Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals
Schneider LADN04, Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals Schneider LADN04, Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals Schneider LADN04, Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals

Schneider LADN04, Auxiliary contact block, TeSys D, 4NC, front mounting, screw clamp terminals

In stock
SKU
LADN04
Special Price ₹674.00 Regular Price ₹1,685.00
(18% GST Extra)
Add to Wish List
  • Compatible with TeSys D contactors (LC1D, LC1F) and CAD control relays.
  • Provides 4 NC mirror contacts, rated up to 10A/690V AC.
  • Easy front clip-on mounting with screw clamp terminals.
  • High reliability and long-lasting performance.
  • Certified to IEC, UL, CSA, CCC, EAC standards; RoHS/REACh (Green Premium) compliant.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

TeSys Deca LADN Specifications
Main
Range TeSys
TeSys Deca
Product name TeSys Deca
Product or component type Auxiliary contact block
Device short name LADN
Range compatibility TeSys D LC1D
TeSys D CAD
TeSys F LC1F
TeSys F CR1F
TeSys Deca CAD
TeSys Deca LC1D
Mounting location Front
Pole contact composition 4 NC
Contacts operation Instantaneous
[Ue] rated operational voltage 690 V AC 25...400 Hz
[Ie] rated operational current 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA
[Ith] conventional free air thermal current 10 A (at 60 °C)
Standards EN/IEC 60947-5-1
GB/T 14048.5
EN 50012
UL 60947-5-1
CSA C22.2 No 60947-5-1
IEC 60335-1:Clause 30.2
IEC 60335-2-40:Annex JJ
UL 60335-2-40:Annex JJ
Product certifications CB Scheme, UL, CSA, CCC, EAC, UKCA
Complementary
Irms rated making capacity 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating 100 A 1 s
120 A 500 ms
140 A 100 ms
Protection type GG fuse 10 A
Mechanical durability 30 Mcycles
Minimum switching current 5 mA
Minimum switching voltage 17 V
Non-overlap time 1.5 ms on de-energisation (no overlap between NC and NO contact)
1.5 ms on energisation (no overlap between NC and NO contact)
Insulation resistance > 10 MΩ
Connections - terminals Screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm² flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm² flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm² rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm² rigid without cable end
Tightening torque 1.7 N·m - with screwdriver flat Ø 6 mm
1.7 N·m - with screwdriver Philips No 2
1.7 N·m - with screwdriver Pozidriv No 2
Height 48 mm
Width 44 mm
Depth 42 mm
Colour Dark grey
