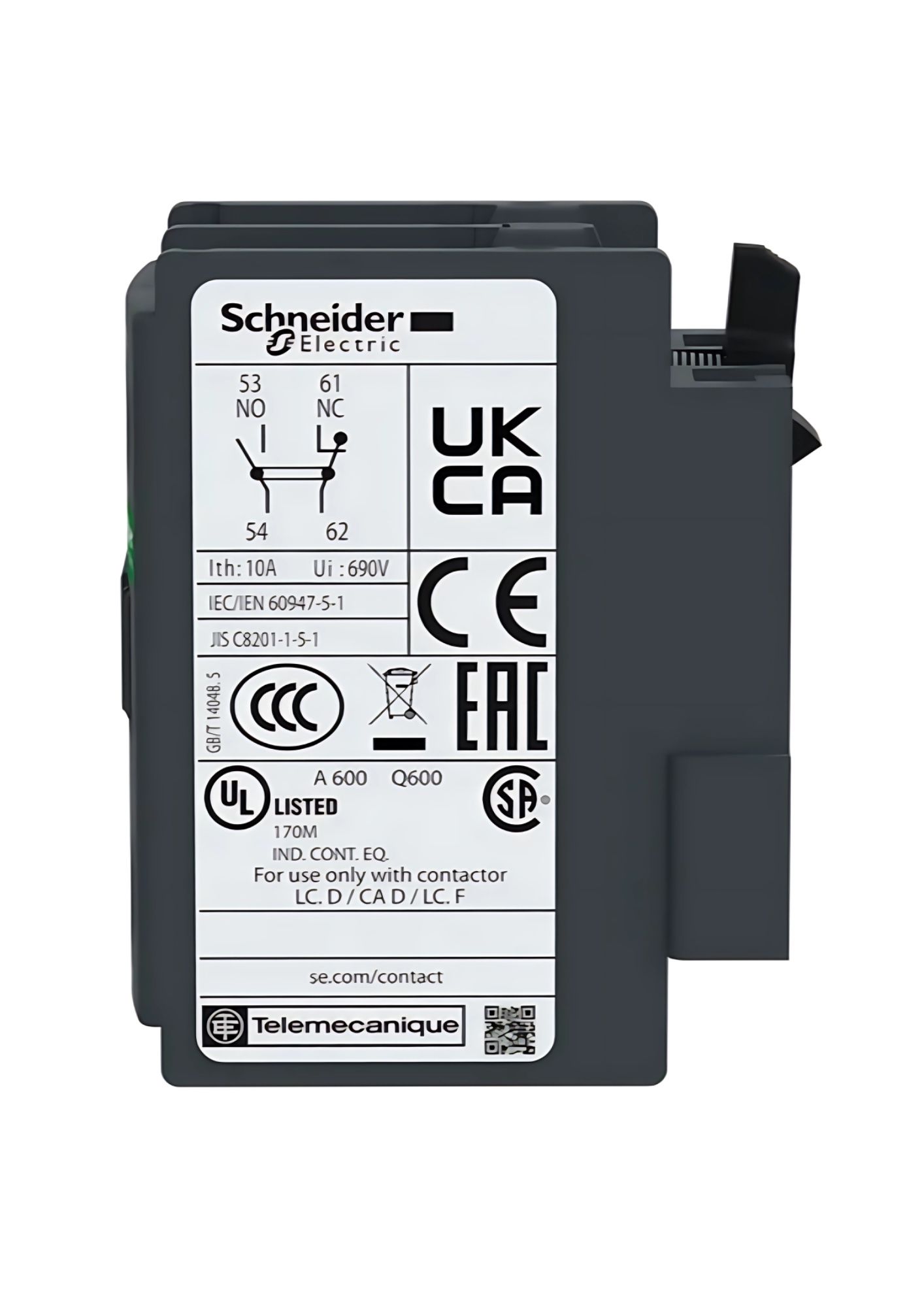

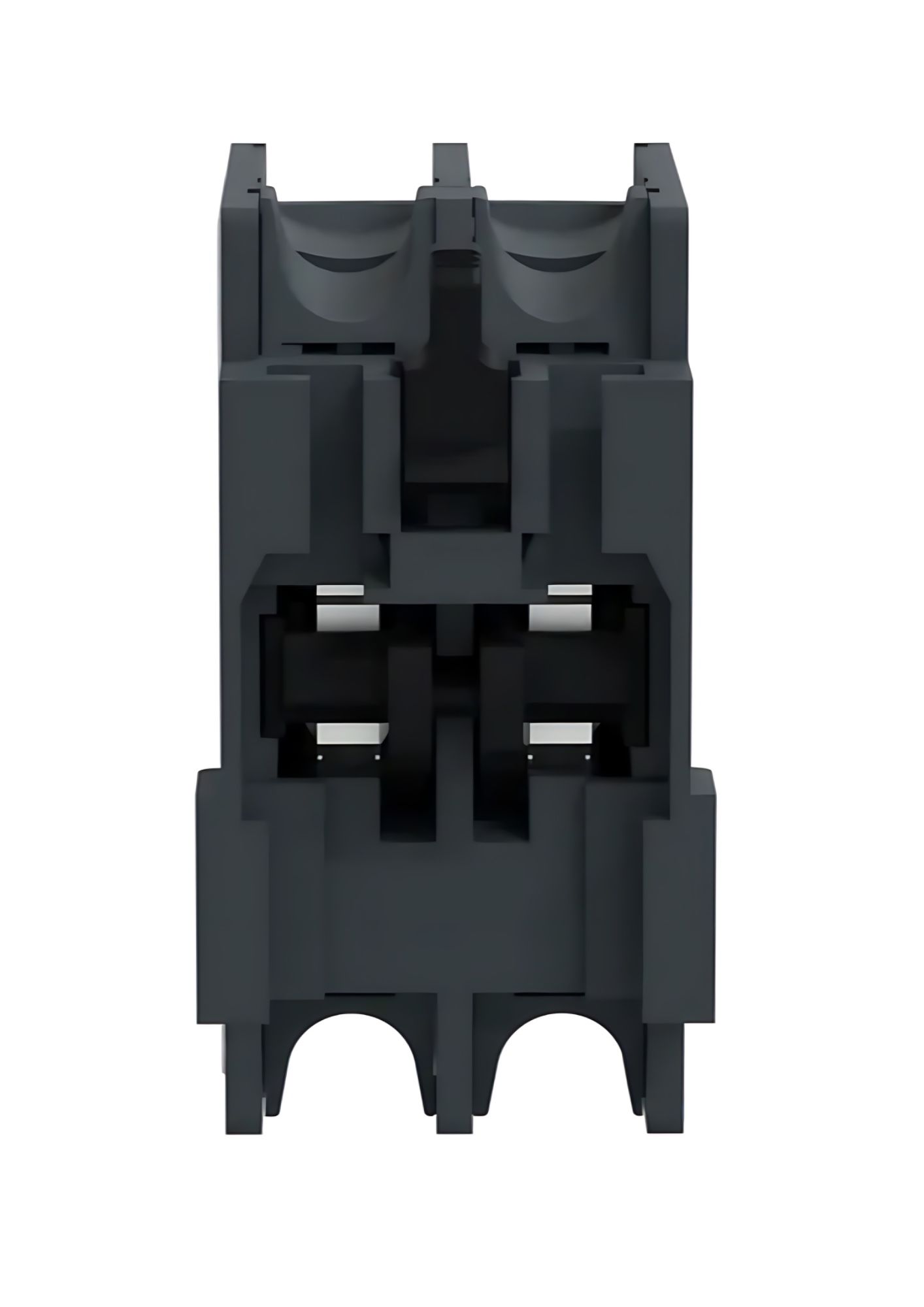

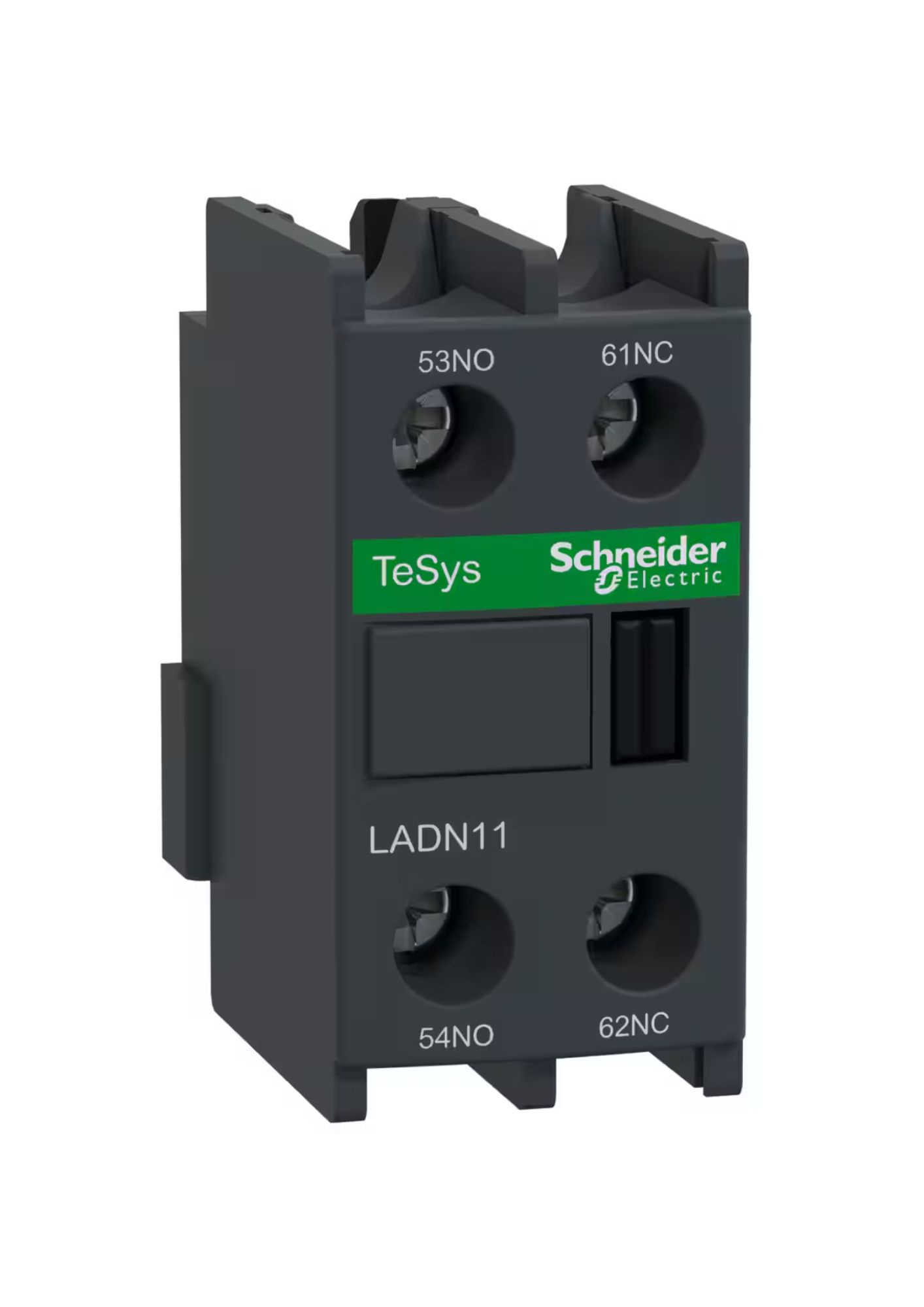

Schneider LADN11, Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals
Schneider LADN11, Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals Schneider LADN11, Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals Schneider LADN11, Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals

Schneider LADN11, Auxiliary contact block, TeSys D, 1NO + 1NC, front mounting, screw clamp terminals

In stock
SKU
LADN11
Special Price ₹254.00 Regular Price ₹635.00
(18% GST Extra)
Add to Wish List
  • Instantaneous auxiliary contact block for LC1D, LC1F contactors and CAD control relays
  • Provides 1NO + 1NC contacts (NC mirror certified), rated up to 10A/690V AC
  • Connection by screw clamp terminals
  • Clip-on front mounting with high reliability and durability
  • Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Range TeSys
TeSys Deca
Product name TeSys Deca
Product or component type Auxiliary contact block
Device short name LADN
Range compatibility TeSys D CAD
TeSys D LC1D
TeSys F LC1F
TeSys F CR1F
TeSys Deca CAD
TeSys Deca LC1D
Mounting location Front
Pole contact composition 1 NO + 1 NC
Contacts operation Instantaneous
[Ue] rated operational voltage 690 V AC 25...400 Hz
[Ie] rated operational current 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA
[Ith] conventional free air thermal current 10 A (at 60 °C)
Standards EN/IEC 60947-5-1
GB/T 14048.5
EN 50012
UL 60947-5-1
CSA C22.2 No 60947-5-1
IEC 60335-1:Clause 30.2
IEC 60335-2-40:Annex JJ
UL 60335-2-40:Annex JJ
Product certifications CB Scheme
UL
CSA
CCC
EAC
UKCA
Complementary
Irms rated making capacity 140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating 100 A 60 °C 1 s
120 A 60 °C 500 ms
140 A 60 °C 100 ms
Protection type GG fuse 10 A
Mechanical durability 30 Mcycles
Minimum switching current 5 mA
Minimum switching voltage 17 V
Non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance > 10 MOhm
Connections - terminals Screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm² flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm² flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm² rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm² rigid without cable end
Tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2
Height 48 mm
Width 26 mm
Depth 42 mm
Colour Dark grey
