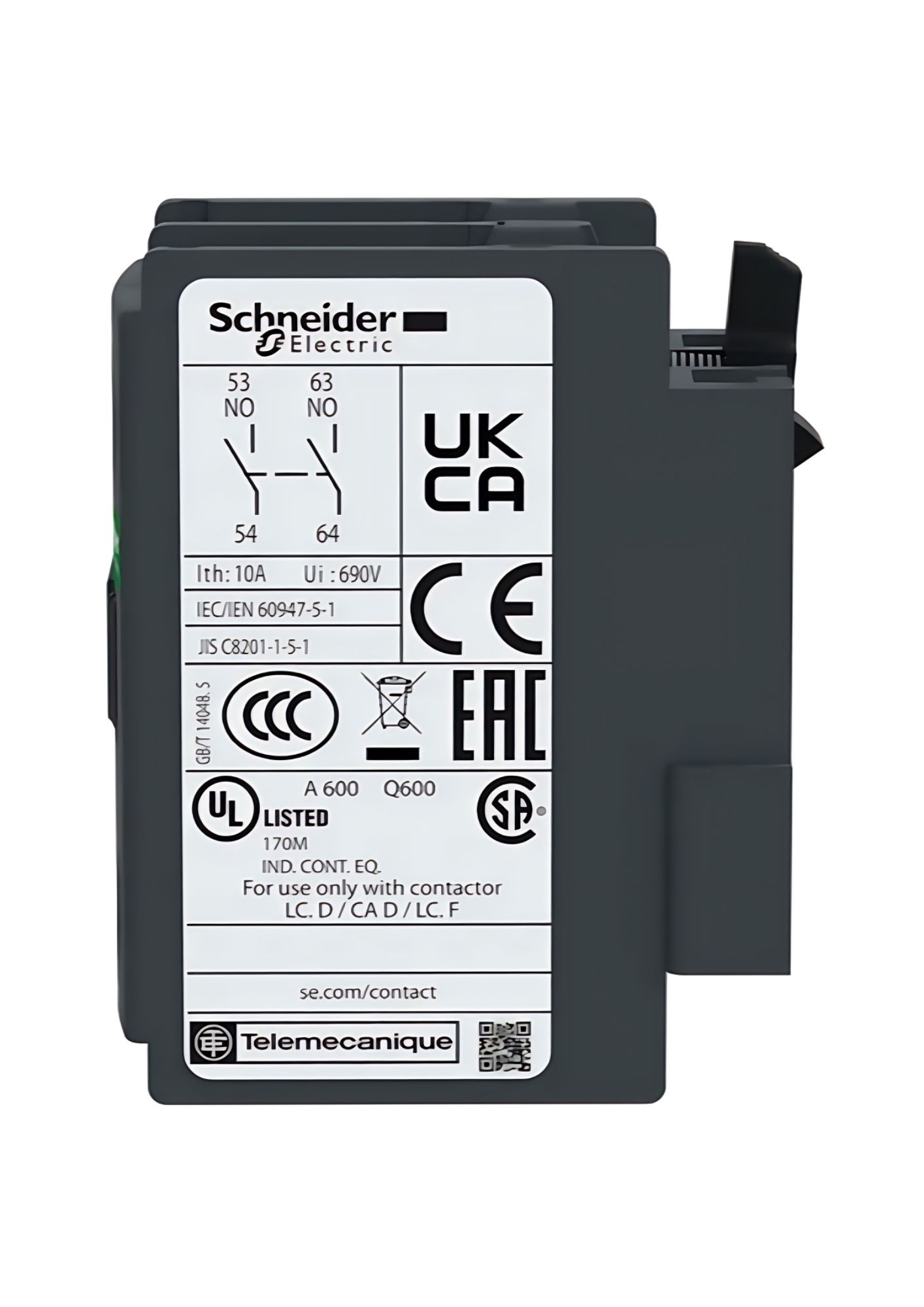

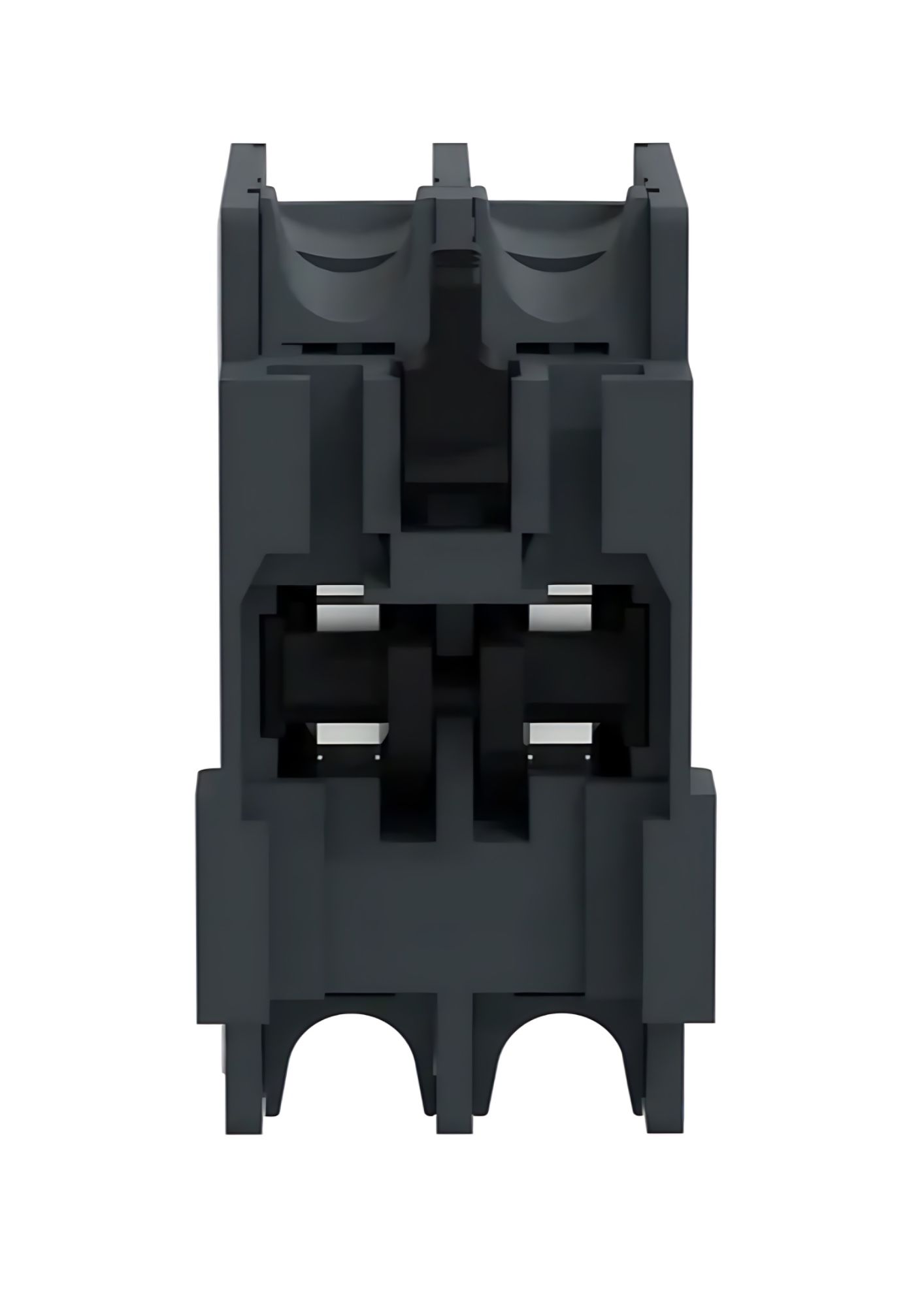

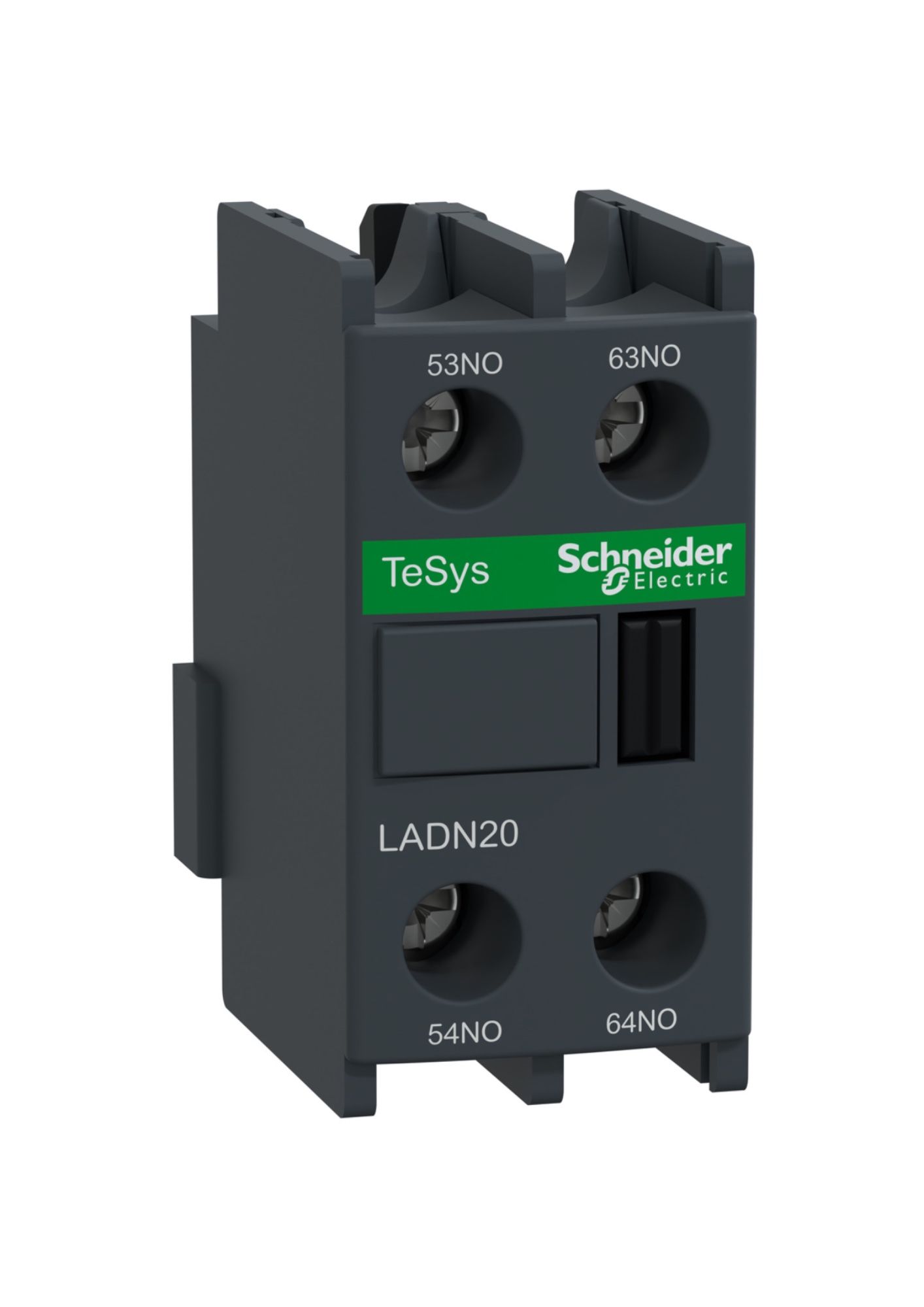

Schneider LADN20, Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals
Schneider LADN20, Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals Schneider LADN20, Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals Schneider LADN20, Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals

Schneider LADN20, Auxiliary contact block, TeSys D, 2NO, front mounting, screw clamp terminals

In stock
SKU
LADN20
Special Price ₹254.00 Regular Price ₹635.00
(18% GST Extra)
Add to Wish List
  • TeSys D instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD
  • Provides 2NO contacts rated up to 10A/690V AC
  • Connection by screw clamp terminals
  • Clip-on front mounting for high reliability and durability
  • Certified to IEC, UL, CSA, CCC, EAC standards and Green Premium compliant (RoHS/REACh)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeTeSys
Range of productTeSys Deca
Product nameTeSys Deca
Product or component typeAuxiliary contact block
Device short nameLADN
Range compatibility TeSys D CAD
TeSys D LC1D
TeSys F LC1F
TeSys F CR1F
TeSys Deca CAD
TeSys Deca LC1D
Mounting locationFront
Pole contact composition2 NO
Contacts operationInstantaneous
[Ue] rated operational voltage690 V AC 25...400 Hz
[Ie] rated operational current 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] rated insulation voltage 690 V conforming to IEC 60947-5-1
600 V conforming to UL
600 V conforming to CSA
[Ith] conventional free air thermal current10 A (at 60 °C)
Standards EN/IEC 60947-5-1
GB/T 14048.5
EN 50012
UL 60947-5-1
CSA C22.2 No 60947-5-1
IEC 60335-1:Clause 30.2
IEC 60335-2-40:Annex JJ
UL 60335-2-40:Annex JJ
Product certifications CB Scheme
UL
CSA
CCC
EAC
UKCA
Complementary
Irms rated making capacity140 A AC conforming to IEC 60947-5-1
250 A DC conforming to IEC 60947-5-1
Permissible short-time rating 100 A 60 °C 1 s
120 A 60 °C 500 ms
140 A 60 °C 100 ms
Protection typeGG fuse 10 A
Mechanical durability30 Mcycles
Minimum switching current5 mA
Minimum switching voltage17 V
Non-overlap time 1.5 ms on de-energisation no overlap between NC and NO contact
1.5 ms on energisation no overlap between NC and NO contact
Insulation resistance> 10 MOhm
Connections - terminals Screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end
Screw clamp terminals 1 cable(s) 1…4 mm² flexible without cable end
Screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Screw clamp terminals 2 cable(s) 1…4 mm² flexible without cable end
Screw clamp terminals 1 cable(s) 1…4 mm² rigid without cable end
Screw clamp terminals 2 cable(s) 1…4 mm² rigid without cable end
Tightening torque 1.7 N.m - with screwdriver flat Ø 6 mm
1.7 N.m - with screwdriver Philips No 2
1.7 N.m - with screwdriver pozidriv No 2
Height48 mm
Width26 mm
Depth42 mm

No specifications available for this product.
