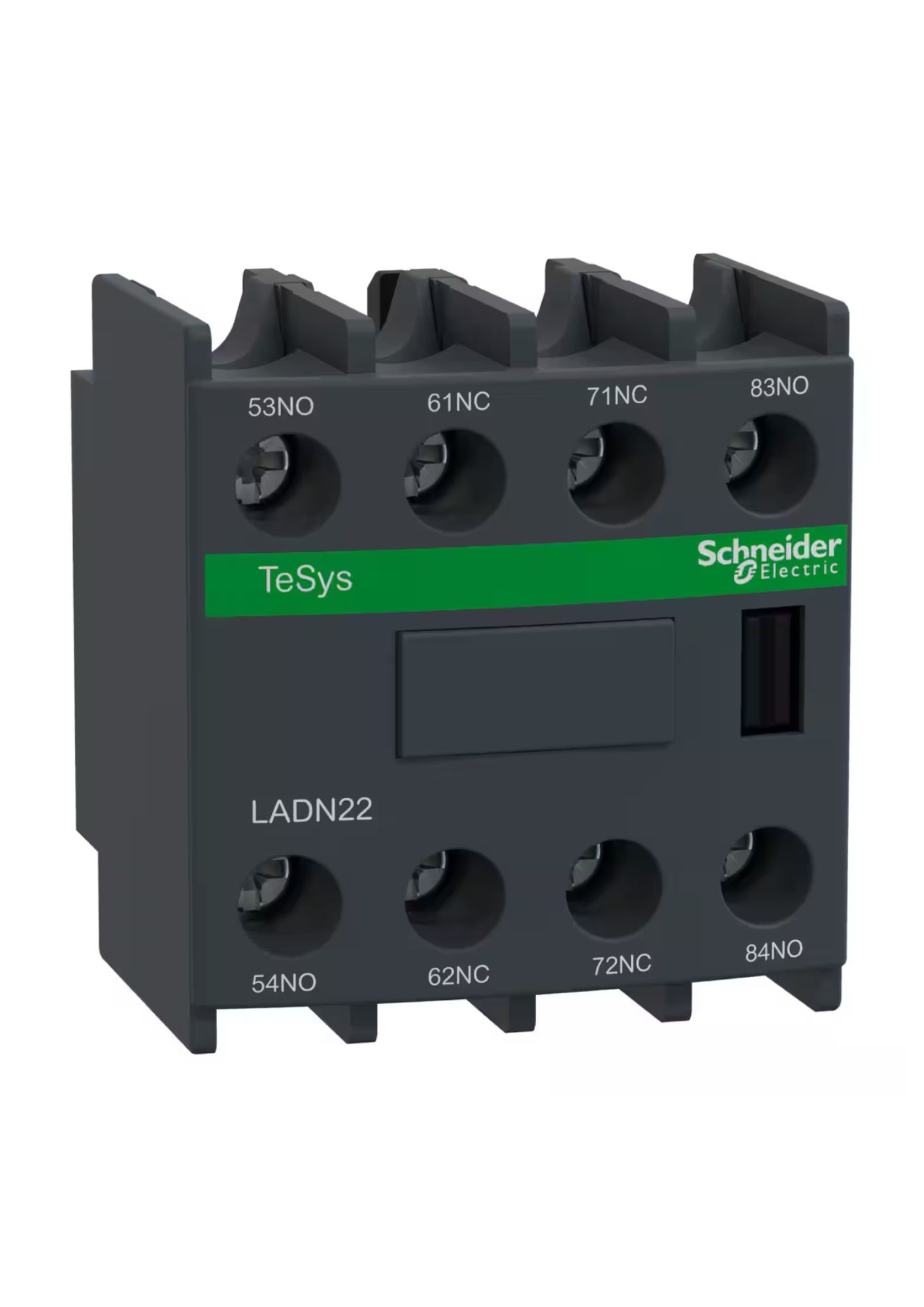

Schneider LADN22, Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals
Schneider LADN22, Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals Schneider LADN22, Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals Schneider LADN22, Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals

Schneider LADN22, Auxiliary contact block, TeSys D, 2NO + 2NC, front mounting, screw clamp terminals

In stock
SKU
LADN22
Special Price ₹462.00 Regular Price ₹1,155.00
(18% GST Extra)
Add to Wish List
  • TeSys D instantaneous auxiliary contact block for contactors LC1D, LC1F and control relays CAD
  • Provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC
  • Connection by screw clamp terminals
  • Clip-on front mounting ensuring high reliability and durability
  • Certified to IEC, UL, CSA, CCC, EAC and Green Premium compliant (RoHS/REACh)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

TeSys Deca - LADN Auxiliary Contact Block
Main
RangeTeSys, TeSys Deca
Product nameTeSys Deca
Product or component typeAuxiliary contact block
Device short nameLADN
Range compatibility TeSys D CAD
TeSys D LC1D
TeSys F LC1F
TeSys F CR1F
TeSys Deca CAD
TeSys Deca LC1D
Mounting locationFront
Pole contact composition2 NO + 2 NC
Contacts operationInstantaneous
[Ue] Rated operational voltage690 V AC 25...400 Hz
[Ie] Rated operational current 6 A at 120 V AC-15
1.04 A at 690 V AC-15
0.55 A at 125 V DC-13
0.1 A at 600 V DC-13
[Ui] Rated insulation voltage 690 V (IEC 60947-5-1)
600 V (UL)
600 V (CSA)
[Ith] Thermal current10 A (at 60 °C)
Standards EN/IEC 60947-5-1
GB/T 14048.5
EN 50012
UL 60947-5-1
CSA C22.2 No 60947-5-1
IEC 60335-1:Clause 30.2
IEC 60335-2-40:Annex JJ
UL 60335-2-40:Annex JJ
Product certificationsCB Scheme, UL, CSA, CCC, EAC, UKCA
Complementary
Irms rated making capacity140 A AC (IEC 60947-5-1)
250 A DC (IEC 60947-5-1)
Permissible short-time rating 100 A 60 °C 1 s
120 A 60 °C 500 ms
140 A 60 °C 100 ms
Protection typeGG fuse 10 A
Mechanical durability30 Mcycles
Minimum switching current5 mA
Minimum switching voltage17 V
Non-overlap time 1.5 ms on de-energisation (no overlap)
1.5 ms on energisation (no overlap)
Insulation resistance> 10 MΩ
Connections - terminals Screw clamp terminals 1 cable(s) 1…4 mm² flexible with/without end
Screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with end
Screw clamp terminals 2 cable(s) 1…4 mm² flexible without end
Screw clamp terminals 1 or 2 cable(s) 1…4 mm² rigid without end
Tightening torque 1.7 N·m (flat Ø 6 mm / Philips No 2 / Pozidriv No 2)
Height48 mm
Width44 mm
Depth42 mm
ColourDark grey
