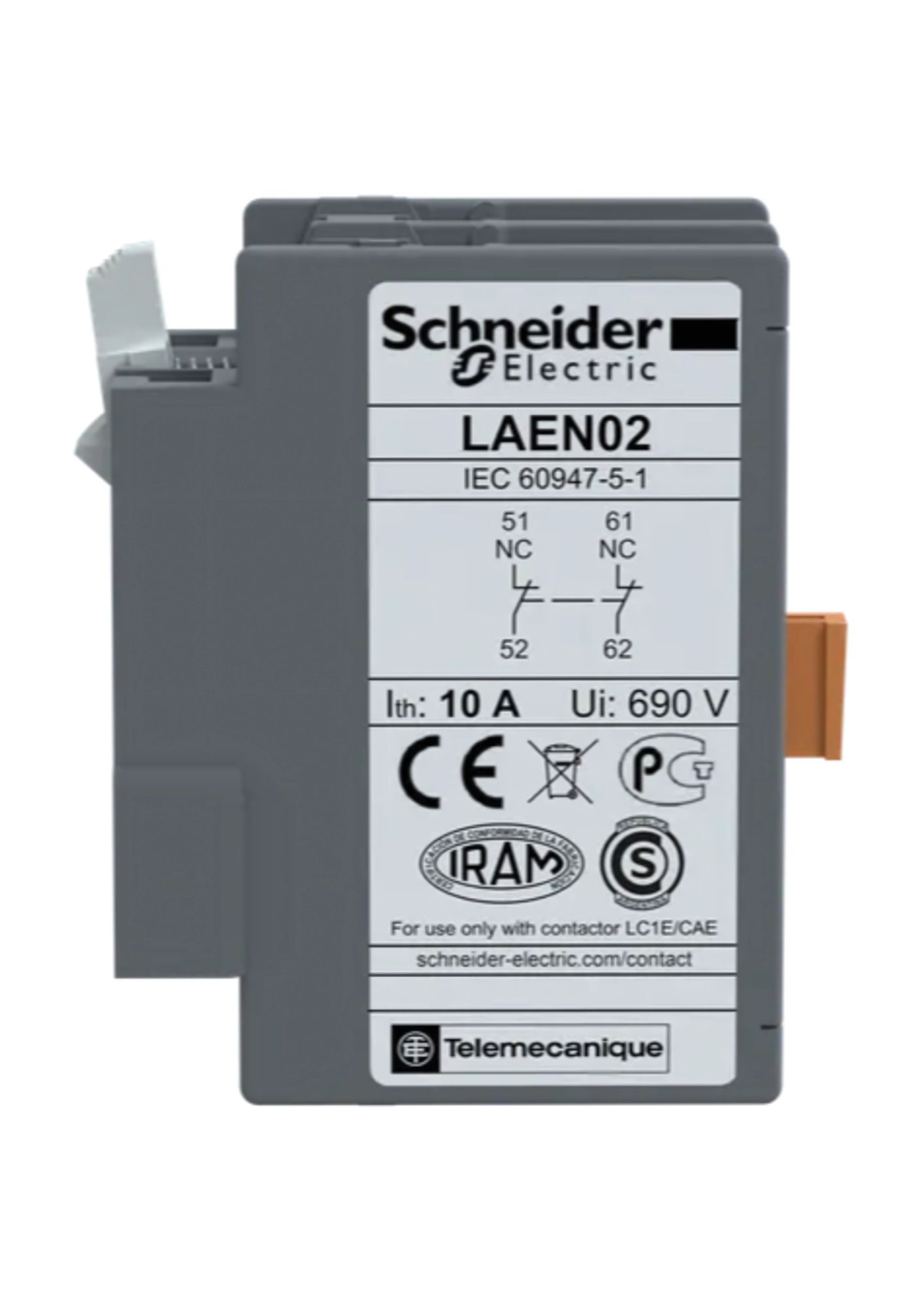

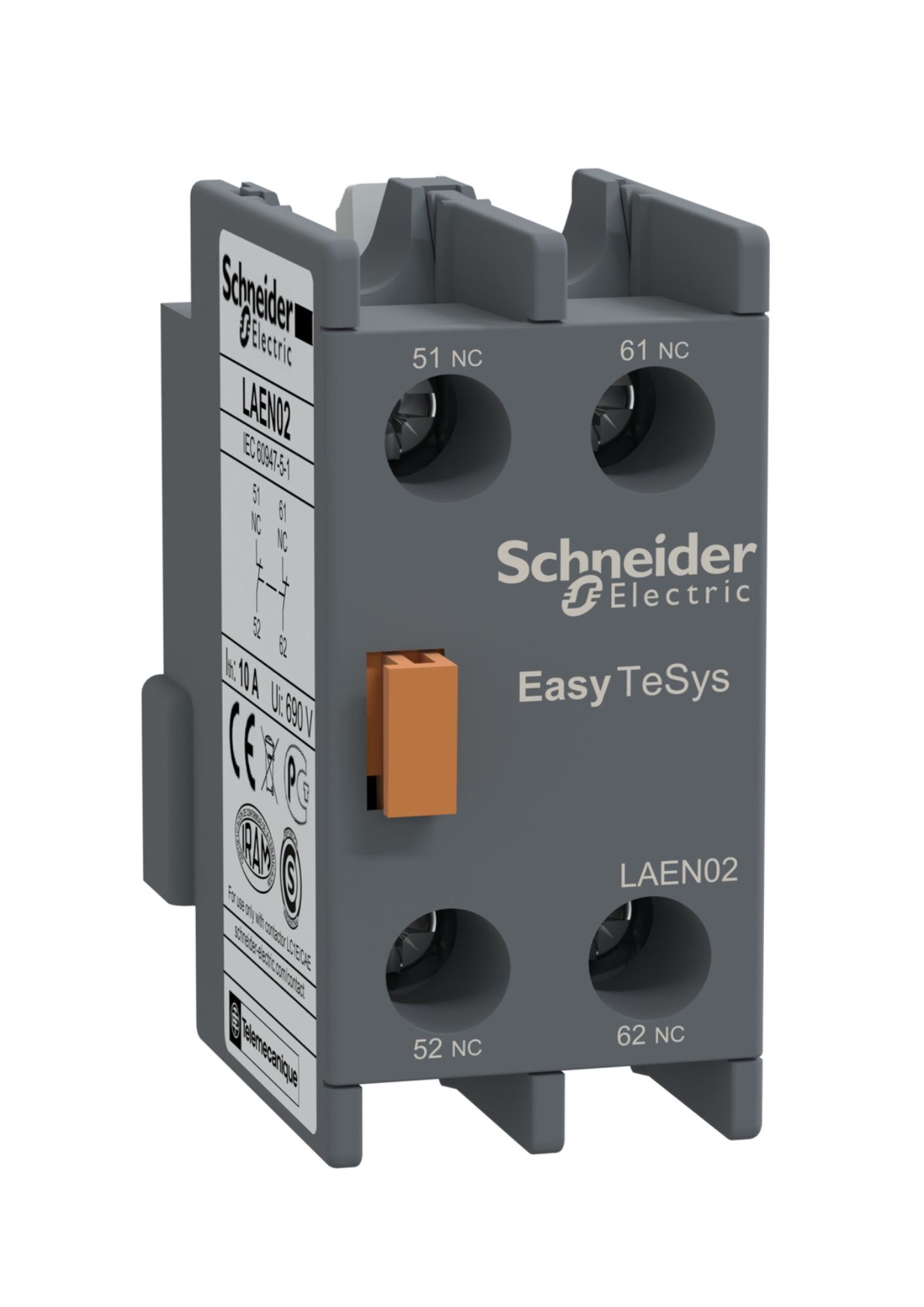

Schneider LAEN02, EasyPact TVS - auxiliary contact block - 2 NC - screw-clamps terminals
In stock
SKU
LAEN02
Special Price
₹220.35
Regular Price
₹565.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | Easy TeSys |
| Range of product | Easy TeSys Control |
| Product or component type | Auxiliary contact block |
| Device application | Signalling |
| Device short name | LAEN |
| Colour | Grey (RAL 7011) |
| Complementary | |
| Range compatibility | EasyPact EasyPact TVS LC1E |
| Mounting location | Front |
| Auxiliary contacts operation | Instantaneous |
| Pole contact composition | 2 NC |
| [Ui] rated insulation voltage | 690 V - for control circuit conforming to IEC 60947-5-1 |
| [Ue] rated operational voltage | <= 690 V |
| [Ith] conventional free air thermal current | 8 A (at 60 °C) |
| Irms rated making capacity | 140 A AC conforming to IEC 60947-5-1 |
| [Icw] rated short-time withstand current | 100 A - 1 s 120 A - 500 ms 140 A - 100 ms |
| Protection type | GG fuse 10 A |
| Mechanical durability | 10 Mcycles |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 17 V |
| Non-overlap time | 1.5 ms on energisation no overlap between NC and NO contact 1.5 ms on de-energisation no overlap between NC and NO contact |
| Insulation resistance | > 10 MOhm |
| Connections – terminals |
Control circuit: screw clamp terminals 1 × 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 1 × 1 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end Control circuit: screw clamp terminals 2 × 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible with cable end Control circuit: screw clamp terminals 2 × 2.5 mm² – external diameter: 6 mm – cable stiffness: solid or flexible without cable end |
