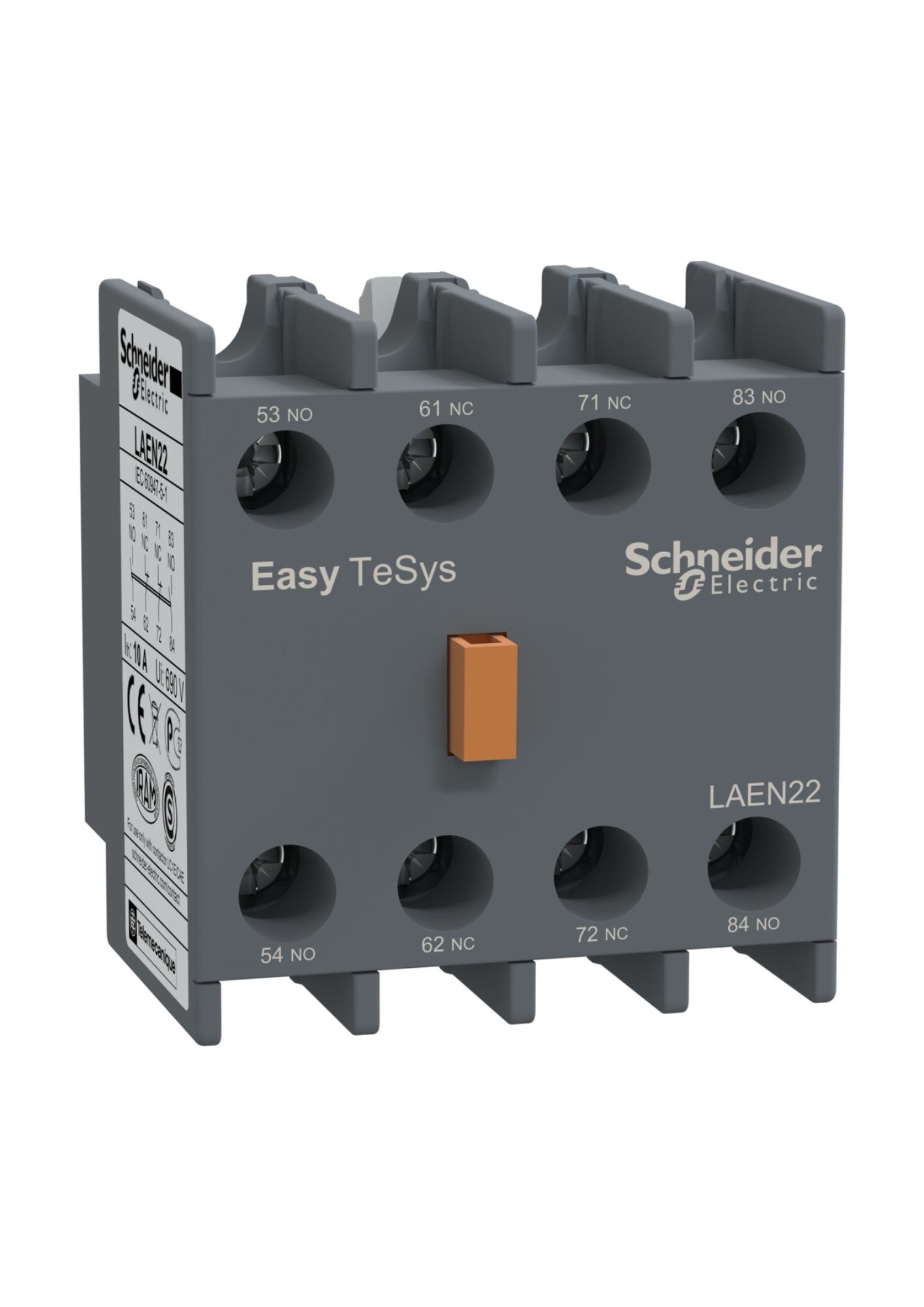

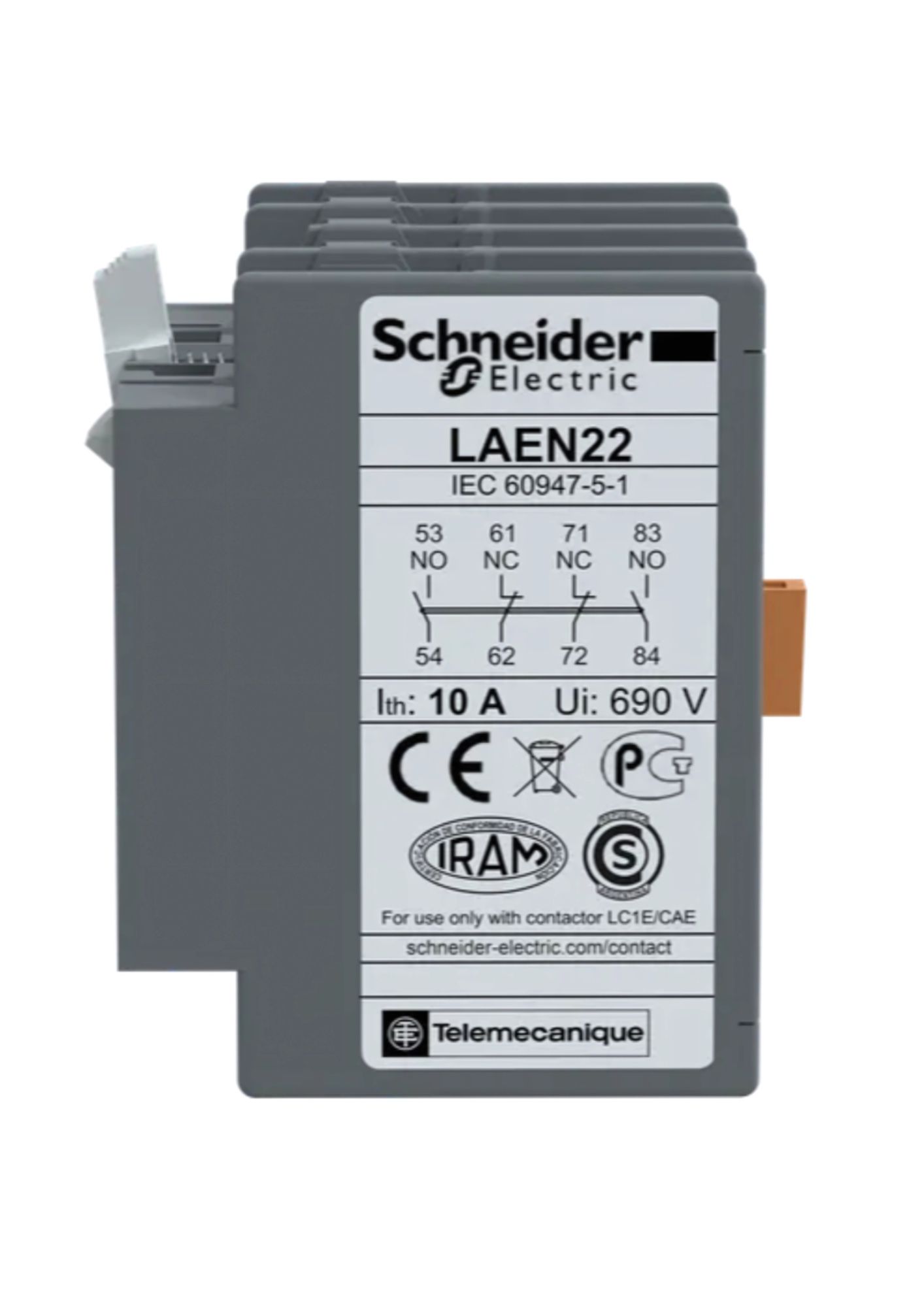

Schneider LAEN22, EasyPact TVS - auxiliary contact block - 2 NO + 2 NC - screw-clamps terminals
Schneider LAEN22, EasyPact TVS - auxiliary contact block - 2 NO + 2 NC - screw-clamps terminals Schneider LAEN22, EasyPact TVS - auxiliary contact block - 2 NO + 2 NC - screw-clamps terminals Schneider LAEN22, EasyPact TVS - auxiliary contact block - 2 NO + 2 NC - screw-clamps terminals

Schneider LAEN22, EasyPact TVS - auxiliary contact block - 2 NO + 2 NC - screw-clamps terminals

In stock
SKU
LAEN22
Special Price ₹339.30 Regular Price ₹870.00
(18% GST Extra)
Add to Wish List
  • Add-on auxiliary contact block for EasyPact TVS LC1E contactors.
  • Provides 2NO + 2NC instantaneous contacts rated up to 10A 690V AC with screw clamp terminals.
  • Can be used in safety applications thanks to NC certified mirror contacts.
  • Easy to mount on front by clip-on, ensuring high reliability and durability.
  • Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHS/REACH).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeEasy TeSys
Range of productEasy TeSys Control
Product or component typeAuxiliary contact block
Device applicationSignalling
Device short nameLAEN
ColourGrey (RAL 7011)
Complementary
Range compatibilityEasyPact EasyPact TVS LC1E
Mounting locationFront
Auxiliary contacts operationInstantaneous
Pole contact composition2 NO + 2 NC
[Ui] rated insulation voltage690 V - for control circuit conforming to IEC 60947-5-1
[Ue] rated operational voltage<= 690 V
[Ith] conventional free air thermal current8 A (at 60 °C)
Irms rated making capacity140 A AC conforming to IEC 60947-5-1
[Icw] rated short-time withstand current 100 A - 1 s
120 A - 500 ms
140 A - 100 ms
Protection typeGG fuse 10 A
Mechanical durability10 Mcycles
Minimum switching current5 mA
Minimum switching voltage17 V
Non-overlap time 1.5 ms on energisation no overlap between NC and NO contact
1.5 ms on de-energisation no overlap between NC and NO contact
Insulation resistance> 10 MOhm
Connections – terminals Control circuit: screw clamp terminals 1 × 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end
Control circuit: screw clamp terminals 1 × 1 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end
Control circuit: screw clamp terminals 2 × 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible with cable end
Control circuit: screw clamp terminals 2 × 2.5 mm² - external diameter: 6 mm - cable stiffness: solid or flexible without cable end

No specifications available for this product.
