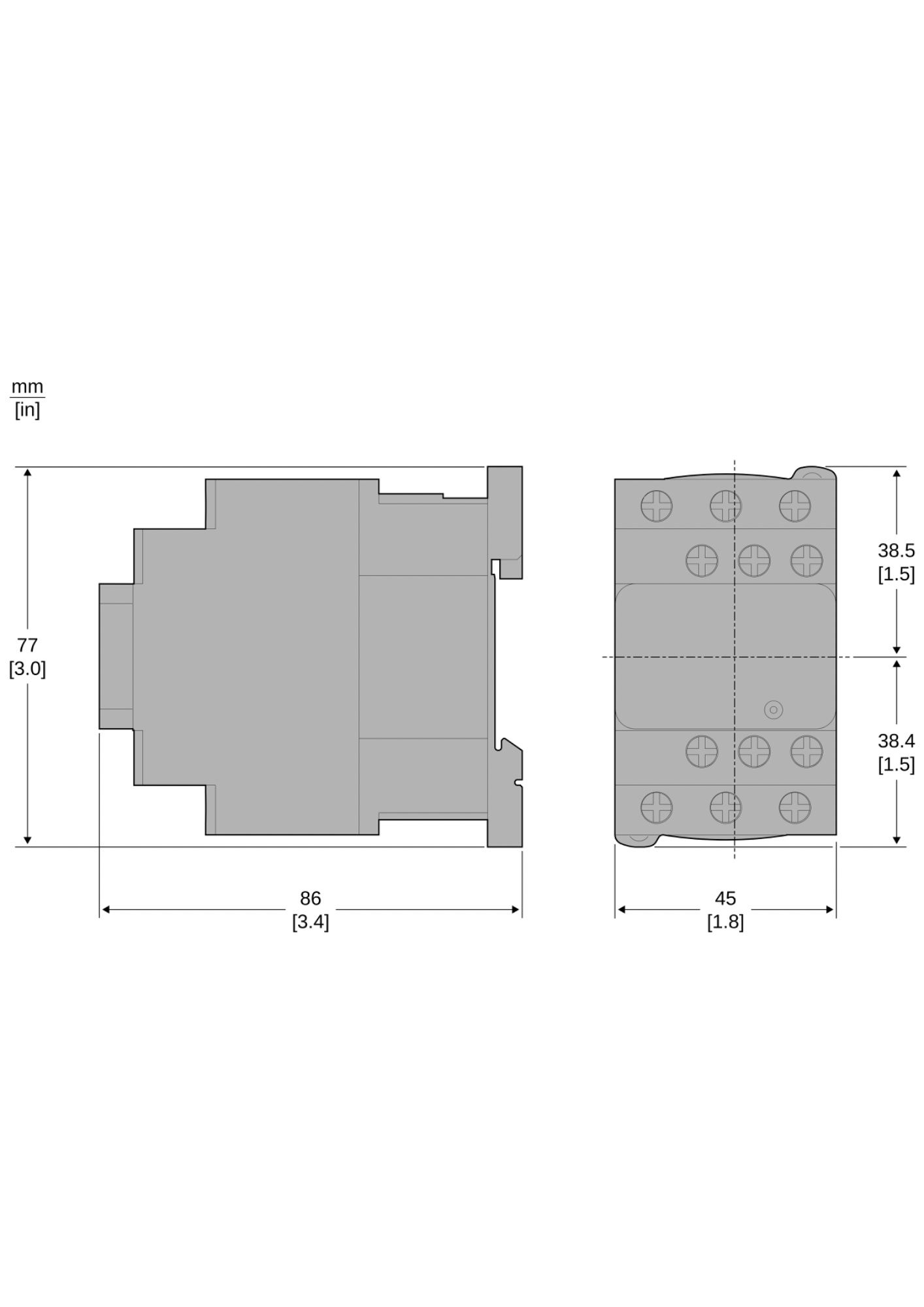

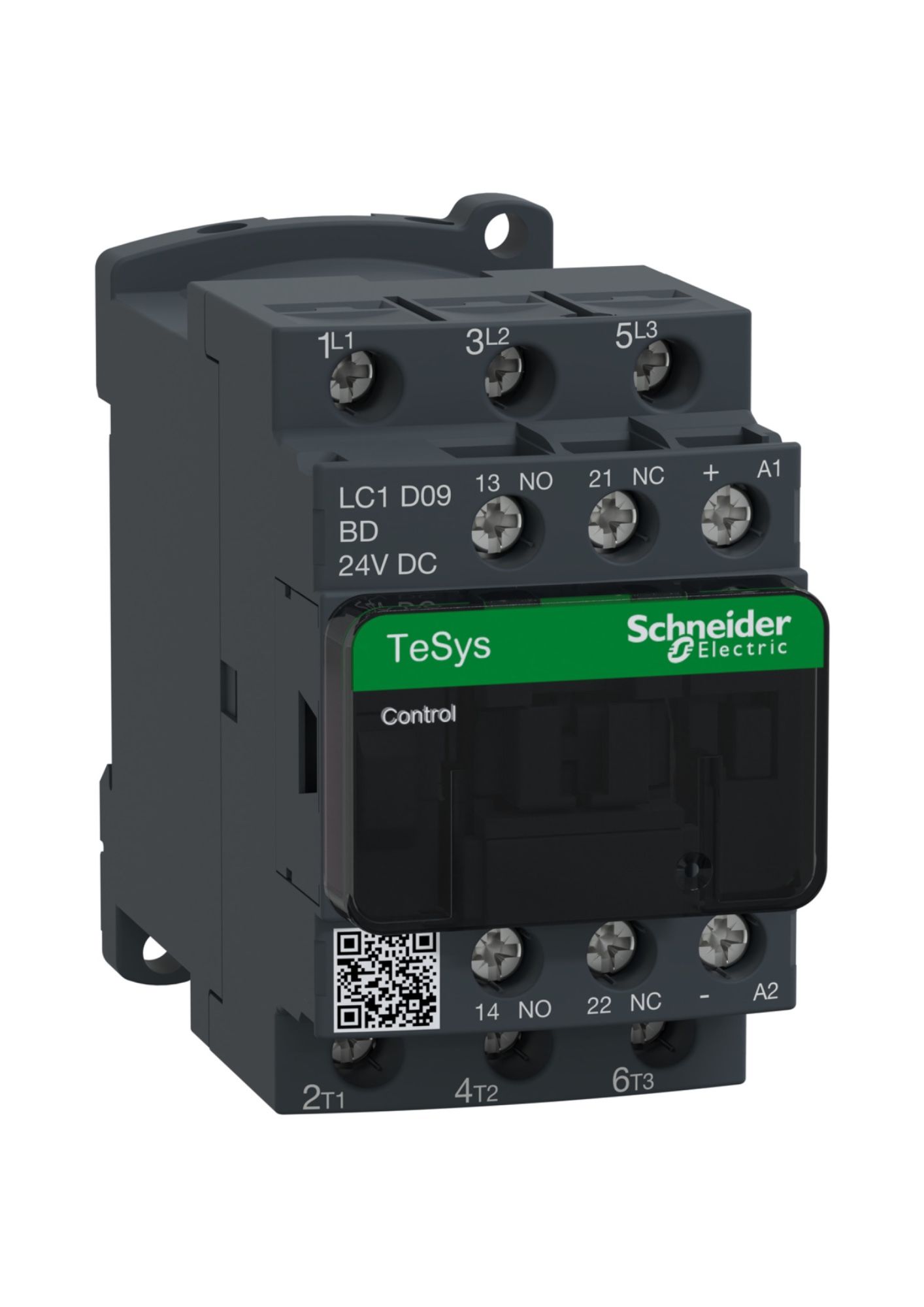

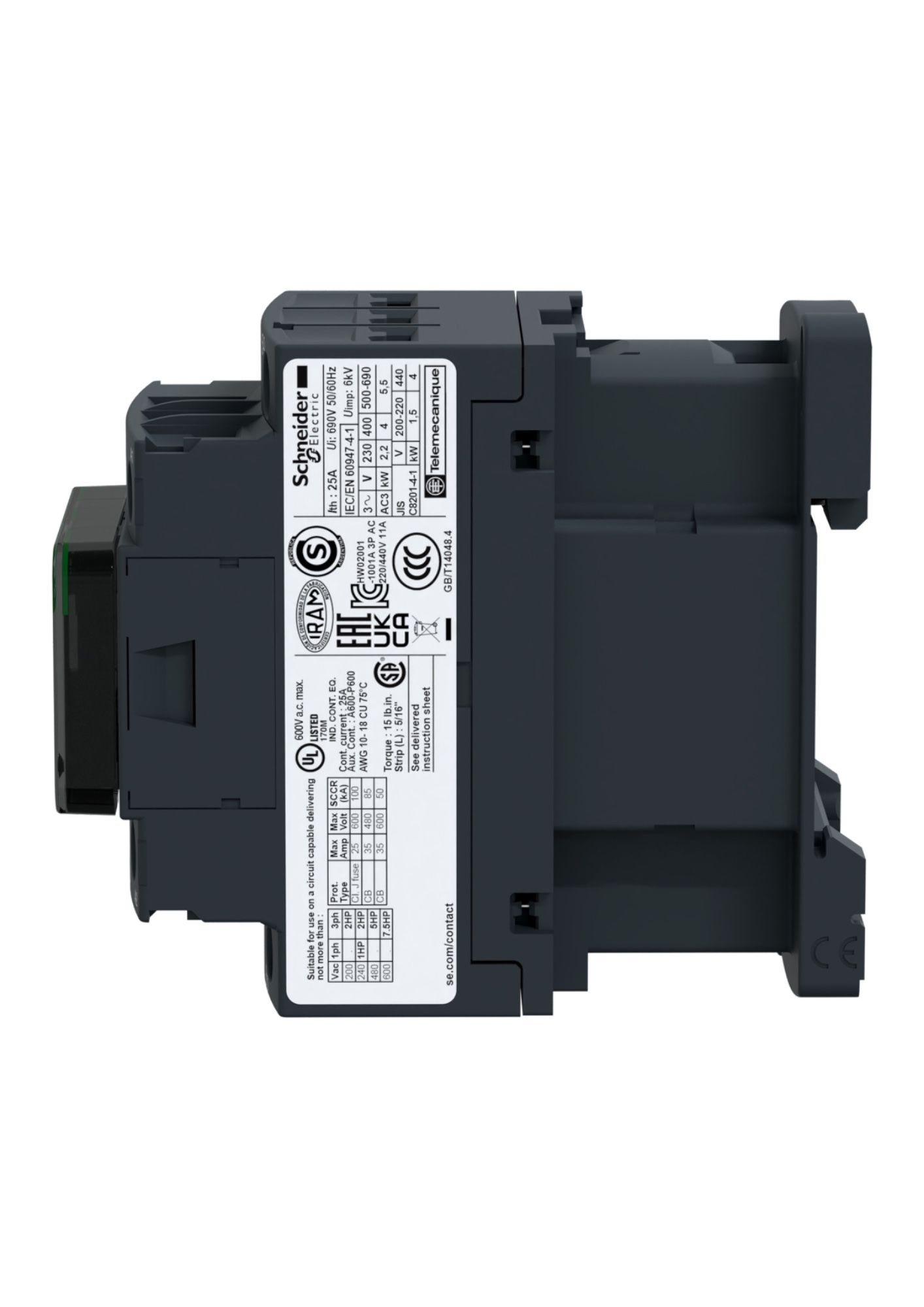

Schneider LC1D09BL, TeSys D contactor - 3P, 440V, 9 A, 24 V DC coil
In stock
SKU
LC1D09BL
Special Price
₹1,488.00
Regular Price
₹3,720.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment

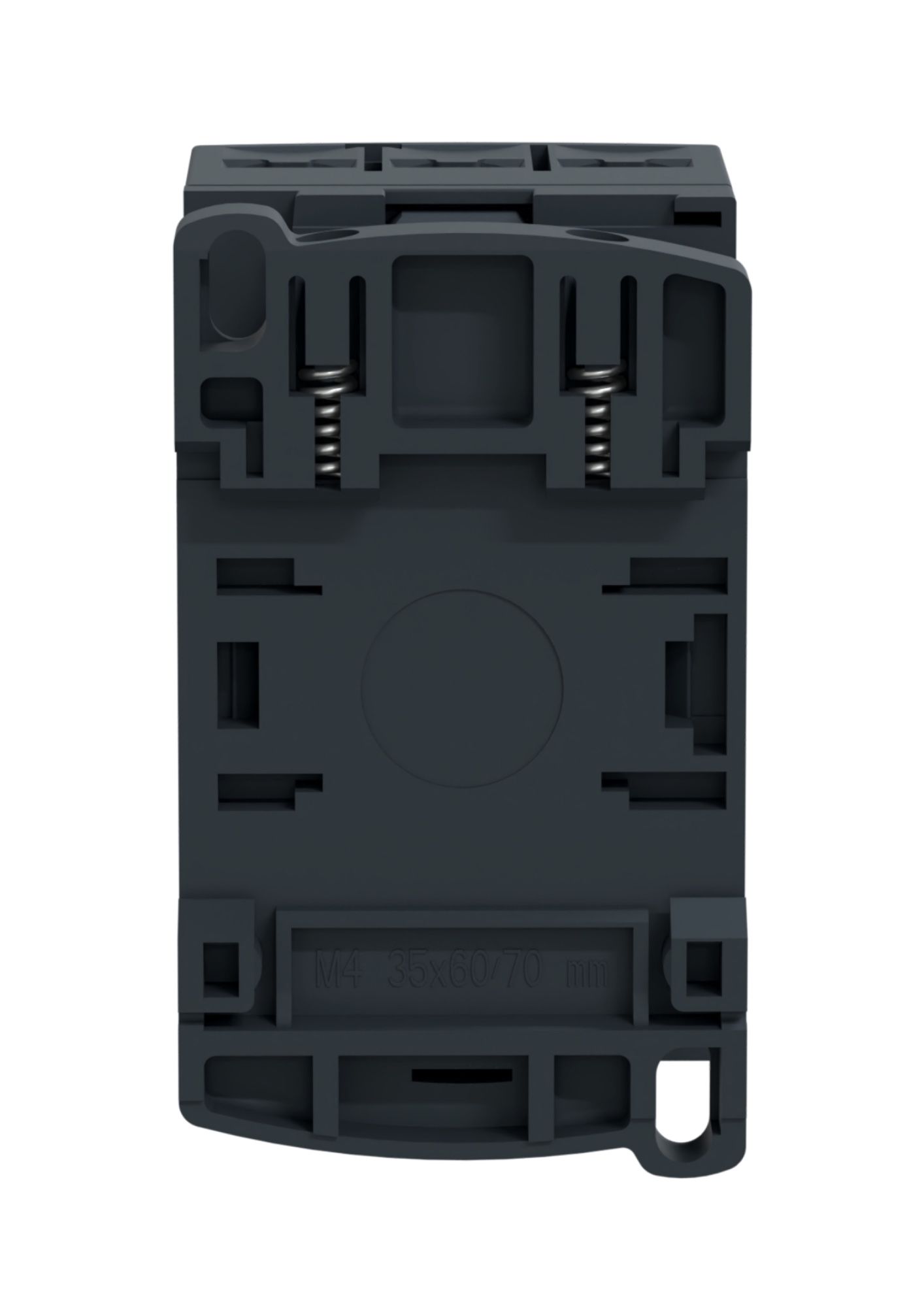

| Main | |
|---|---|
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Device short name | LC1D |
| Contactor application | Resistive load, Motor control |
| Utilisation category | AC-1, AC-3, AC-3e, AC-4 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 25...400 Hz, <= 300 V DC |
| [Ie] rated operational current | 9 A AC-3, 25 A AC-1, 9 A AC-3e (at <= 440 V, <60 °C) |
| [Uc] control circuit voltage | 24 V DC |
| Complementary | |
| Motor power kW | 2.2 kW to 5.5 kW depending on voltage and utilisation category |
| Motor power hp | 0.33 hp to 7.5 hp depending on voltage and phases |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current | 25 A power circuit, 10 A signalling circuit (at 60 °C) |
| Irms rated making capacity | 250 A power circuit, 140 A AC signalling, 250 A DC signalling |
| Rated breaking capacity | 250 A at 440 V for power circuit |
| [Icw] rated short-time withstand current | Various values depending on circuit and time (see datasheet) |
| Associated fuse rating | 10 A gG signalling, 20-25 A gG power circuit |
| Average impedance | 2.5 mOhm - Ith 25 A 50 Hz (power circuit) |
| Power dissipation per pole | 1.56 W AC-1, 0.2 W AC-3, 0.2 W AC-3e |
| [Ui] rated insulation voltage | Power circuit: 690 V IEC, 600 V CSA/UL; Signalling: 690 V IEC, 600 V CSA/UL |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV IEC 60947 |
| Safety reliability level | B10d = 1,369,863 cycles contactor with nominal load, 20,000,000 cycles mechanical load |
| Mechanical durability | 30 Mcycles |
| Electrical durability | 0.6–2 Mcycles depending on category |
| Control circuit type | DC low consumption |
| Coil technology | Built-in bidirectional peak limiting diode suppressor |
| Control circuit voltage limits | 0.1–1.25 Uc depending on temperature |
| Inrush power | 2.4 W at 20 °C |
| Hold-in power consumption | 2.4 W at 20 °C |
| Operating time | 77 ±15 % ms closing, 25 ±20 % ms opening |
| Time constant | 40 ms |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections - terminals | Screw clamp terminals 1–2, 1–4 mm², flexible/solid, with/without cable end |
| Tightening torque | 1.7 N.m for all terminals with standard screwdrivers |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type | Mechanically linked or mirror contact, IEC compliant |
| Signalling circuit frequency | 25–400 Hz |
| Minimum switching voltage/current | 17 V / 5 mA for signalling circuit |
| Insulation resistance | >10 MOhm for signalling circuit |
| Non-overlap time | 1.5 ms on energisation/de-energisation between NC and NO |
| Mounting support | Screw, Rail |
