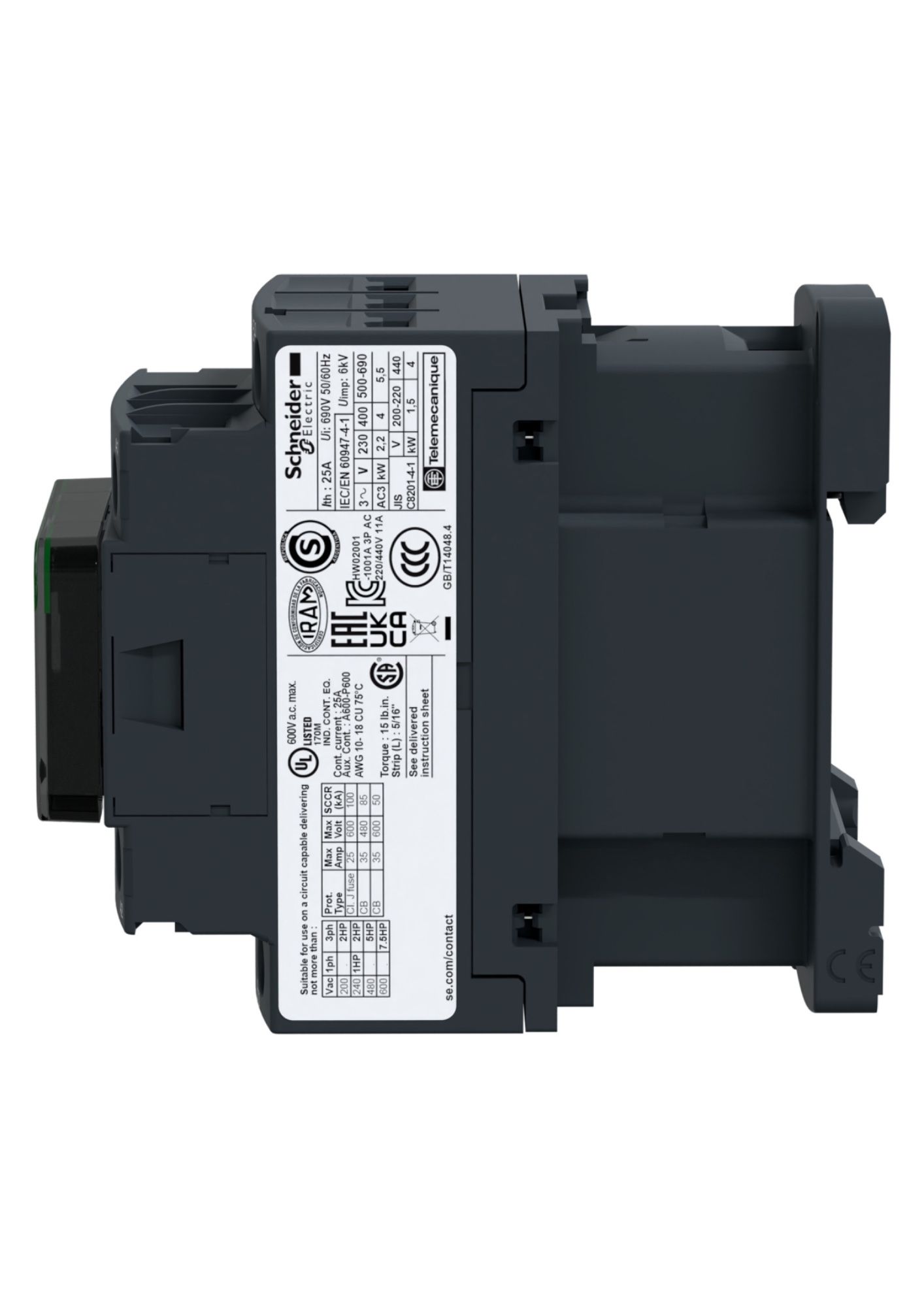

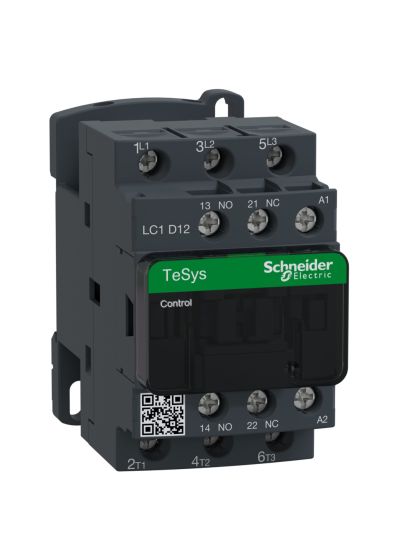

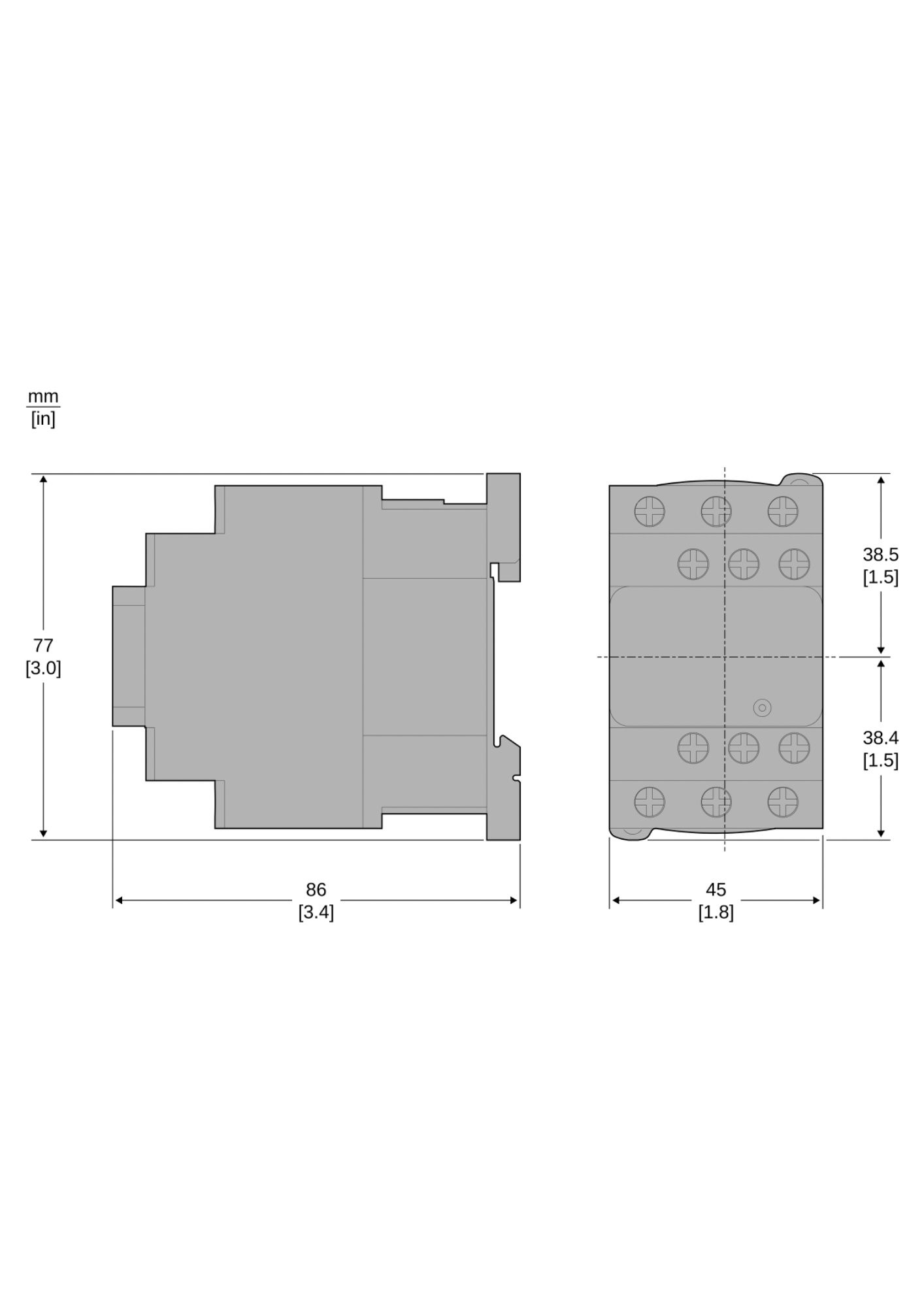

Schneider LC1D12M7, TeSys D contactor - 3P, 440V, 12 A, 220V AC coil
In stock
SKU
LC1D12M7
Special Price
₹962.00
Regular Price
₹2,405.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
| Range of product | TeSys Deca |
| Product or component type | Contactor |
| Device short name | LC1D |
| Contactor application |
Resistive load Motor control |
| Utilisation category |
AC-4 AC-1 AC-3 AC-3e |
| Poles description | 3P |
| [Ue] rated operational voltage |
Power circuit: <= 690 V AC 25...400 Hz Power circuit: <= 300 V DC |
| [Ie] rated operational current |
25 A (at <60 °C) at <= 440 V AC AC-1 for power circuit 12 A (at <60 °C) at <= 440 V AC AC-3 for power circuit 12 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| [Uc] control circuit voltage | 220 V AC 50/60 Hz |
| Complementary | |
| Motor power kW |
3 kW at 220...230 V AC 50/60 Hz (AC-3) 5.5 kW at 380...400 V AC 50/60 Hz (AC-3) 5.5 kW at 415...440 V AC 50/60 Hz (AC-3) 7.5 kW at 500 V AC 50/60 Hz (AC-3) 7.5 kW at 660...690 V AC 50/60 Hz (AC-3) 3.7 kW at 400 V AC 50/60 Hz (AC-4) 3 kW at 220...230 V AC 50/60 Hz (AC-3e) 5.5 kW at 380...400 V AC 50/60 Hz (AC-3e) 5.5 kW at 415...440 V AC 50/60 Hz (AC-3e) 7.5 kW at 500 V AC 50/60 Hz (AC-3e) 7.5 kW at 660...690 V AC 50/60 Hz (AC-3e) |
| Motor power hp |
0.5 hp at 115 V AC 50/60 Hz for 1 phase motors 2 hp at 230/240 V AC 50/60 Hz for 1 phase motors 3 hp at 200/208 V AC 50/60 Hz for 3 phases motors 3 hp at 230/240 V AC 50/60 Hz for 3 phases motors 7.5 hp at 460/480 V AC 50/60 Hz for 3 phases motors 10 hp at 575/600 V AC 50/60 Hz for 3 phases motors |
| Compatibility code | LC1D |
| Pole contact composition | 3 NO |
| Protective cover | With |
| [Ith] conventional free air thermal current |
25 A (at 60 °C) for power circuit 10 A (at 60 °C) for signalling circuit |
| Irms rated making capacity |
250 A at 440 V for power circuit conforming to IEC 60947 140 A AC for signalling circuit conforming to IEC 60947-5-1 250 A DC for signalling circuit conforming to IEC 60947-5-1 |
| Rated breaking capacity | 250 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current |
105 A 40 °C - 10 s for power circuit 210 A 40 °C - 1 s for power circuit 30 A 40 °C - 10 min for power circuit 61 A 40 °C - 1 min for power circuit 100 A - 1 s for signalling circuit 120 A - 500 ms for signalling circuit 140 A - 100 ms for signalling circuit |
| Associated fuse rating |
10 A gG for signalling circuit conforming to IEC 60947-5-1 40 A gG at <= 690 V coordination type 1 for power circuit 25 A gG at <= 690 V coordination type 2 for power circuit |
| Average impedance | 2.5 mΩ — Ith 25 A 50 Hz for power circuit |
| Power dissipation per pole |
0.36 W AC-3 1.56 W AC-1 0.36 W AC-3e |
| [Ui] rated insulation voltage |
Power circuit: 690 V conforming to IEC 60947-4-1 Power circuit: 600 V CSA certified Power circuit: 600 V UL certified Signalling circuit: 690 V conforming to IEC 60947-1 Signalling circuit: 600 V CSA certified Signalling circuit: 600 V UL certified |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV conforming to IEC 60947 |
| Safety reliability level |
B10d = 1,369,863 cycles contactor with nominal load conforming to EN/ISO 13849-1 B10d = 20,000,000 cycles contactor with mechanical load conforming to EN/ISO 13849-1 |
| Mechanical durability | 15 Mcycles |
| Electrical durability |
2 Mcycles 12 A AC-3 at Ue <= 440 V 0.8 Mcycles 25 A AC-1 at Ue <= 440 V 2 Mcycles 12 A AC-3e at Ue <= 440 V |
| Control circuit type | AC at 50/60 Hz standard |
| Coil technology | Without built-in suppressor module |
| Control circuit voltage limits |
0.3...0.6 Uc (-40…70 °C): drop-out AC 50/60 Hz 0.8...1.1 Uc (-40…60 °C): operational AC 50 Hz 0.85...1.1 Uc (-40…60 °C): operational AC 60 Hz 1...1.1 Uc (60…70 °C): operational AC 50/60 Hz |
| Inrush power in VA |
70 VA 60 Hz cos ϕ 0.75 (at 20 °C) 70 VA 50 Hz cos ϕ 0.75 (at 20 °C) |
| Hold-in power consumption in VA |
7.5 VA 60 Hz cos ϕ 0.3 (at 20 °C) 7 VA 50 Hz cos ϕ 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W at 50/60 Hz |
| Operating time | 12...22 ms closing | 4...19 ms opening |
| Maximum operating rate | 3600 cyc/h at 60 °C |
| Connections — terminals |
Power circuit: screw clamp terminals 1 × 1…4 mm² — flexible without cable end Power circuit: screw clamp terminals 2 × 1…4 mm² — flexible without cable end Power circuit: screw clamp terminals 1 × 1…4 mm² — flexible with cable end Power circuit: screw clamp terminals 2 × 1…2.5 mm² — flexible with cable end Power circuit: screw clamp terminals 1 × 1…4 mm² — solid without cable end Power circuit: screw clamp terminals 2 × 1…4 mm² — solid without cable end Control circuit: screw clamp terminals 1 × 1…4 mm² — flexible without cable end Control circuit: screw clamp terminals 2 × 1…4 mm² — flexible without cable end Control circuit: screw clamp terminals 1 × 1…4 mm² — flexible with cable end Control circuit: screw clamp terminals 2 × 1…2.5 mm² — flexible with cable end Control circuit: screw clamp terminals 1 × 1…4 mm² — solid without cable end Control circuit: screw clamp terminals 2 × 1…4 mm² — solid without cable end |
| Tightening torque |
Power circuit: 1.7 N·m — screwdriver flat Ø 6 mm Power circuit: 1.7 N·m — screwdriver Philips No 2 Control circuit: 1.7 N·m — screwdriver flat Ø 6 mm Control circuit: 1.7 N·m — screwdriver Philips No 2 Control circuit: 1.7 N·m — screwdriver Pozidriv No 2 Power circuit: 1.7 N·m — screwdriver Pozidriv No 2 |
| Auxiliary contact composition | 1 NO + 1 NC |
| Auxiliary contacts type |
type mechanically linked 1 NO + 1 NC conforming to IEC 60947-5-1 type mirror contact 1 NC conforming to IEC 60947-4-1 |
| Signalling circuit frequency | 25...400 Hz |
| Minimum switching voltage / current | 17 V and 5 mA for signalling circuit |
| Insulation resistance | > 10 MΩ for signalling circuit |
| Non-overlap time |
1.5 ms on de-energisation between NC and NO contact 1.5 ms on energisation between NC and NO contact |

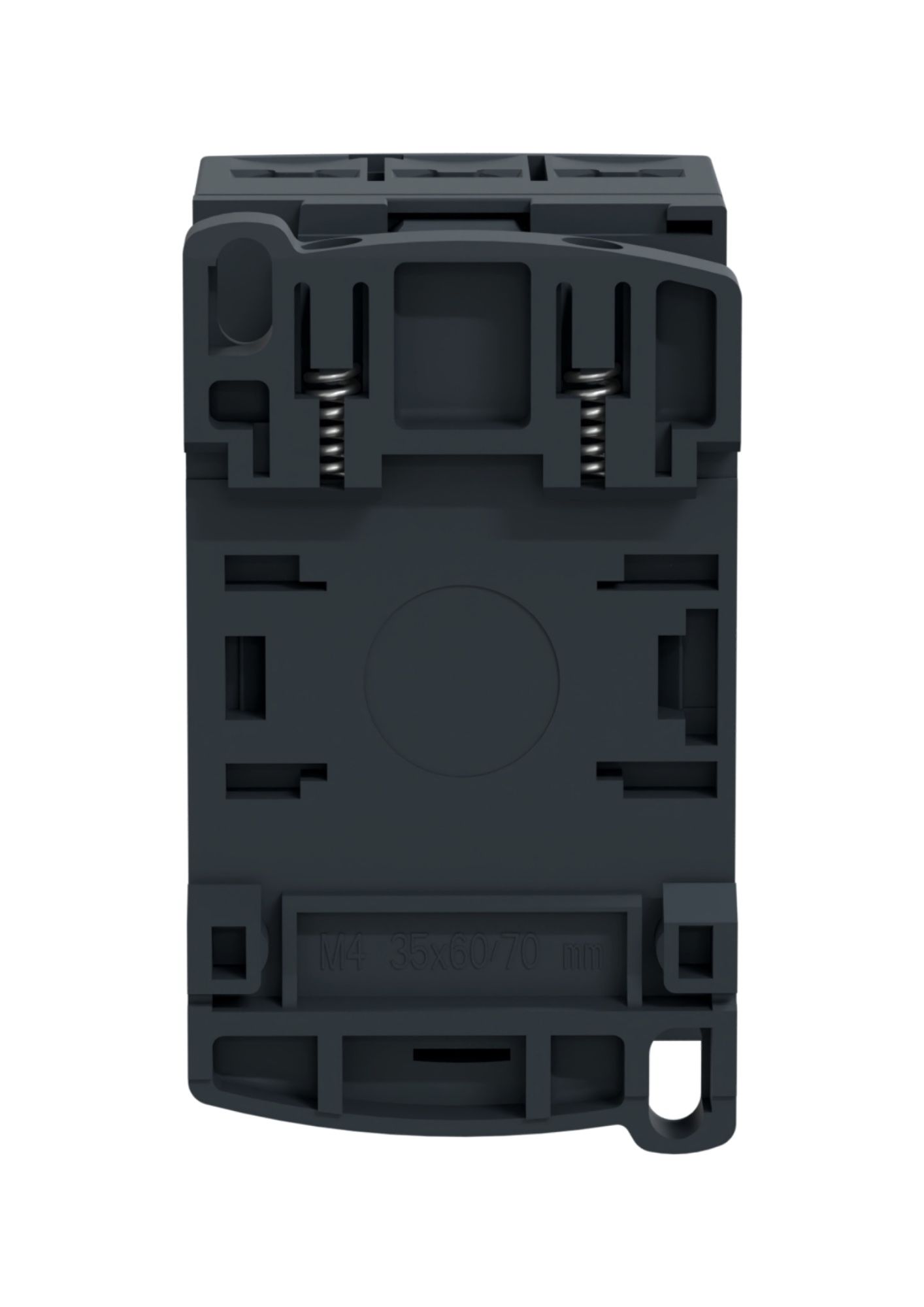

| Mounting support | DIN Rail Screw |
