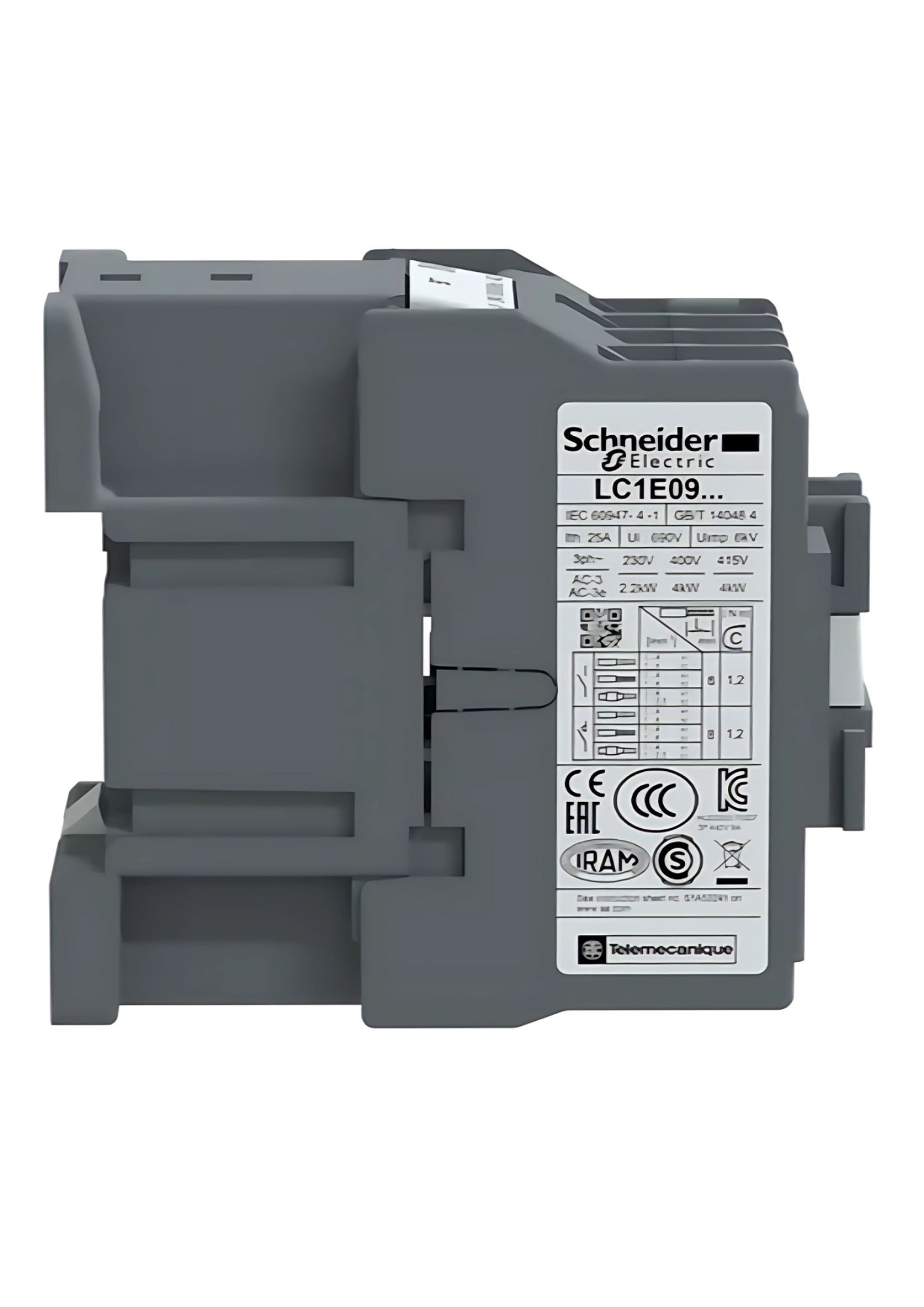

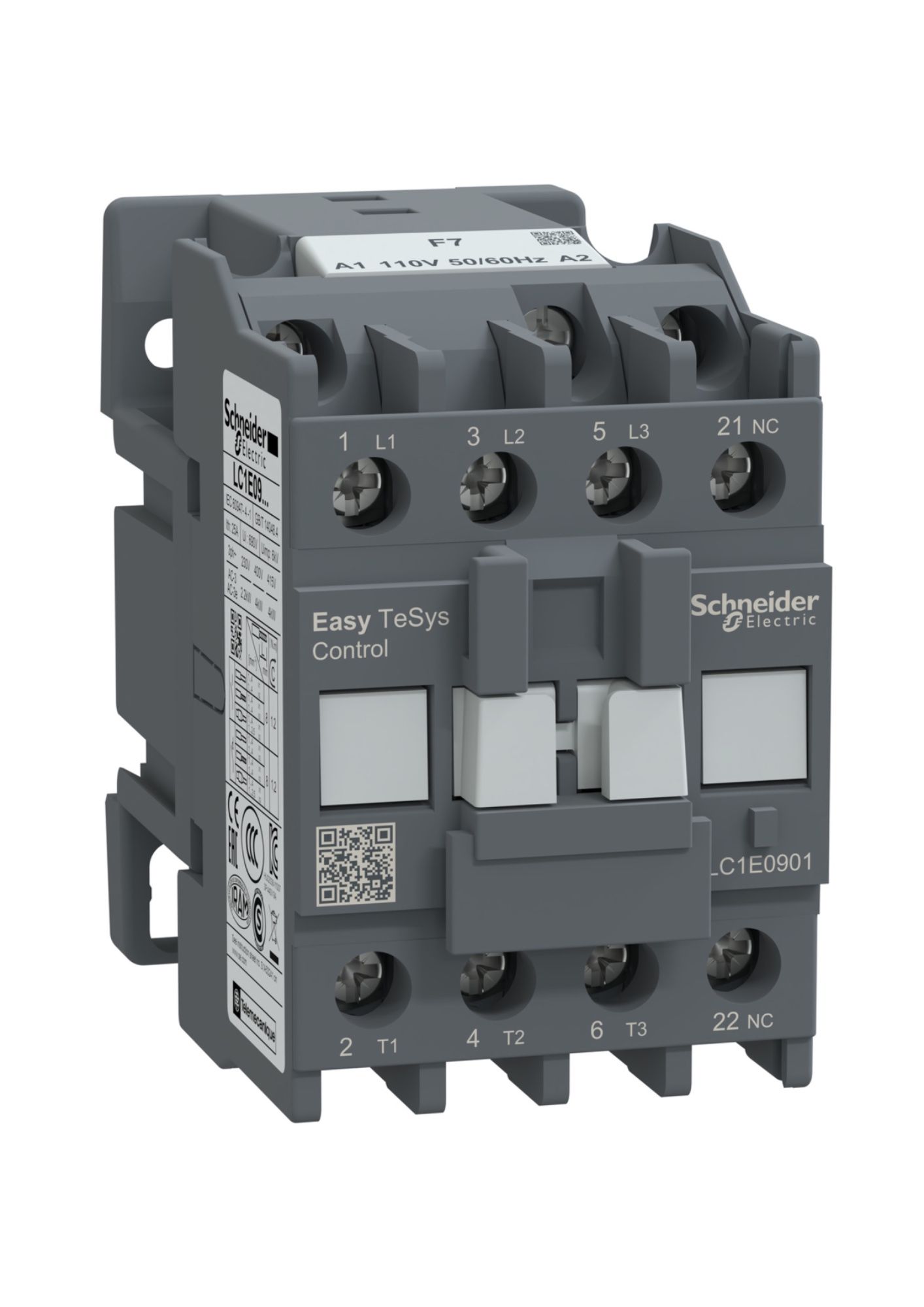

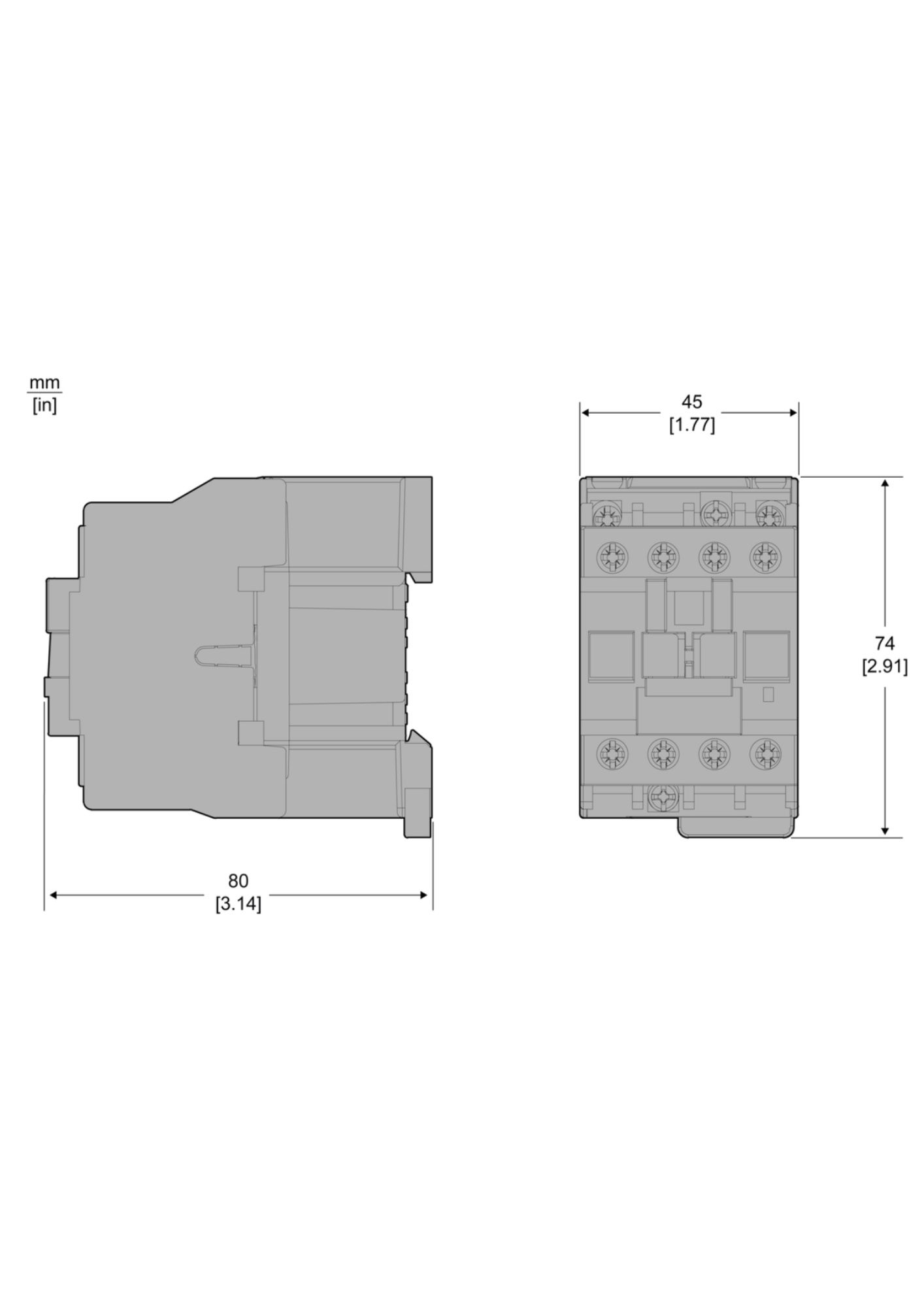

Schneider LC1E0901F7, Easy TeSys contactor 3P, 440V, 9A, 110V AC coil
In stock
SKU
LC1E0901F7
Special Price
₹631.80
Regular Price
₹1,620.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | Easy TeSys |
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current |
9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 9 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 110 V AC 50/60 Hz |
| Complementary | |
| Motor power kW |
2.2 kW at 220/230 V AC 50/60 Hz 4 kW at 380/400 V AC 4 kW at 415/440 V AC 4 kW at 500 V AC 4 kW at 660/690 V AC 5.5 kW at 660...690 V |
| Pole contact composition | 3 NO |
| [Ith] conventional free air thermal current | 25 A (at 55 °C) for power circuit |
| Irms rated making capacity | 117 A at 440 V AC for power circuit conforming to IEC 60947-4-1 |
| Rated breaking capacity | 76.5 A at 440 V for power circuit conforming to IEC 60947 |
| [Icw] rated short-time withstand current |
105 A 40 °C - 10 s for power circuit 61 A 40 °C - 60 s for power circuit 30 A 40 °C - 600 s for power circuit |
| Associated fuse rating |
10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1 20 A gG at <= 690 V coordination type 1 for power circuit |
| Average impedance | 2.5 mOhm - Ith 25 A 50 Hz for power circuit |
| Power dissipation per pole | 0.2 W AC-3 1.6 W AC-1 |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| Overvoltage category | III |
| Pollution degree | 3 |
| [Uimp] rated impulse withstand voltage | 6 kV coil not connected to the power circuit conforming to IEC 60947 |
| Mechanical durability | 10000000 cycles |
| Electrical durability |
1400000 cycles AC-3 150000 cycles AC-1 |
| Control circuit type | AC at 50/60 Hz |
| Control circuit voltage limits |
0.85...1.1 Uc (-5…55 °C): operational 50/60 Hz 0.3...0.6 Uc (-5…55 °C): drop-out 50/60 Hz |
| Inrush power in VA |
95 VA 50 Hz cos φ 0.75 (at 20 °C) 95 VA 60 Hz cos φ 0.75 (at 20 °C) |
| Hold-in power consumption in VA |
8.3 VA 50 Hz cos φ 0.3 (at 20 °C) 8.5 VA 60 Hz cos φ 0.3 (at 20 °C) |
| Heat dissipation | 2…3 W for control circuit |
| Operating time |
12...22 ms on closing 4...19 ms on opening |
| Maximum operating rate | 1800 cyc/h 60 °C |
| Connections - terminals |
Power circuit: screw clamp terminals 1 1…4 mm² - flexible without cable end Power circuit: screw clamp terminals 2 1…2.5 mm² - flexible without cable end Power circuit: screw clamp terminals 1 1…4 mm² - flexible with cable end Power circuit: screw clamp terminals 2 1…4 mm² - flexible with cable end Power circuit: screw clamp terminals 1 1…4 mm² - solid without cable end Power circuit: screw clamp terminals 2 1…4 mm² - solid without cable end Control circuit: screw clamp terminals 1 1…4 mm² - flexible without cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - flexible with cable end Control circuit: screw clamp terminals 2 1…4 mm² - flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - solid without cable end |
| Tightening torque |
Power circuit: 1.2 N.m Control circuit: 1.2 N.m |
| Auxiliary contact composition | 1 NC |
| Minimum switching voltage | 17 V for control circuit |
| Minimum switching current | 5 mA for control circuit |
| Insulation resistance | > 10 MOhm for control circuit |
| Non-overlap time |
1.5 ms on energisation guaranteed between NC and NO contact 1.5 ms on de-energisation guaranteed between NC and NO contact |

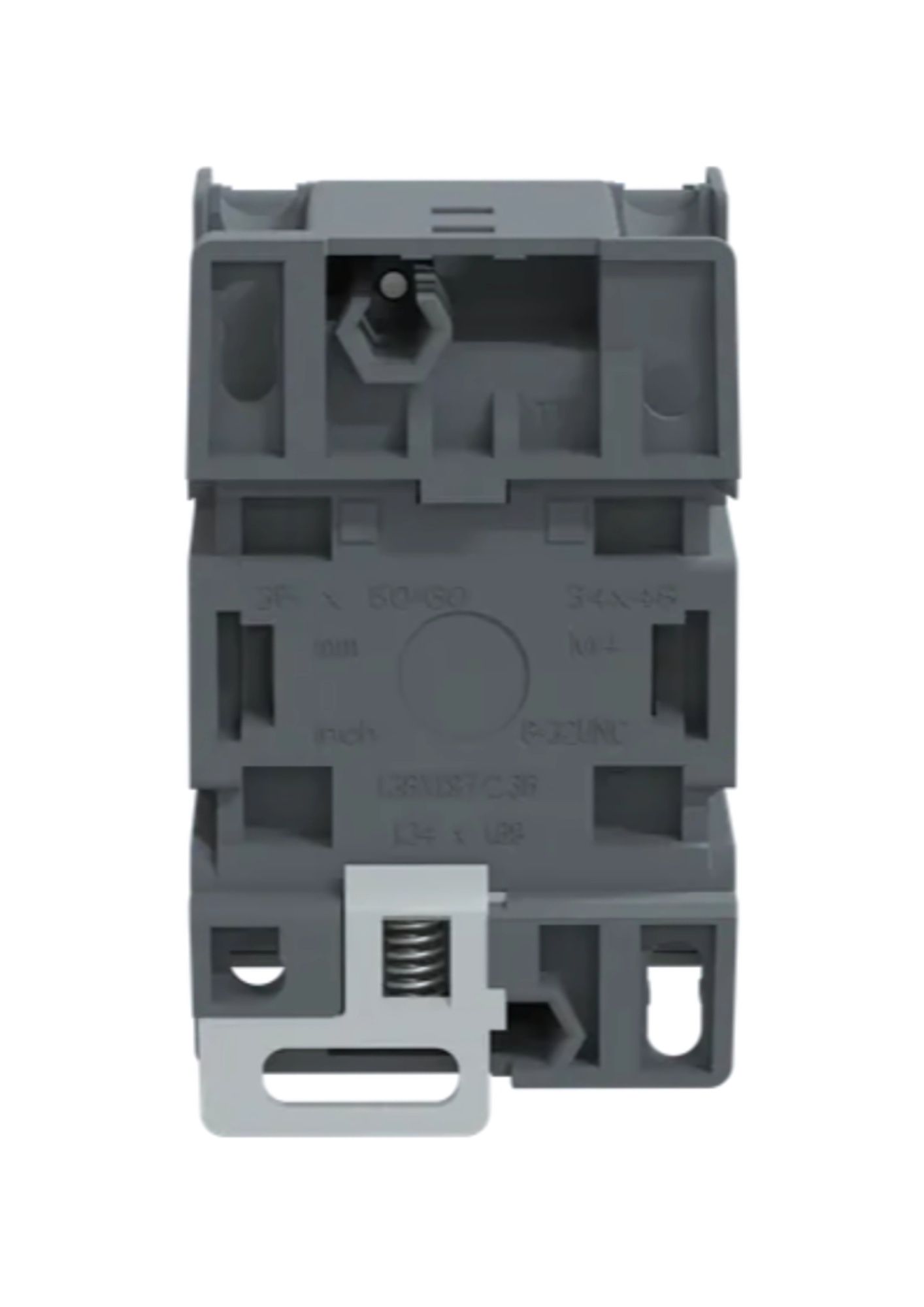

| Mounting support | DIN rail Screw |
