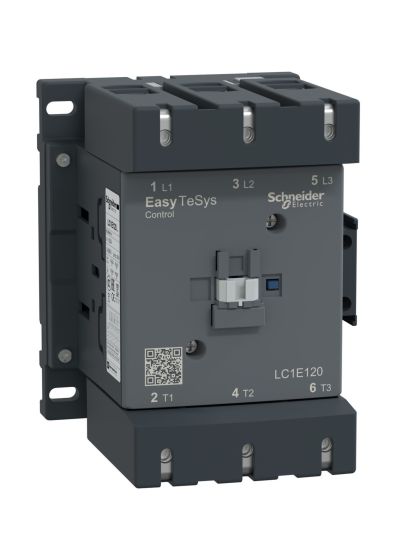

Schneider LC1E120M5, Easy TeSys contactor 3P, 440V, 120A, 220V AC coil

• Range: Easy TeSys
• Range of product: Easy TeSys Control
• Product or component type: Contactor
• Device short name: LC1E
• Contactor application:
  • Motor control
  • Resistive load
• Utilisation category:
  • AC-3
  • AC-3e
  • AC-1
• Poles description: 3P
• [Ue] rated operational voltage: Power circuit: <= 690 V AC 50/60 Hz
• [Ie] rated operational current:
  • 120 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
  • 96 A (at <55 °C) at <= 440 V AC AC-3e for power circuit
  • 150 A (at <40 °C) at <= 440 V AC AC-1 for power circuit
• [Uc] control circuit voltage: 220 V AC 50 Hz
• Motor power kW:
  • 37 kW at 220/230 V AC 50/60 Hz
  • 55 kW at 380/400 V AC 50/60 Hz
  • 59 kW at 415/440 V AC 50/60 Hz
  • 75 kW at 500 V AC 50/60 Hz
  • 80 kW at 660/690 V AC 50/60 Hz
  • 80 kW at 660...690 V AC 50/60 Hz
• Pole contact composition: 3 NO
• [Ith] conventional free air thermal current: 150 A (at 40 °C) for power circuit
• Irms rated making capacity: 1200 A at 440 V AC for power circuit conforming to IEC 60947-4-1
• Rated breaking capacity: 960 A at 440 V for power circuit conforming to IEC 60947
• [Icw] rated short-time withstand current: 1100 A 40 °C - 10 s for power circuit
• Associated fuse rating:
  • 250 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
  • 10 A gG at <= 690 V coordination type 1 for power circuit
• Average impedance: 0.6 mOhm - Ith 150 A 50 Hz for power circuit
• Power dissipation per pole:
  • 8.6 W AC-3
  • 14 W AC-1
• [Ui] rated insulation voltage: 690 V conforming to IEC 60947-4-1
• Overvoltage category: III
• Pollution degree: 3
• [Uimp] rated impulse withstand voltage: 8 kV coil not connected to the power circuit conforming to IEC 60947
• Mechanical durability: 4000000 cycles
• Electrical durability:
  • 800000 cycles AC-3
  • 250000 cycles AC-1
• Control circuit type: AC at 50 Hz
• Control circuit voltage limits:
  • 0.85...1.1 Uc (-5…55 °C): operational 50 Hz
  • 0.35...0.55 Uc (-5…55 °C): drop-out 50 Hz
• Inrush power in VA:
  • 300 VA 50 Hz cos phi 0.8 (at 20 °C)
  • 300 VA 60 Hz cos phi 0.8 (at 20 °C)
• Hold-in power consumption in VA:
  • 22 VA 50 Hz cos phi 0.3 (at 20 °C)
  • 22 VA 60 Hz cos phi 0.3 (at 20 °C)
• Heat dissipation: 3…8 W for control circuit
• Operating time:
  • 20...50 ms on closing
  • 6...20 ms on opening
• Maximum operating rate: 1200 cyc/h 55 °C
• Connections - terminals:
  • Power circuit: screw clamp terminals 1 10…120 mm² - cable stiffness: flexible without cable end
  • Power circuit: screw clamp terminals 1 10…120 mm² - cable stiffness: flexible with cable end
  • Power circuit: screw clamp terminals 1 10…120 mm² - cable stiffness: solid without cable end
  • Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible without cable end
  • Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
  • Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
  • Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
  • Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: solid without cable end
  • Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: solid without cable end
• Tightening torque:
  • Power circuit: 12 N.m
  • Control circuit: 1.2 N.m
• Auxiliary contact composition: 1 NO + 1 NC
• Minimum switching voltage: 17 V for control circuit
• Minimum switching current: 5 mA for control circuit
• Insulation resistance: > 10 MOhm for control circuit
• Non-overlap time:
  • 1.5 ms on energisation guaranteed between NC and NO contact
  • 1.5 ms on de-energisation guaranteed between NC and NO contact
• Mounting support:
  • DIN rail
  • Plate

Environment

• Standards:
  • IEC 60947-5-1
  • IEC 60947-4-1
  • IEC 60947-1
• Product certifications:
  • EAC
  • CE
• IP degree of protection: IP2X conforming to IEC 60529
• Protective treatment: TH (pollution degree 3) conforming to IEC 60068-2-30 test Db
• Permissible ambient air temperature around the device:
  • -20…70 °C at Uc
  • -60…80 °C storage
  • -5…55 °C operation
• Operating altitude: 3000 m without derating
• Fire resistance: 850 °C conforming to IEC 60695-2-1
• Mechanical robustness:
  • Vibrations contactor open (1.5 Gn, 5...300 Hz)
  • Vibrations contactor closed (3 Gn, 5...300 Hz)
  • Shocks contactor open (6 Gn for 11 ms)
  • Shocks contactor closed (7 Gn for 11 ms)
• Height: 158 mm
• Width: 120 mm
• Depth: 132 mm
• Net weight: 2.3 kg
