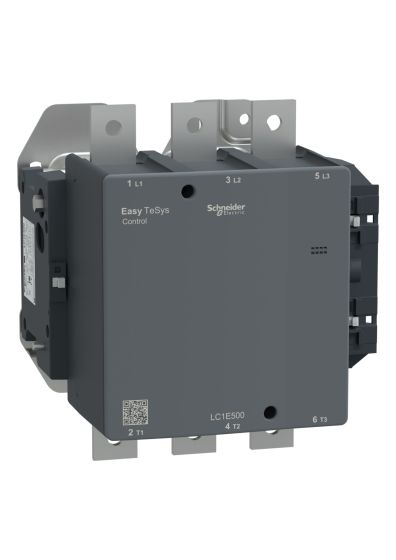

Schneider LC1E500M7, Easy TeSys contactor 3P, 440V, 500A, 220V AC coil
Schneider LC1E500M7, Easy TeSys contactor 3P, 440V, 500A, 220V AC coil Schneider LC1E500M7, Easy TeSys contactor 3P, 440V, 500A, 220V AC coil Schneider LC1E500M7, Easy TeSys contactor 3P, 440V, 500A, 220V AC coil Schneider LC1E500M7, Easy TeSys contactor 3P, 440V, 500A, 220V AC coil Schneider LC1E500M7, Easy TeSys contactor 3P, 440V, 500A, 220V AC coil

Schneider LC1E500M7, Easy TeSys contactor 3P, 440V, 500A, 220V AC coil

In stock
SKU
LC1E500M7
Special Price ₹59,001.15 Regular Price ₹151,285.00
(18% GST Extra)
Add to Wish List
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • 3 poles
  • Provides a 220V 50/60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals
  • Mounted by DIN-rail, No derating up to 3000m altitude
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Range
  • Easy TeSys
Range of product
  • Easy TeSys Control
Product or component type
  • Contactor
Device short name
  • LC1E
Contactor application
  • Motor control
  • Resistive load
Utilisation category
  • AC-3
  • AC-3e
  • AC-1
Poles description
  • 3P
[Ue] rated operational voltage
  • Power circuit: <= 690 V AC 50/60 Hz
[Ie] rated operational current
  • 500 A (at <55 °C) at <= 440 V AC AC-3 for power circuit
  • 400 A (at <55 °C) at <= 440 V AC AC-3e for power circuit
  • 700 A (at <40 °C) at <= 440 V AC AC-1 for power circuit
[Uc] control circuit voltage
  • 220 V AC 50/60 Hz
Motor power kW
  • 147 kW at 220/230 V AC 50/60 Hz
  • 250 kW at 380/400 V AC
  • 280 kW at 415 V AC
  • 295 kW at 440 V AC
  • 335 kW at 500 V AC
  • 355 kW at 660/690 V AC
Pole contact composition
  • 3 NO
[Ith] conventional free air thermal current
  • 700 A (at 40 °C) for power circuit
Irms rated making capacity
  • 5000 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity
  • 4000 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current
  • 4200 A 40 °C - 10 s for power circuit
Associated fuse rating
  • 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
  • 800 A gG at <= 690 V coordination type 1 for power circuit
Average impedance
  • 0.18 mOhm - Ith 700 A 50 Hz for power circuit
Power dissipation per pole
  • 45 W AC-3
  • 88 W AC-1
[Ui] rated insulation voltage
  • 690 V conforming to IEC 60947-4-1
Overvoltage category
  • III
Pollution degree
  • 3
[Uimp] rated impulse withstand voltage
  • 8 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability
  • 4000000 cycles
Electrical durability
  • 250000 cycles AC-1
  • 600000 cycles AC-3
Control circuit type
  • AC at 50/60 Hz
Control circuit voltage limits
  • 0.85...1.1 Uc (-5…55 °C): operational 50/60 Hz
  • 0.35...0.5 Uc (-5…55 °C): drop-out 50/60 Hz
Inrush power in VA
  • 1100 VA 50 Hz cos phi 0.9 (at 20 °C)
  • 1100 VA 60 Hz cos phi 0.9 (at 20 °C)
Hold-in power consumption in VA
  • 18 VA 50 Hz cos phi 0.9 (at 20 °C)
  • 18 VA 60 Hz cos phi 0.9 (at 20 °C)
Heat dissipation
  • 18 W for control circuit
  • 18 W
Operating time
  • 100...170 ms on opening
  • 40...75 ms on closing
Maximum operating rate
  • 2400 cyc/h 55 °C
Connections - terminals
  • Power circuit: cable with lug 2 1…4 mm² - external diameter: 240 mm - cable stiffness: flexible without cable end
  • Power circuit: bars 2 1…4 mm² - cable stiffness: flexible without cable end - busbar cross section: 40 x 5 mm
  • Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
  • Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end
  • Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end
  • Control circuit: screw clamp terminals 1 1…2.5 mm² - cable stiffness: flexible with cable end
  • Control circuit: screw clamp terminals 1 1…4 mm² - external diameter: 240 mm - cable stiffness: solid without cable end
  • Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end - busbar cross section: 40 x 5 mm
Tightening torque
  • Control circuit: 1.2 N.m
  • Power circuit: 35 N.m
Minimum switching voltage
  • 17 V for control circuit
Minimum switching current
  • 5 mA for control circuit
Insulation resistance
  • > 10 MOhm for control circuit
Non-overlap time
  • 1.5 ms on energisation guaranteed between NC and NO contact
  • 1.5 ms on de-energisation guaranteed between NC and NO contact
Mounting support
  • Plate
