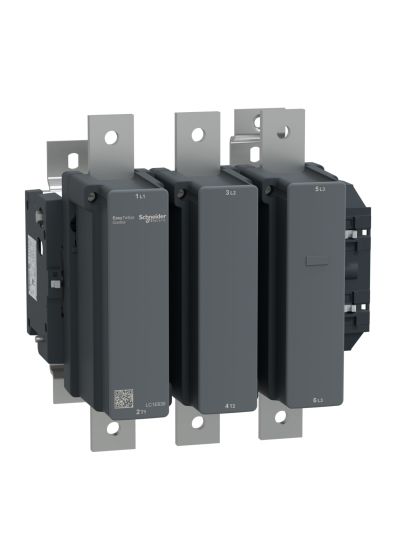

Schneider LC1E630M, Easy TeSys contactor 3P, 440V, 630A, 220V AC coil
Schneider LC1E630M, Easy TeSys contactor 3P, 440V, 630A, 220V AC coil Schneider LC1E630M, Easy TeSys contactor 3P, 440V, 630A, 220V AC coil Schneider LC1E630M, Easy TeSys contactor 3P, 440V, 630A, 220V AC coil Schneider LC1E630M, Easy TeSys contactor 3P, 440V, 630A, 220V AC coil Schneider LC1E630M, Easy TeSys contactor 3P, 440V, 630A, 220V AC coil

Schneider LC1E630M, Easy TeSys contactor 3P, 440V, 630A, 220V AC coil

In stock
SKU
LC1E630M7
Special Price ₹82,999.41 Regular Price ₹212,819.00
(18% GST Extra)
Add to Wish List
  • Designed to meet the requirements of Electro domestic and HVAC applications
  • Easier to install and operate with multi-standard screws
  • 3 poles
  • Provides a 220V 50/60Hz AC coil, without built-in auxiliary contacts, power and control connections by screw clamp terminals
  • It procures standard reliability and durability with 0.6 Mcycles electrical durability AC-3 and 4 Mcycles mechanical durability
  • It can cover -5°C to 55°C working temperature and mounted by DIN-rail, No derating up to 3000m altitude
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Range Easy TeSys
Range of product Easy TeSys Control
Product or component type Contactor
Device short name LC1E
Contactor application Motor control
Resistive load
Utilisation category AC-3
AC-3e
AC-1
Poles description 3P
[Ue] rated operational voltage Power circuit: ≤ 690 V AC 50/60 Hz
[Ie] rated operational current 630 A (at <55 °C) at ≤ 440 V AC AC-3 for power circuit
500 A (at <55 °C) at ≤ 440 V AC AC-3e for power circuit
1000 A (at <40 °C) at ≤ 440 V AC AC-1 for power circuit
[Uc] control circuit voltage 220 V AC 50/60 Hz
Complementary
Motor power kW 185 kW at 220/230 V AC 50/60 Hz
335 kW at 380/400 V AC
375 kW at 415 V AC
400 kW at 440 V AC
400 kW at 500 V AC
450 kW at 660/690 V AC
Pole contact composition 3 NO
[Ith] conventional free air thermal current 1000 A (at 40 °C) for power circuit
Irms rated making capacity 6300 A at 440 V AC for power circuit conforming to IEC 60947-4-1
Rated breaking capacity 5040 A at 440 V for power circuit conforming to IEC 60947
[Icw] rated short-time withstand current 5050 A 40 °C - 10 s for power circuit
Associated fuse rating 10 A gG at ≤ 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
800 A gG at ≤ 690 V coordination type 1 for power circuit
Average impedance 0.12 mOhm - Ith 1000 A 50 Hz for power circuit
Power dissipation per pole 48 W AC-3
120 W AC-1
[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1
Overvoltage category III
Pollution degree 3
[Uimp] rated impulse withstand voltage 8 kV coil not connected to the power circuit conforming to IEC 60947
Mechanical durability 4,000,000 cycles
Electrical durability 200,000 cycles AC-1
600,000 cycles AC-3
Control circuit type AC at 50/60 Hz
Control circuit voltage limits 0.85...1.1 Uc (-5…55 °C): operational 50/60 Hz
0.25...0.5 Uc (-5…55 °C): drop-out 50/60 Hz
Inrush power in VA 1650 VA 50 Hz cos φ 0.9 (at 20 °C)
1650 VA 60 Hz cos φ 0.9 (at 20 °C)
Hold-in power consumption in VA 22 VA 50 Hz cos φ 0.9 (at 20 °C)
22 VA 60 Hz cos φ 0.9 (at 20 °C)
Heat dissipation 20 W for control circuit
20 W
Operating time 40...80 ms on closing
100...200 ms on opening
Maximum operating rate 1200 cyc/h 55 °C
Connections - terminals Power circuit: bars 2 1…4 mm² - flexible without cable end - busbar cross section: 60 × 5 mm
Control circuit: screw clamp terminals 1 1…4 mm² - flexible without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - flexible with cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - solid without cable end
Power circuit: bars 2 - busbar cross section: 60 × 5 mm
Tightening torque Control circuit: 1.2 N·m
Power circuit: 58 N·m
Minimum switching voltage 17 V for control circuit
Minimum switching current 5 mA for control circuit
Insulation resistance > 10 MOhm for control circuit
Non-overlap time 1.5 ms on energisation guaranteed between NC and NO contact
1.5 ms on de-energisation guaranteed between NC and NO contact
Mounting support Screw
