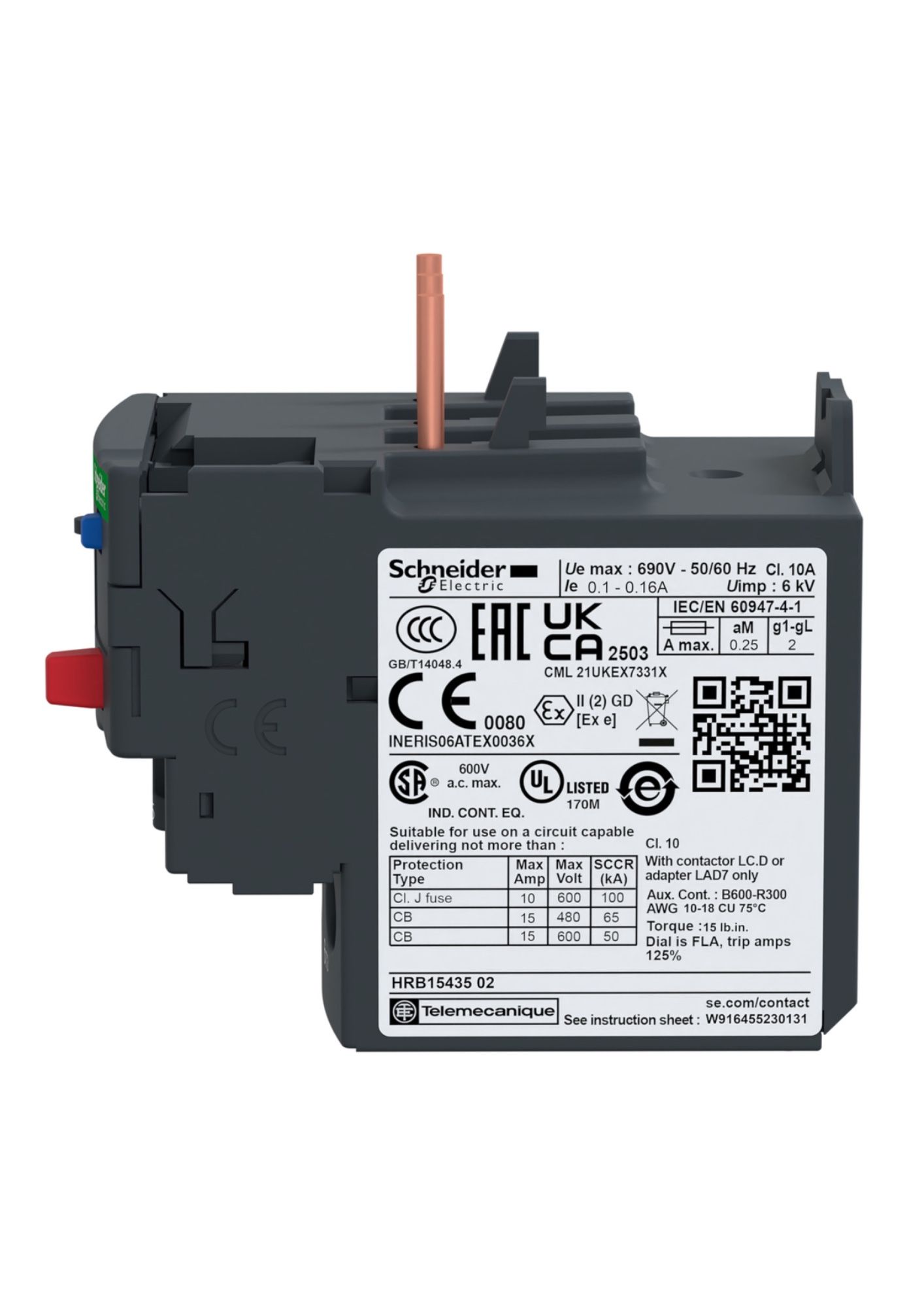

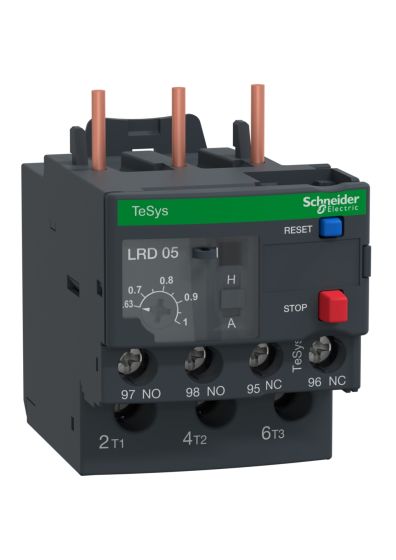

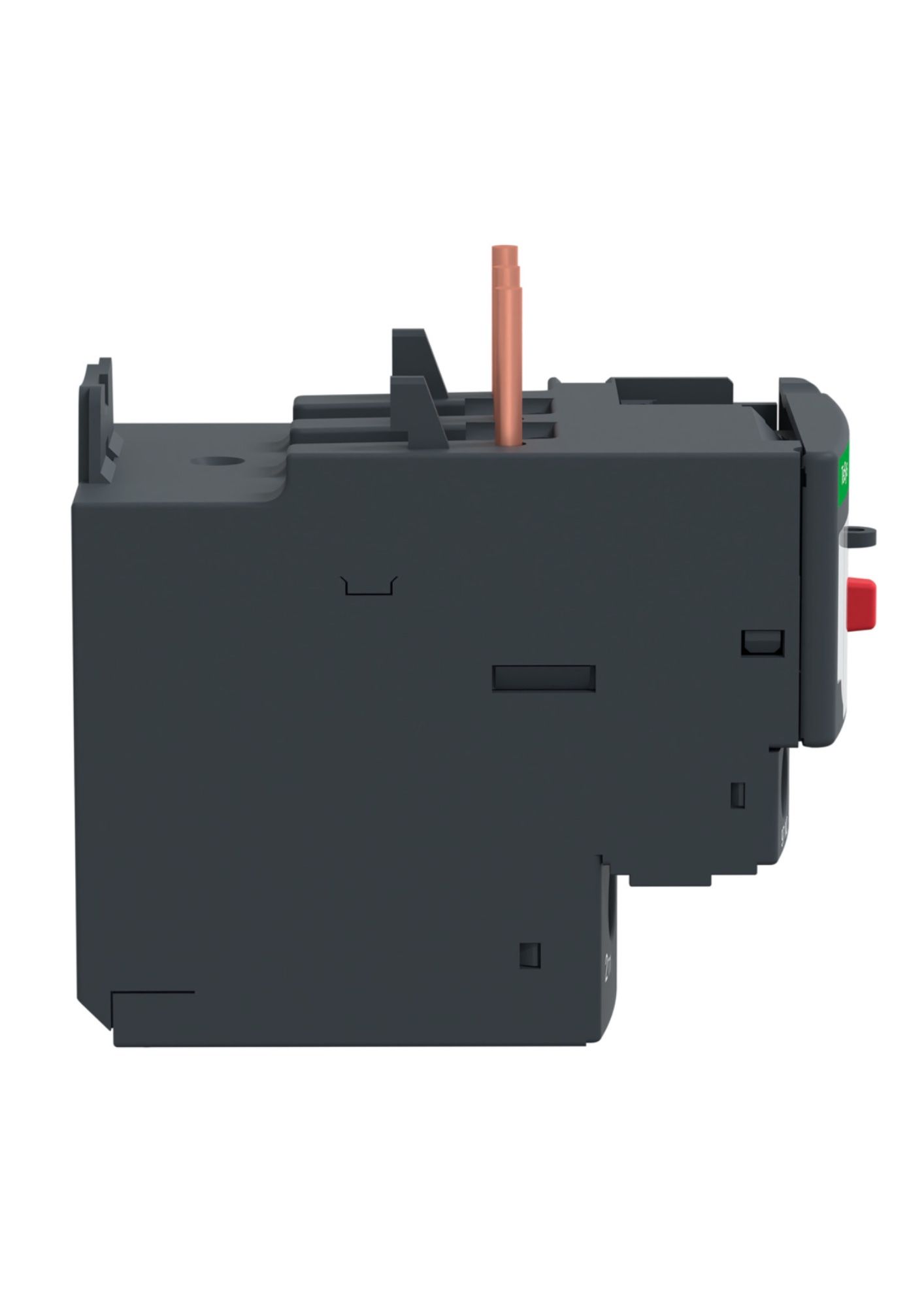

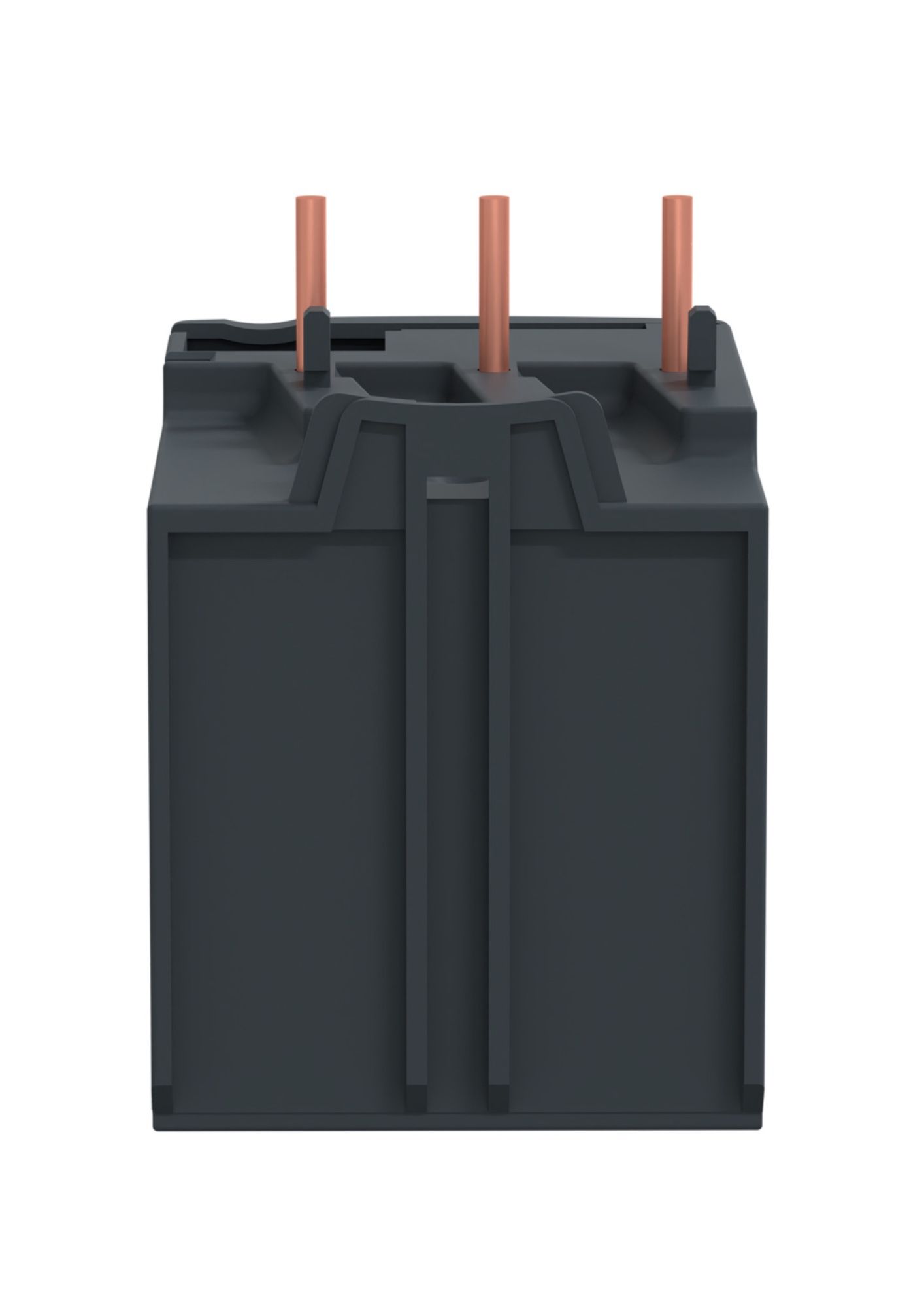

Schneider LRD05, TeSys LRD thermal overload relays - 0.63...1 A - class 10A
Schneider LRD05, TeSys LRD thermal overload relays - 0.63...1 A - class 10A Schneider LRD05, TeSys LRD thermal overload relays - 0.63...1 A - class 10A Schneider LRD05, TeSys LRD thermal overload relays - 0.63...1 A - class 10A Schneider LRD05, TeSys LRD thermal overload relays - 0.63...1 A - class 10A

Schneider LRD05, TeSys LRD thermal overload relays - 0.63...1 A - class 10A

In stock
SKU
LRD05
Special Price ₹1,126.00 Regular Price ₹2,815.00
(18% GST Extra)
Add to Wish List
  • Technical Ratings: 1 A / 690 V, thermal setting range 0.63–1 A, tripping class 10A, protects 3-phase motors 0.25–0.37 kW @ 400 V
  • Functions: Differential device with phase failure & load unbalance detection
  • Controls & Indicators: Adjustment dial, manual/auto reset, test selector, reset & stop buttons, flag indicator, 2 auxiliary contacts (1NO + 1NC)
  • Mounting & Connections: Screw clamp terminals, direct to LC1D09–D38 contactors, DIN rail or screw fixing (with LAD7B106 block)
  • Standards & Compliance: Certified IEC, UL, CSA, CCC, EAC, ATEX, Marine; Green Premium (RoHS/REACH)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

TeSys LRD - Product Details
Main
RangeTeSys
TeSys Deca
Product nameTeSys LRD
TeSys Deca
Product or component typeDifferential thermal overload relay
Device short nameLRD
Relay applicationMotor protection
Product compatibility LC1D25
LC1D38
LC1D12
LC1D32
LC1D18
LC1D09
Network typeAC
DC
Thermal overload classClass 10A conforming to IEC 60947-4-1
Thermal protection adjustment range0.63…1 A
[Ui] rated insulation voltage Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
Power circuit: 690 V conforming to IEC 60947-4-1
Complementary
Network frequency0...400 Hz
Mounting support Plate, with specific accessories
Rail, with specific accessories
Under contactor
Tripping threshold1.14 ± 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition1 NO + 1 NC
[Ith] conventional free air thermal current5 A for signalling circuit
Permissible current 3 A at 120 V AC-15 for signalling circuit
0.22 A at 125 V DC-13 for signalling circuit
[Ue] rated operational voltage 690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Associated fuse rating 4 A gG for signalling circuit
4 A BS for signalling circuit
[Uimp] rated impulse withstand voltage6 kV
Phase failure sensitivity Tripping current 130 % of Ir on two phase, the last one at 0
Control type Red push-button: stop
Blue push-button: reset
Temperature compensation-20…60 °C
Connections - terminals Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end
Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² solid without cable end
Tightening torque Control circuit: 1.7 N·m - on screw clamp terminals
Power circuit: 1.7 N·m - on screw clamp terminals
Height66 mm
Width45 mm
Depth70 mm
