Schneider LRD10, TeSys LRD thermal overload relays - 4...6 A - class 10A
Schneider LRD10, TeSys LRD thermal overload relays - 4...6 A - class 10A Schneider LRD10, TeSys LRD thermal overload relays - 4...6 A - class 10A Schneider LRD10, TeSys LRD thermal overload relays - 4...6 A - class 10A Schneider LRD10, TeSys LRD thermal overload relays - 4...6 A - class 10A

Schneider LRD10, TeSys LRD thermal overload relays - 4...6 A - class 10A

In stock
SKU
LRD10
Special Price ₹1,126.00 Regular Price ₹2,815.00
(18% GST Extra)
Add to Wish List

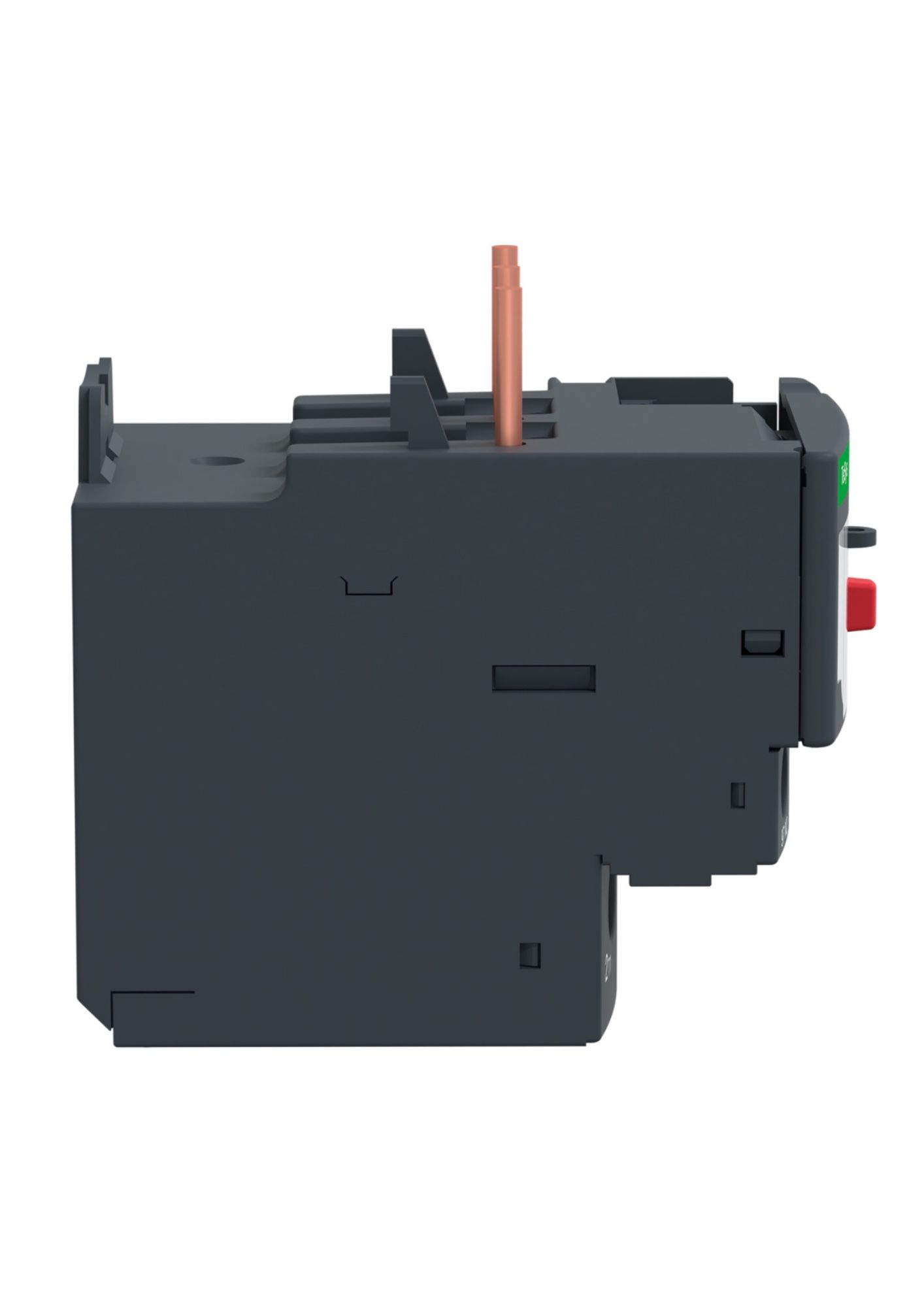

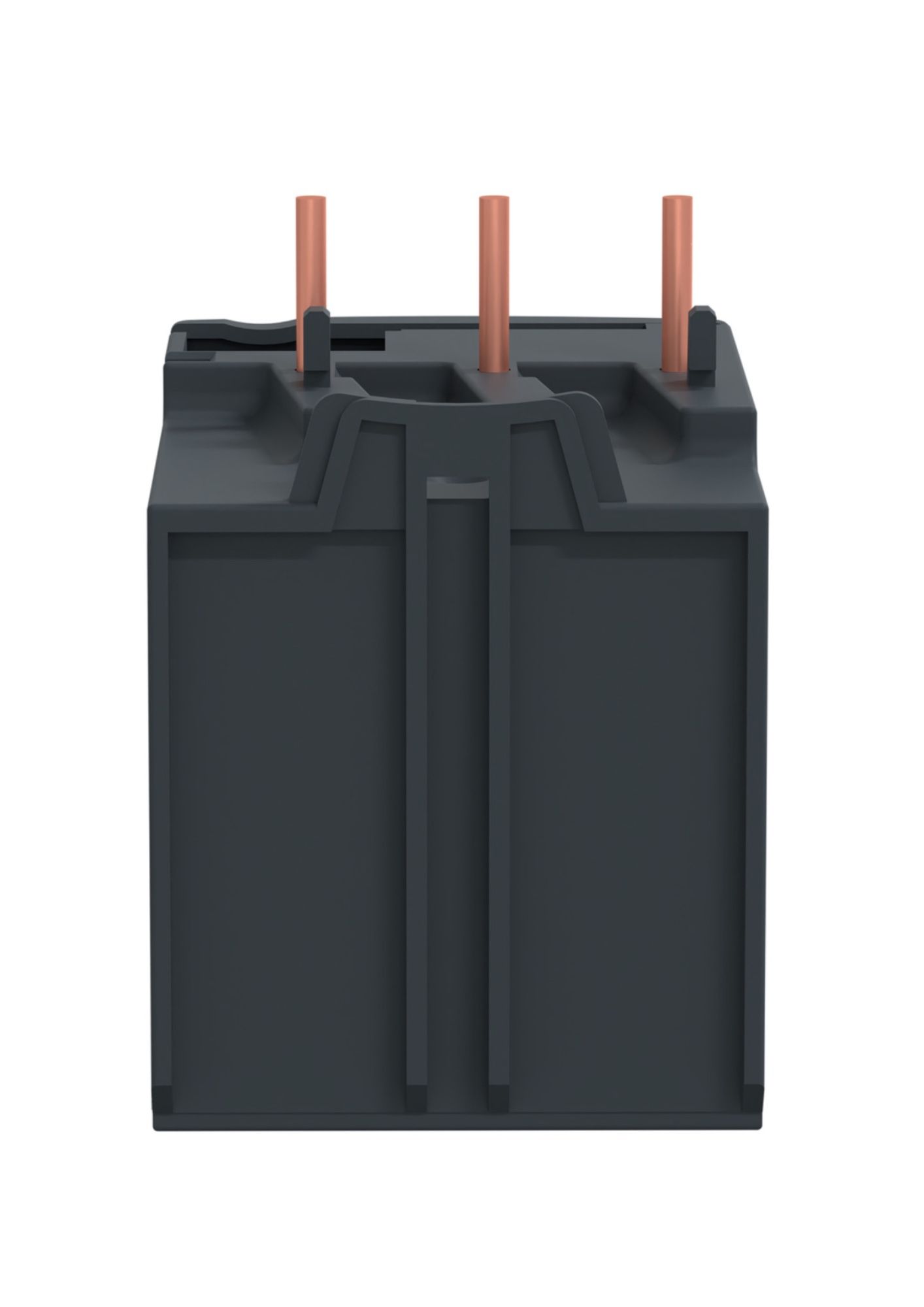

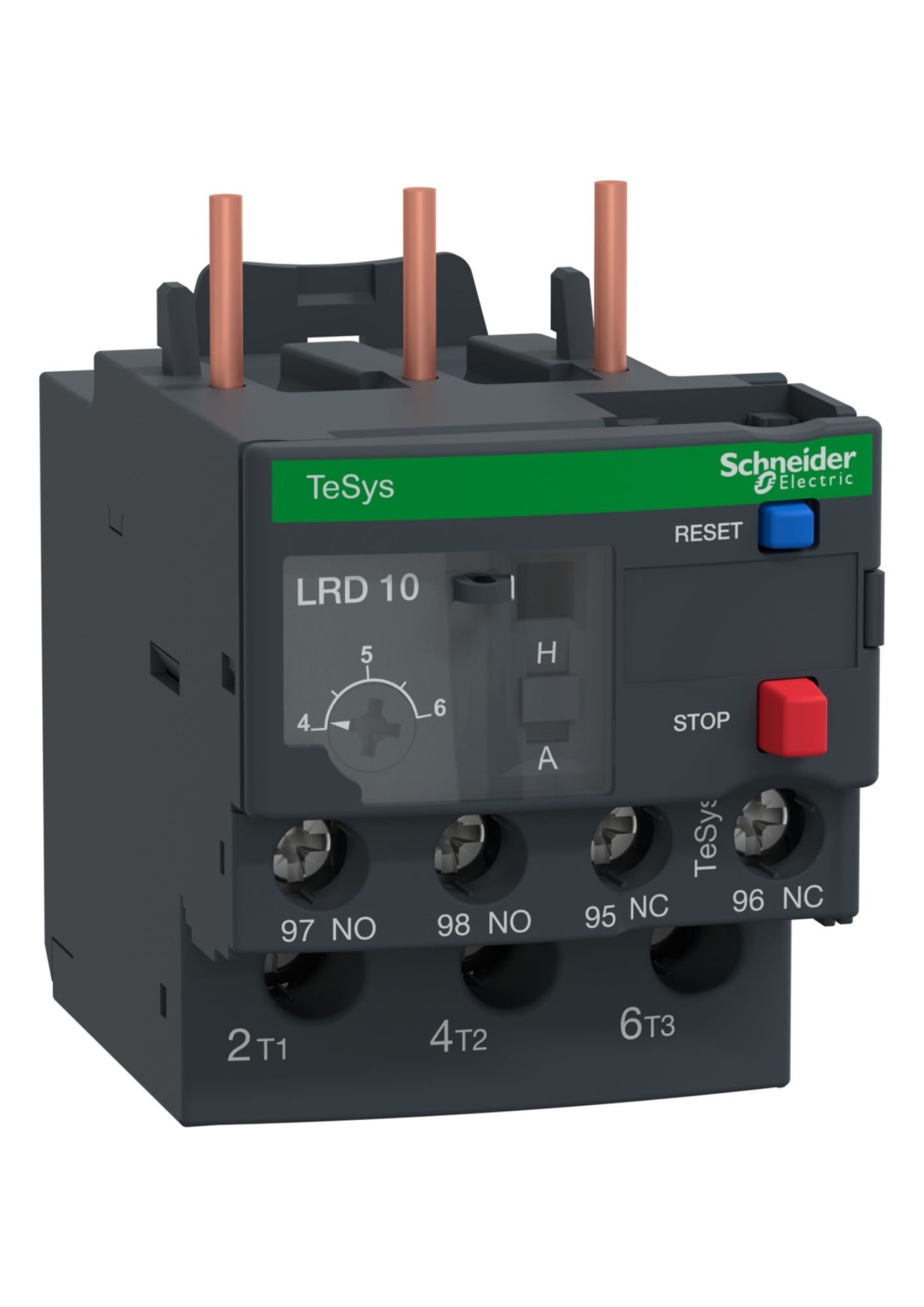

  • Protection: Thermal overload relay 6A/690V, thermal setting range 4–6A, tripping class 10A, for 3-phase motors up to 2.2kW@400V
  • Functions: Detects phase failure and load unbalance, includes reset & stop buttons, test selector, and flag indicator
  • Adjustments: Thermal adjustment dial with settings protected by a transparent lockable cover
  • Connections: 2 auxiliary contacts (1NO + 1NC) for fault signalling, screw clamp terminals, direct fit to LC1D09–D38 contactors or via LAD7B106
  • Compliance: Multi-standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium (RoHS/REACH)
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

TeSys LRD Product Details
Main
RangeTeSys
TeSys Deca
Product nameTeSys LRD
TeSys Deca
Product or component typeDifferential thermal overload relay
Device short nameLRD
Relay applicationMotor protection
Product compatibility LC1D09
LC1D12
LC1D18
LC1D25
LC1D32
LC1D38
Network typeAC
DC
Thermal overload classClass 10A conforming to IEC 60947-4-1
Thermal protection adjustment range4…6 A
[Ui] rated insulation voltage Power circuit: 600 V (CSA)
Power circuit: 600 V (UL)
Power circuit: 690 V (IEC 60947-4-1)
Complementary
Network frequency0…400 Hz
Mounting support Plate (with accessories)
Rail (with accessories)
Under contactor
Tripping threshold1.14 ± 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition1 NO + 1 NC
[Ith] conventional free air thermal current5 A (signalling circuit)
Permissible current 3 A at 120 V AC-15 (signalling circuit)
0.22 A at 125 V DC-13 (signalling circuit)
[Ue] rated operational voltage690 V AC 0…400 Hz (IEC 60947-4-1)
Associated fuse rating 4 A gG (signalling circuit)
4 A BS (signalling circuit)
[Uimp] rated impulse withstand voltage6 kV
Phase failure sensitivityTrips at 130% of Ir on 2 phases, last phase at 0
Control typeRed push-button: Stop
Blue push-button: Reset
Temperature compensation-20…60 °C
Connections - terminals Control circuit: screw clamp, 2 cables 1…2.5 mm² flexible (with/without end)
Control circuit: screw clamp, 2 cables 1…2.5 mm² solid (without end)
Power circuit: screw clamp, 1 cable 1.5…10 mm² flexible (without end)
Power circuit: screw clamp, 1 cable 1…4 mm² flexible (with end)
Power circuit: screw clamp, 1 cable 1…6 mm² solid (without end)
Tightening torque Control circuit: 1.7 N·m
Power circuit: 1.7 N·m
Height66 mm
Width45 mm
Depth70 mm

No specifications available for this product.
