Schneider LRD32, Thermal overload relay, TeSys LRD, 23...32 A, class 10A
Schneider LRD32, Thermal overload relay, TeSys LRD, 23...32 A, class 10A Schneider LRD32, Thermal overload relay, TeSys LRD, 23...32 A, class 10A Schneider LRD32, Thermal overload relay, TeSys LRD, 23...32 A, class 10A Schneider LRD32, Thermal overload relay, TeSys LRD, 23...32 A, class 10A

Schneider LRD32, Thermal overload relay, TeSys LRD, 23...32 A, class 10A

In stock
SKU
LRD32
Special Price ₹2,090.00 Regular Price ₹5,225.00
(18% GST Extra)
Add to Wish List

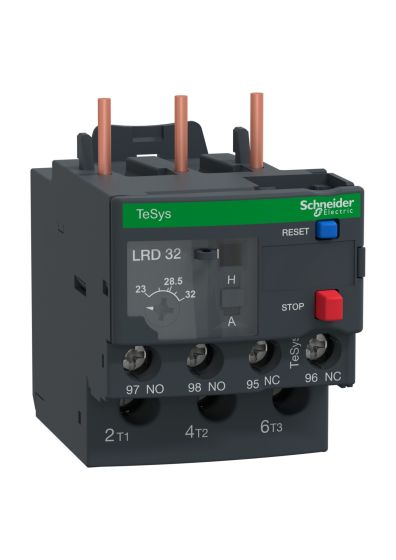

  • TeSys LRD thermal overload relay (32A/690V) protects 3-phase motors up to 15kW at 400V with a 23-32A thermal setting range
  • Features include phase failure/load unbalance detection, tripping class 10A, and a thermal adjustment dial
  • Provides manual-automatic reset selector, test/trip simulation, reset/stop buttons, flag indicator, and 2 auxiliary contacts (1NO+1NC) for signaling
  • Settings are secured with a transparent, lockable cover; screw clamp terminals enable direct connection to LC1D25-D38 contactors
  • Supports DIN rail or screw mounting (with LAD7B205 terminal block if separated), multi-standard certified, and Green Premium compliant
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeTeSys
Range of productTeSys Deca
Product nameTeSys LRD
TeSys Deca
Product or component typeDifferential thermal overload relay
Device short nameLRD
Relay applicationMotor protection
Product compatibility LC1D32
LC1D25
LC1D38
Network type AC
DC
Thermal overload class Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range 23…32 A
[Ui] rated insulation voltage Power circuit: 600 V conforming to CSA
Power circuit: 600 V conforming to UL
Power circuit: 690 V conforming to IEC 60947-4-1
Complementary
Network frequency0...400 Hz
Mounting supportPlate, with specific accessories
Rail, with specific accessories
Under contactor
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition1 NO + 1 NC
[Ith] conventional free air thermal current5 A for signalling circuit
Permissible current1.5 A at 240 V AC-15 for signalling circuit
0.1 A at 250 V DC-13 for signalling circuit
[Ue] rated operational voltage690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Associated fuse rating4 A gG for signalling circuit
4 A BS for signalling circuit
[Uimp] rated impulse withstand voltage6 kV
Phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0
Control typeRed push-button: stop
Blue push-button: reset
Temperature compensation-20…60 °C
Connections - terminalsControl circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end
Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid
Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end
Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² flexible with cable end
Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² solid
Tightening torqueControl circuit: 1.7 N.m – screw clamp terminals
Power circuit: 2.5 N.m – screw clamp terminals
Height66 mm
Width45 mm
Depth70 mm
