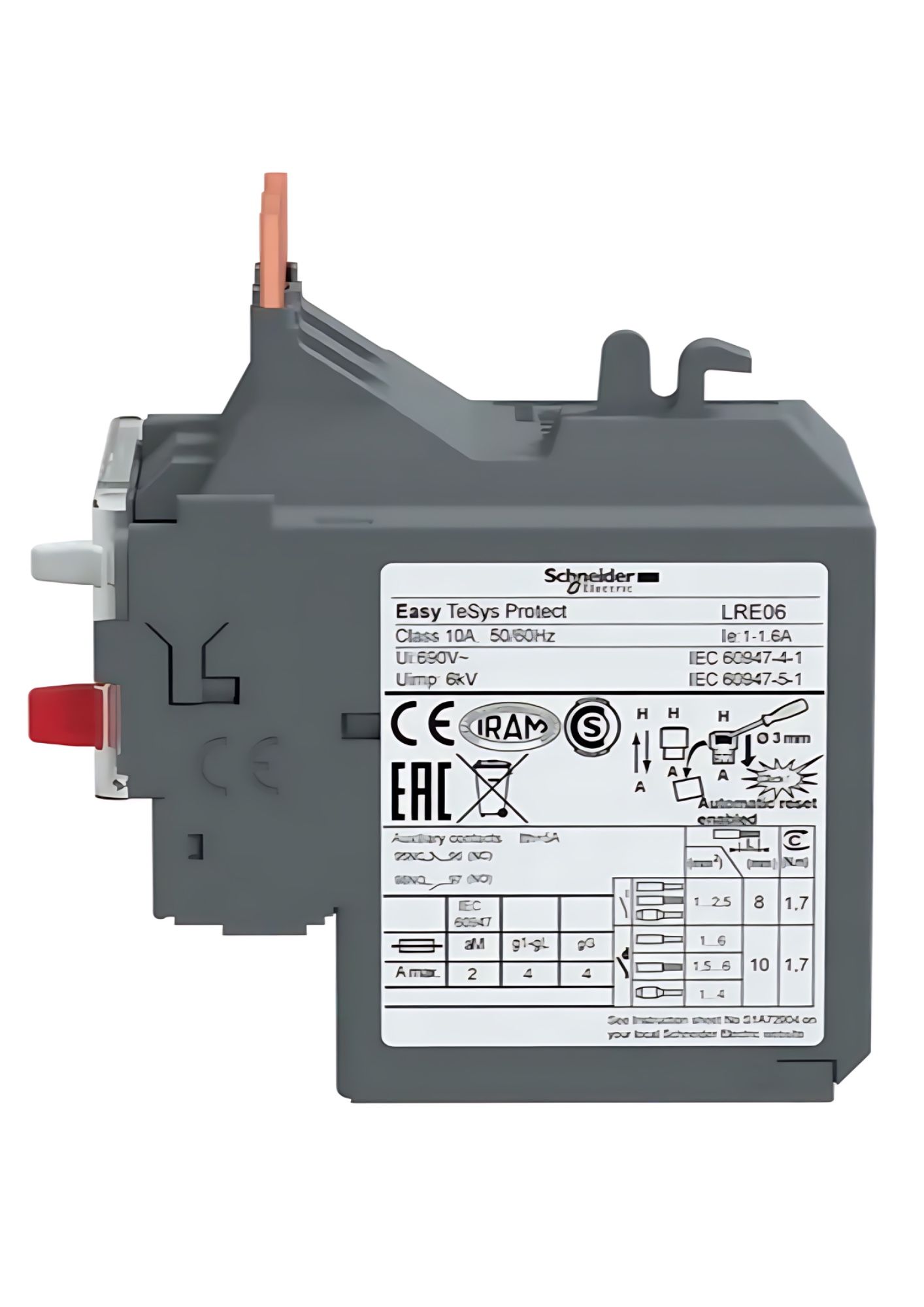

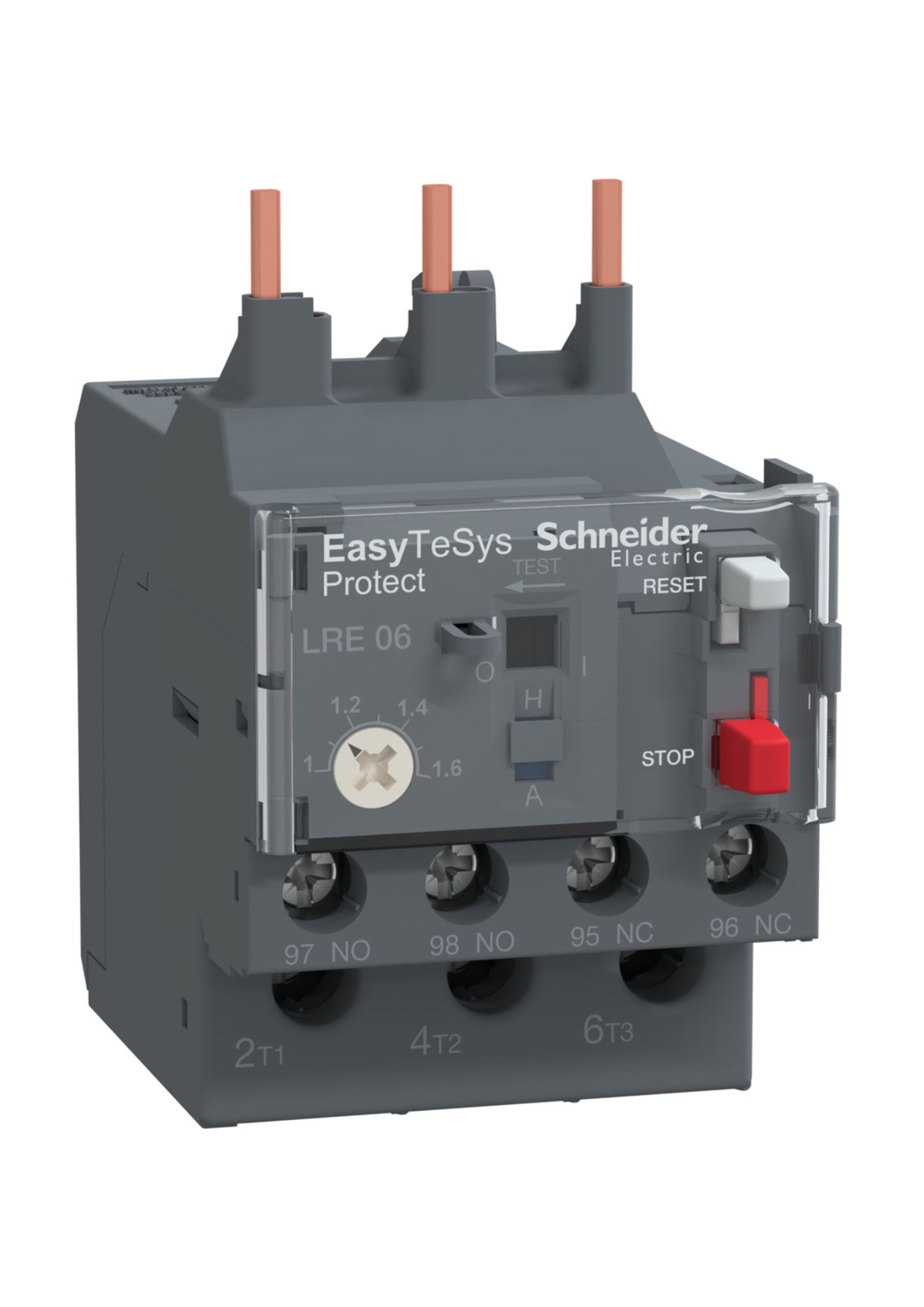

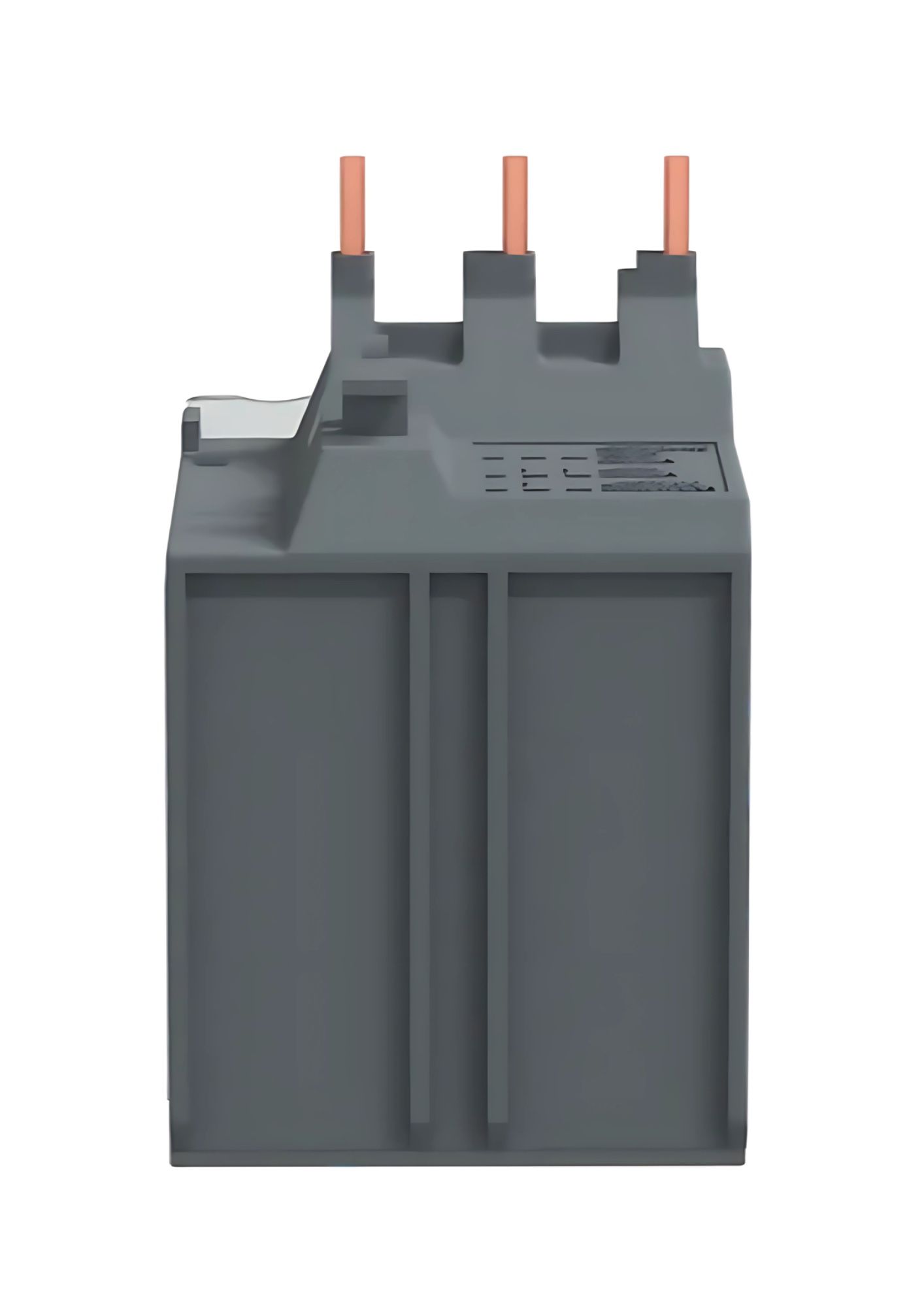

Schneider LRE06, Easy TeSys differential thermal overload relay 1...1.6 A - class 10A
Schneider LRE06, Easy TeSys differential thermal overload relay 1...1.6 A - class 10A Schneider LRE06, Easy TeSys differential thermal overload relay 1...1.6 A - class 10A Schneider LRE06, Easy TeSys differential thermal overload relay 1...1.6 A - class 10A Schneider LRE06, Easy TeSys differential thermal overload relay 1...1.6 A - class 10A

Schneider LRE06, Easy TeSys differential thermal overload relay 1...1.6 A - class 10A

In stock
SKU
LRE06
Special Price ₹1,012.00 Regular Price ₹2,530.00
(18% GST Extra)
Add to Wish List
  • Thermal overload relay with adjustable setting range of 1–1.6 A (50/60 Hz), tripping class 10A (IEC 60947-4-1).
  • Protects unbalanced loads and motors from 0.37–0.55 kW at 400 VAC.
  • Direct mounting on EasyPact TVS contactors with screw clamp terminals.
  • Includes manual/automatic reset, trip auxiliary contact, and flag indicator.
  • Compliant with global standards (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium (RoHS/REACH).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeEasy TeSys
Range of productEasy TeSys Protect
Product or component typeDifferential thermal overload relay
Device short nameLRE
Relay applicationMotor protection
Phase failure sensitivityTripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1
ColourGrey (RAL 7011)
Complementary
Product compatibilityLC1E06...38
Network typeAC
Network frequency50...60 Hz
Mounting support Under contactor
Plate, with specific accessories
Rail, with specific accessories
Thermal overload classClass 10A conforming to IEC 60947-4-1
Signalling functionRelay trip indicator
Thermal protection adjustment range1…1.6 A
Tripping threshold1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Mechanical robustness Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7
Vibrations: 3 GN conforming to IEC 60068-2-6
Auxiliary contact composition1 NO + 1 NC
[Ith] conventional free air thermal current5 A for signalling circuit
[Ue] rated operational voltage<= 690 V AC
Associated fuse rating 4 A gG for power circuit
2 A aM for power circuit
5 A gG for signalling circuit
[Ui] rated insulation voltage690 V conforming to IEC 60947-4-1
[Uimp] rated impulse withstand voltage6 kV
Local signallingTrip indicator
Control type Push-button red stop:
Push-button green reset:
Temperature compensation-20…60 °C
Connections - terminals Power circuit: screw clamp terminals 1 1.5…6 mm² flexible without cable end
Power circuit: screw clamp terminals 1 1…4 mm² flexible with cable end
Power circuit: screw clamp terminals 1 1…6 mm² solid without cable end
Signalling circuit: screw clamp terminals 2 1…2.5 mm² flexible without cable end
Signalling circuit: screw clamp terminals 2 1…2.5 mm² flexible with cable end
Signalling circuit: screw clamp terminals 2 1…2.5 mm² solid without cable end
Recommended tightening torque Power circuit: 1.7 N.m - on screw clamp terminals
Signalling circuit: 1.7 N.m - on screw clamp terminals

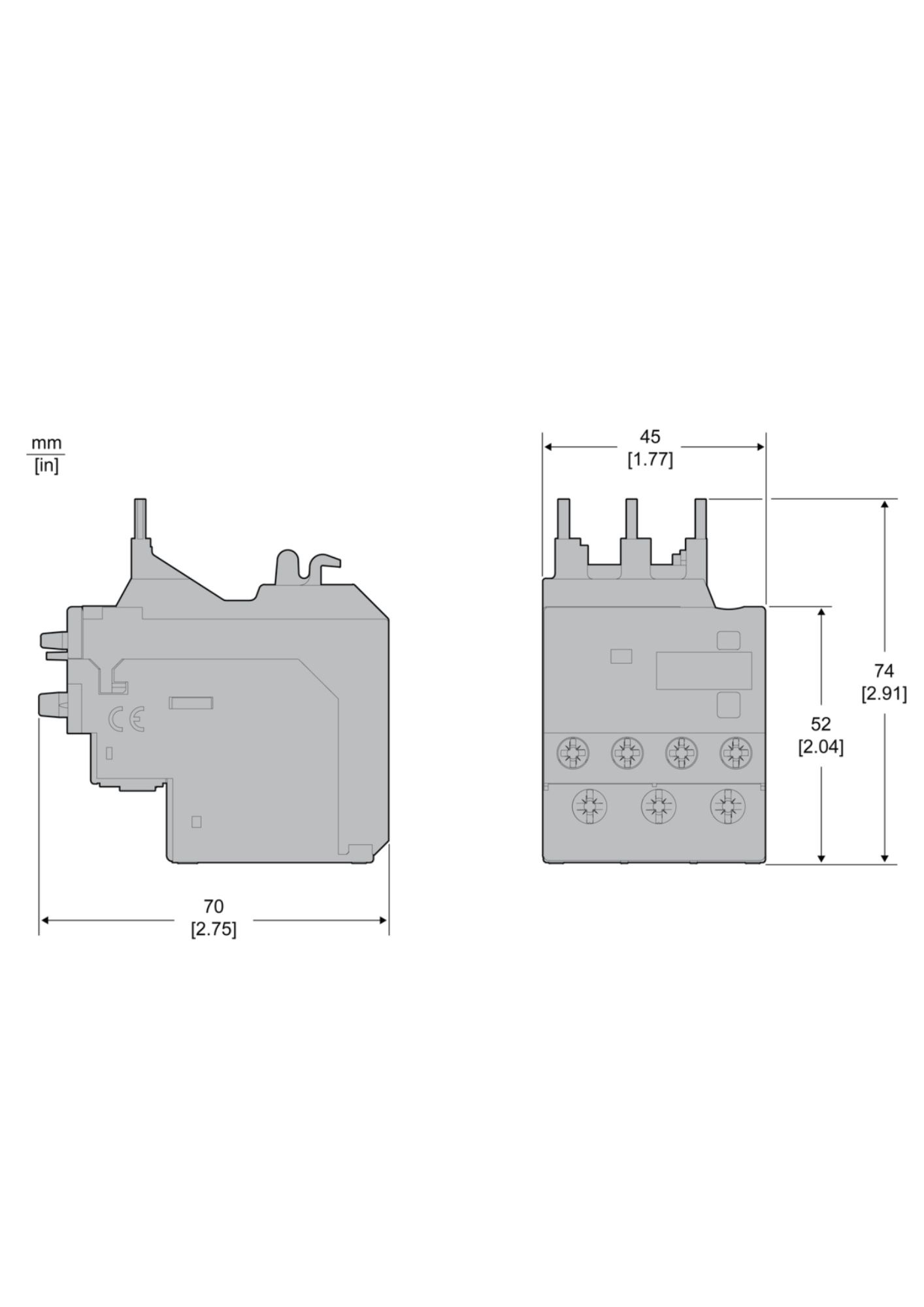

Height44.5 mm
Width45 mm
Depth70 mm
