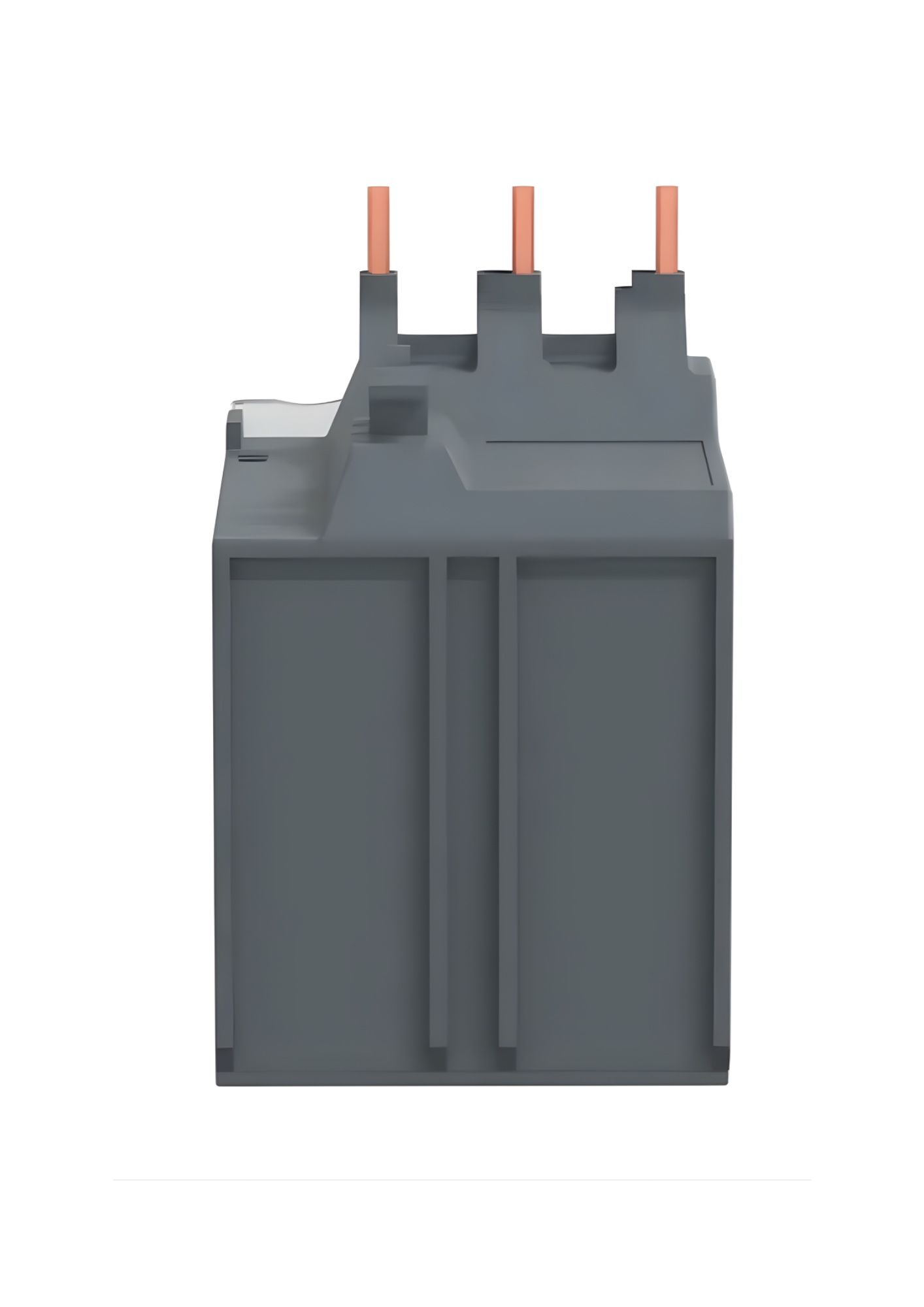

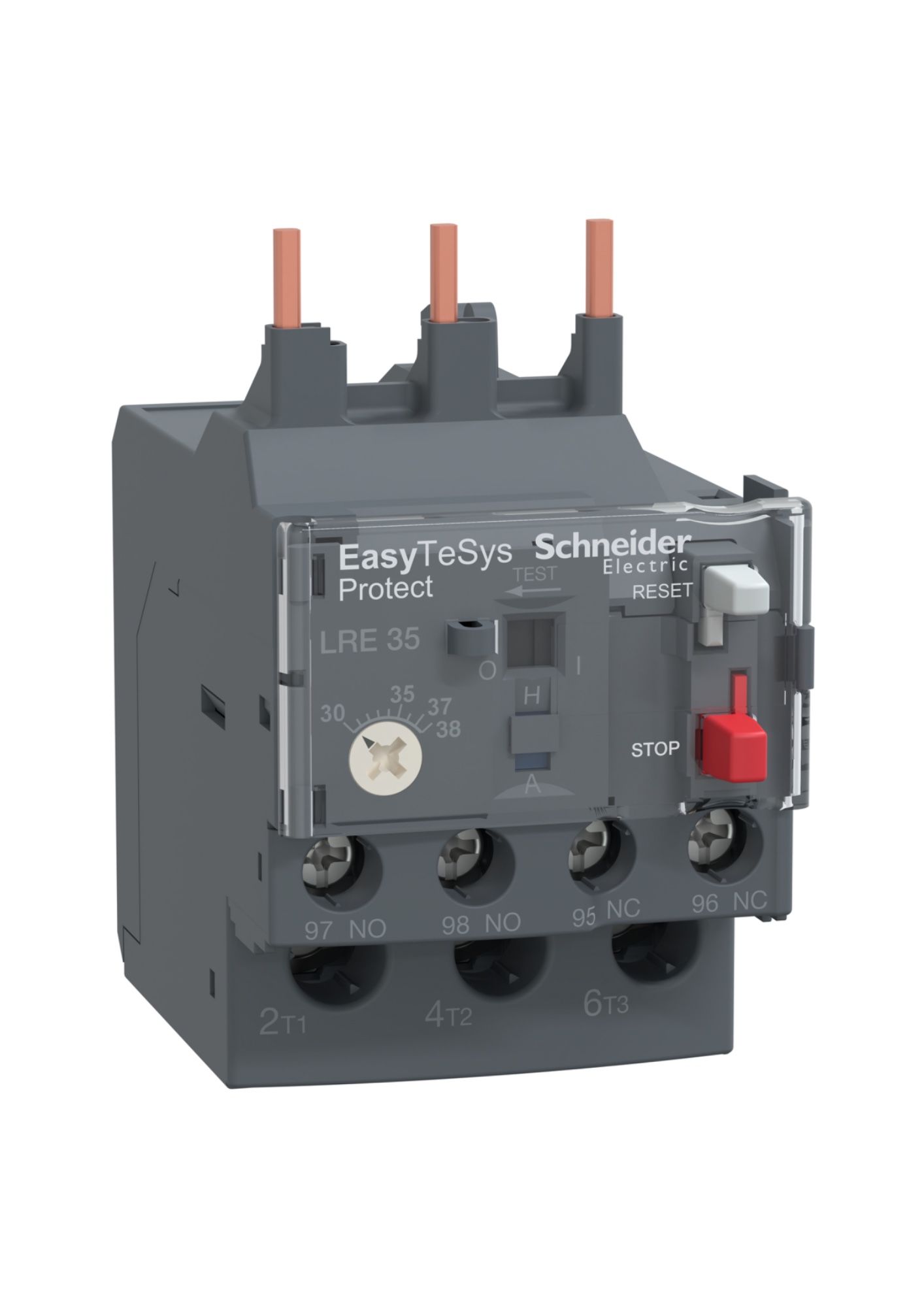

Schneider LRE35, Easy TeSys differential thermal overload relay 30...38 A - class 10A
In stock
SKU
LRE35
Special Price
₹2,207.40
Regular Price
₹5,660.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | Easy TeSys |
| Range of product | Easy TeSys Protect |
| Product or component type | Differential thermal overload relay |
| Device short name | LRE |
| Relay application | Motor protection |
| Phase failure sensitivity | Tripping current 130 % of Ir on two phase, the last one at 0 conforming to IEC 60947-4-1 |
| Colour | Grey (RAL 7011) |
| Complementary | |
| Product compatibility | LC1E38 |
| Network type | AC |
| Network frequency | 50...60 Hz |
| Mounting support | Under contactor Plate, with specific accessories Rail, with specific accessories |
| Thermal overload class | Class 10A conforming to IEC 60947-4-1 |
| Signalling function | Relay trip indicator |
| Thermal protection adjustment range | 30…38 A |
| Tripping threshold | 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 |
| Mechanical robustness |
Shocks: 6 Gn for 11 ms conforming to IEC 60068-2-7 Vibrations: 3 GN conforming to IEC 60068-2-6 |
| Auxiliary contact composition | 1 NO + 1 NC |
| [Ith] conventional free air thermal current | 5 A for signalling circuit |
| [Ue] rated operational voltage | <= 690 V AC |
| Associated fuse rating |
40 A aM for power circuit 80 A gG for power circuit 5 A gG for signalling circuit |
| [Ui] rated insulation voltage | 690 V conforming to IEC 60947-4-1 |
| [Uimp] rated impulse withstand voltage | 6 kV |
| Local signalling | Trip indicator |
| Control type |
Push-button red: stop Push-button green: reset |
| Temperature compensation | -20…60 °C |
| Connections - terminals |
Signalling circuit: screw clamp terminals 2 × 1…2.5 mm², flexible without cable end Signalling circuit: screw clamp terminals 2 × 1…2.5 mm², flexible with cable end Signalling circuit: screw clamp terminals 2 × 1…2.5 mm², solid without cable end Power circuit: screw clamp terminals 1 × 2.5…10 mm², flexible without cable end Power circuit: screw clamp terminals 1 × 1.5…6 mm², flexible with cable end Power circuit: screw clamp terminals 1 × 2.5…10 mm², solid without cable end |
| Recommended tightening torque |
Power circuit: 2.5 N.m – on screw clamp terminals Signalling circuit: 1.7 N.m – on screw clamp terminals |

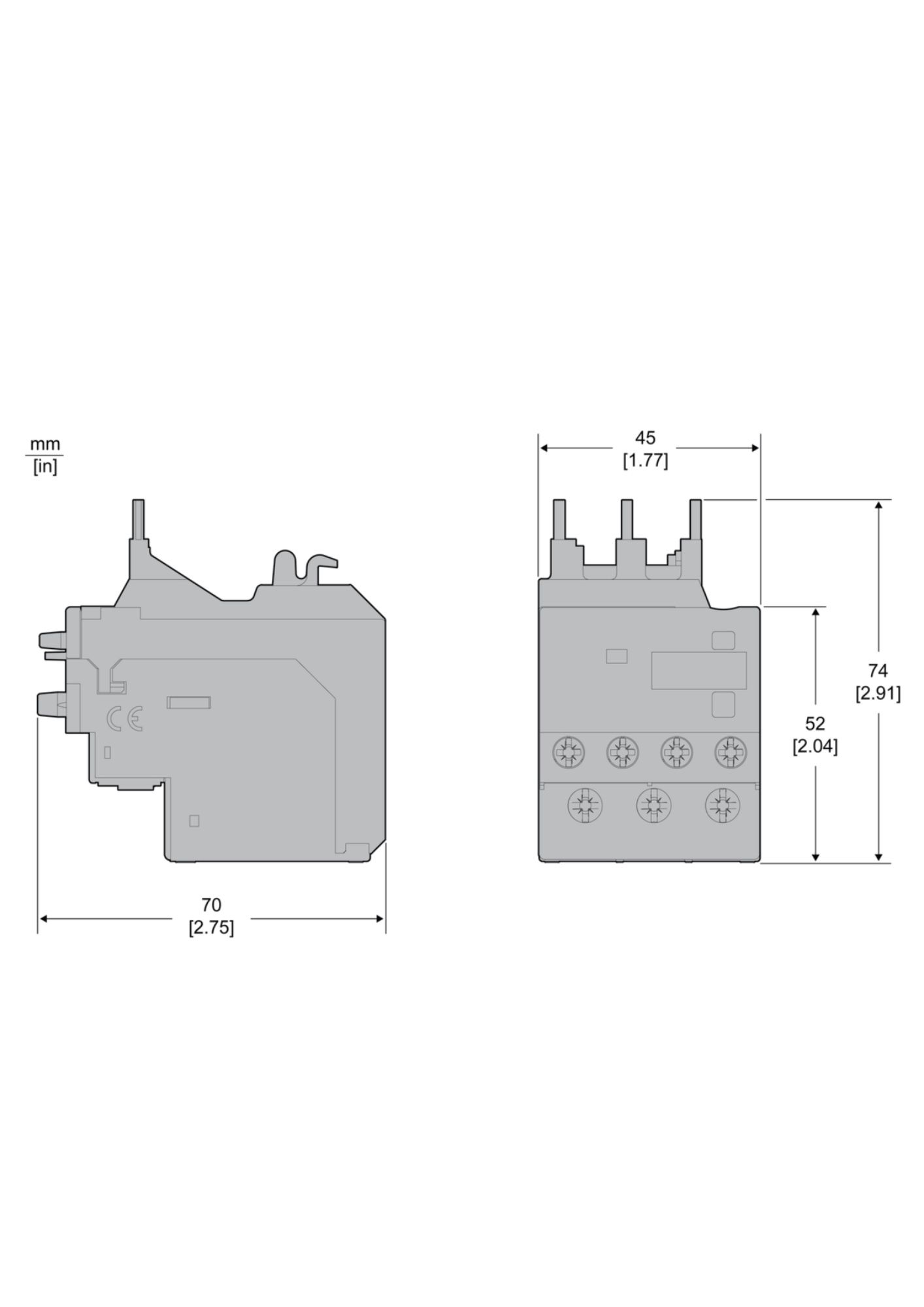

| Height | 44.5 mm |
| Width | 45 mm |
| Depth | 70 mm |
