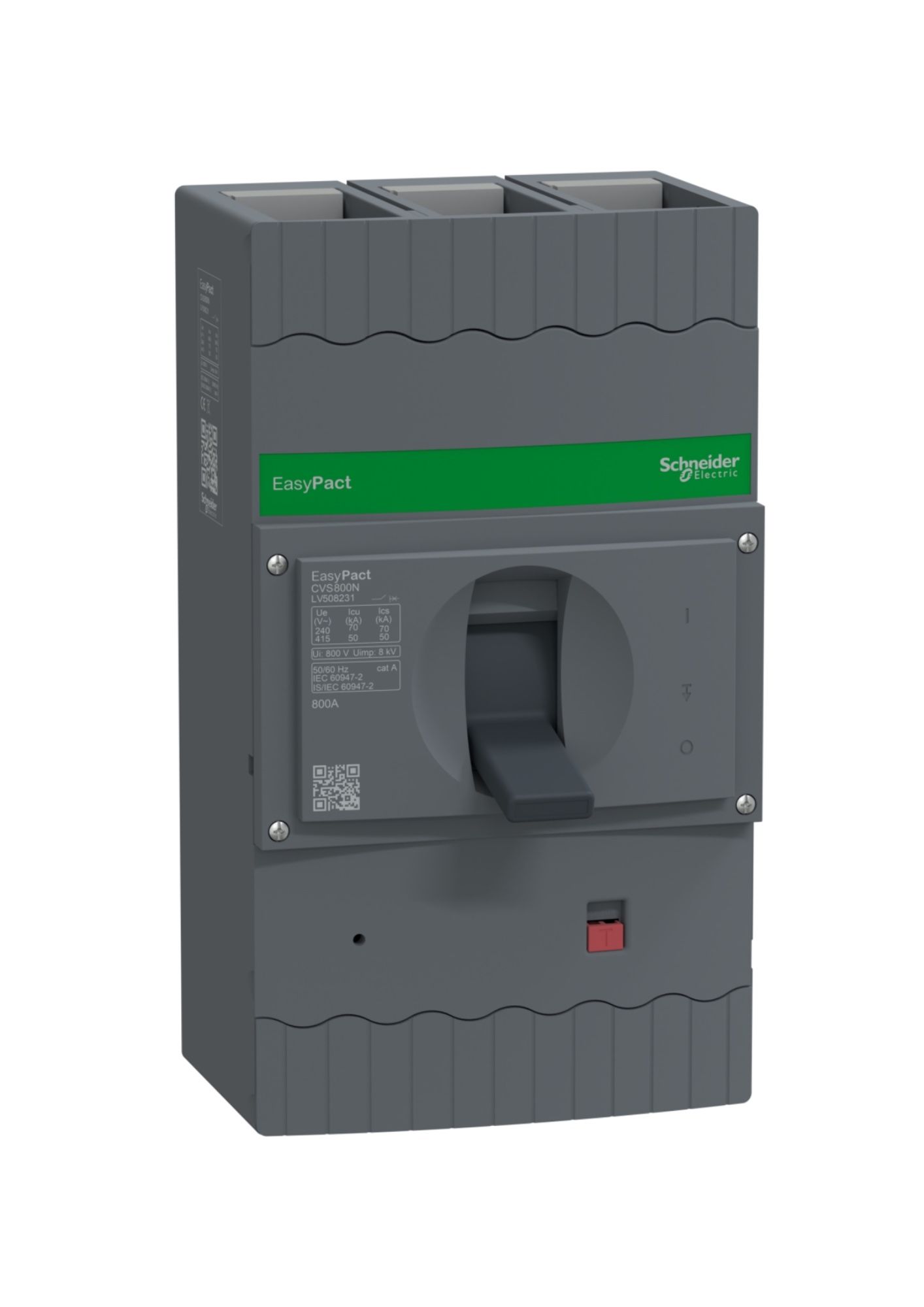

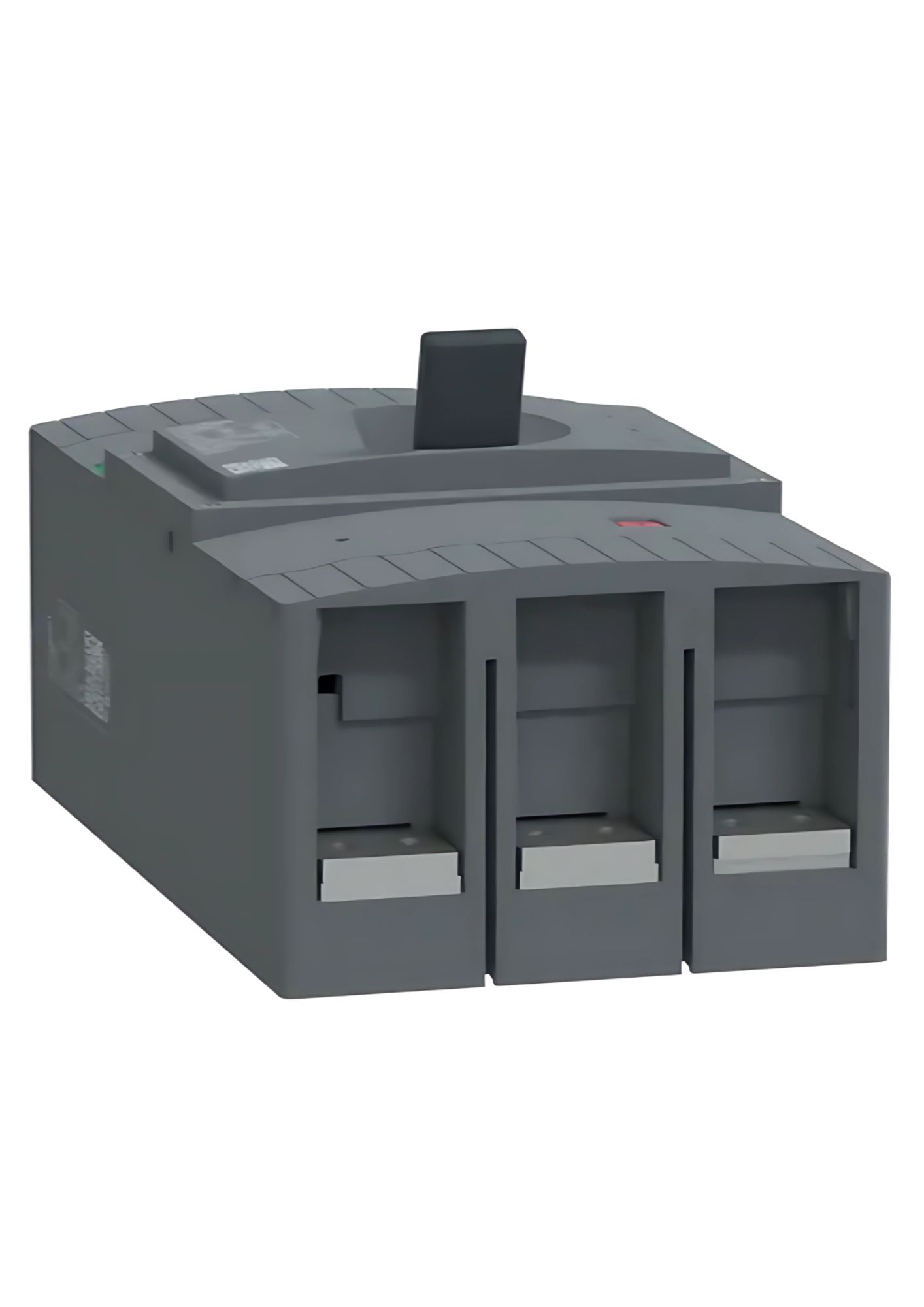

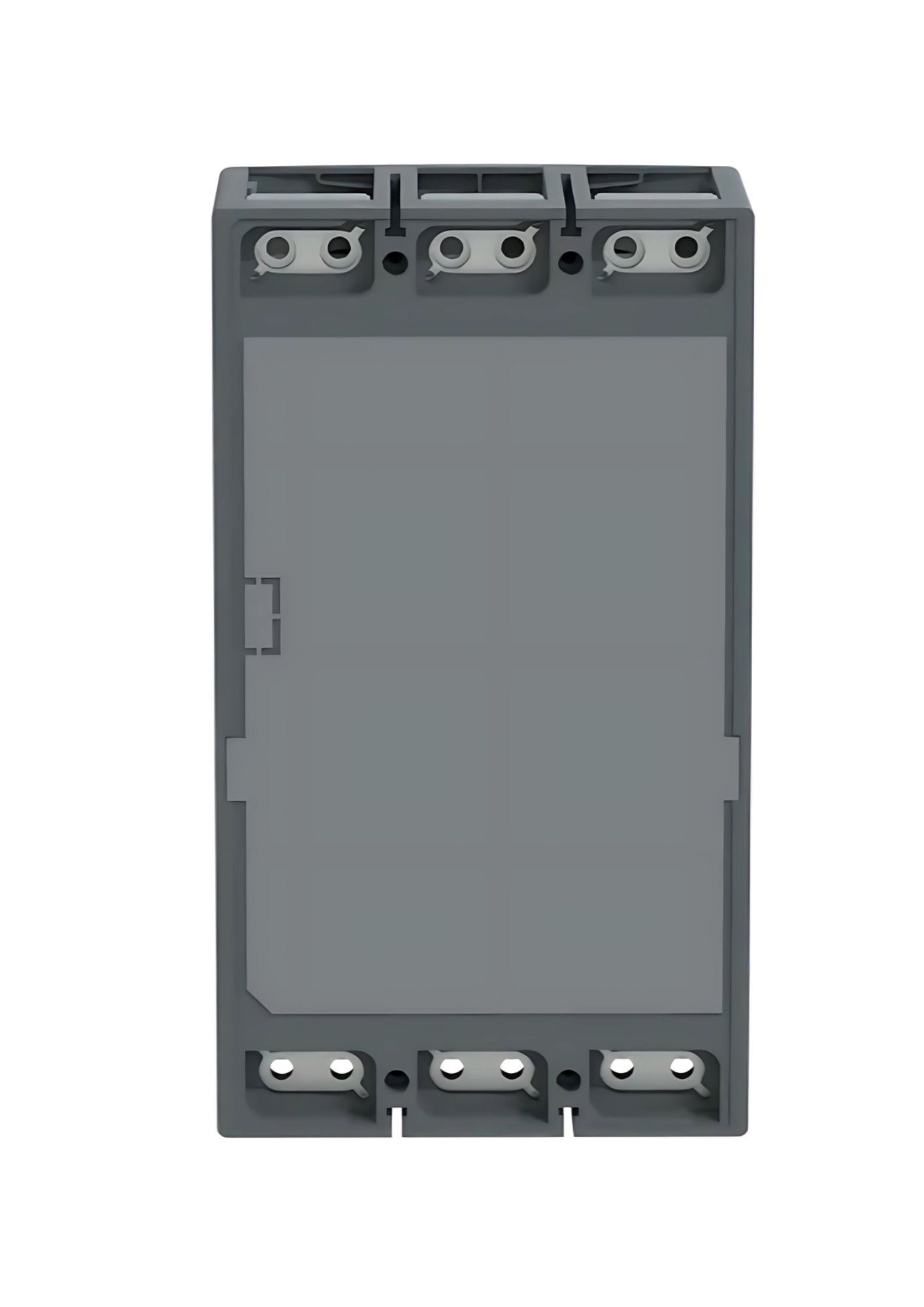

Schneider LV508231, MCCB, EasyPact CVS800N, 50kA at 415VAC, ETS 2.3, 800A, 3 Pole
Schneider LV508231, MCCB, EasyPact CVS800N, 50kA at 415VAC, ETS 2.3, 800A, 3 Pole Schneider LV508231, MCCB, EasyPact CVS800N, 50kA at 415VAC, ETS 2.3, 800A, 3 Pole Schneider LV508231, MCCB, EasyPact CVS800N, 50kA at 415VAC, ETS 2.3, 800A, 3 Pole

Schneider LV508231, MCCB, EasyPact CVS800N, 50kA at 415VAC, ETS 2.3, 800A, 3 Pole

In stock
SKU
LV508231
Special Price ₹35,396.00 Regular Price ₹88,490.00
(18% GST Extra)
Add to Wish List
  • Schneider Electric EasyPact CVS800N 800A Three Pole 50kA ETS2 MCCB designed for distribution applications.
  • High breaking capacity of 50 kA and operating temperature range from -5°C to 55°C for reliable protection.
  • Fixed mounting type with IP40 degree of protection for easy and secure installation.
  • Complies with IEC 60947-2 standards, ensuring high-quality performance.
  • Part of the EasyPact series by Schneider Electric, offering top-of-the-line circuit breaker protection.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

EasyPact CVS800N Datasheet
Main
Range EasyPact
Range of product EasyPact CVS800…1250
Product name EasyPact CVS
Device short name CVS800N
Device or component type Circuit breaker
Device application Distribution
Poles description 3P
Protected poles description 3D
Rated current [In] 800 A
Rated operational voltage [Ue] 690 V AC
Network type AC
Suitability for isolation Yes, conforming to IEC 60947-2
Utilisation category Category A
Breaking capacity [Icu] 70 kA Icu at 220/240 V AC 50/60 Hz
50 kA Icu at 380/415 V AC 50/60 Hz
50 kA Icu at 440 V AC 50/60 Hz
Trip unit name ETS 2.3
Trip unit technology Electronic
Trip unit rating 800 A at 40 °C
Protection type Short-circuit protection (magnetic), Overload protection (thermal), Instantaneous short-circuit protection
Complementary
Rated insulation voltage [Ui] 800 V AC 50/60 Hz
Rated impulse withstand voltage [Uimp] 8 kV
Network frequency 50/60 Hz
Rated service breaking capacity [Ics] 70 kA at 220/240 V AC 50/60 Hz
50 kA at 380/415 V AC
50 kA at 440 V AC
Neutral position Left
Mechanical durability 20,000 cycles
Electrical durability 2,500 cycles at 415 V In
Trip unit protection functions LSI
Control type Toggle
Long time pick-up adjustment type Ir Adjustable
Long time pick-up adjustment range 0.4...1 x In
Long time delay adjustment type Adjustable
Long-time delay adjustment range [tr] 3 s at 7.2 x Ir, 10 s at 7.2 x Ir, 3 s at 6 x Ir, 10 s at 6 x Ir
Short-time pick-up adjustment type Isd Adjustable
Short-time pick-up adjustment range [Isd] 1.5...10 x Ir
Short-time delay adjustment type Fixed
Short-time delay adjustment range [tsd] 0.1 s
Instantaneous pick-up adjustment type Ii Fixed
Instantaneous pick-up adjustment range 8 x In
Mounting support Backplate
Mounting mode Fixed
Upside connection Front
Downside connection Front
Connection pitch 68 mm
Width 210 mm
Depth 143 mm
Height 370 mm
