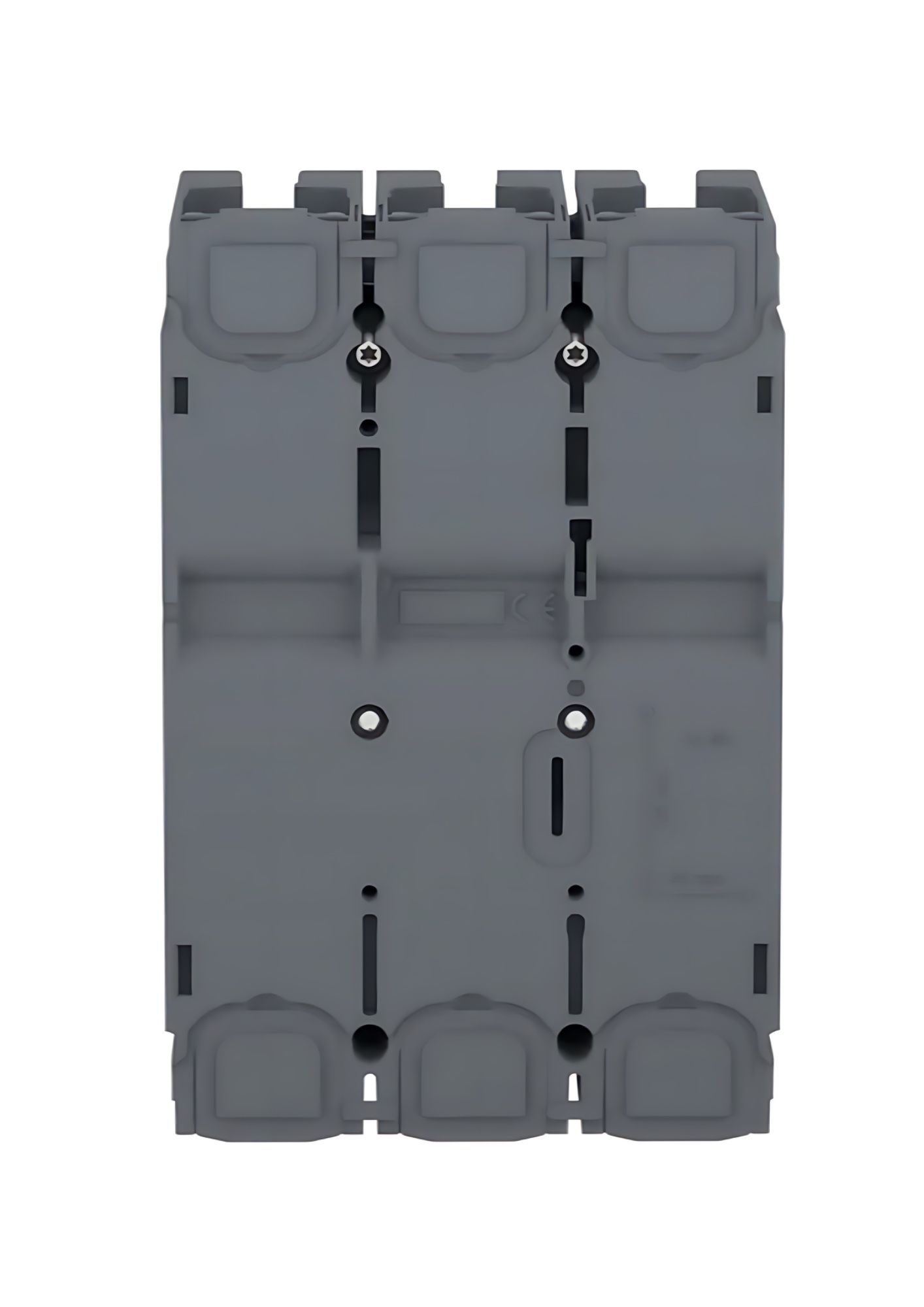

Schneider LV510305, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 63 A rating thermal magnetic TM-D trip unit, 3 Pole
Schneider LV510305, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 63 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV510305, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 63 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV510305, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 63 A rating thermal magnetic TM-D trip unit, 3 Pole

Schneider LV510305, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 63 A rating thermal magnetic TM-D trip unit, 3 Pole

In stock
SKU
LV510305
Special Price ₹3,676.00 Regular Price ₹9,190.00
(18% GST Extra)
Add to Wish List
  • EasyPact CVS100B is a 3-pole, 3D fixed circuit breaker ideal for small and medium building protection.
  • Breaking capacity (Icu) is 25kA rms at 415VAC, 50/60Hz; operational voltage 440VAC, 50/60Hz.
  • Equipped with a 63A thermal-magnetic trip unit (TMD) for adjustable thermal overload and fixed magnetic protection.
  • Compact 3-pole version dimensions: 105mm x 161mm x 86mm, with various optional functions and accessories.
  • Compliant with international standards (IEC 60947, CCC, EAC) and suitable for Class II switchboards (IEC 60664-1).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

EasyPact CVS100B
Main
RangeEasyPact
Range of productEasyPact CVS100...250
Product nameEasyPact CVS
Device short nameCVS100B
Product or component typeCircuit breaker
Device applicationDistribution
Poles description3P
Protected poles description3D
Earth leakage protection (Vigi add on)Without
[In] rated current63 A at 40 °C
Network typeAC
Utilisation categoryCategory A
[Icu] Breaking capacity 40 kA at 220/240 V AC 50/60 Hz
25 kA at 380/415 V AC 50/60 Hz
20 kA at 440 V AC 50/60 Hz
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Trip unit rating63 A at 40 °C
Protection typeOverload (thermal), Short-circuit (magnetic)
Complementary
[Uimp] rated impulse withstand voltage8 kV
Network frequency50/60 Hz
Breaking capacity codeB
[Ics] rated service breaking capacity 15 kA at 440 V AC
25 kA at 380/415 V AC
40 kA at 220/240 V AC
Mechanical durability30000 cycles
Electrical durability12000 cycles at 415 V In
Control typeToggle
Thermal protection adjustment range44.1…63 A
Long time pick-up adjustment type (Ir)Adjustable
Long time pick-up adjustment range0.7...1 x In
Long time delay adjustment typeFixed
Instantaneous pick-up adjustment type (Ii)Fixed
Instantaneous pick-up adjustment range500 A
Contact position indicatorYes
Mounting supportBackplate
Mounting modeFixed
Upside connectionFront
Downside connectionFront
Connections - terminalsScrew connection
Connection pitch35 mm
Compatibility codeCVS100

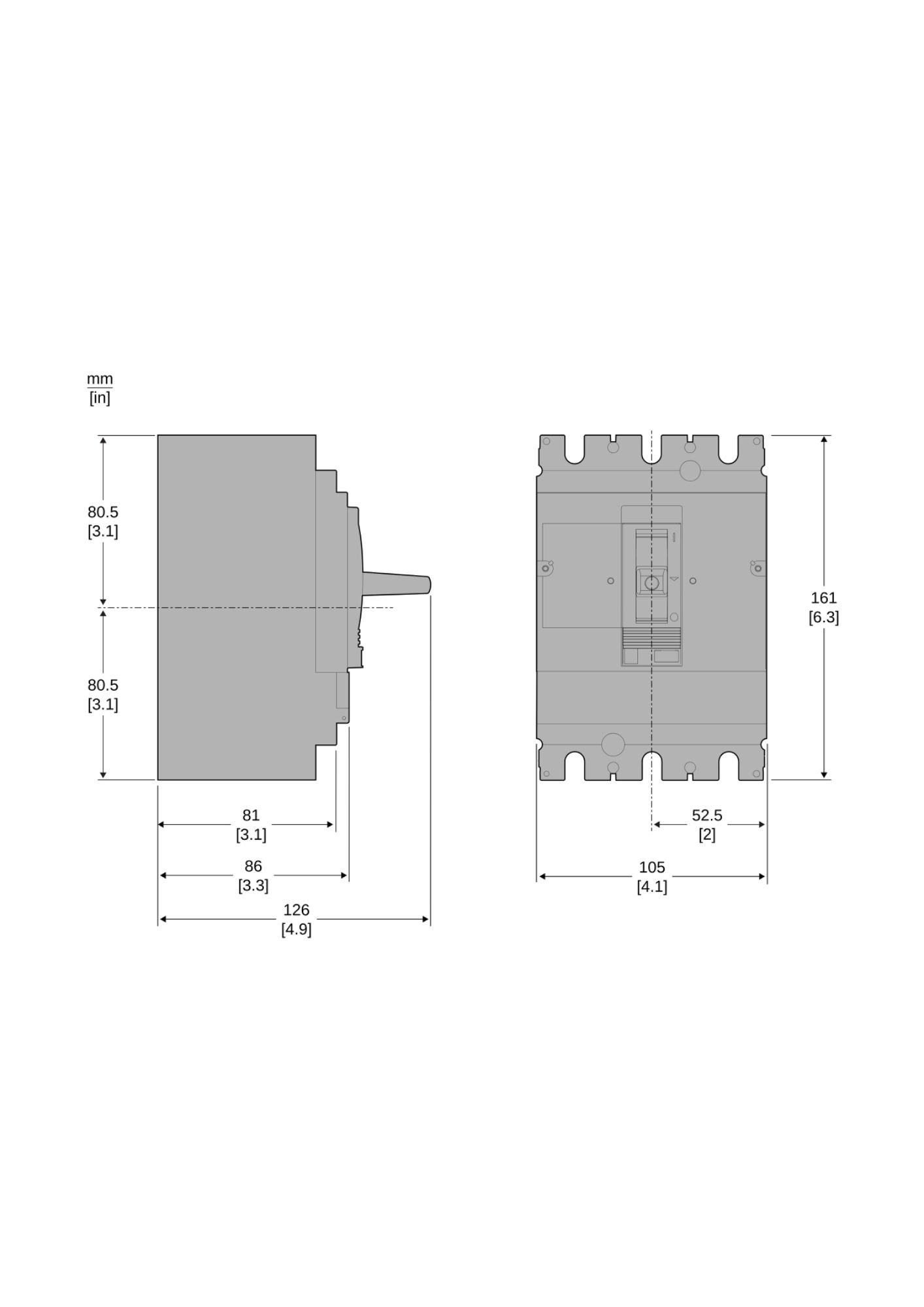

Width105 mm
Depth86 mm
Height161 mm
