Schneider LV510307, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 3 Pole
Schneider LV510307, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV510307, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV510307, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV510307, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 3 Pole

Schneider LV510307, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 3 Pole

In stock
SKU
LV510307
Special Price ₹3,696.00 Regular Price ₹9,240.00
(18% GST Extra)
Add to Wish List
  • 3 poles 3d fixed circuit breaker with high performance and cost-saving functionality.
  • Breaking capacity (Icu) 25kA rms at 415VAC 50/60Hz and operational voltage 440VAC 50/60Hz.
  • 100A thermal-magnetic trip unit (TMD) with adjustable thermal overload and fixed magnetic protection.
  • Compact design (105mm x 161mm x 86mm) with optional functions and accessories.
  • Complies with IEC 60947, CCC, EAC standards and suitable for class II insulation switchboards (IEC 60664-1).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeEasyPact
Range of productEasyPact CVS100...250
Product nameEasyPact CVS
Device short nameCVS100B
Product or component typeCircuit breaker
Device applicationDistribution
Poles description3P
Protected poles description3D
Earth leakage protection (Vigi add on)Without
[In] rated current100 A at 40 °C
Network typeAC
Utilisation categoryCategory A
[Icu] Breaking capacity 40 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
25 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
20 kA at 440 V AC 50/60 Hz (IEC 60947-2)
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Trip unit rating100 A at 40 °C
Protection type Short-circuit protection (magnetic)
Overload protection (thermal)
Complementary
[Uimp] rated impulse withstand voltage8 kV (EN/IEC 60947-2)
Network frequency50/60 Hz
Breaking capacity codeB
[Ics] rated service breaking capacity 15 kA at 440 V AC 50/60 Hz (IEC 60947-2)
25 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
40 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
Mechanical durability30000 cycles
Electrical durability12000 cycles at 415 V In (IEC 60947-2)
Control typeToggle
Thermal protection adjustment range70…100 A
Long time pick-up adjustment type IrAdjustable
Long time pick-up adjustment range0.7...1 x In
Long time delay adjustment typeFixed
Instantaneous pick-up adjustment type IiFixed
Instantaneous pick-up adjustment range800 A
Contact position indicatorYes
Mounting supportBackplate
Mounting modeFixed
Upside connectionFront
Downside connectionFront
Connections - terminalsScrew connection
Connection pitch35 mm
Compatibility codeCVS100

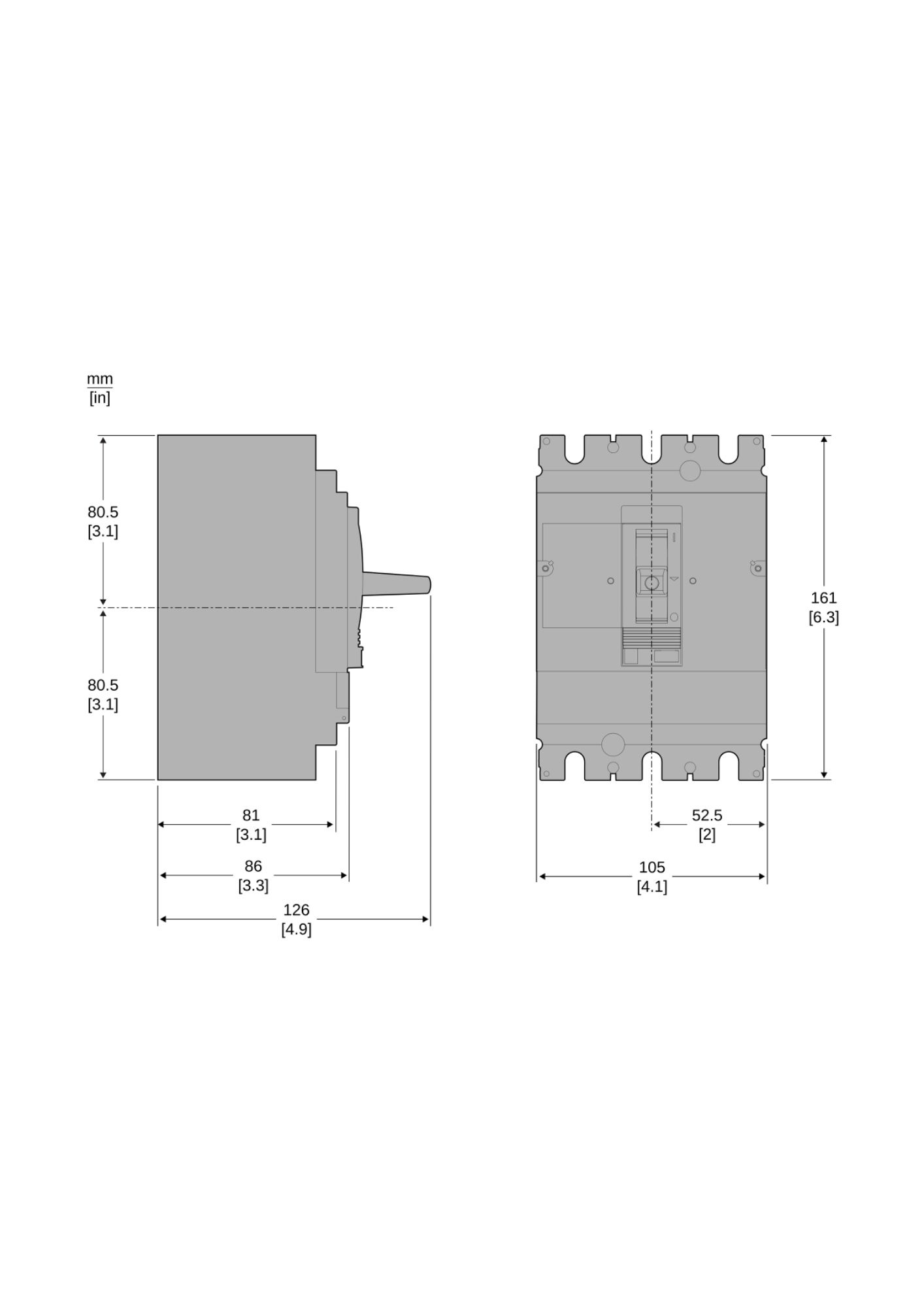

Width105 mm
Depth86 mm
Height161 mm
