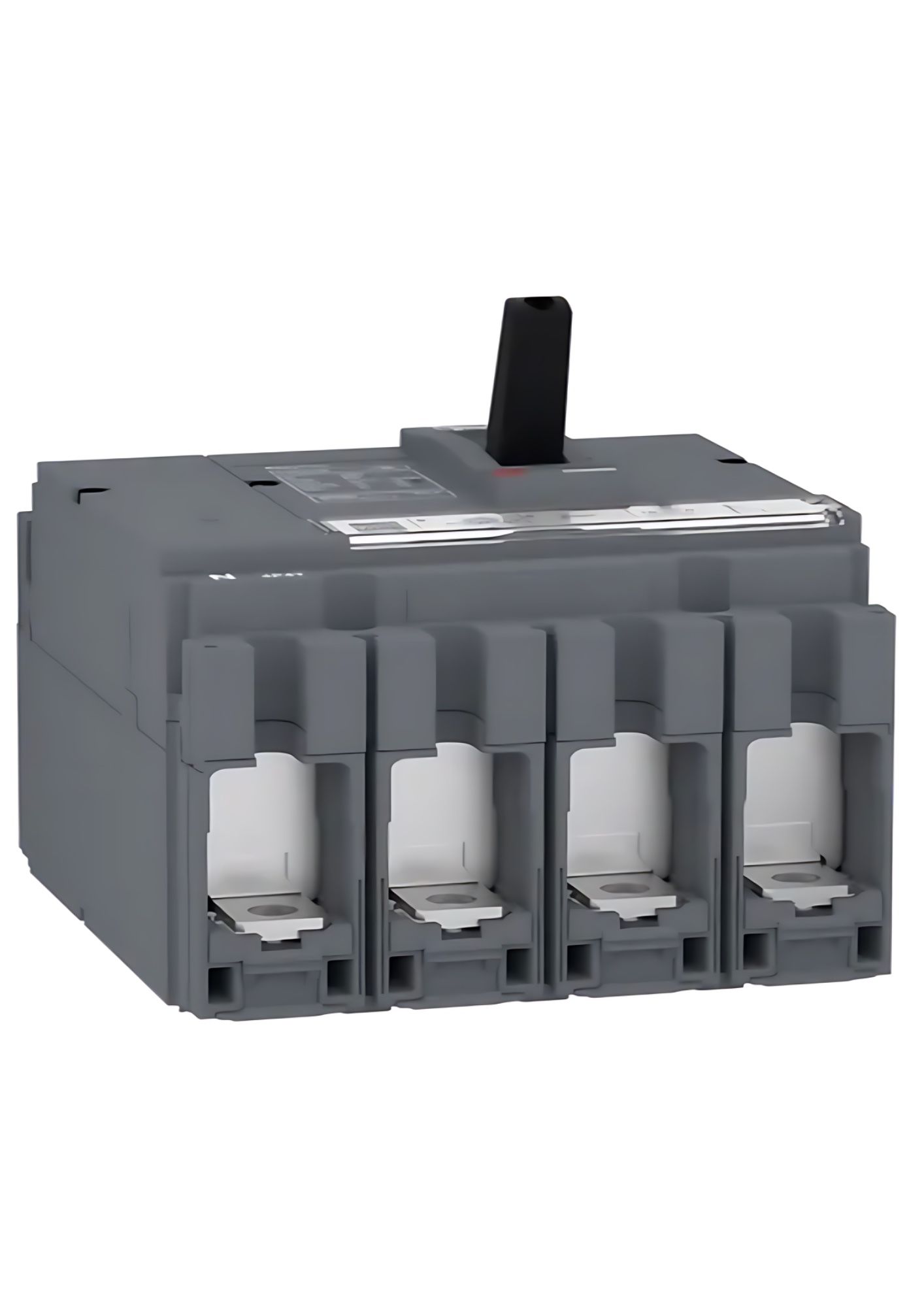

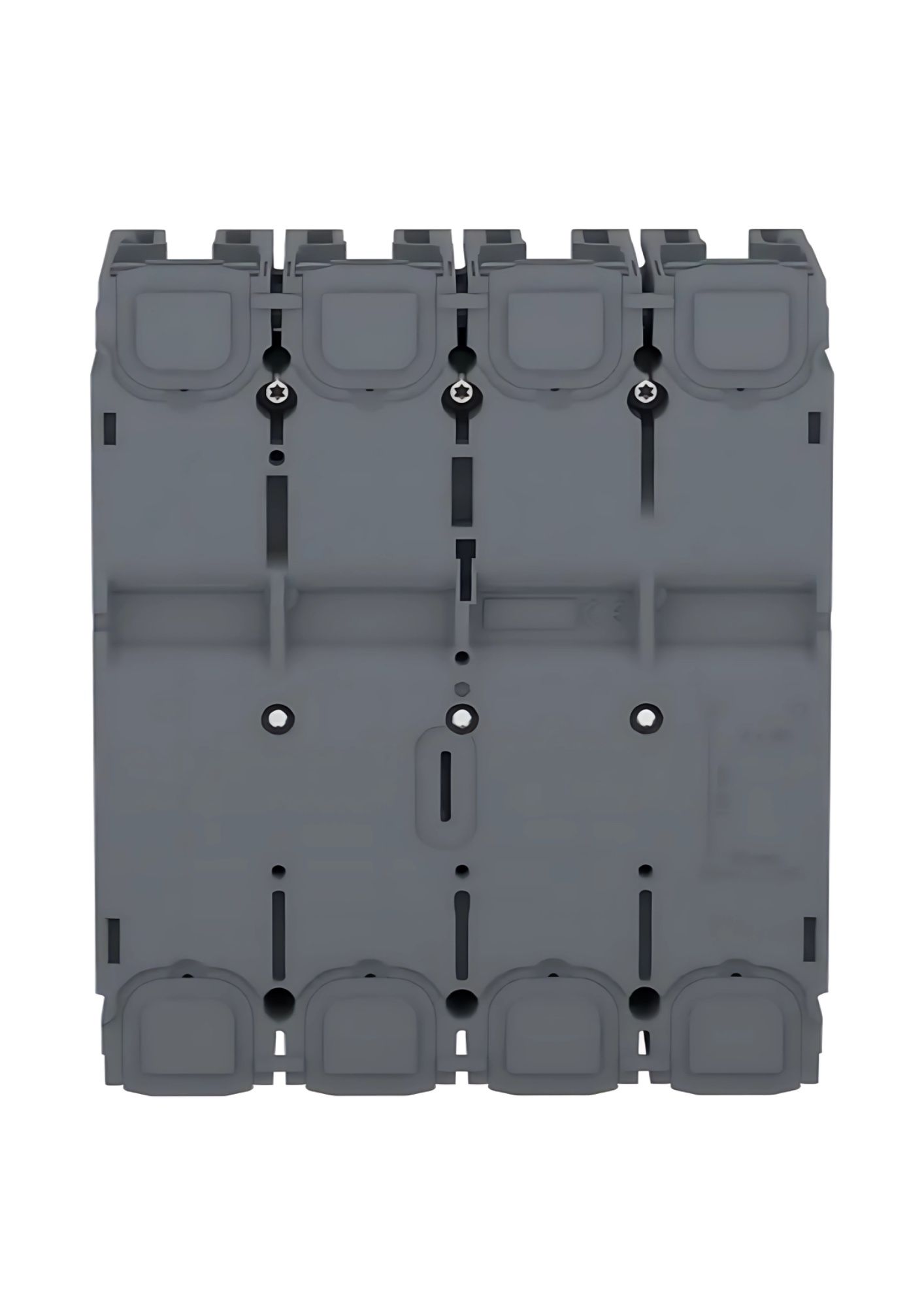

Schneider LV510317, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 4 Pole
Schneider LV510317, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV510317, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV510317, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV510317, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 4 Pole

Schneider LV510317, MCCB, EasyPact CVS100B, 25 kA at 415 VAC, 100 A rating thermal magnetic TM-D trip unit, 4 Pole

In stock
SKU
LV510317
Special Price ₹5,112.00 Regular Price ₹12,780.00
(18% GST Extra)
Add to Wish List
  • EasyPact CVS100B is a 4 poles 3d fixed circuit breaker with high performance and cost-saving functionality.
  • Ideal for protecting small and medium-sized buildings.
  • Breaking capacity of 25kA rms at 415VAC 50/60Hz; operational voltage 440VAC 50/60Hz.
  • Equipped with a 100A thermal-magnetic trip unit (TMD) for adjustable thermal overload and fixed magnetic protection.
  • Compliant with IEC 60947, CCC, EAC standards; suitable for class II insulation switchboards (IEC 60664-1).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Range EasyPact
Range of product EasyPact CVS100...250
Product name EasyPact CVS
Device short name CVS100B
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 3D
Earth leakage protection (Vigi add on) Without
[In] rated current 100 A at 40 °C
Network type AC
Utilisation category Category A
[Icu] Breaking capacity 40 kA Icu at 220/240 V AC 50/60 Hz
25 kA Icu at 380/415 V AC 50/60 Hz
20 kA Icu at 440 V AC 50/60 Hz
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit rating 100 A at 40 °C
Protection type Overload protection (thermal)
Short-circuit protection (magnetic)
Complementary
[Uimp] rated impulse withstand voltage 8 kV conforming to EN/IEC 60947-2
Network frequency 50/60 Hz
Breaking capacity code B
[Ics] rated service breaking capacity 15 kA at 440 V AC 50/60 Hz
25 kA at 380/415 V AC 50/60 Hz
40 kA at 220/240 V AC 50/60 Hz
Neutral position Left
Mechanical durability 30,000 cycles
Electrical durability 12,000 cycles at 415 V In
Control type Toggle
Thermal protection adjustment range 70…100 A
Neutral protection setting No protection (3D)
Long time pick-up adjustment type Ir Adjustable
Long time pick-up adjustment range 0.7...1 x In
Long time delay adjustment type Fixed
Instantaneous pick-up adjustment type Ii Fixed
Instantaneous pick-up adjustment range 800 A
Contact position indicator Yes
Mounting support Backplate
Mounting mode Fixed
Upside connection Front
Downside connection Front
Connections - terminals Screw connection
Connection pitch 35 mm
Compatibility code CVS100
Width 140 mm
Depth 86 mm
Height 161 mm
