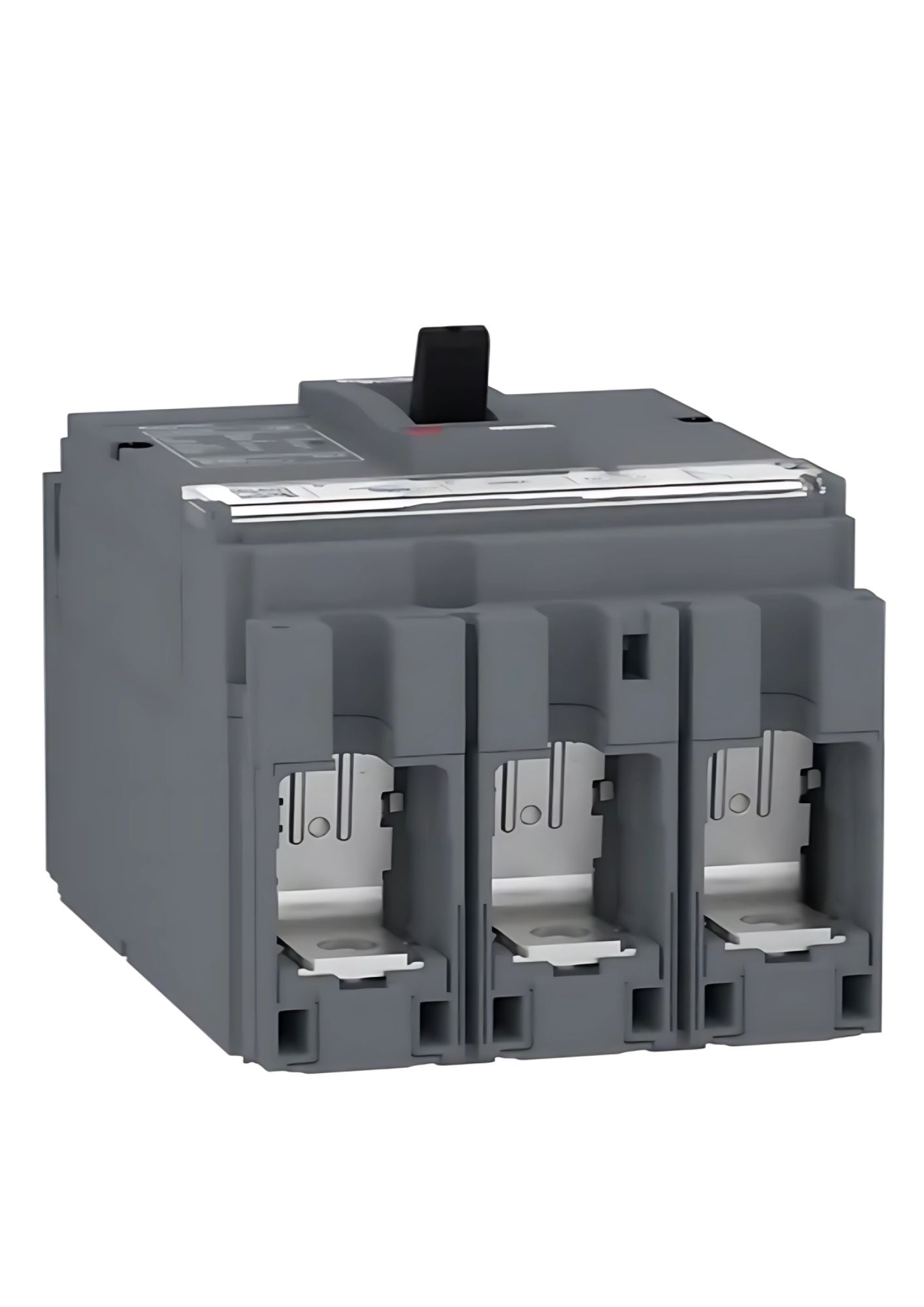

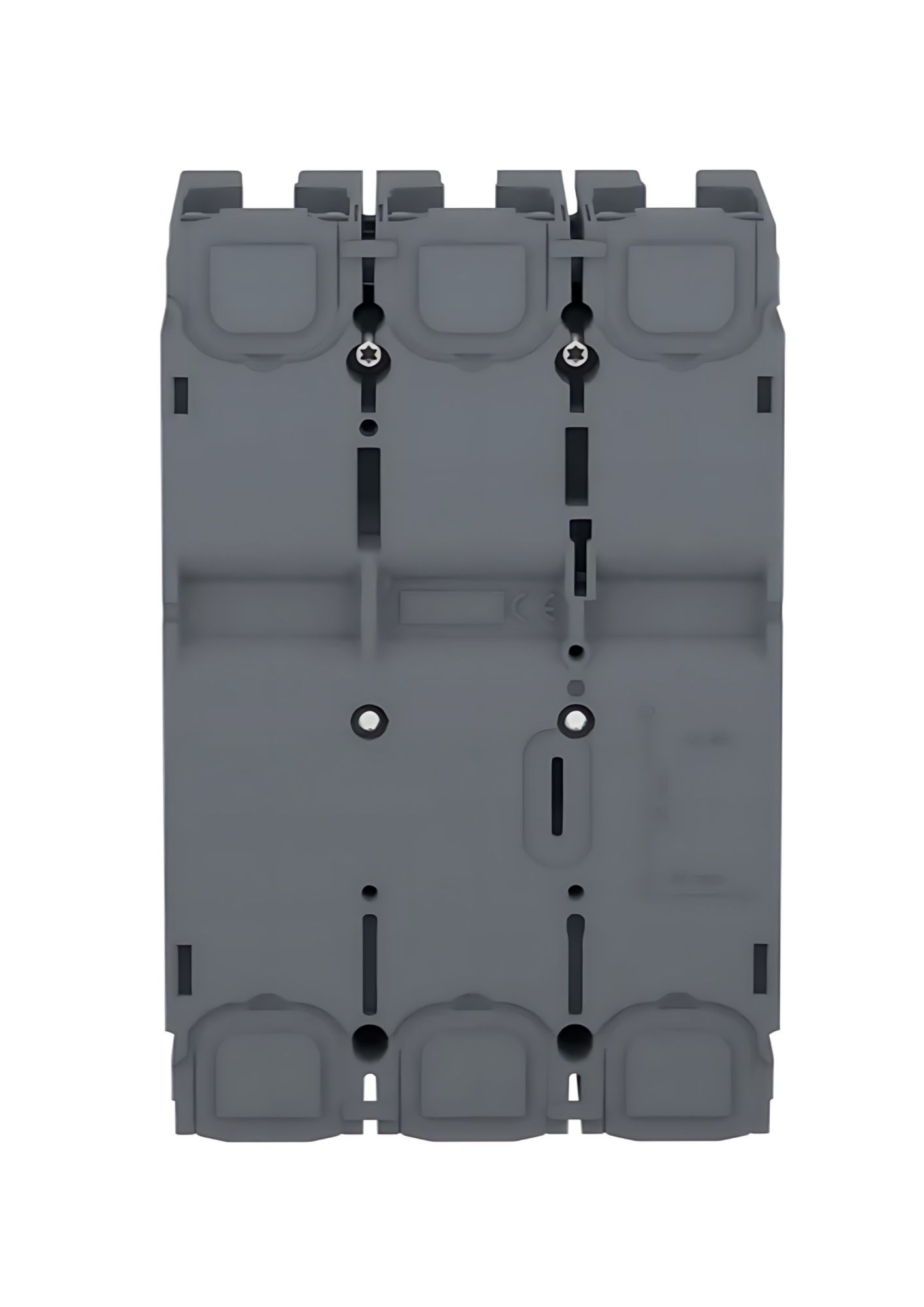

Schneider LV516302, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 3 Pole
In stock
SKU
LV516302
Special Price
₹5,408.00
Regular Price
₹13,520.00
Check Delivery Options at your Area


FREE SHIPPING
Free Shipping by Surface Only*


SECURE PAYMENT
100% Secure Payment
Main | |
---|---|
Range | EasyPact |
Range of product | EasyPact CVS100...250 |
Product name | EasyPact CVS |
Device short name | CVS160B |
Device type | Circuit breaker |
Device application | Distribution |
Poles description | 3P |
Protected poles description | 3D |
Earth leakage protection | Without |
Rated current [In] | 125 A at 40 °C |
Network type | AC |
Utilisation category | Category A |
Breaking capacity [Icu] |
40 kA at 220/240 V AC 25 kA at 380/415 V AC 20 kA at 440 V AC |
Trip unit name | TM-D |
Trip unit technology | Thermal-magnetic |
Trip unit rating | 125 A at 40 °C |
Complementary | |
Protection type | Short-circuit (magnetic), Overload (thermal) |
Rated impulse withstand voltage [Uimp] | 8 kV |
Network frequency | 50/60 Hz |
Breaking capacity code | B |
Rated service breaking capacity [Ics] |
15 kA at 440 V AC 25 kA at 380/415 V AC 40 kA at 220/240 V AC |
Mechanical durability | 25,000 cycles |
Electrical durability | 12,000 cycles at 415 V In |
Control type | Toggle |
Thermal protection adjustment range | 87.5…125 A |
Mounting | Backplate, Fixed |
Connections | Screw, 35 mm pitch |
Dimensions (W x D x H) | 105 x 86 x 161 mm |
