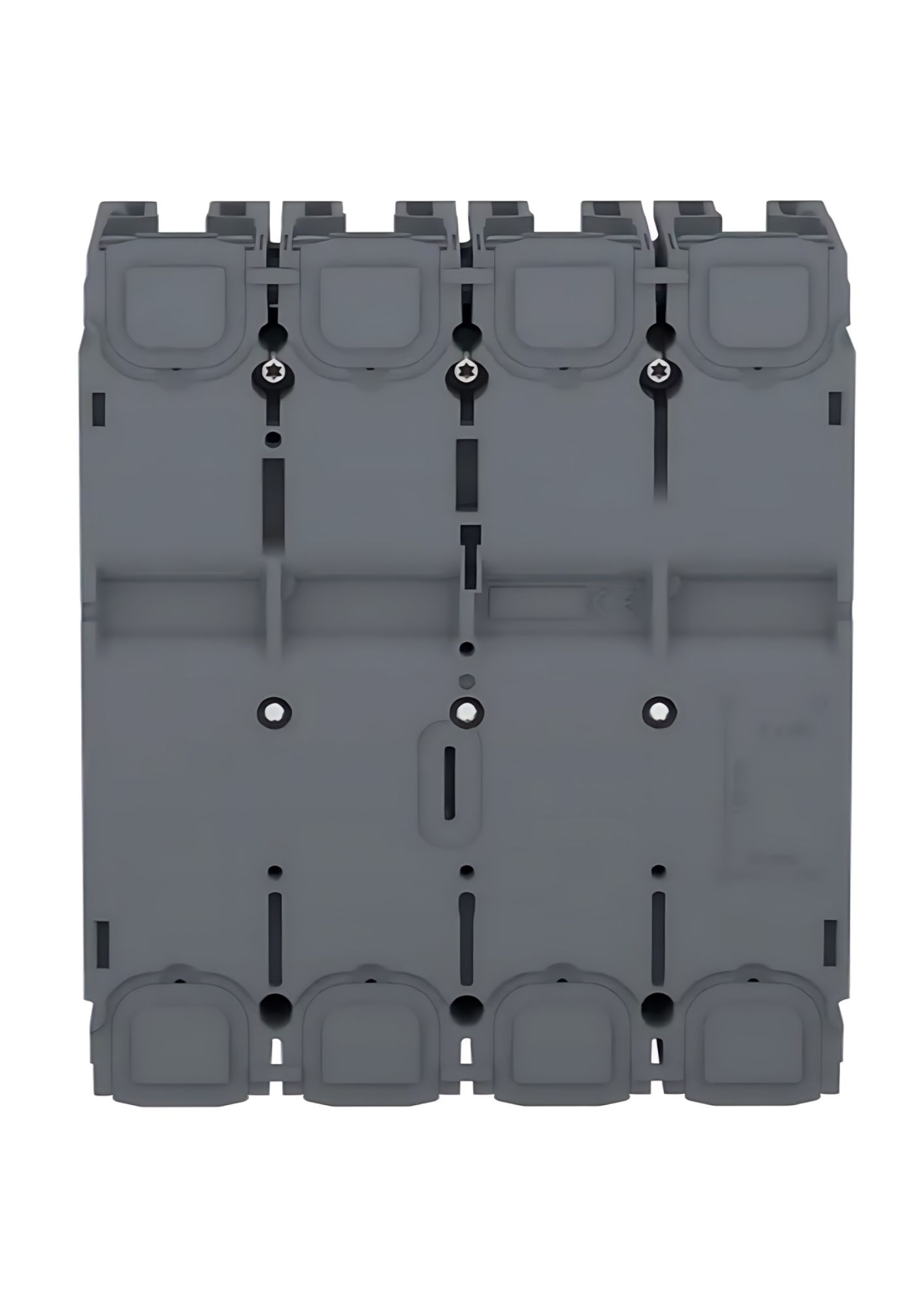

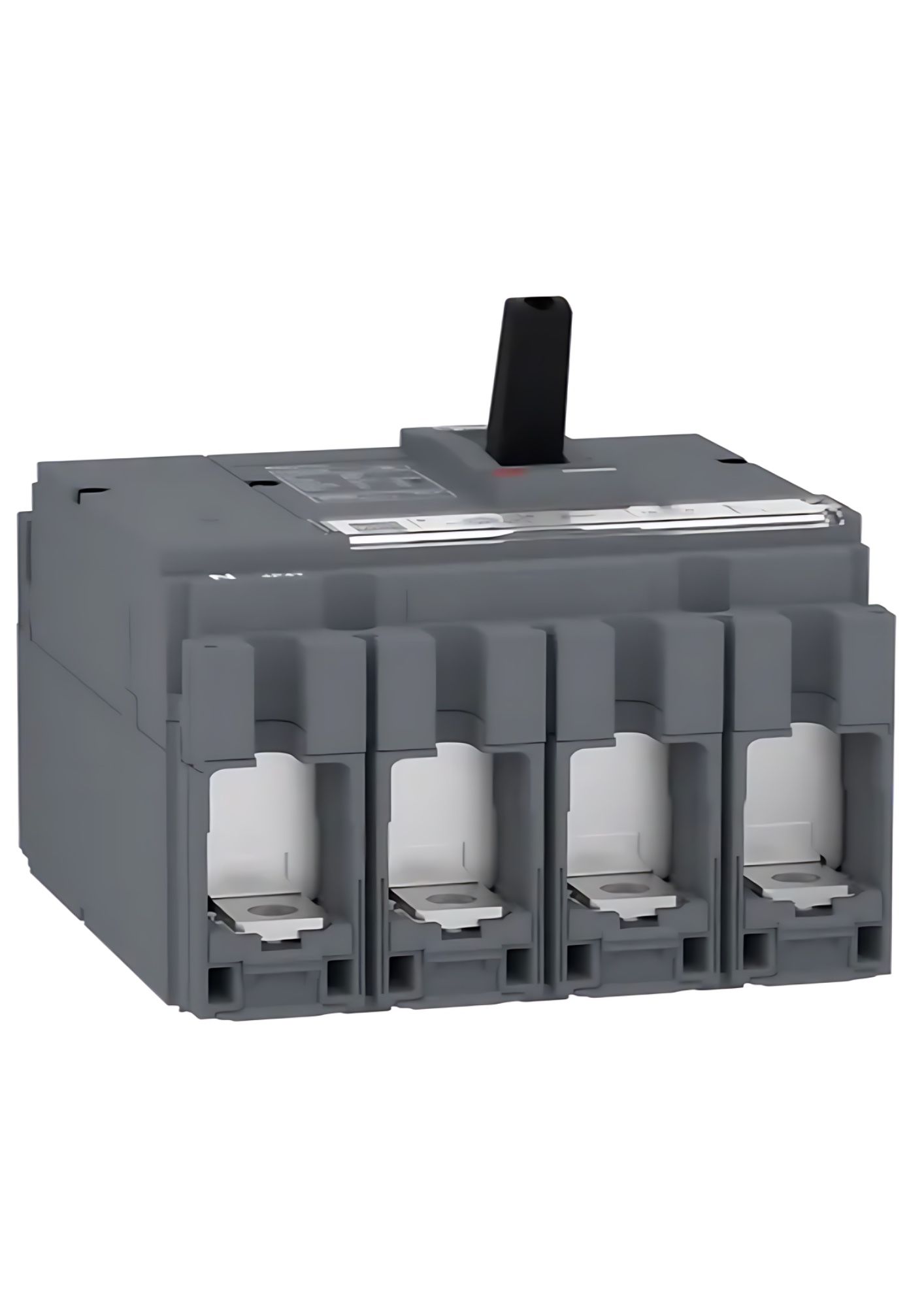

Schneider LV516312, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 4 Pole
Schneider LV516312, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV516312, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV516312, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV516312, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 4 Pole

Schneider LV516312, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 4 Pole

In stock
SKU
LV516312
Special Price ₹6,620.00 Regular Price ₹16,550.00
(18% GST Extra)
Add to Wish List
  • 4 poles, 3d fixed circuit breaker with high performance and cost-saving functionality.
  • Ideal for small and medium-sized building protection applications.
  • Breaking capacity: 25kA rms at 415VAC 50/60Hz; operational voltage: 440VAC 50/60Hz.
  • Equipped with 125A thermal-magnetic trip unit (TMD) for adjustable thermal overload and fixed magnetic protection.
  • Compliant with IEC 60947, CCC, and EAC standards; class II front face device; comes with optional functions and accessories.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Range EasyPact
Range of product EasyPact CVS100...250
Product name EasyPact CVS
Device short name CVS160B
Device type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 3D
Earth leakage protection Without
Complementary
Rated impulse withstand voltage [Uimp] 8 kV
Network frequency 50/60 Hz
Breaking capacity code B
Rated service breaking capacity [Ics] 15 kA at 440 V AC
25 kA at 380/415 V AC
40 kA at 220/240 V AC
Neutral position Left
Mechanical durability 25000 cycles
Electrical durability 12000 cycles at 415 V In
Control type Toggle
Mounting mode Fixed on backplate
Connections Screw connection, pitch 35 mm
Dimensions (W×D×H) 140 × 86 × 161 mm
