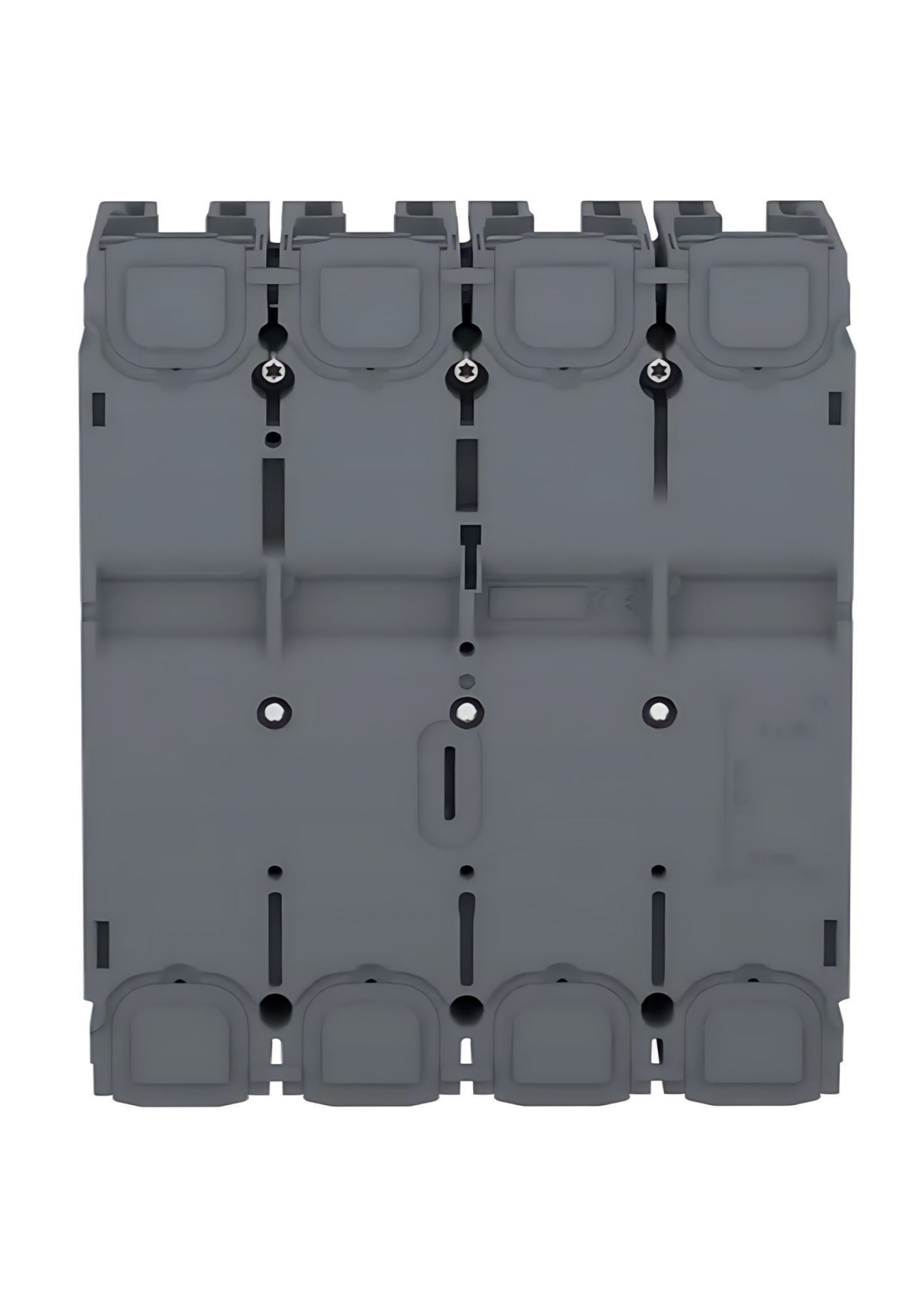

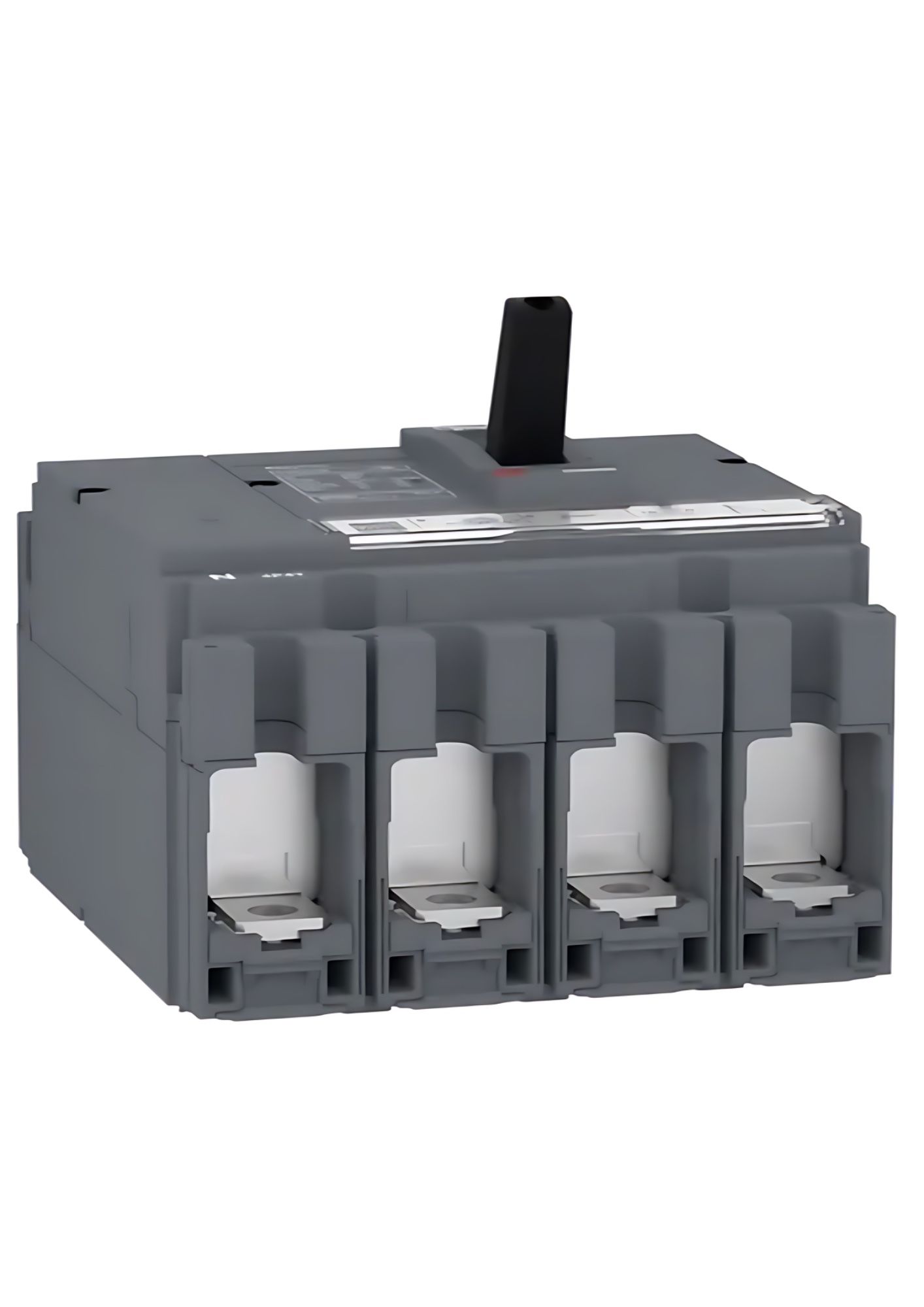

Schneider LV516313, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 160 A rating thermal magnetic TM-D trip unit, 4 Pole
Schneider LV516313, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 160 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV516313, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 160 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV516313, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 160 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV516313, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 160 A rating thermal magnetic TM-D trip unit, 4 Pole

Schneider LV516313, MCCB, EasyPact CVS160B, 25 kA at 415 VAC, 160 A rating thermal magnetic TM-D trip unit, 4 Pole

In stock
SKU
LV516313
Special Price ₹8,460.00 Regular Price ₹21,150.00
(18% GST Extra)
Add to Wish List
  • 4-pole 3d fixed circuit breaker with high performance and cost-saving functionality.
  • Suitable for small and medium-sized building protection applications.
  • Breaking capacity: 25kA rms at 415VAC 50/60Hz; Operational voltage: 440VAC 50/60Hz.
  • Equipped with 160A thermal-magnetic trip unit (TMD) providing adjustable thermal overload and fixed magnetic protection.
  • Compliant with IEC 60947, CCC, EAC standards; class II front face device suitable for class II insulation switchboards.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Range EasyPact
Range of product EasyPact CVS100...250
Product name EasyPact CVS
Device short name CVS160B
Device type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 3D
Earth leakage protection Without
Rated current [In] 160 A at 40 °C
Complementary
Network type AC
Utilisation category Category A
Breaking capacity [Icu] 40 kA at 220/240 V AC
25 kA at 380/415 V AC
20 kA at 440 V AC
Trip unit TM-D, Thermal-magnetic, 160 A
Protection type Overload (thermal), Short-circuit (magnetic)
Impulse withstand voltage [Uimp] 8 kV
Durability Mechanical: 25,000 cycles, Electrical: 12,000 cycles
Mounting Fixed, Backplate
Connection type Screw, Pitch 35 mm
Dimensions (W x D x H) 140 x 86 x 161 mm

No specifications available for this product.
