Schneider LV516332, MCCB, EasyPact CVS160F, 36 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 3 Pole
Schneider LV516332, MCCB, EasyPact CVS160F, 36 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV516332, MCCB, EasyPact CVS160F, 36 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV516332, MCCB, EasyPact CVS160F, 36 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV516332, MCCB, EasyPact CVS160F, 36 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 3 Pole

Schneider LV516332, MCCB, EasyPact CVS160F, 36 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 3 Pole

In stock
SKU
LV516332
Special Price ₹5,584.00 Regular Price ₹13,960.00
(18% GST Extra)
Add to Wish List
  • EasyPact CVS160F is a 3 poles 3d fixed circuit breaker with high performance and cost-saving functionality.
  • Breaking capacity (Icu): 36kA rms at 415VAC 50/60Hz, operational voltage up to 440VAC 50/60Hz.
  • Comes with a 125A thermal-magnetic trip unit (TMD) offering adjustable thermal overload and fixed magnetic protection.

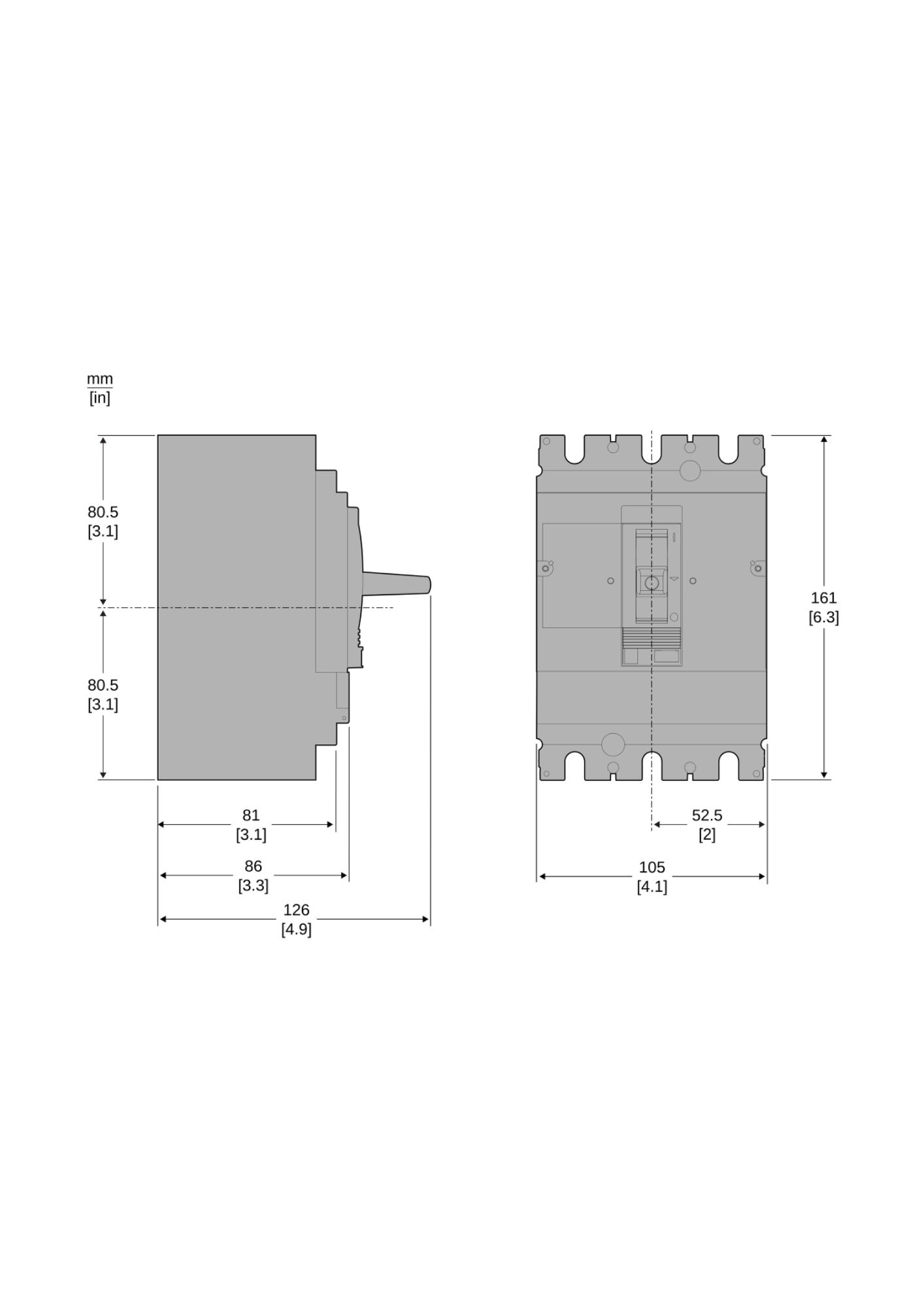

  • Compact design (105mm x 161mm x 86mm) with a variety of optional functions and accessories.
  • Compliant with IEC 60947, CCC, EAC standards, and suitable for class II insulation switchboards (IEC 60664-1).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeEasyPact
Range of productEasyPact CVS100...250
Product nameEasyPact CVS
Device short nameCVS160F
Product or component typeCircuit breaker
Device applicationDistribution
Poles description3P
Protected poles description3D
Earth leakage protection (Vigi add on)Without
[In] rated current125 A at 40 °C
Network typeAC
Utilisation categoryCategory A
[Icu] Breaking capacity 36 kA at 440 V AC 50/60 Hz (IEC 60947-2)
36 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
70 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Trip unit rating125 A at 40 °C
Protection type Overload protection (thermal)
Short-circuit protection (magnetic)
Complementary
[Uimp] rated impulse withstand voltage8 kV (IEC 60947-2)
Network frequency50/60 Hz
Breaking capacity codeF
[Ics] rated service breaking capacity 18 kA at 440 V AC 50/60 Hz (IEC 60947-2)
36 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
70 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
Mechanical durability25,000 cycles
Electrical durability12,000 cycles at 415 V (IEC 60947-2)
Control typeToggle
Thermal protection adjustment range87.5…125 A
Long time pick-up adjustment type IrAdjustable
Long time pick-up adjustment range0.7...1 × In
Long time delay adjustment typeFixed
Instantaneous pick-up adjustment type IiFixed
Instantaneous pick-up adjustment range1250 A
Contact position indicatorYes
Mounting supportBackplate
Mounting modeFixed
Upside connectionFront
Downside connectionFront
Connections - terminalsScrew connection
Connection pitch35 mm
Compatibility codeCVS160
Width105 mm
Depth86 mm
Height161 mm
