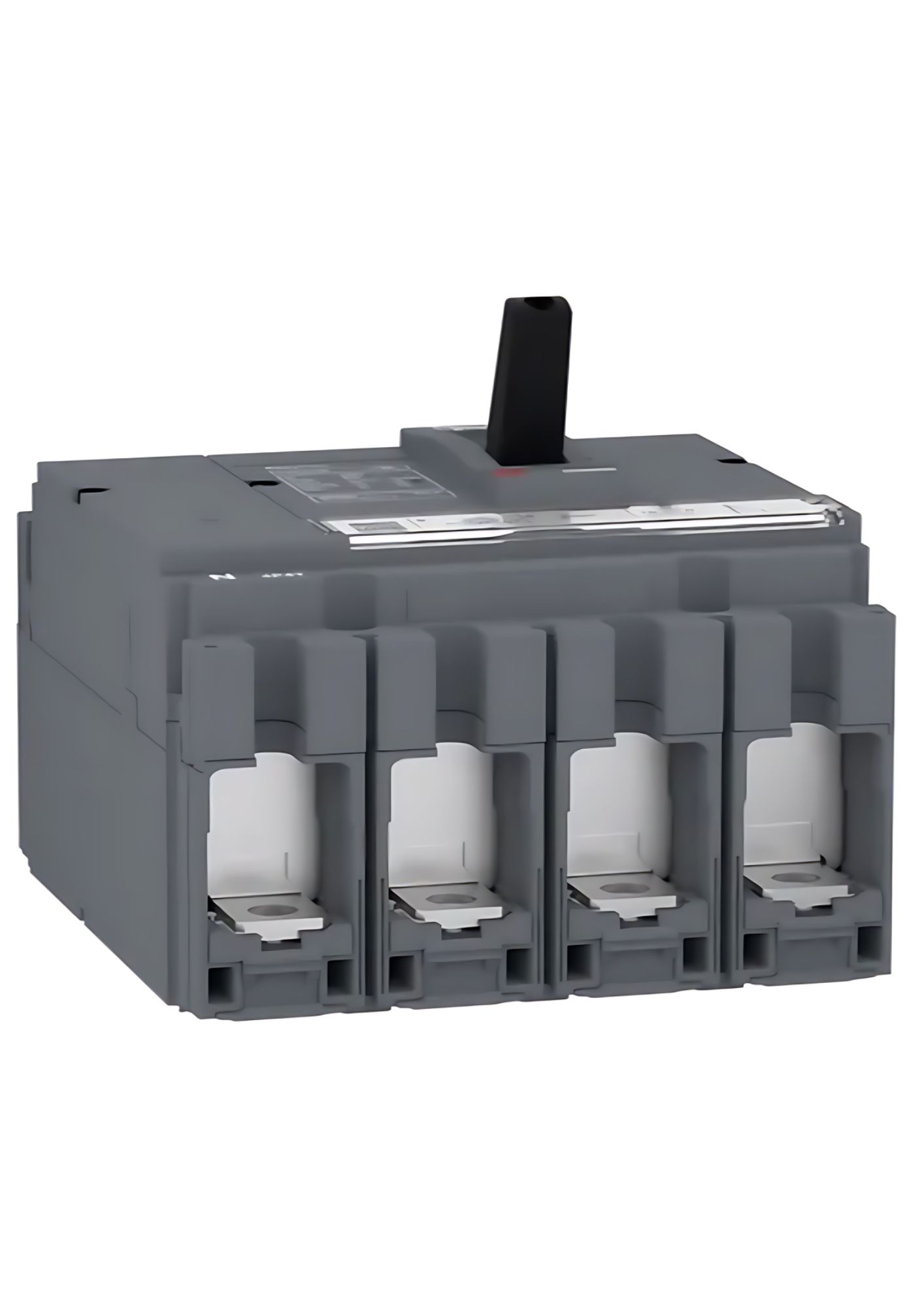

Schneider LV516342, MCCB, EasyPact CVS160F, 36 kA at 415 VAC, 125 A rating thermal magnetic TM-D trip unit, 4 Pole
In stock
SKU
LV516342
Special Price
₹6,932.00
Regular Price
₹17,330.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range | EasyPact |
| Range of product | EasyPact CVS100...250 |
| Product name | EasyPact CVS |
| Device short name | CVS160F |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 4P |
| Protected poles description | 3D |
| Earth leakage protection (Vigi add on) | Without |
| [In] rated current | 125 A at 40 °C |
| Network type | AC |
| Utilisation category | Category A |
| [Icu] Breaking capacity |
36 kA at 440 V AC 50/60 Hz (IEC 60947-2) 36 kA at 380/415 V AC 50/60 Hz (IEC 60947-2) 70 kA at 220/240 V AC 50/60 Hz (IEC 60947-2) |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 125 A at 40 °C |
| Protection type |
Overload protection (thermal) Short-circuit protection (magnetic) |
| Complementary | |
| [Uimp] rated impulse withstand voltage | 8 kV (IEC 60947-2) |
| Network frequency | 50/60 Hz |
| Breaking capacity code | F |
| [Ics] rated service breaking capacity |
18 kA at 440 V AC 50/60 Hz (IEC 60947-2) 36 kA at 380/415 V AC 50/60 Hz (IEC 60947-2) 70 kA at 220/240 V AC 50/60 Hz (IEC 60947-2) |
| Neutral position | Left |
| Mechanical durability | 25,000 cycles |
| Electrical durability | 12,000 cycles at 415 V (IEC 60947-2) |
| Control type | Toggle |
| Thermal protection adjustment range | 87.5…125 A |
| Neutral protection setting | No protection (3D) |
| Long time pick-up adjustment type Ir | Adjustable |
| Long time pick-up adjustment range | 0.7...1 × In |
| Long time delay adjustment type | Fixed |
| Instantaneous pick-up adjustment type Ii | Fixed |
| Instantaneous pick-up adjustment range | 1250 A |
| Contact position indicator | Yes |
| Mounting support | Backplate |
| Mounting mode | Fixed |
| Upside connection | Front |
| Downside connection | Front |
| Connections - terminals | Screw connection |
| Connection pitch | 35 mm |
| Compatibility code | CVS160 |
| Width | 140 mm |
| Depth | 86 mm |
| Height | 161 mm |
