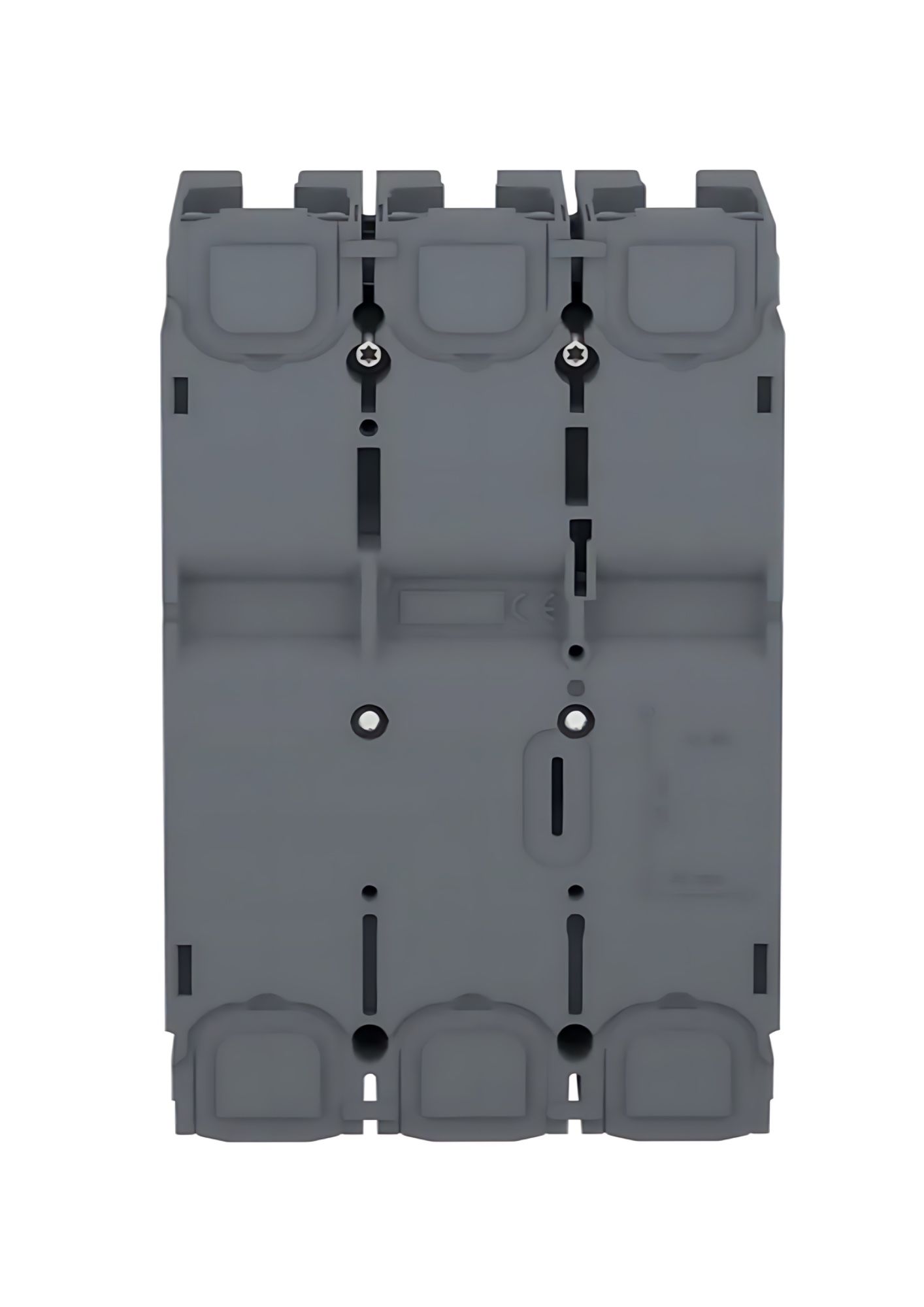

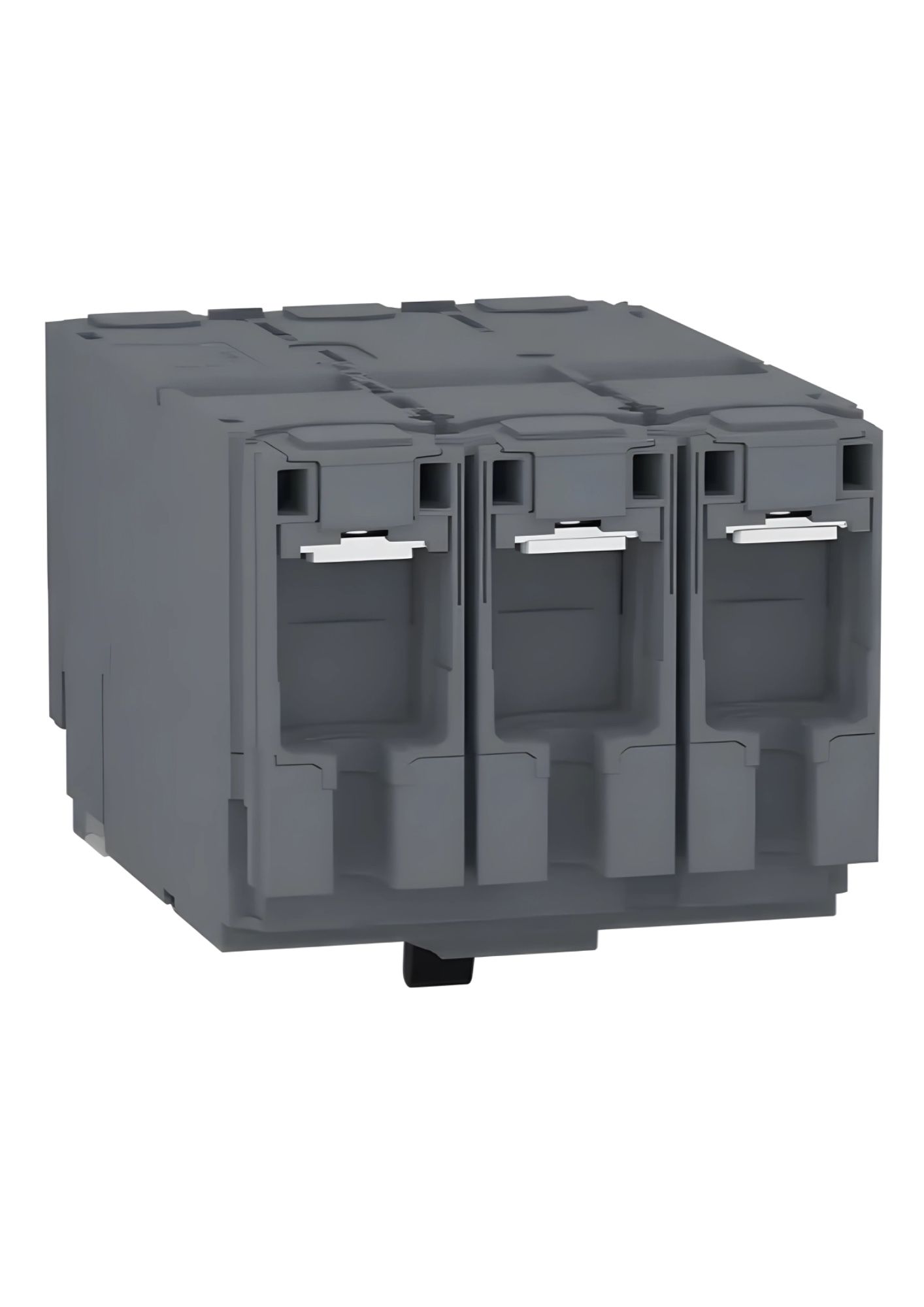

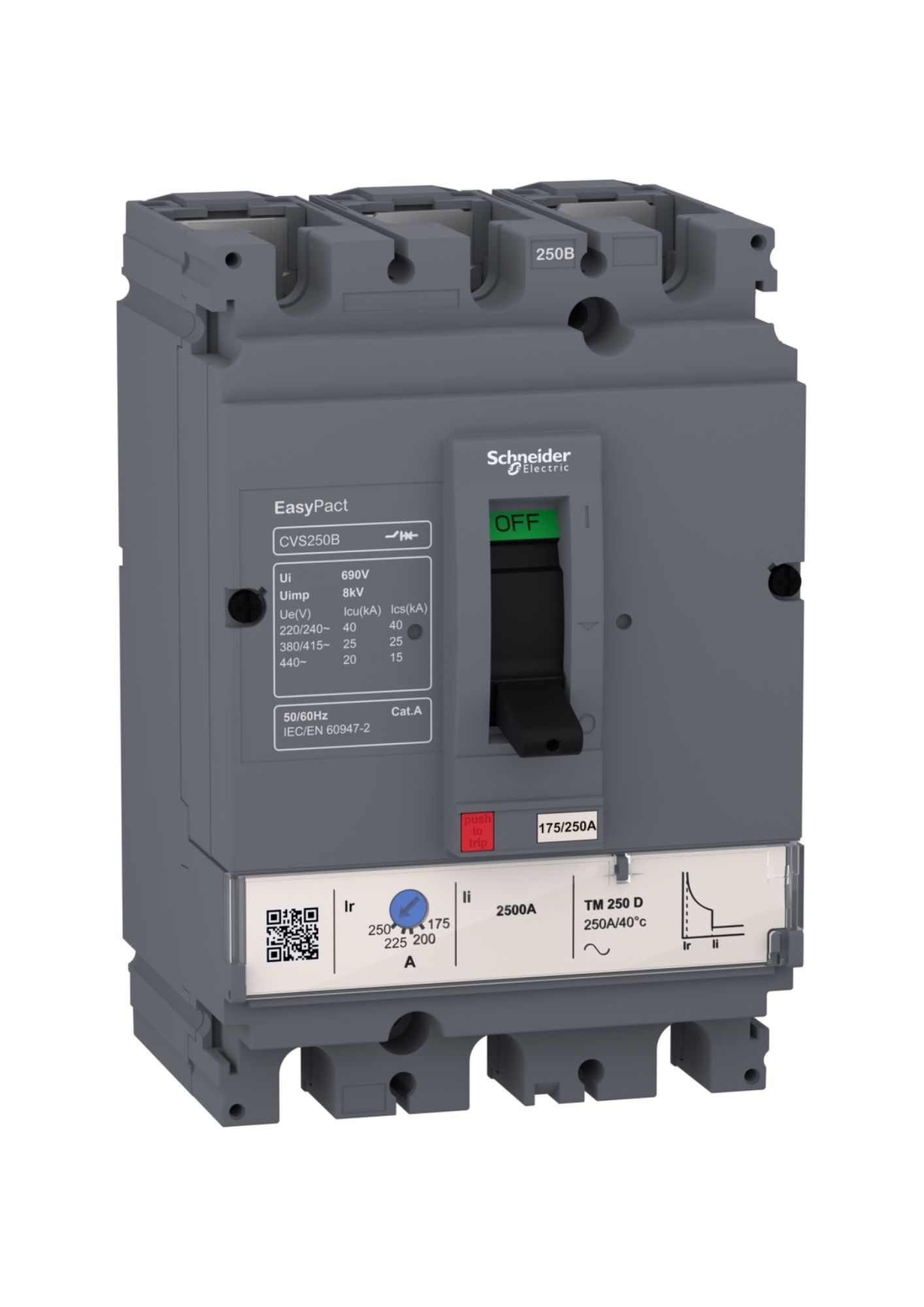

Schneider LV525302, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 200 A rating thermal magnetic TM-D trip unit, 3 Pole
Schneider LV525302, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 200 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV525302, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 200 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV525302, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 200 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV525302, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 200 A rating thermal magnetic TM-D trip unit, 3 Pole

Schneider LV525302, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 200 A rating thermal magnetic TM-D trip unit, 3 Pole

In stock
SKU
LV525302
Special Price ₹9,344.00 Regular Price ₹23,360.00
(18% GST Extra)
Add to Wish List
  • EasyPact CVS250B is a 3 poles 3d fixed circuit breaker with high performance and cost-saving functionality.
  • Ideal for small and medium-sized building protection applications.
  • Breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz; operational voltage is 440VAC 50/60Hz.
  • Equipped with a 200A thermal-magnetic trip unit (TMD) providing adjustable thermal overload and fixed magnetic protection.
  • Compliant with IEC 60947, CCC, and EAC standards; class II front face device suitable for class II insulation switchboards.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Range EasyPact
Range of product EasyPact CVS100...250
Product name EasyPact CVS
Device short name CVS250B
Device type Circuit breaker
Device application Distribution
Poles description 3P
Protected poles description 3D
Earth leakage protection Without
Rated current [In] 200 A at 40 °C
Network type AC
Utilisation category Category A
Breaking capacity [Icu] 40 kA at 220/240 V AC 50/60 Hz
25 kA at 380/415 V AC 50/60 Hz
20 kA at 440 V AC 50/60 Hz
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit rating 200 A at 40 °C
Protection type Short-circuit (magnetic) / Overload (thermal)
Complementary
Rated impulse withstand voltage [Uimp] 8 kV
Network frequency 50/60 Hz
Breaking capacity code B
Rated service breaking capacity [Ics] 15 kA at 440 V AC
25 kA at 380/415 V AC
40 kA at 220/240 V AC
Mechanical durability 20000 cycles
Electrical durability 10000 cycles at 415 V In
Control type Toggle
Thermal protection adjustment range 140…200 A
Long time pick-up adjustment type Ir Adjustable (0.7…1 x In)
Instantaneous pick-up adjustment type Ii Fixed (2000 A)
Contact position indicator Yes
Mounting support Backplate
Mounting mode Fixed
Upside connection Front
Downside connection Front
Connections - terminals Screw connection
Connection pitch 35 mm
Compatibility code CVS250
Width 105 mm
Depth 86 mm
Height 161 mm
