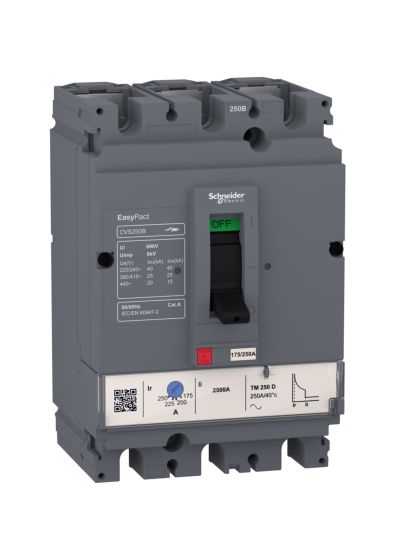

Schneider LV525303, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 3 Pole
Schneider LV525303, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV525303, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV525303, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV525303, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 3 Pole

Schneider LV525303, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 3 Pole

Be the first to review this product
In stock
SKU
LV525303
Special Price ₹12,572.00 Regular Price ₹31,430.00
(18% GST Extra)
Add to Wish List
  • 3 poles fixed circuit breaker with high performance and cost-saving functionality
  • Breaking capacity: 25kA rms at 415VAC 50/60Hz
  • Operational voltage: 440VAC 50/60Hz
  • 250A thermal-magnetic trip unit (TMD) with adjustable thermal overload and fixed magnetic protection
  • Compliant with IEC 60947, CCC, EAC and suitable for class II insulation switchboards
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

EasyPact CVS250B
Main
RangeEasyPact
Range of productEasyPact CVS100...250
Product nameEasyPact CVS
Device short nameCVS250B
Product or component typeCircuit breaker
Device applicationDistribution
Poles description3P
Protected poles description3D
Earth leakage protection (Vigi add on)Without
[In] rated current250 A at 40 °C
Network typeAC
Utilisation categoryCategory A
[Icu] Breaking capacity 40 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
25 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
20 kA at 440 V AC 50/60 Hz (IEC 60947-2)
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Trip unit rating250 A at 40 °C
Protection type Short-circuit protection (magnetic)
Overload protection (thermal)
Complementary
[Uimp] rated impulse withstand voltage8 kV (IEC 60947-2)
Network frequency50/60 Hz
Breaking capacity codeB
[Ics] rated service breaking capacity 15 kA at 440 V AC 50/60 Hz (IEC 60947-2)
25 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
40 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
Mechanical durability20000 cycles
Electrical durability10000 cycles (415 V In, IEC 60947-2)
Control typeToggle
Thermal protection adjustment range175…250 A
Long time pick-up adjustment type IrAdjustable
Long time pick-up adjustment range0.7...1 x In
Long time delay adjustment typeFixed
Instantaneous pick-up adjustment type IiFixed
Instantaneous pick-up adjustment range2500 A
Contact position indicatorYes
Mounting supportBackplate
Mounting modeFixed
Upside connectionFront
Downside connectionFront
Connections - terminalsScrew connection
Connection pitch35 mm
Compatibility codeCVS250

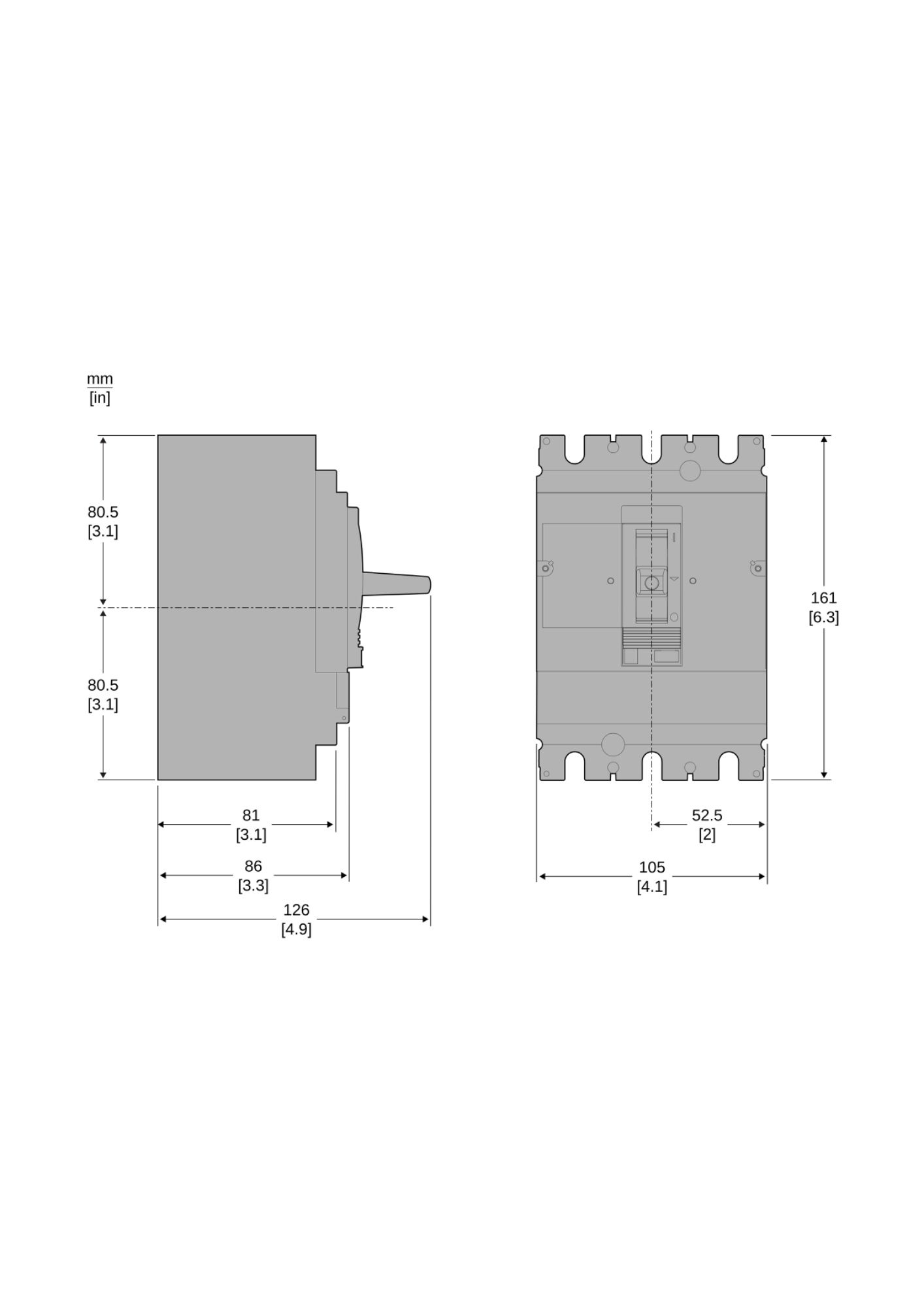

Width105 mm
Depth86 mm
Height161 mm
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Schneider LV525303, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 3 Pole
Your Rating
Downloads
document LV525303 Datasheet (530.19 kB)
document LV525303 Instruction Manual (7.82 MB)
