Schneider LV525313, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 4 Pole
Schneider LV525313, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV525313, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV525313, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV525313, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 4 Pole

Schneider LV525313, MCCB, EasyPact CVS250B, 25 kA at 415 VAC, 250 A rating thermal magnetic TM-D trip unit, 4 Pole

In stock
SKU
LV525313
Special Price ₹13,376.00 Regular Price ₹33,440.00
(18% GST Extra)
Add to Wish List

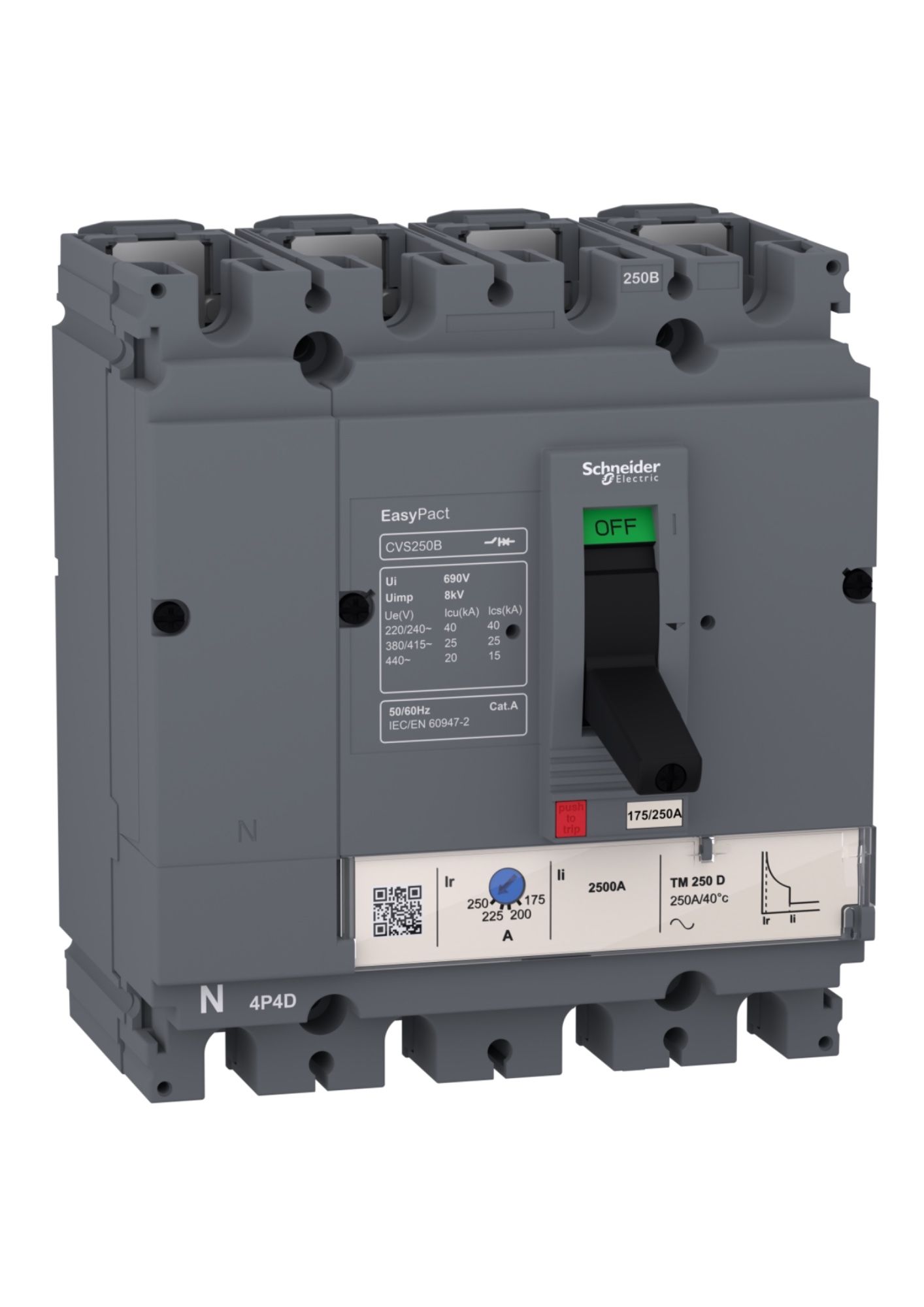

  • EasyPact CVS250B is a 4 poles 3D fixed circuit breaker with high performance and cost-saving functionality.
  • The breaking capacity (Icu) is 25kA rms at 415VAC 50/60Hz, with an operational voltage of 440VAC 50/60Hz.
  • It embeds a 250A thermal-magnetic trip unit (TMD) that provides adjustable thermal overload protection and fixed magnetic protection.
  • The 4 poles version (140mm x 161mm x 86mm) comes with a variety of optional functions and accessories.
  • It is compliant with IEC 60947, CCC, EAC standards and suitable for class II insulation switchboards (IEC 60664-1).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeEasyPact
Range of productEasyPact CVS100...250
Product nameEasyPact CVS
Device short nameCVS250B
Product or component typeCircuit breaker
Device applicationDistribution
Poles description4P
Protected poles description3D
Earth leakage protection (Vigi add on)Without
[In] rated current250 A at 40 °C
Network typeAC
Utilisation categoryCategory A
[Icu] Breaking capacity 40 kA at 220/240 V AC 50/60 Hz
25 kA at 380/415 V AC 50/60 Hz
20 kA at 440 V AC 50/60 Hz
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Trip unit rating250 A at 40 °C
Protection type Overload protection (thermal)
Short-circuit protection (magnetic)
Complementary
[Uimp] rated impulse withstand voltage8 kV
Network frequency50/60 Hz
Breaking capacity codeB
[Ics] rated service breaking capacity 15 kA at 440 V AC 50/60 Hz
25 kA at 380/415 V AC 50/60 Hz
40 kA at 220/240 V AC 50/60 Hz
Neutral positionLeft
Mechanical durability20,000 cycles
Electrical durability10,000 cycles at 415 V In
Control typeToggle
Thermal protection adjustment range175…250 A
Neutral protection settingNo protection (3D)
Long time pick-up adjustment type IrAdjustable
Long time pick-up adjustment range0.7...1 x In
Long time delay adjustment typeFixed
Instantaneous pick-up adjustment type IiFixed
Instantaneous pick-up adjustment range2500 A
Contact position indicatorYes
Mounting supportBackplate
Mounting modeFixed
Upside connectionFront
Downside connectionFront

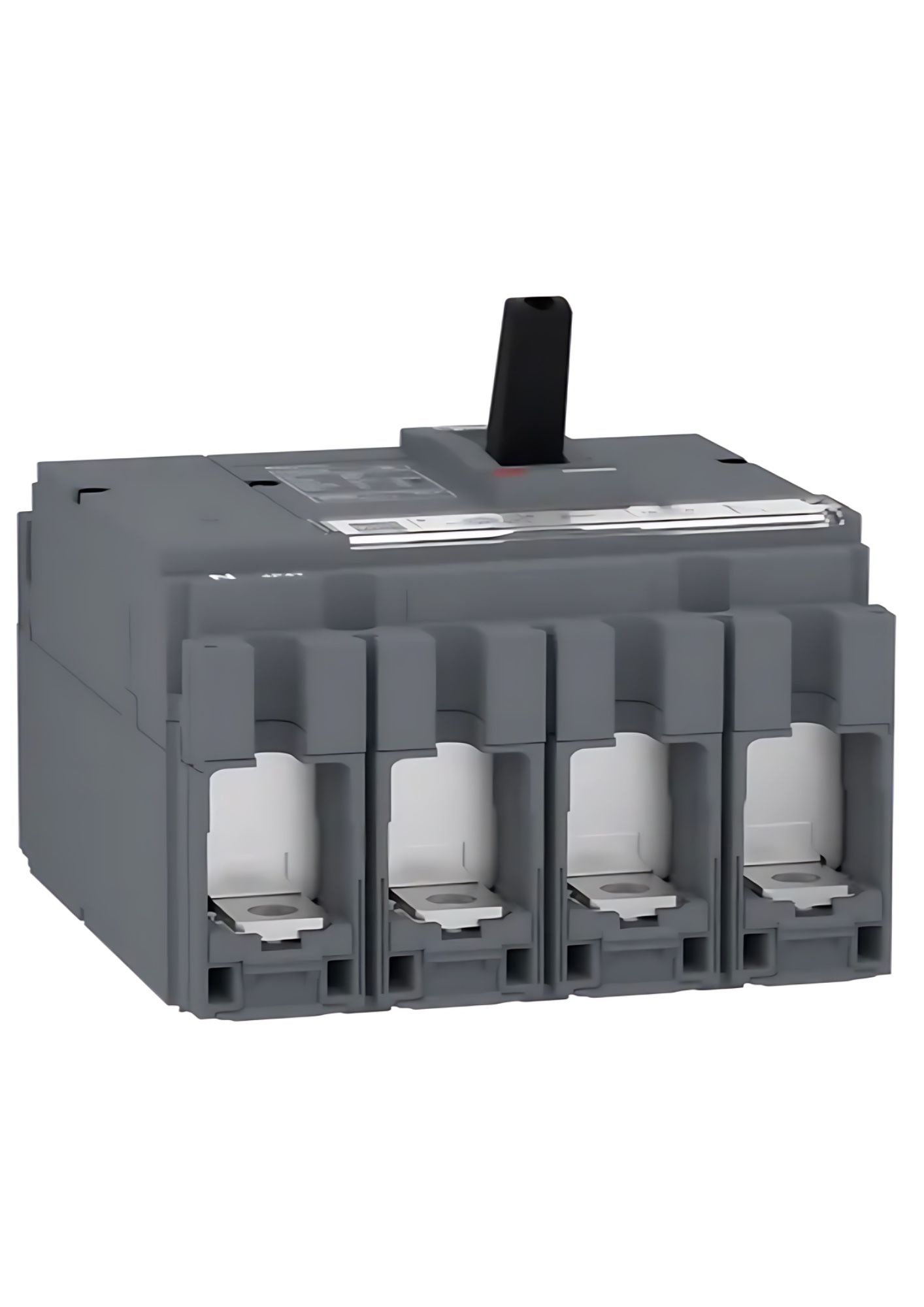

Connections - terminalsScrew connection
Connection pitch35 mm
Compatibility codeCVS250

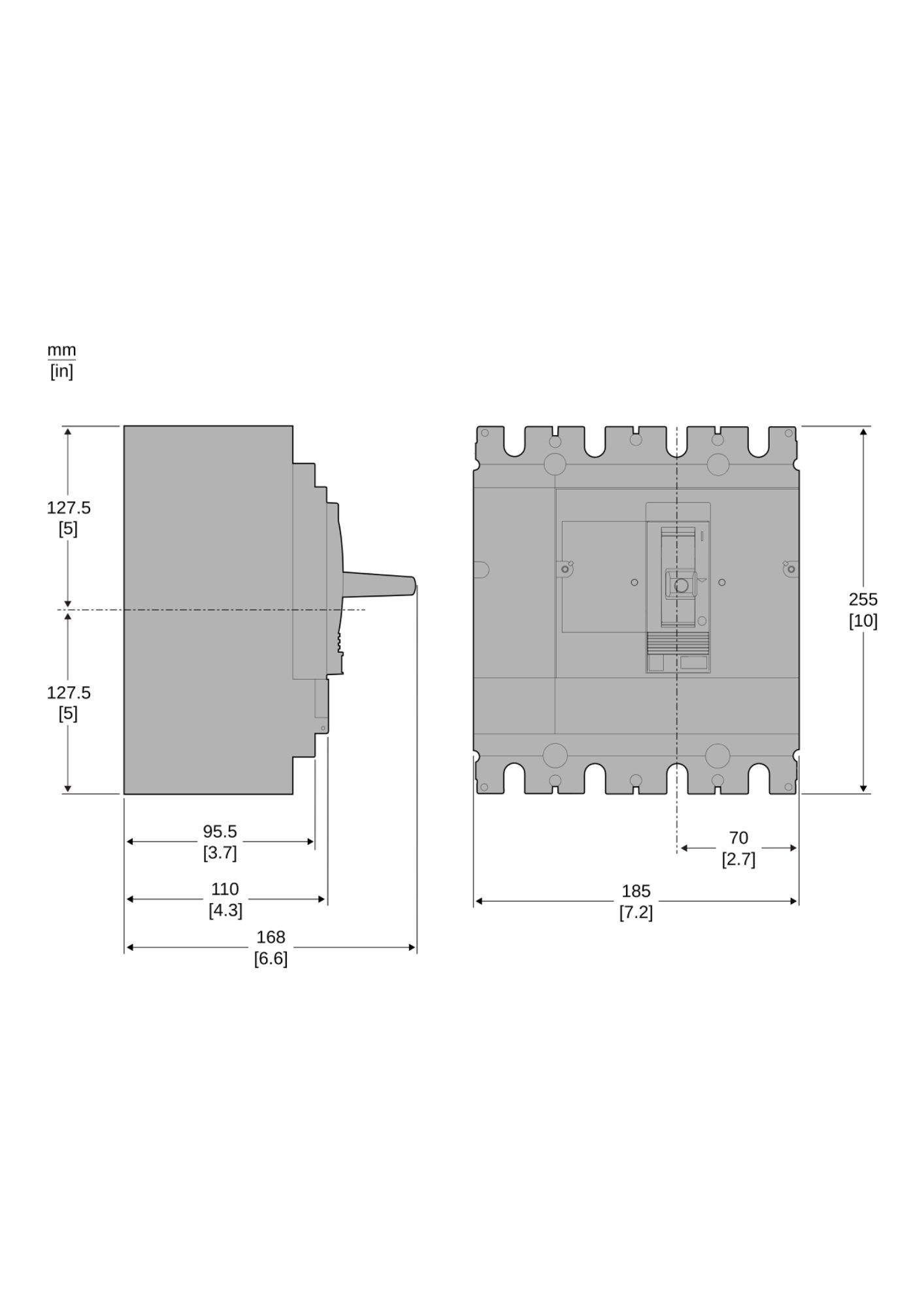

Width140 mm
Depth86 mm
Height161 mm

No specifications available for this product.
