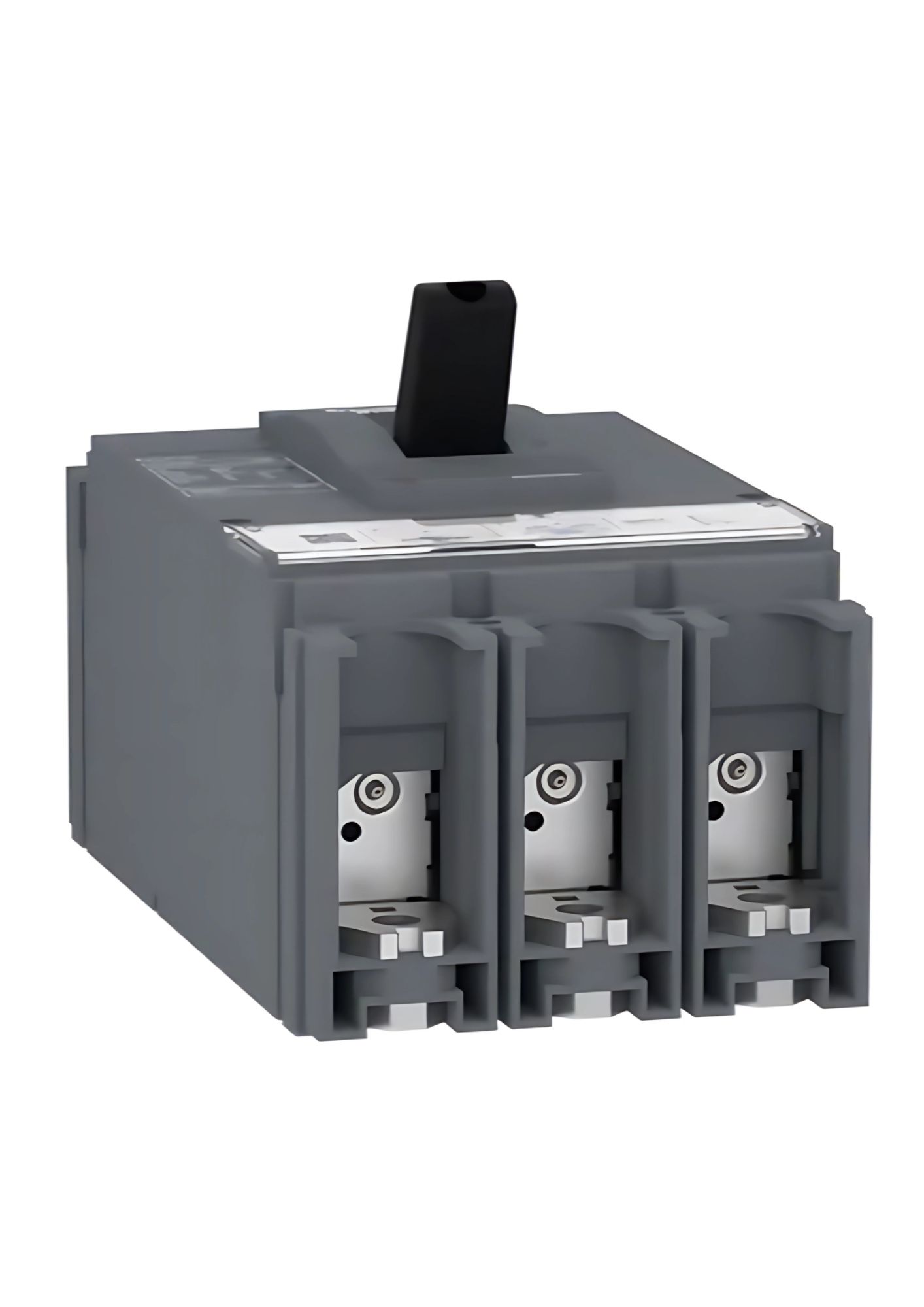

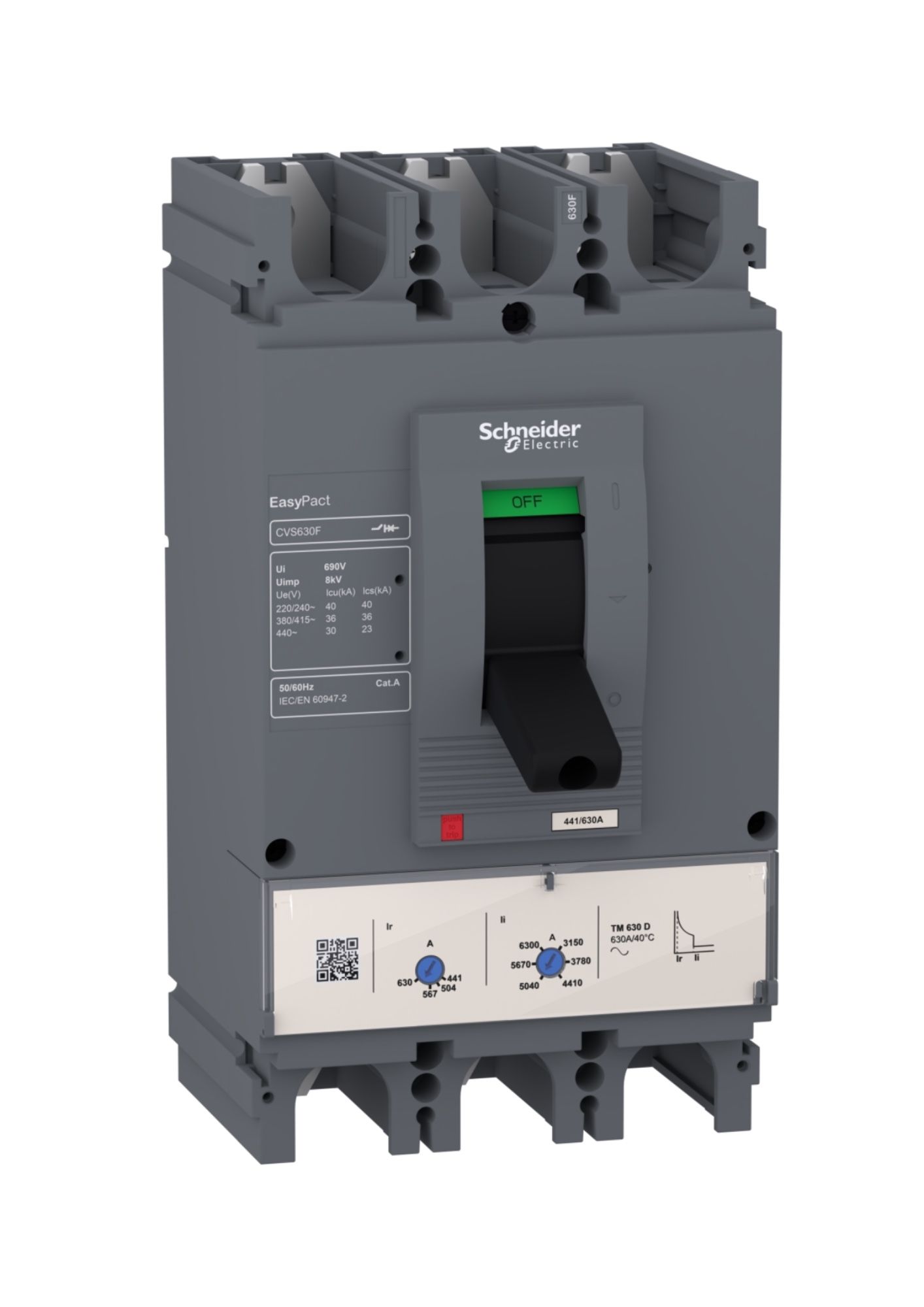

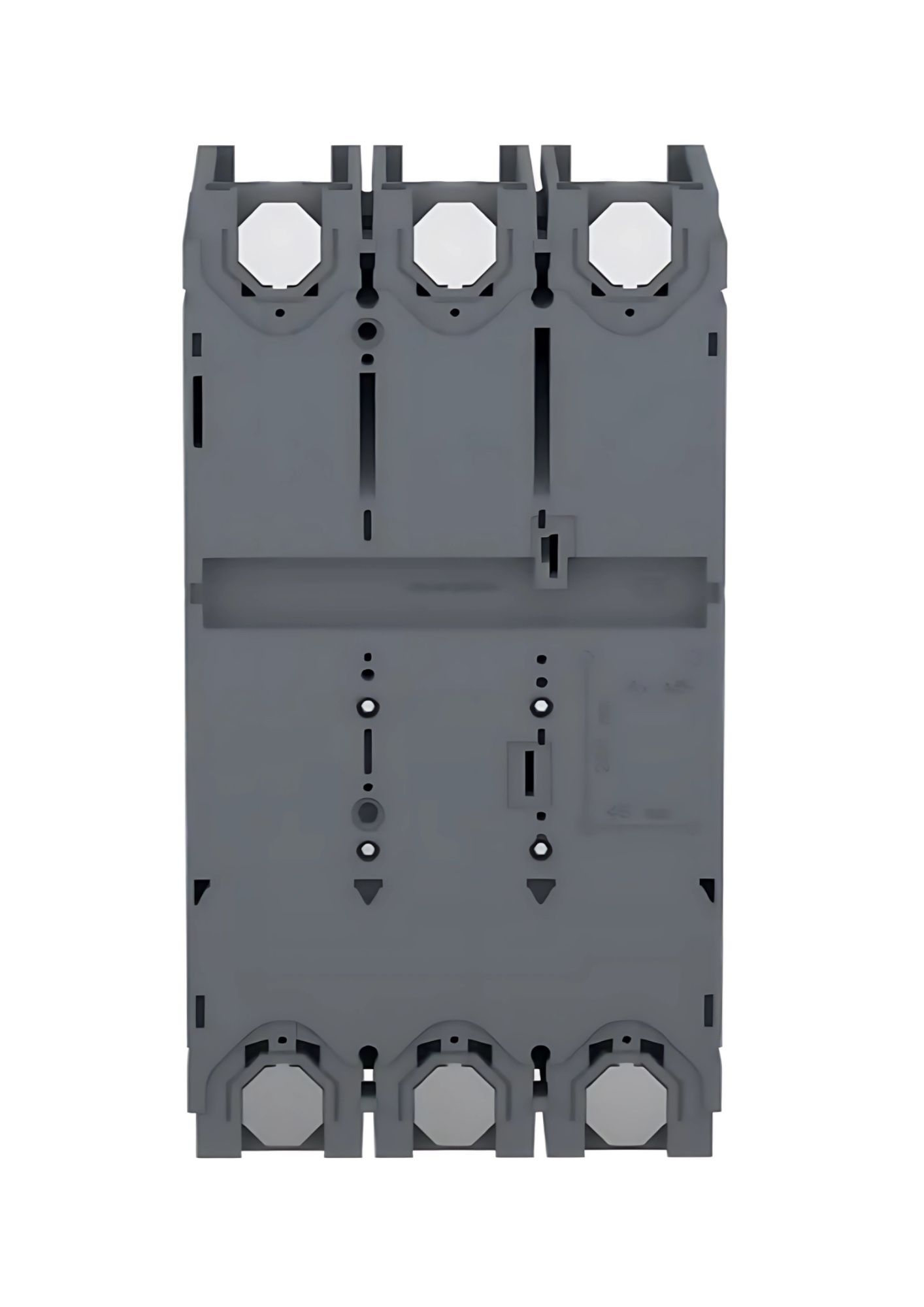

Schneider LV540306, MCCB, EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 3 Pole
Schneider LV540306, MCCB, EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV540306, MCCB, EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV540306, MCCB, EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 3 Pole

Schneider LV540306, MCCB, EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 3 Pole

In stock
SKU
LV540306
Special Price ₹16,104.00 Regular Price ₹40,260.00
(18% GST Extra)
Add to Wish List
  • 3 poles 3d fixed circuit breaker with high performance and cost-saving functionality.
  • Suitable for small and medium-sized building protection applications; breaking capacity of 36kA rms at 415VAC 50/60Hz.
  • Operational voltage: 440VAC 50/60Hz; includes 400A thermal-magnetic trip unit (TMD) with adjustable thermal and fixed magnetic protection.
  • Dimensions: 140mm x 255mm x 110mm; offers a variety of optional functions and accessories.
  • Compliant with IEC 60947, CCC, EAC standards; can be installed in class II insulation switchboards (IEC 60664-1).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

EasyPact CVS400F
Main
RangeEasyPact
Range of productEasyPact CVS400...630
Product nameEasyPact CVS
Device short nameCVS400F
Device typeCircuit breaker
ApplicationDistribution
Poles3P (protected 3D)
Earth leakageWithout
Rated current [In]400 A at 40 °C
Network typeAC
Utilisation categoryCategory A
Breaking capacity [Icu] 40 kA at 220/240 V AC
36 kA at 380/415 V AC
30 kA at 440 V AC
Trip unitTM-D Thermal-magnetic, 400 A
Protection typeShort-circuit (magnetic), Overload (thermal)
Complementary
Impulse withstand voltage [Uimp]8 kV
Frequency50/60 Hz
Breaking capacity codeF
Rated service breaking [Ics] 40 kA at 220/240 V AC
36 kA at 380/415 V AC
23 kA at 440 V AC
Mechanical durability15000 cycles
Electrical durability6000 cycles at 415 V
Control typeToggle
Thermal adjustment range280–400 A
Long time pick-up [Ir]Adjustable 0.7–1 x In
Instantaneous pick-up [Ii]Adjustable 5–10 x In
Contact position indicatorYes
MountingFixed, Backplate
ConnectionsScrew, front-side
Dimensions (W x D x H)140 x 110 x 255 mm
