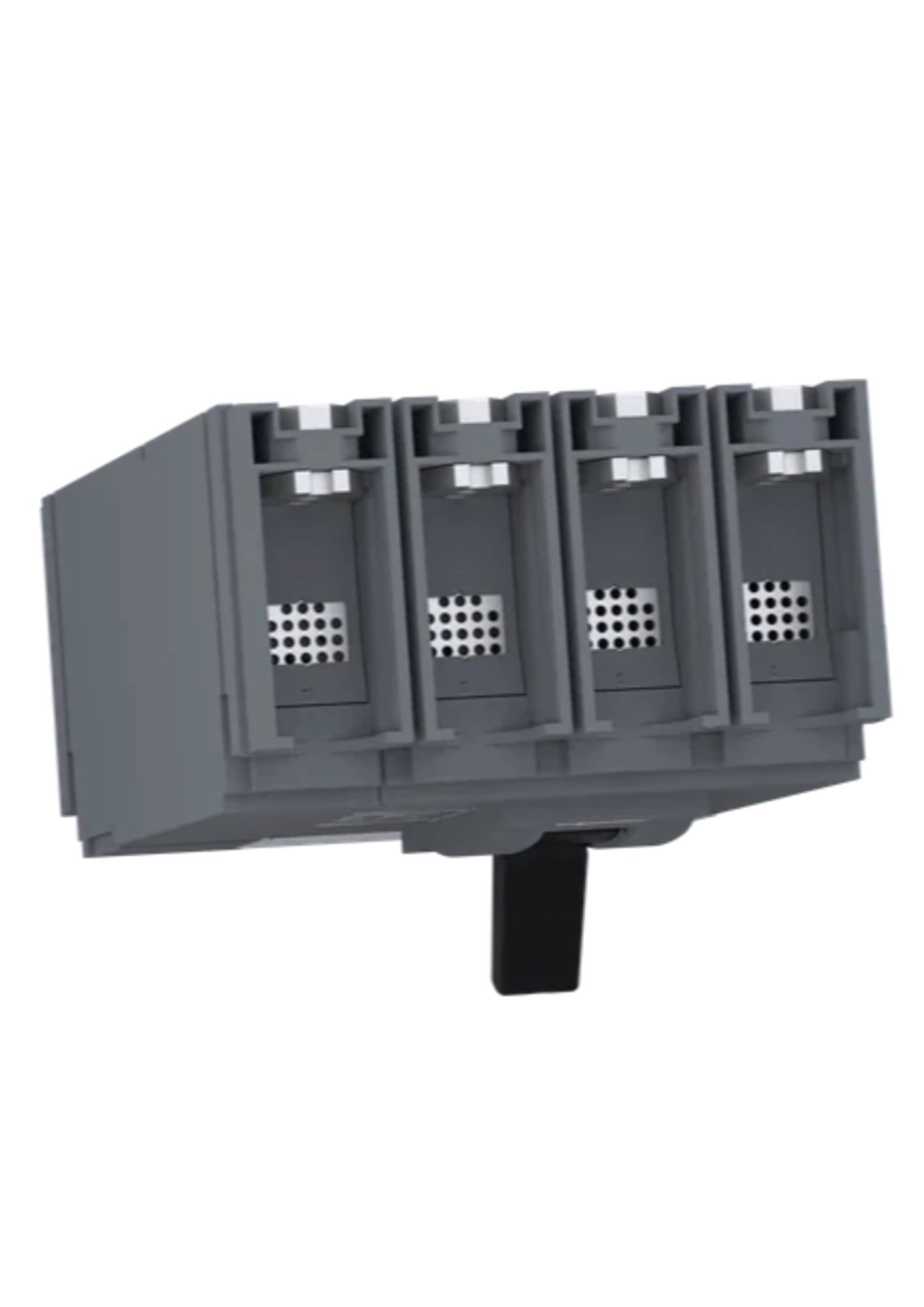

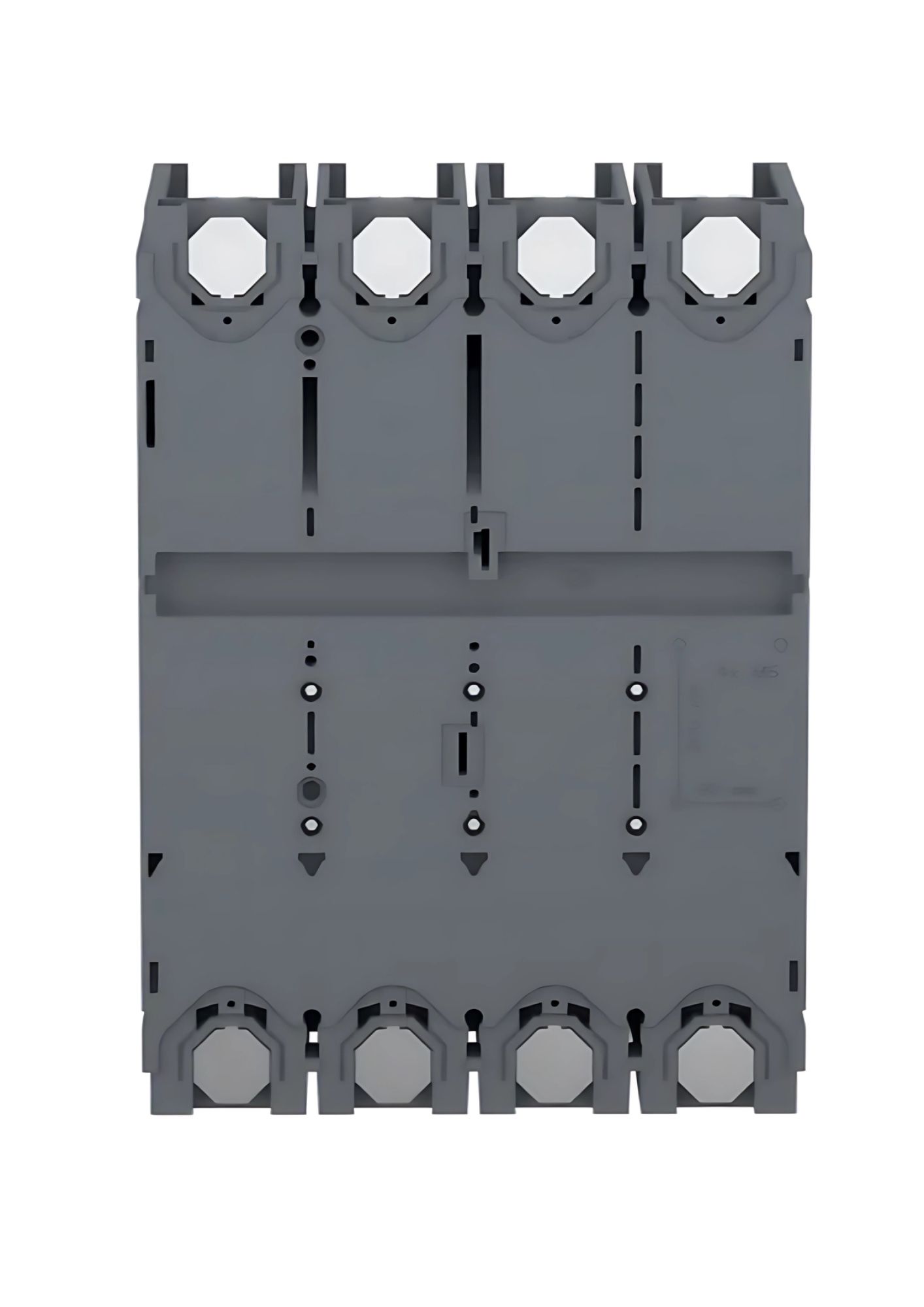

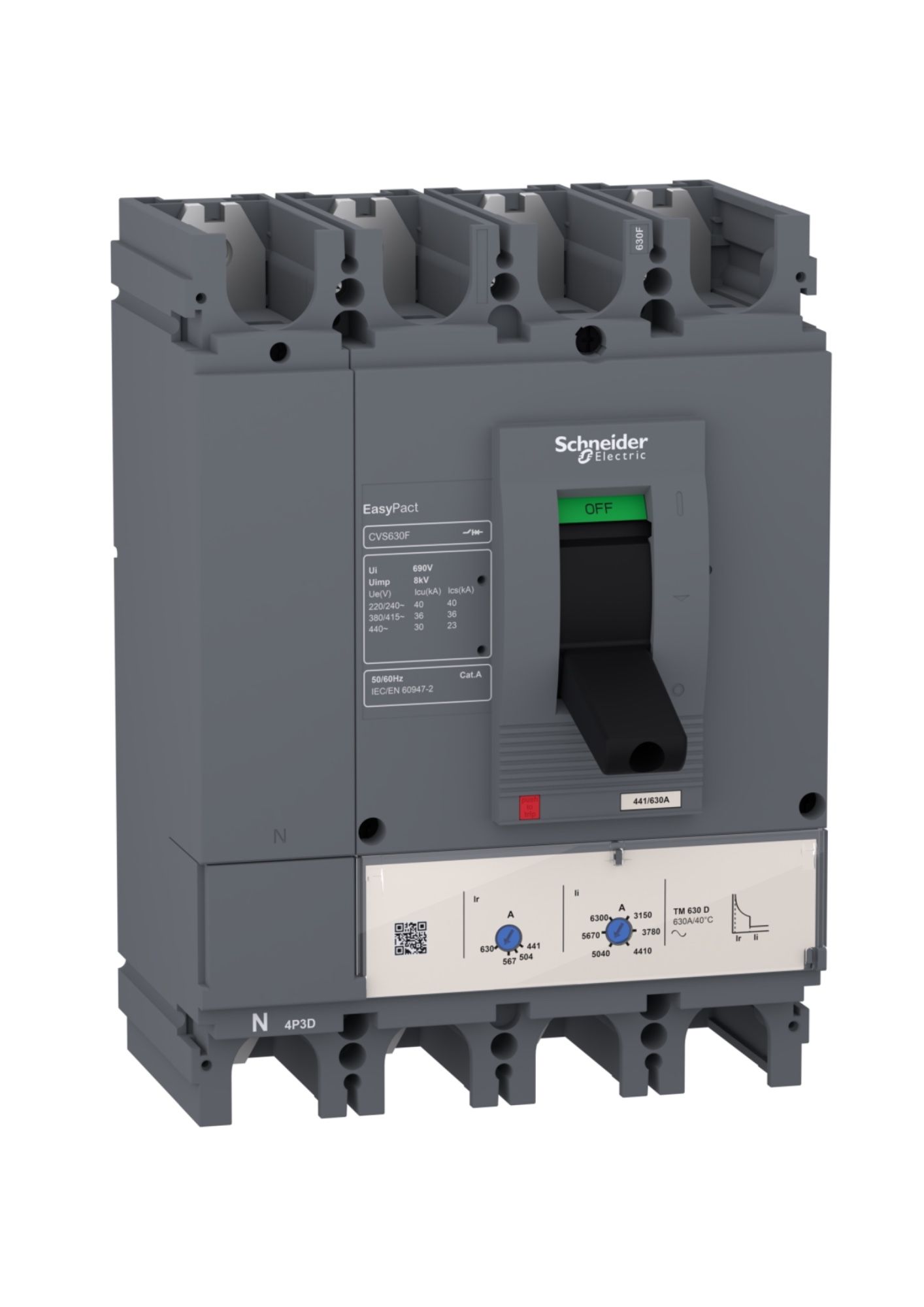

Schneider LV540309, MCCB, EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 4 Pole
Schneider LV540309, MCCB, EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV540309, MCCB, EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV540309, MCCB, EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 4 Pole

Schneider LV540309, MCCB, EasyPact CVS400F, 36 kA at 415 VAC, 400 A rating thermal magnetic TM-D trip unit, 4 Pole

In stock
SKU
LV540309
Special Price ₹20,040.00 Regular Price ₹50,100.00
(18% GST Extra)
Add to Wish List
  • EasyPact CVS400F is a 4 poles 3d fixed circuit breaker with high performance and cost-saving functionality.
  • Optimal choice for small and medium-sized building protection applications with 36kA rms breaking capacity at 415VAC 50/60Hz.
  • Supports operational voltage up to 440VAC 50/60Hz with a 400A thermal-magnetic trip unit (TMD).
  • TMD trip unit offers adjustable thermal overload protection and fixed magnetic protection.
  • Compliant with IEC 60947, CCC, EAC standards and suitable for class II insulation switchboards (IEC 60664-1).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeEasyPact
Range of productEasyPact CVS400...630
Product nameEasyPact CVS
Device short nameCVS400F
Product or component typeCircuit breaker
Device applicationDistribution
Poles description4P
Protected poles description3D
Earth leakage protection (Vigi add on)Without
[In] rated current400 A at 40 °C
Network typeAC
Utilisation categoryCategory A
[Icu] Breaking capacity 40 kA at 220/240 V AC 50/60 Hz
36 kA at 380/415 V AC 50/60 Hz
30 kA at 440 V AC 50/60 Hz
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Trip unit rating400 A at 40 °C
Protection type Short-circuit protection (magnetic)
Overload protection (thermal)
Complementary
[Uimp] rated impulse withstand voltage8 kV
Network frequency50/60 Hz
Breaking capacity codeF
[Ics] rated service breaking capacity 40 kA at 220/240 V AC 50/60 Hz
36 kA at 380/415 V AC 50/60 Hz
23 kA at 440 V AC 50/60 Hz
Neutral positionLeft
Mechanical durability15000 cycles
Electrical durability6000 cycles at 415 V
Control typeToggle
Thermal protection adjustment range280…400 A
Neutral protection settingNo protection (3D)
Long time pick-up adjustment type IrAdjustable
Long time pick-up adjustment range0.7...1 x In
Long time delay adjustment typeFixed
Instantaneous pick-up adjustment type IiAdjustable
Instantaneous pick-up adjustment range5...10 x In
Contact position indicatorYes
Mounting supportBackplate
Mounting modeFixed
Upside connectionFront
Downside connectionFront
Connections - terminalsScrew connection
Connection pitch45 mm
Compatibility codeCVS400
Width185 mm
Depth110 mm
Height255 mm
