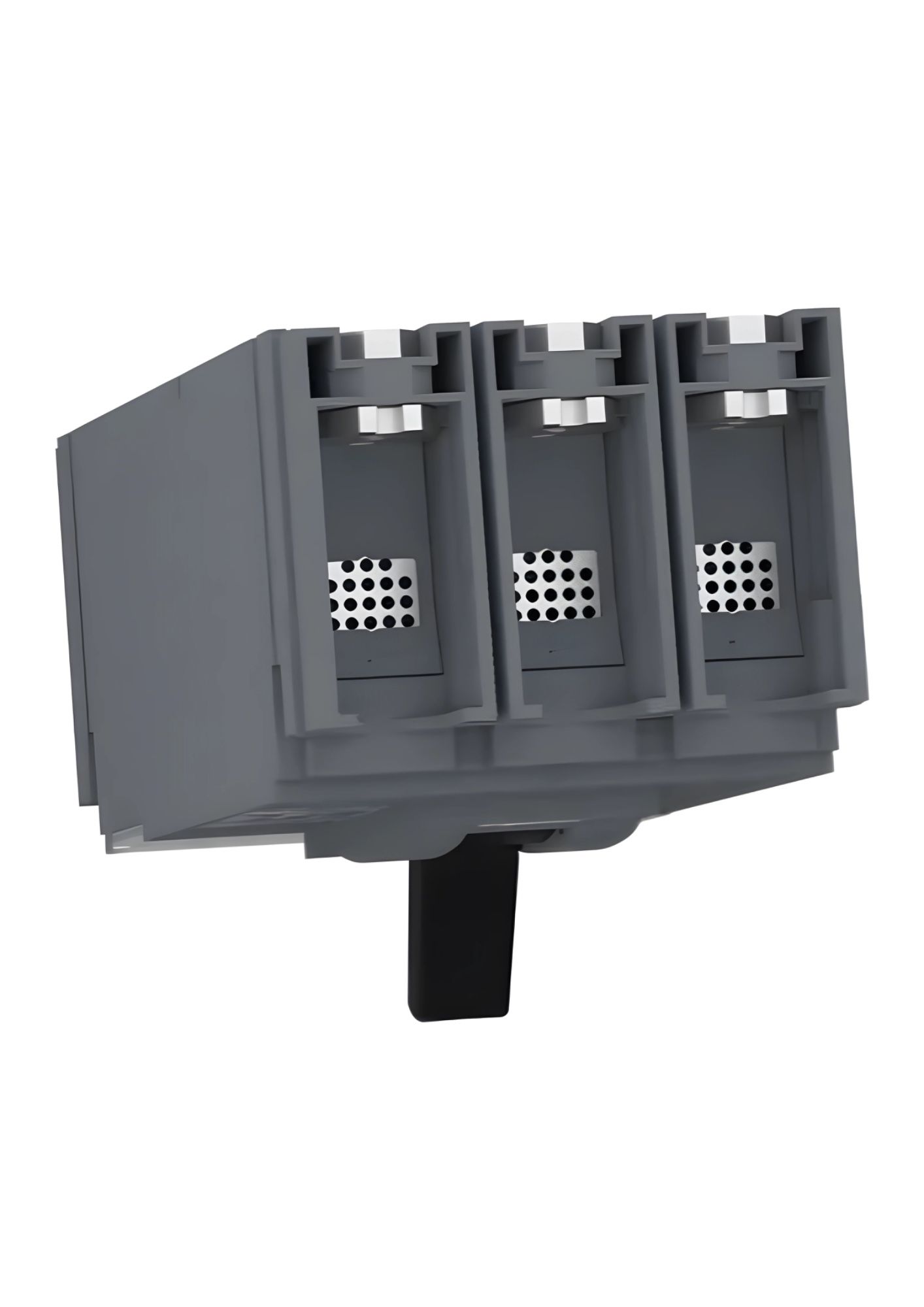

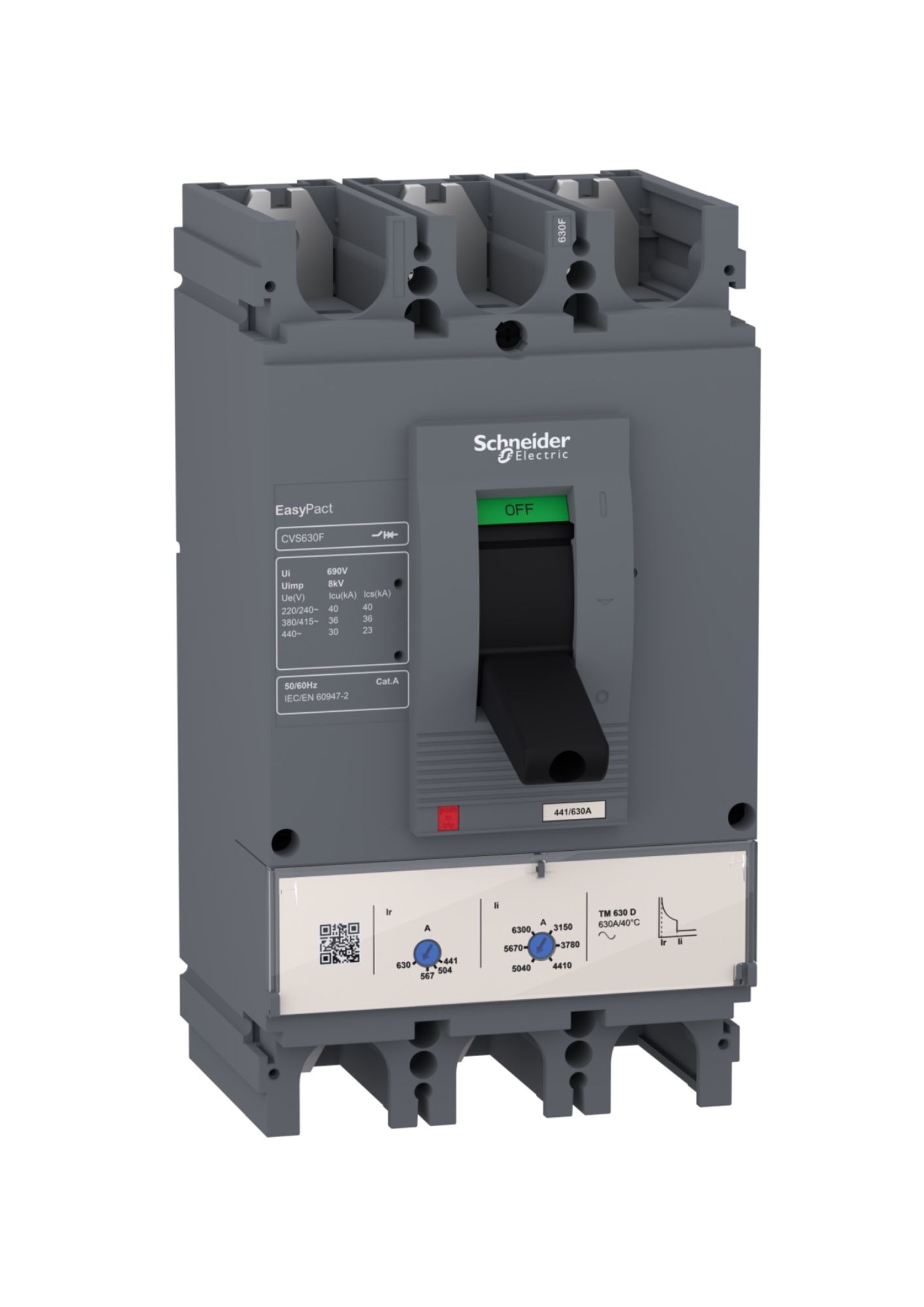

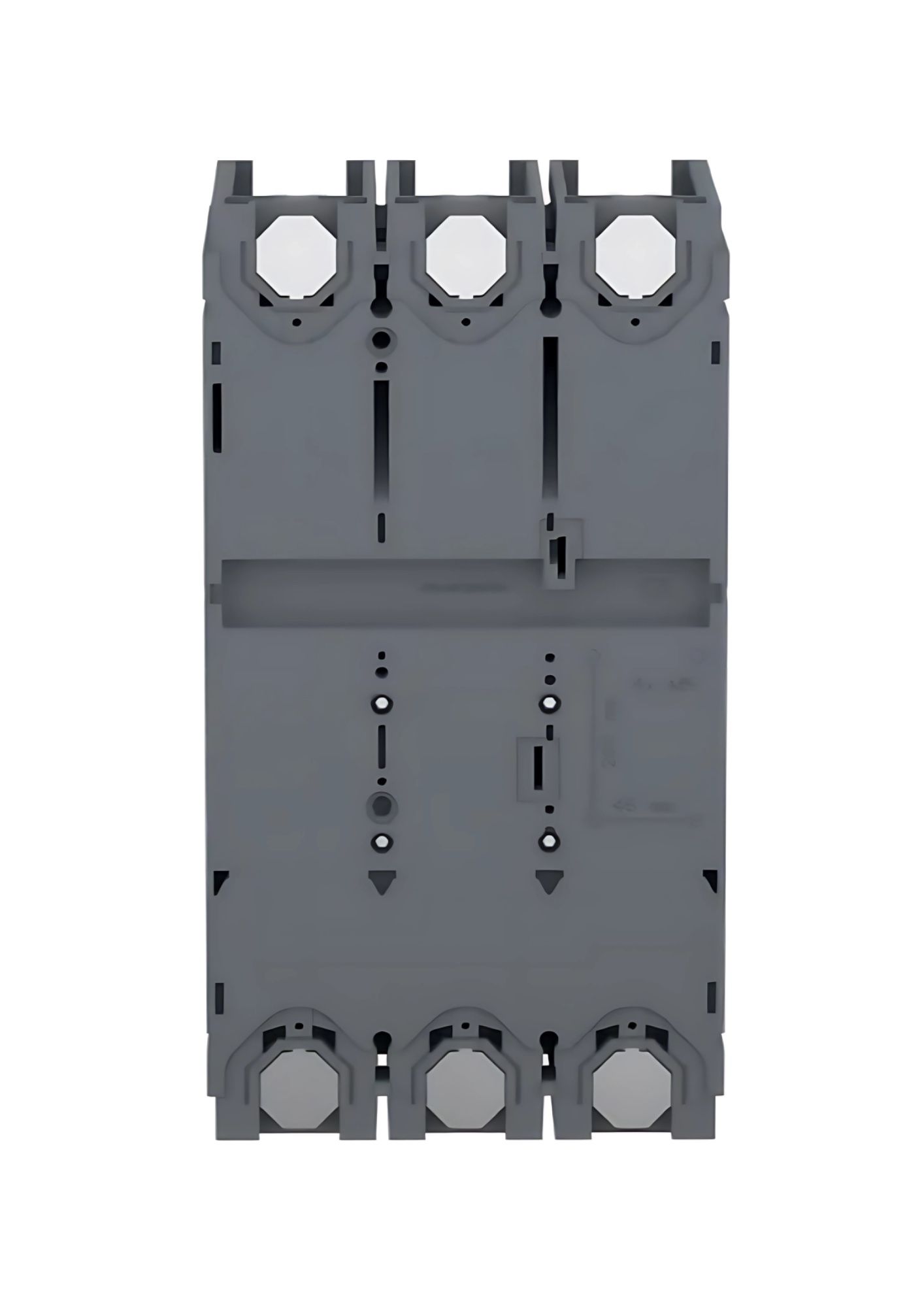

Schneider LV563305, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 3 Pole
Schneider LV563305, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV563305, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 3 Pole Schneider LV563305, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 3 Pole

Schneider LV563305, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 3 Pole

Be the first to review this product
In stock
SKU
LV563305
Special Price ₹26,900.00 Regular Price ₹67,250.00
(18% GST Extra)
Add to Wish List
  • EasyPact CVS630F is a 3 poles 3d fixed circuit breaker with high performance and cost-saving functionality.
  • Breaking capacity (Icu): 36kA rms at 415VAC 50/60Hz and operational voltage: 440VAC 50/60Hz.
  • Equipped with a 500A thermal-magnetic trip unit (TMD) providing adjustable thermal overload and fixed magnetic protection.
  • Compact design (140mm x 255mm x 110mm) with optional functions and accessories.
  • Compliant with IEC 60947, CCC, EAC and suitable for class II insulation switchboards (IEC 60664-1).
Schneider LV563305, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 3 Pole is available to buy in increments of 1
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
RangeEasyPact
Range of productEasyPact CVS400...630
Product nameEasyPact CVS
Device short nameCVS630F
Product or component typeCircuit breaker
Device applicationDistribution
Poles description3P
Protected poles description3D
Earth leakage protection (Vigi add on)Without
[In] rated current500 A at 40 °C
Network typeAC
Utilisation categoryCategory A
[Icu] Breaking capacity 40 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
36 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
30 kA at 440 V AC 50/60 Hz (IEC 60947-2)
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Trip unit rating500 A at 40 °C
Protection type Short-circuit protection (magnetic)
Overload protection (thermal)
Complementary
[Uimp] rated impulse withstand voltage8 kV (IEC 60947-2)
Network frequency50/60 Hz
Breaking capacity codeF
[Ics] rated service breaking capacity 40 kA at 220/240 V AC 50/60 Hz (IEC 60947-2)
36 kA at 380/415 V AC 50/60 Hz (IEC 60947-2)
23 kA at 440 V AC 50/60 Hz (IEC 60947-2)
Mechanical durability15000 cycles
Electrical durability4000 cycles 415 V In (IEC 60947-2)
Control typeToggle
Thermal protection adjustment range350…500 A
Long time pick-up adjustment type IrAdjustable
Long time pick-up adjustment range0.7...1 x In
Long time delay adjustment typeFixed
Instantaneous pick-up adjustment type IiAdjustable
Instantaneous pick-up adjustment range5...10 x In
Contact position indicatorYes
Mounting supportBackplate
Mounting modeFixed
Upside connectionFront
Downside connectionFront
Connections - terminalsScrew connection
Connection pitch45 mm
Compatibility codeCVS630
Width140 mm
Depth110 mm
Height255 mm
Product Variants

No specifications available for this product.

Reviews
Write Your Own Review
You're reviewing:Schneider LV563305, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 3 Pole
Your Rating
Downloads
document LV563305 Datasheet (567.09 kB)
document LV563305 Instruction Manual (11.91 MB)
