Schneider LV563307, MCCB, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 3 Pole
Schneider LV563307, MCCB, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 3 Pole Schneider LV563307, MCCB, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 3 Pole Schneider LV563307, MCCB, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 3 Pole

Schneider LV563307, MCCB, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 3 Pole

In stock
SKU
LV563307
Special Price ₹20,904.00 Regular Price ₹52,260.00
(18% GST Extra)
Add to Wish List

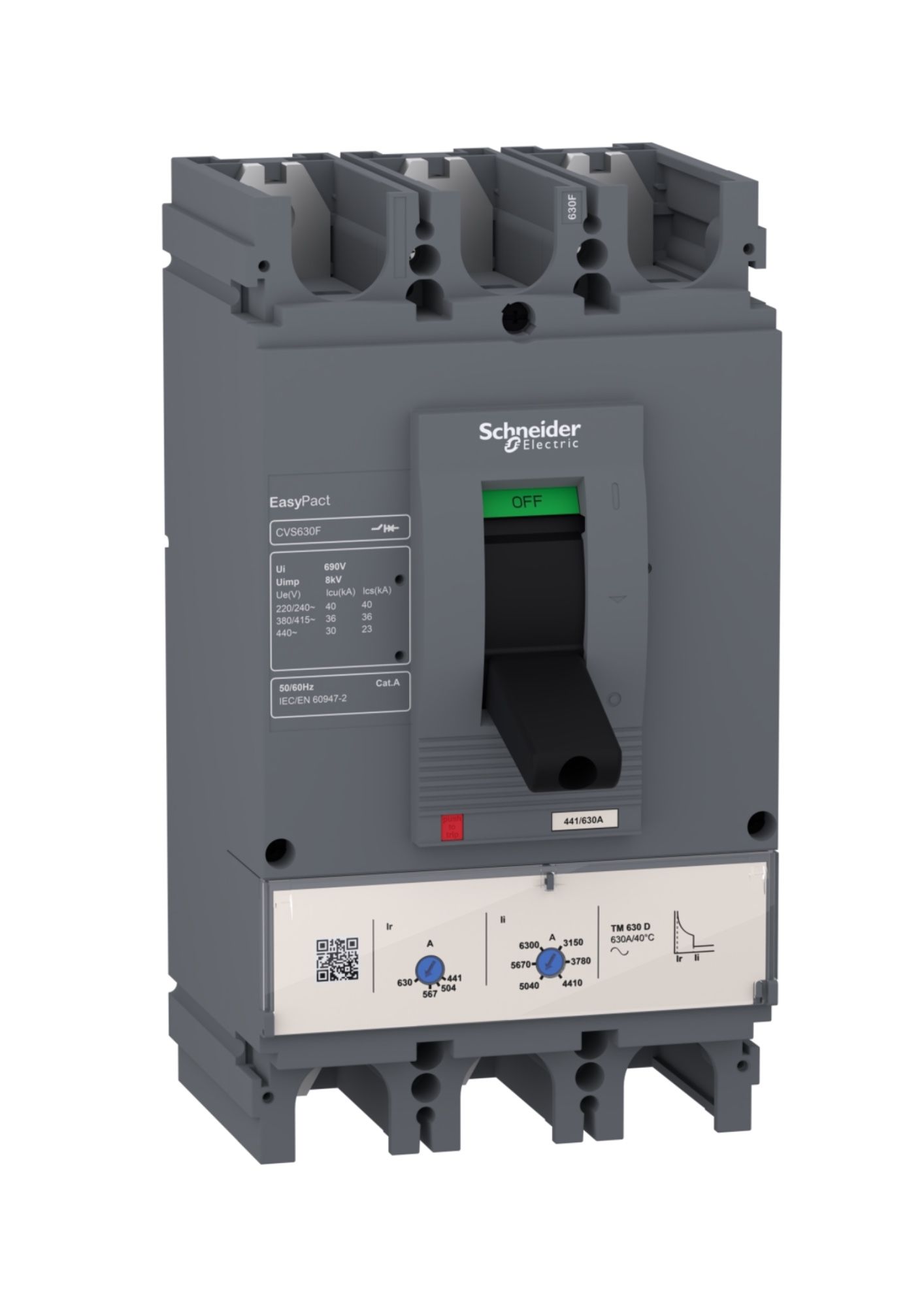

  • EasyPact CVS630F is a 3-poles 3d fixed circuit breaker with high performance and cost-saving functionality, ideal for small and medium-sized buildings.
  • Breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz with operational voltage of 415VAC 50/60Hz.
  • Features a 630A thermal-magnetic trip unit (TMD) with adjustable thermal overload protection and fixed magnetic protection.
  • Dimensions: 140mm x 255mm x 110mm, with various optional functions and accessories.
  • Compliant with IEC 60947, CCC, and EAC standards; suitable for class II insulation switchboards as a class II front face device (IEC 60664-1).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

EasyPact CVS630F Datasheet
Main
RangeEasyPact
Range of productEasyPact CVS400...630
Product nameEasyPact CVS
Device short nameCVS630F
Device typeCircuit breaker
ApplicationDistribution
Poles description3P
Protected poles description3D
Earth leakage protectionWithout
Rated current [In]630 A at 40 °C
Network typeAC
Utilisation categoryCategory A
Breaking capacity [Icu] 40 kA at 220/240 V AC
36 kA at 380/415 V AC
30 kA at 440 V AC
Trip unitTM-D (Thermal-magnetic, 630 A)
Protection typeShort-circuit & Overload
Complementary
Rated impulse voltage [Uimp]8 kV
Network frequency50/60 Hz
Breaking capacity codeF
Rated service breaking capacity [Ics] 40 kA at 220/240 V AC
36 kA at 380/415 V AC
23 kA at 440 V AC
Neutral positionLeft
Mechanical durability15000 cycles
Electrical durability4000 cycles at 415 V
Control typeToggle
MountingBackplate, Fixed
ConnectionsScrew, 45 mm pitch, Front
Dimensions (W x D x H)140 x 110 x 255 mm

No specifications available for this product.
