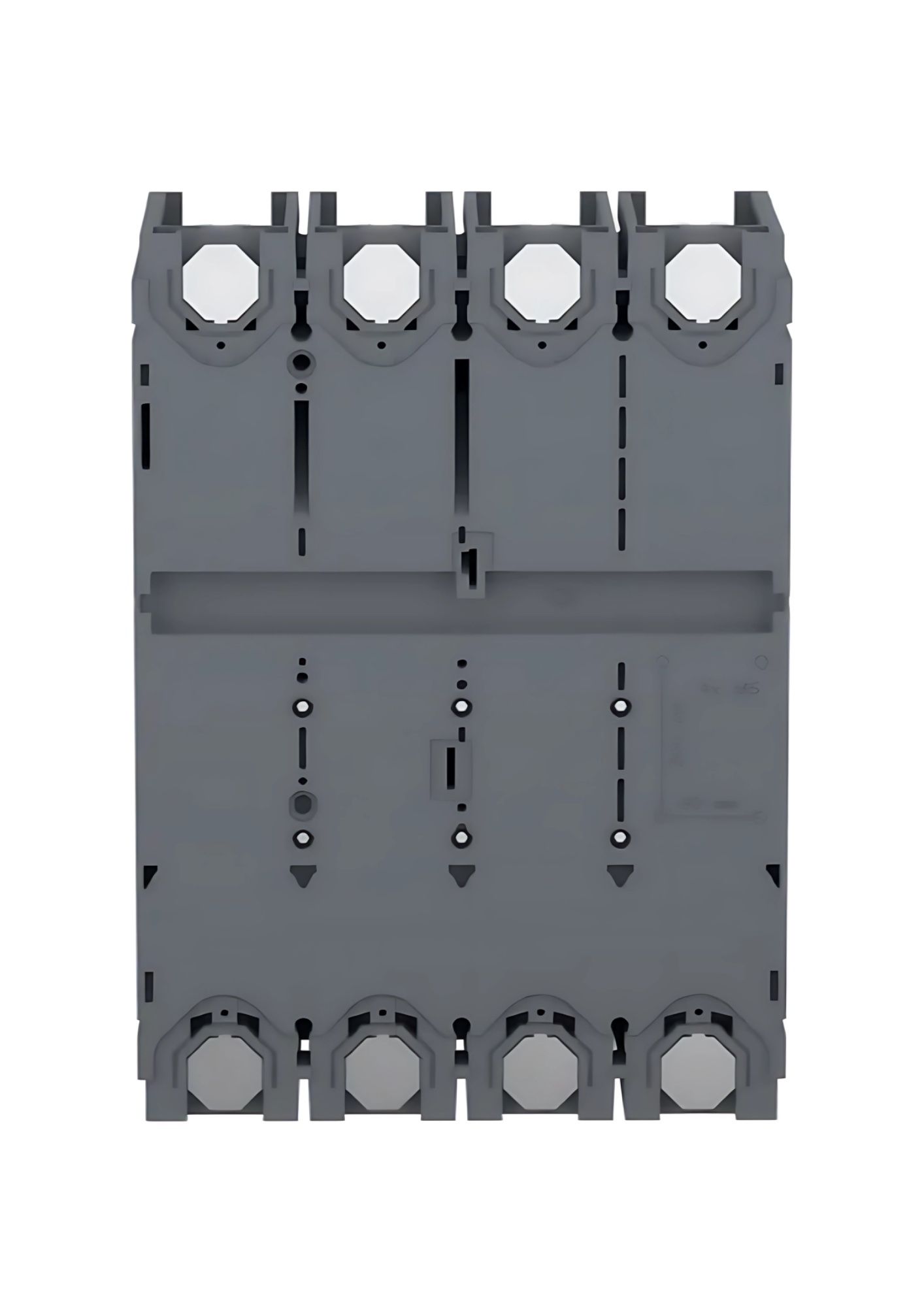

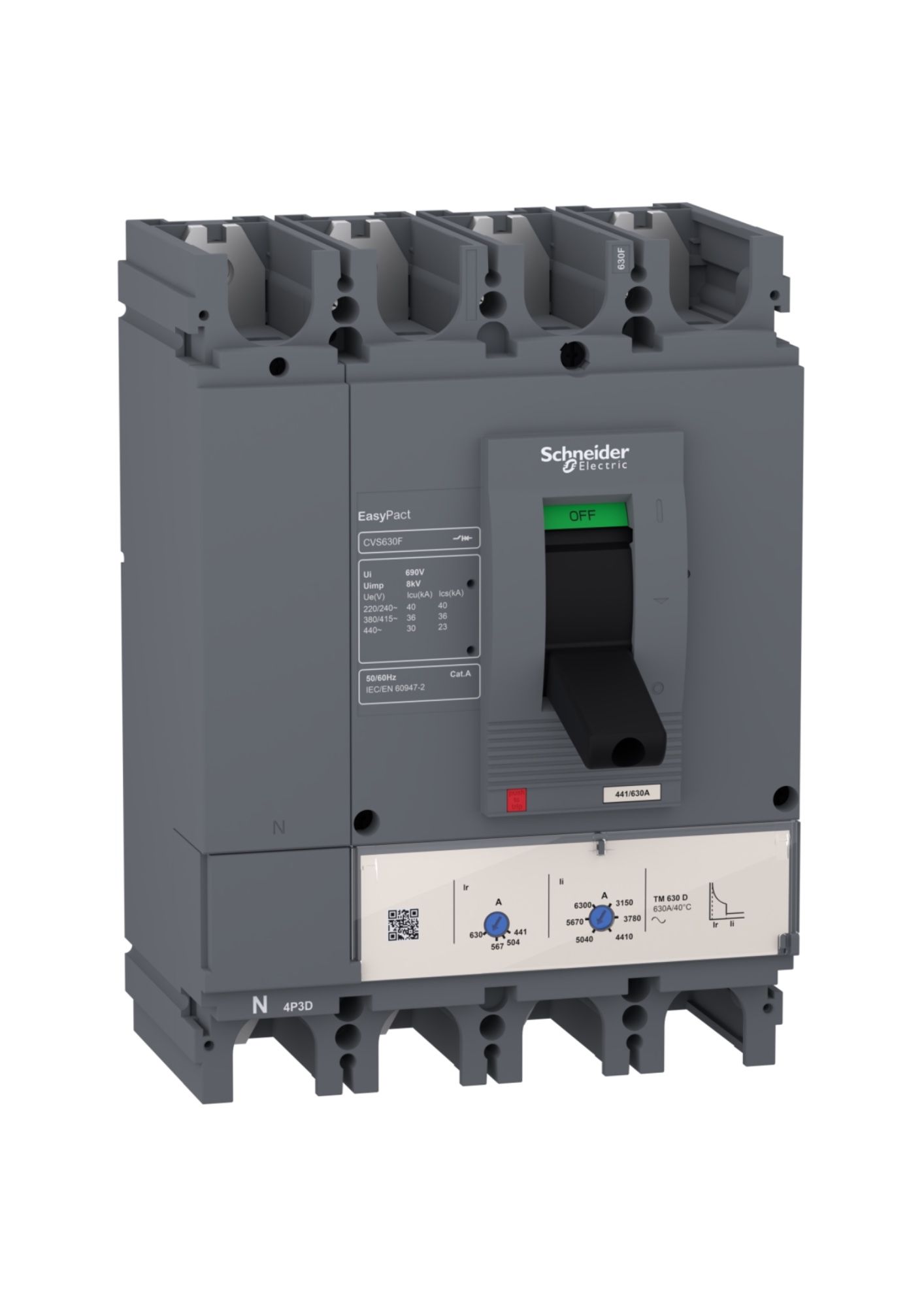

Schneider LV563308, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 4 Pole
Schneider LV563308, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV563308, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 4 Pole Schneider LV563308, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 4 Pole

Schneider LV563308, MCCB, EasyPact CVS630F, 36 kA at 415 VAC, 500 A rating thermal magnetic TM-D trip unit, 4 Pole

In stock
SKU
LV563308
Special Price ₹23,120.00 Regular Price ₹57,800.00
(18% GST Extra)
Add to Wish List
  • EasyPact CVS630F is a 4-pole, 3D fixed circuit breaker with high performance and cost-saving functionality.
  • Suitable for small and medium-sized building protection applications.
  • Breaking capacity of 36kA rms at 415VAC 50/60Hz and operational voltage of 440VAC 50/60Hz.
  • Includes a 500A thermal-magnetic (TMD) trip unit with adjustable thermal overload and fixed magnetic protection.
  • Compliant with IEC 60947, CCC, EAC standards and can be installed in class II insulation switchboards (IEC 60664-1).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Range EasyPact
Range of product EasyPact CVS400...630
Product name EasyPact CVS
Device short name CVS630F
Product or component type Circuit breaker
Device application Distribution
Poles description 4P
Protected poles description 3D
Earth leakage protection Without
Rated current [In] 500 A at 40 °C
Network type AC
Utilisation category Category A
Breaking capacity [Icu] 40 kA at 220/240 V AC
36 kA at 380/415 V AC
30 kA at 440 V AC
(IEC 60947-2)
Trip unit name TM-D
Trip unit technology Thermal-magnetic
Trip unit rating 500 A at 40 °C
Complementary
Protection type Short-circuit (magnetic), Overload (thermal)
Rated impulse withstand voltage [Uimp] 8 kV (EN/IEC 60947-2)
Network frequency 50/60 Hz
Breaking capacity code F
Rated service breaking capacity [Ics] 40 kA at 220/240 V AC
36 kA at 380/415 V AC
23 kA at 440 V AC
(IEC 60947-2)
Neutral position Left
Mechanical durability 15,000 cycles
Electrical durability 4,000 cycles at 415 V In
Control type Toggle
Thermal protection adjustment range 350…500 A
Long time pick-up adjustment 0.7…1 x In (adjustable)
Instantaneous pick-up adjustment 5…10 x In (adjustable)
Contact position indicator Yes
Mounting support Backplate
Mounting mode Fixed
Upside connection Front
Downside connection Front
Connections Screw connection
Connection pitch 45 mm
Compatibility code CVS630
Width 185 mm
Depth 110 mm
Height 255 mm
