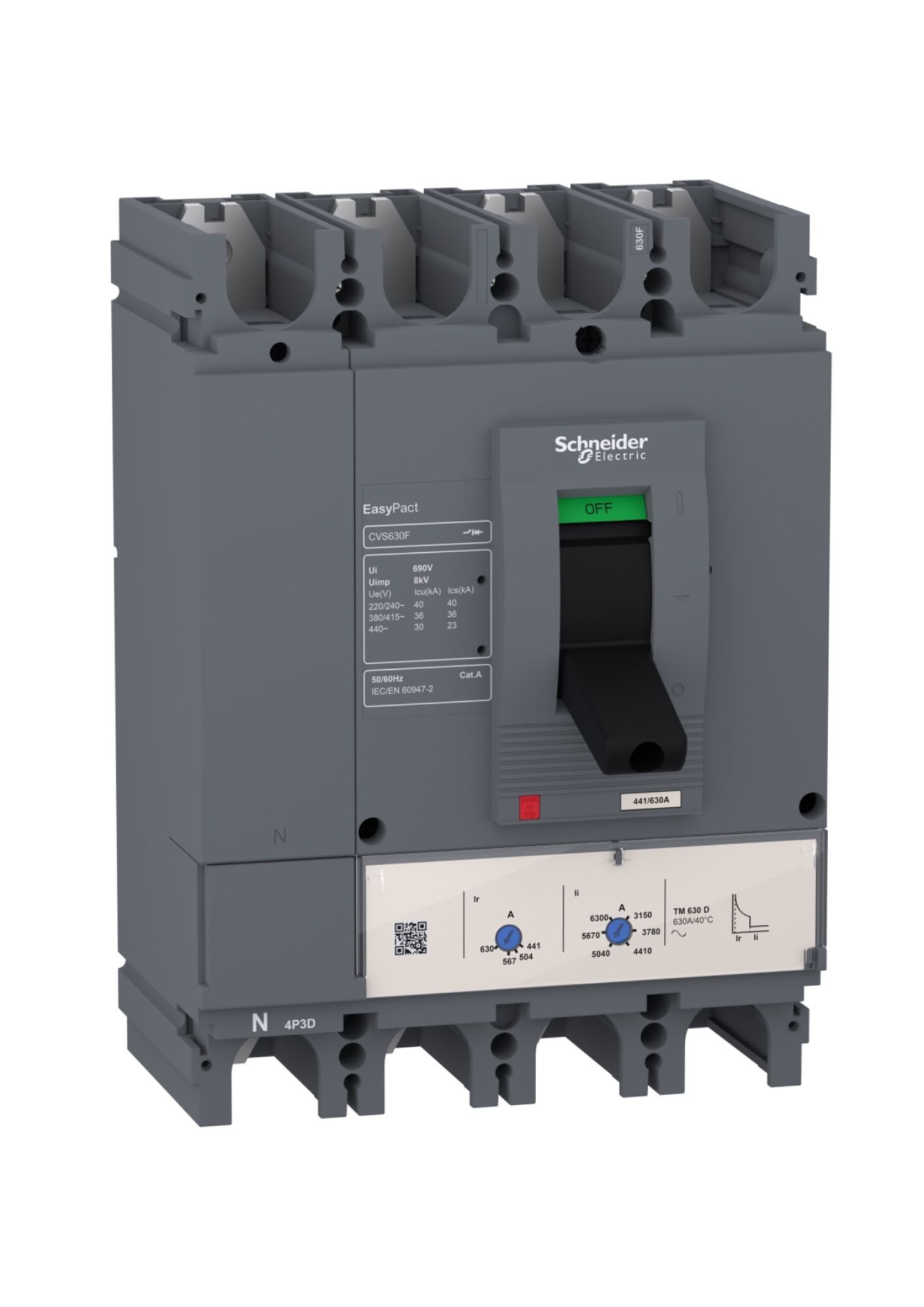

Schneider LV563310, MCCB, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 4 Pole
Schneider LV563310, MCCB, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 4 Pole Schneider LV563310, MCCB, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 4 Pole Schneider LV563310, MCCB, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 4 Pole

Schneider LV563310, MCCB, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 4 Pole

In stock
SKU
LV563310
Special Price ₹26,384.00 Regular Price ₹65,960.00
(18% GST Extra)
Add to Wish List
  • EasyPact CVS630F is a 4-pole 3D fixed circuit breaker with high performance and cost-saving functionality.
  • Breaking capacity (Icu) is 36kA rms at 415VAC 50/60Hz; operational voltage is 415VAC 50/60Hz.
  • Equipped with a 630A thermal-magnetic trip unit (TMD) for adjustable thermal overload and fixed magnetic protection.
  • Dimensions: 185mm x 255mm x 110mm; includes optional functions and accessories.
  • Compliant with IEC 60947, CCC, EAC standards; suitable for class II insulation switchboards (IEC 60664-1).
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

EasyPact CVS630F Datasheet
Main
RangeEasyPact
Range of productEasyPact CVS400...630
Product nameEasyPact CVS
Device short nameCVS630F
Device typeCircuit breaker
Device applicationDistribution
Poles description4P
Protected poles description3D
Earth leakage protectionWithout
Rated current [In]630 A at 40 °C
Network typeAC
Utilisation categoryCategory A
Breaking capacity [Icu] 40 kA at 220/240 V AC 50/60 Hz
36 kA at 380/415 V AC 50/60 Hz
30 kA at 440 V AC 50/60 Hz
Trip unit nameTM-D
Trip unit technologyThermal-magnetic
Trip unit rating630 A at 40 °C
Protection typeShort-circuit (magnetic), Overload (thermal)
Complementary
Impulse withstand voltage [Uimp]8 kV
Network frequency50/60 Hz
Breaking capacity codeF
Rated service breaking capacity [Ics] 40 kA at 220/240 V AC
36 kA at 380/415 V AC
23 kA at 440 V AC
Neutral positionLeft
Mechanical durability15000 cycles
Electrical durability4000 cycles 415 V
Control typeToggle
Thermal protection adjustment441…630 A
Neutral protection settingNo protection (3D)
Long time pick-up adjustment typeAdjustable (0.7…1 x In)
Long time delayFixed
Instantaneous pick-up adjustmentAdjustable (5…10 x In)
Contact position indicatorYes
Mounting supportBackplate
Mounting modeFixed
Upside connectionFront
Downside connectionFront
Connections - terminalsScrew connection
Connection pitch45 mm
Compatibility codeCVS630
Width185 mm
Depth110 mm
Height255 mm
