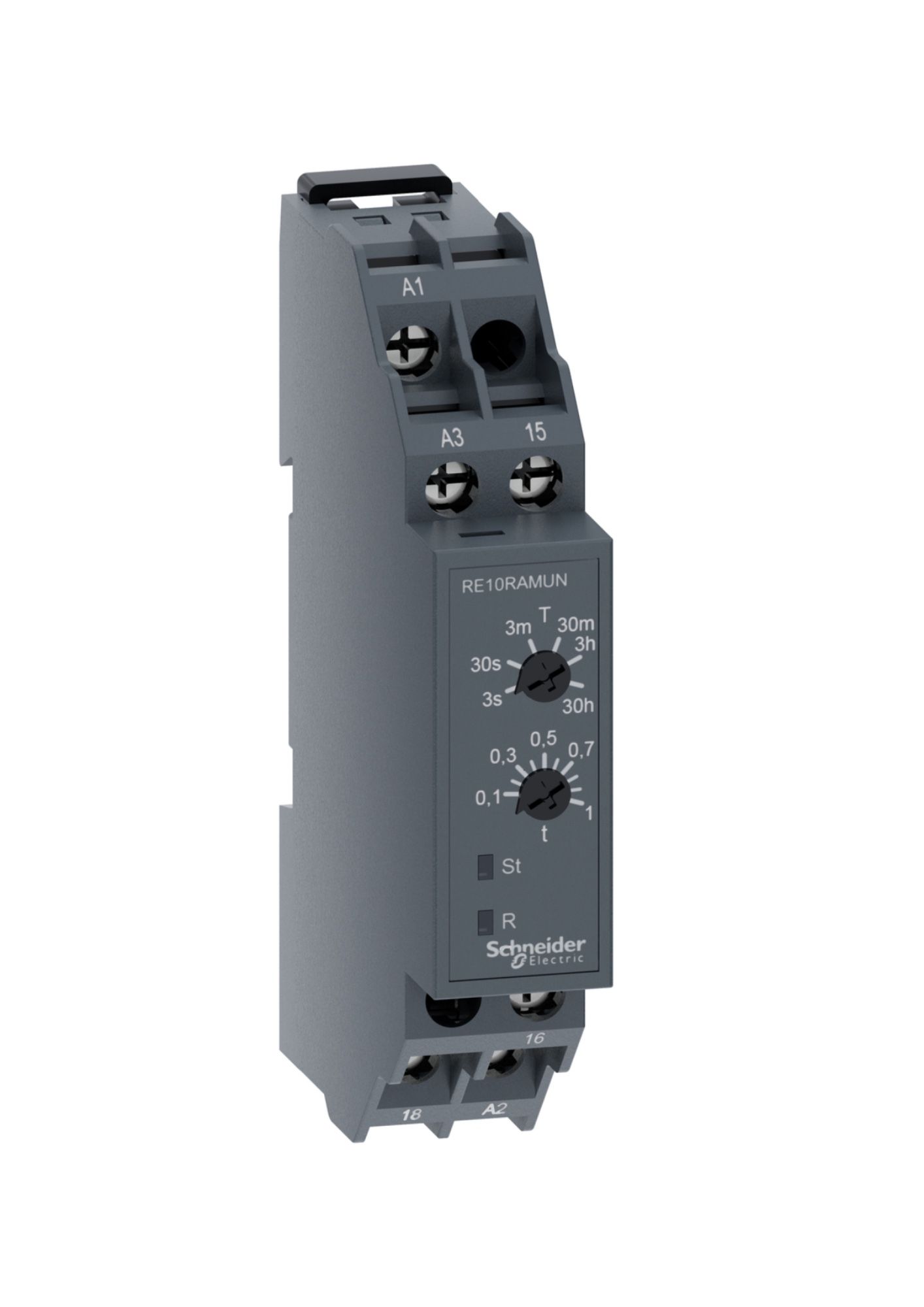

Schneider RE10RAMUN, Harmony timer relay, On delay function, 24V AC DC, 240V AC, 1CO
Schneider RE10RAMUN, Harmony timer relay, On delay function, 24V AC DC, 240V AC, 1CO Schneider RE10RAMUN, Harmony timer relay, On delay function, 24V AC DC, 240V AC, 1CO Schneider RE10RAMUN, Harmony timer relay, On delay function, 24V AC DC, 240V AC, 1CO Schneider RE10RAMUN, Harmony timer relay, On delay function, 24V AC DC, 240V AC, 1CO Schneider RE10RAMUN, Harmony timer relay, On delay function, 24V AC DC, 240V AC, 1CO

Schneider RE10RAMUN, Harmony timer relay, On delay function, 24V AC DC, 240V AC, 1CO

In stock
SKU
RE10RAMUN
Special Price ₹520.00 Regular Price ₹1,300.00
(18% GST Extra)
Add to Wish List
  • Compact size, simplified panel design, 17.5mm width same as 1-pole circuit breaker
  • Intuitive time setting, for adjustment: from 0.01 s to 30 hrs
  • Compatible with a wide range of applications including machines, buildings, water segments, and HVAC
  • Conforming to cULus, CE, UKCA and CCC standards
  • 5A, 24Vac/dc or 240Vac supply, 1 CO, din rail mount timer relay
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Range of product: Harmony Timer Relays
  • Discrete output type: Relay
  • Product or component type: Modular timing relay
  • Time delay type: A
  • Time delay range: 0...30 h
  • [Us] rated supply voltage: 240 V AC 50/60 Hz, 24 V AC/DC
  • Nominal output current: 5 A
  • Contacts type and composition: 1 C/O
  • Width pitch dimension: 17.5 mm
  • Control type: Selector switch front panel

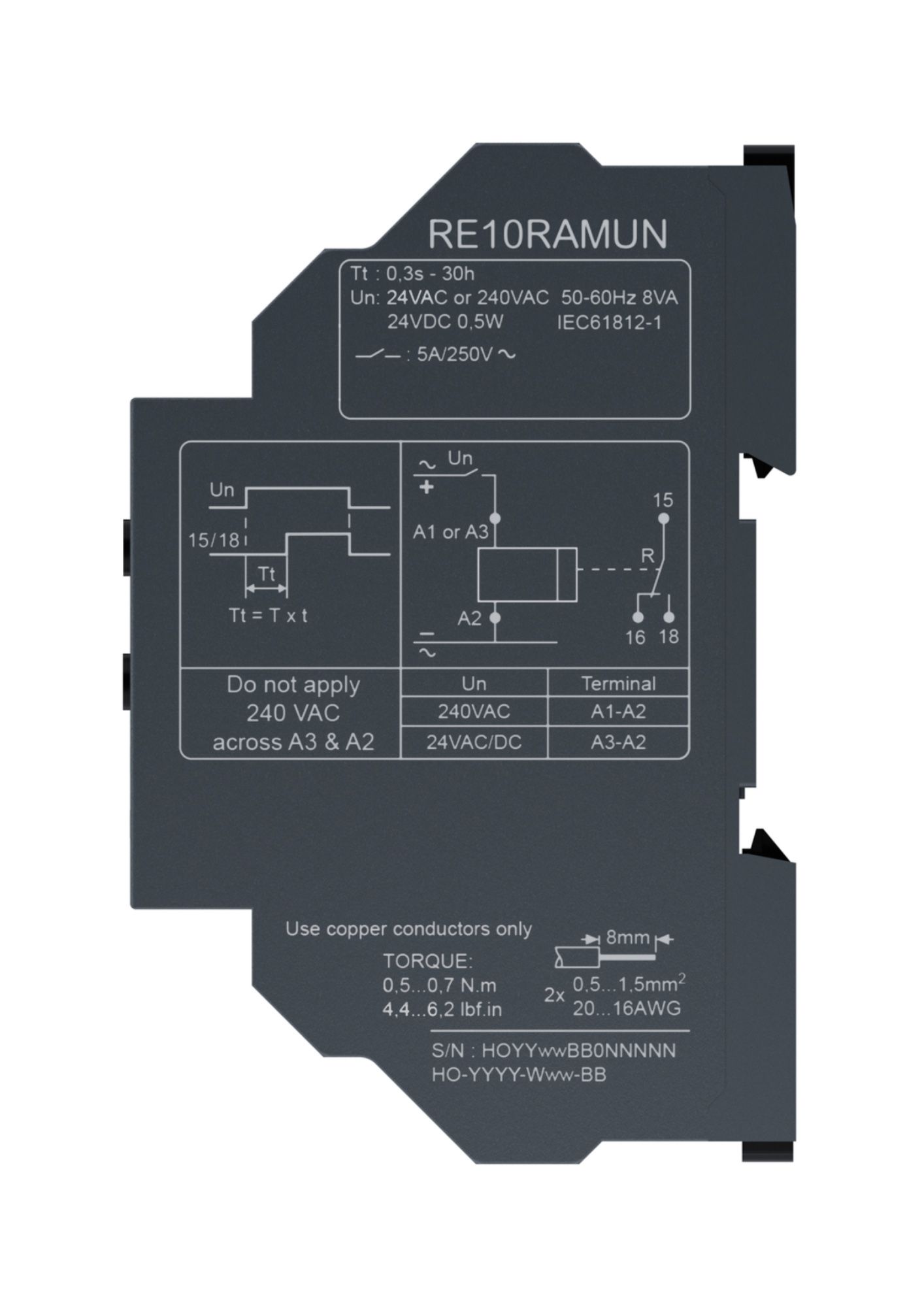

  • [Ie] rated operational current: 5 A 250 V AC-1 conforming to IEC 60947-5-1 5 A 28 V DC-1 conforming to IEC 60947-5-1 1.5 A 240 V AC-15 conforming to IEC 60947-5-1 2 A 24 V DC-13 conforming to IEC 60947-5-1
  • Voltage range: 0.8...1.1 Un

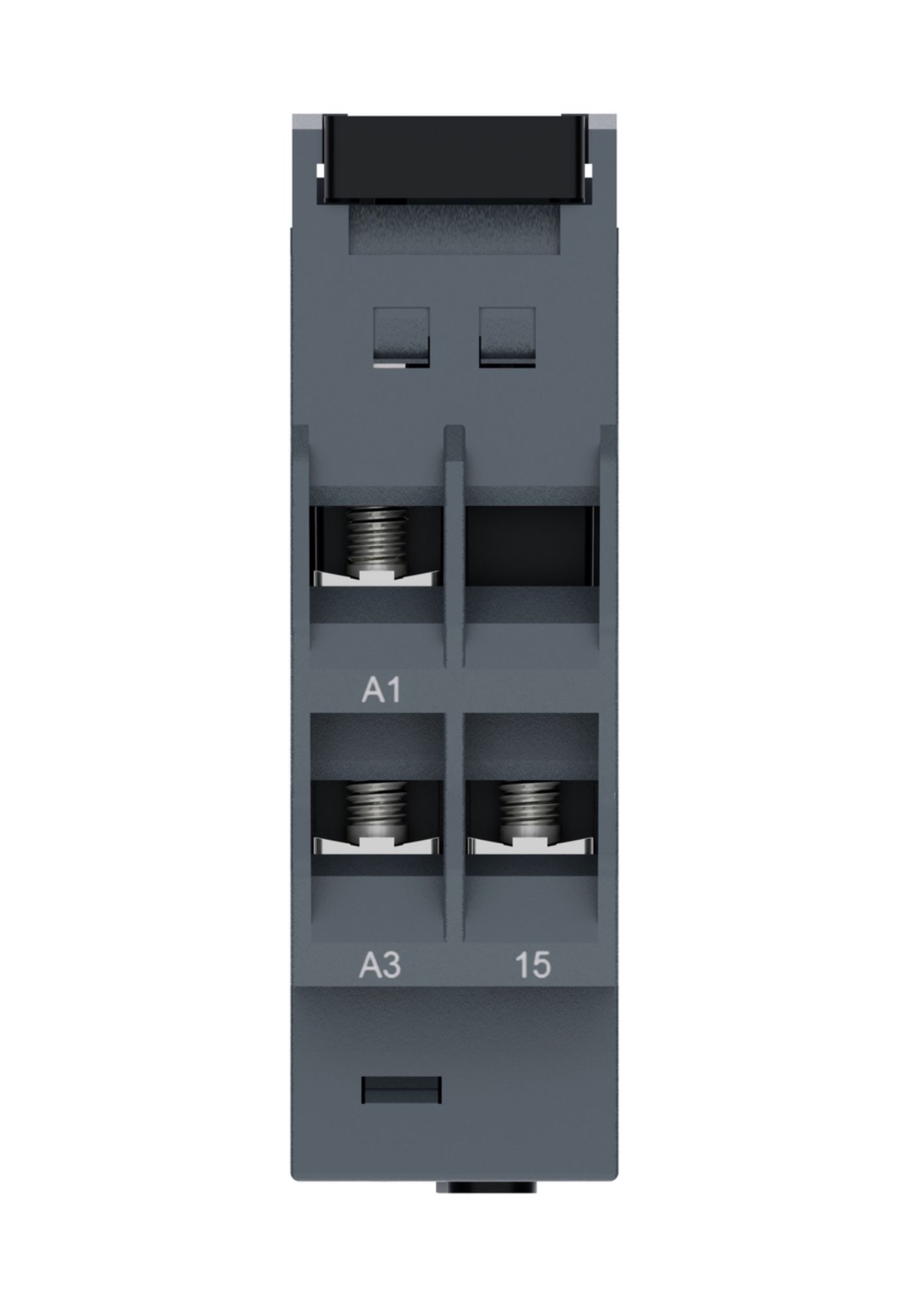

  • Connections - terminals: Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 22...AWG 16) solid with or without cable end
  • Housing material: Polycarbonate
  • Repeat accuracy: +/- 0.5 %
  • Setting accuracy of time delay: +/- 10 % of full scale at 25 °C
  • Minimum pulse duration: 100 ms with load in parallel
  • Reset time: 100 ms on de-energisation
  • Power consumption in VA: 8 VA at 240 V
  • Power consumption in W: 0.6 W at 24 V
  • Electrical durability: 100000 cycles at 5 A, 250 V for resistive load
  • Mechanical durability: 5000000 cycles
  • [Uimp] rated impulse withstand voltage: 5 kV for 1.2…50 µs
  • Marking: CULus, CE, CCC, UKCA

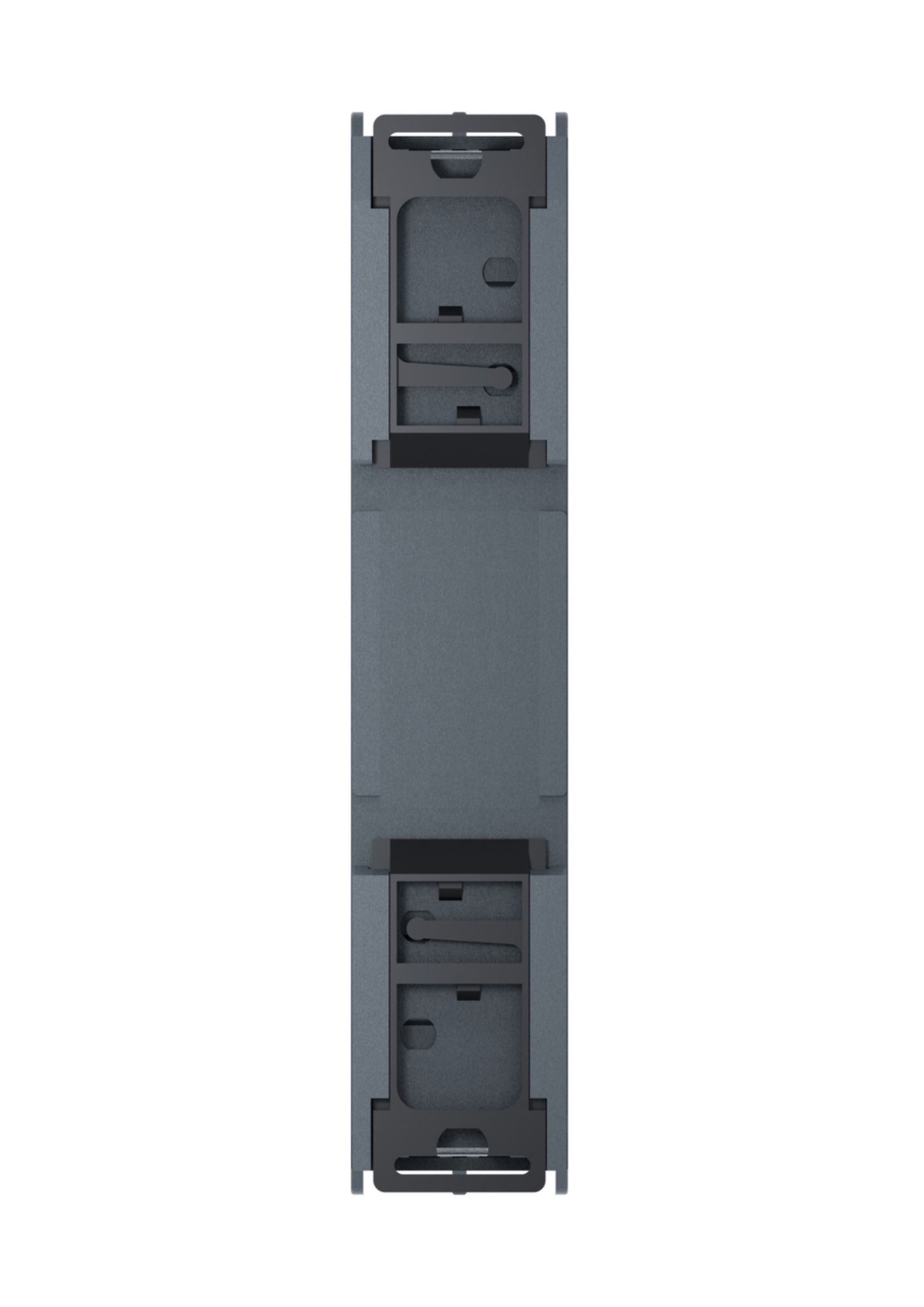

  • Mounting support: 35 mm symmetrical mounting rail
  • Local signalling: LED indicator green, flashing for timing in progress, LED indicator red, steady for relay energised
  • Net weight: 75 g
  • Compatibility code: RE10

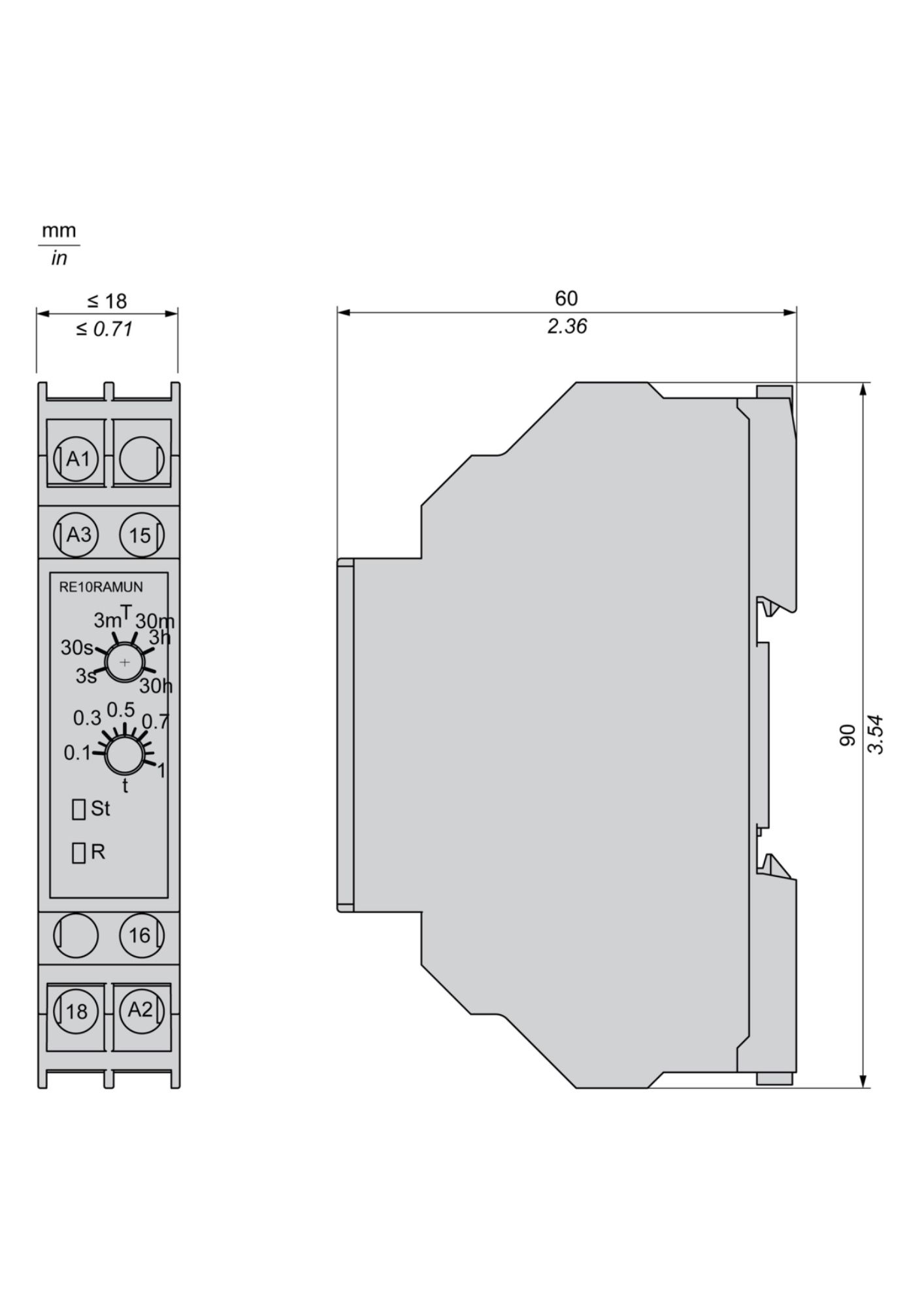

  • Height: 58.5 mm
  • Width: 18 mm
  • Depth: 90 mm
  • Function available: A- Power on-delay relay-1 C/O
  • Number of functions: 1
