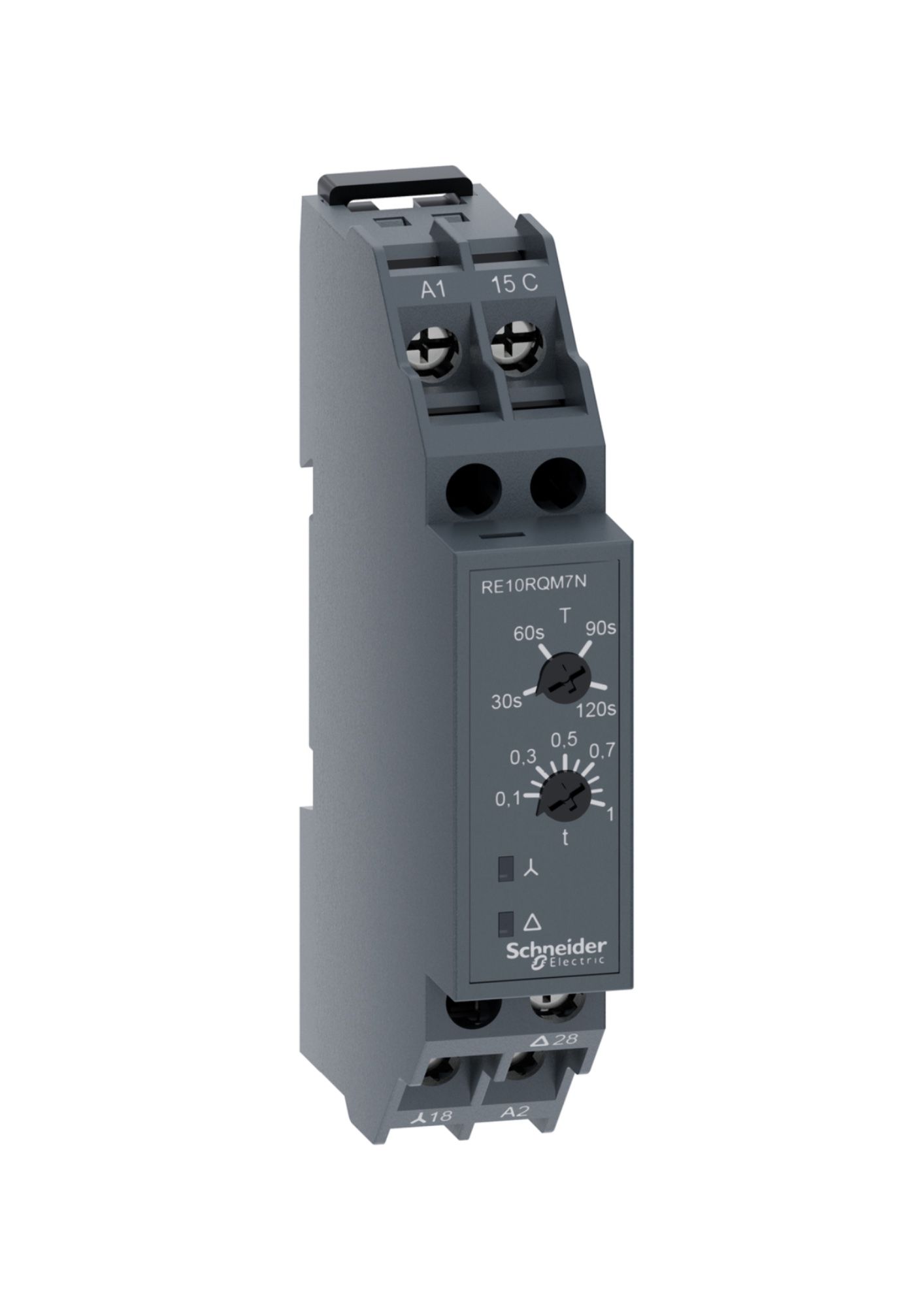

Schneider RE10RQM7N, Harmony timer relay, star-delta function, 220…240V AC, 1NO + 1NO
Schneider RE10RQM7N, Harmony timer relay, star-delta function, 220…240V AC, 1NO + 1NO Schneider RE10RQM7N, Harmony timer relay, star-delta function, 220…240V AC, 1NO + 1NO Schneider RE10RQM7N, Harmony timer relay, star-delta function, 220…240V AC, 1NO + 1NO Schneider RE10RQM7N, Harmony timer relay, star-delta function, 220…240V AC, 1NO + 1NO Schneider RE10RQM7N, Harmony timer relay, star-delta function, 220…240V AC, 1NO + 1NO

Schneider RE10RQM7N, Harmony timer relay, star-delta function, 220…240V AC, 1NO + 1NO

In stock
SKU
RE10RQM7N
Special Price ₹560.00 Regular Price ₹1,400.00
(18% GST Extra)
Add to Wish List
  • 5A, 240Vac, 1 CO, din rail mount timer relay, star-delta 'Q' time function
  • Timer relay can be set between 0.1 seconds and 120s, star-delta switch over
  • Has 1 changeover (CO) 5A contact, in SPDT (single pole double throw) configuration
  • Single STAR-DELTA time function in 17.5mm form-factors, allowing for a flexible and easy installation on DIN rail

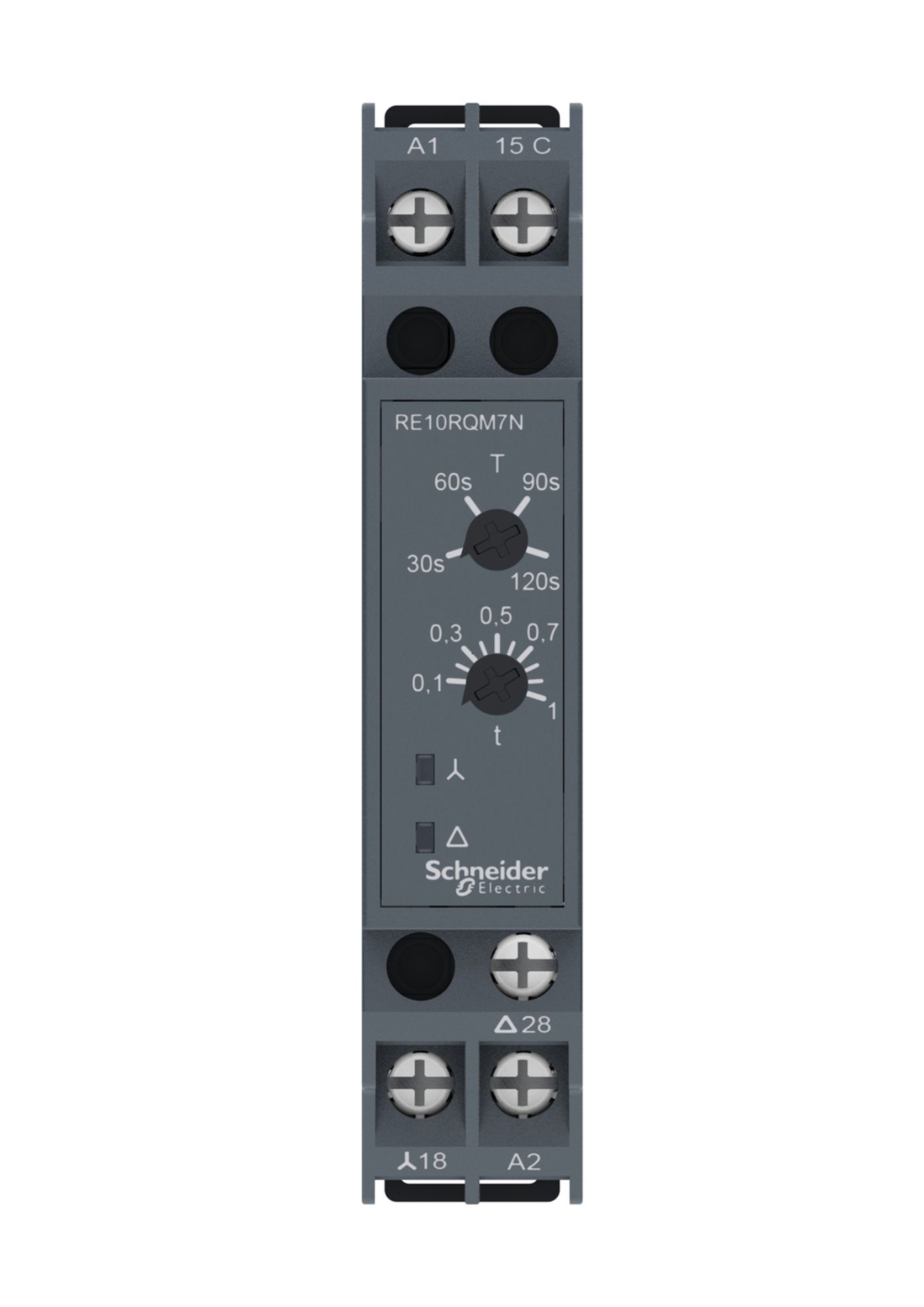

  • Comes with simple rotary dial setting for intended timing control

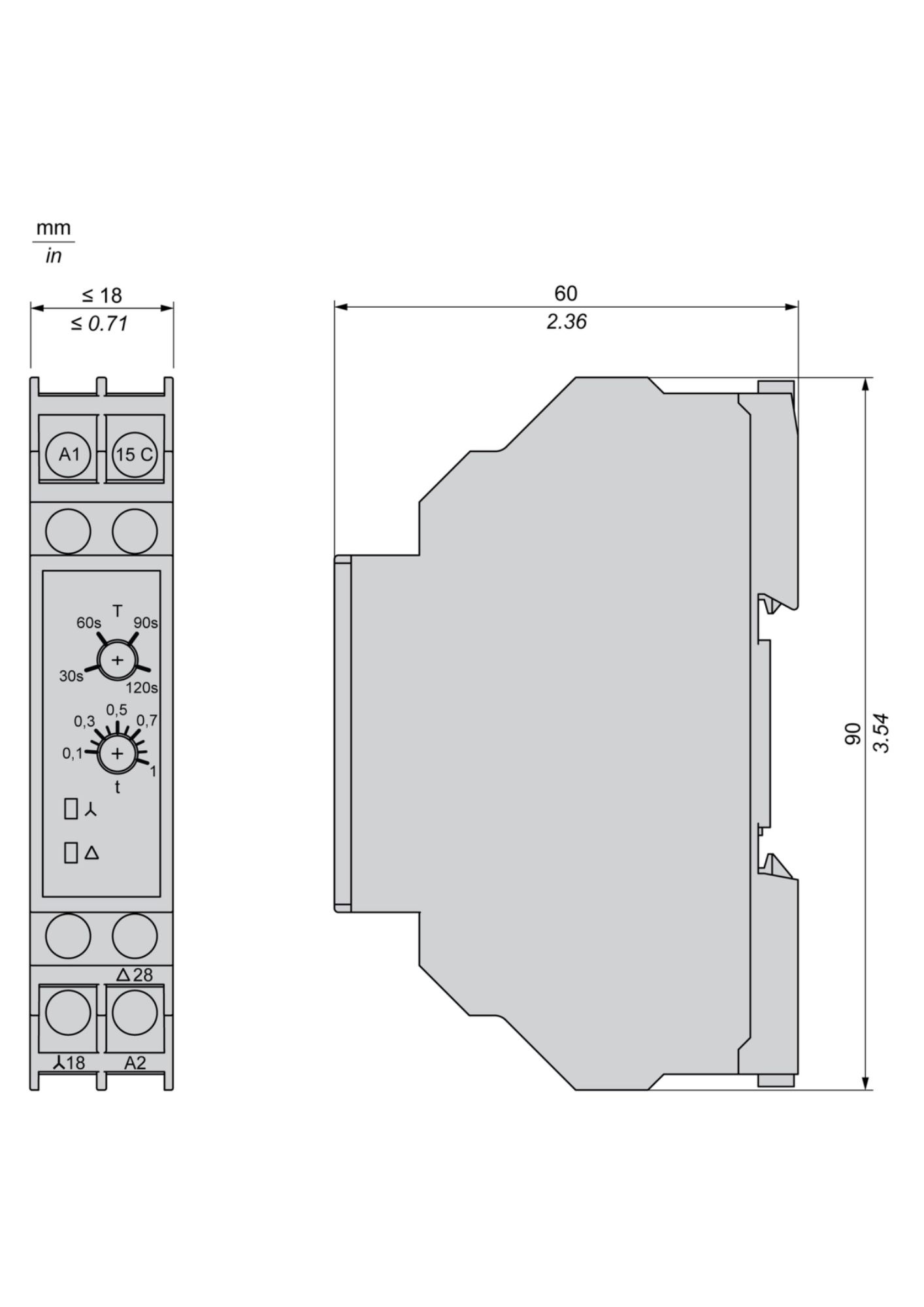

  • dimensions are 17.5mm (width) x 58.5mm (height) x 90mm (depth) and weighs 0.075 kg
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

  • Range of product: Harmony Timer Relays
  • Discrete output type: Relay
  • Product or component type: Modular timing relay
  • Time delay type: Q
  • Time delay range: 2...120 s
  • [Us] rated supply voltage: 240 V AC 50/60 Hz
  • Nominal output current: 5 A
  • Contacts type and composition: 1 NO + 1 NO
  • Width pitch dimension: 17.5 mm
  • Control type: Selector switch front panel
  • [Ie] rated operational current: • 5 A 250 V AC-1 conforming to IEC 60947-5-1 • 5 A 28 V DC-1 conforming to IEC 60947-5-1 • 1.5 A 240 V AC-15 conforming to IEC 60947-5-1 • 2 A 24 V DC-13 conforming to IEC 60947-5-1
  • Voltage range: 0.8...1.1 Un
  • Connections - terminals: Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 22...AWG 16) solid with or without cable end
  • Housing material: Polycarbonate
  • Repeat accuracy: +/- 0.5 %
  • Setting accuracy of time delay: +/- 10 % of full scale at 25 °C
  • Reset time: 100 ms on de-energisation
  • Power consumption in VA: 8 VA at 240 V
  • Electrical durability: 100000 cycles at 5 A, 250 V for resistive load
  • Mechanical durability: 5000000 cycles
  • [Uimp] rated impulse withstand voltage: 5 kV for 1.2…50 µs
  • Marking: CULus, CE, CCC, UKCA
  • Mounting support: 35 mm symmetrical mounting rail
  • Local signalling: LED indicator red, steady for ST (status)
  • Net weight: 75 g
  • Compatibility code: RE10
  • Height: 58.5 mm
  • Width: 18 mm
  • Depth: 90 mm

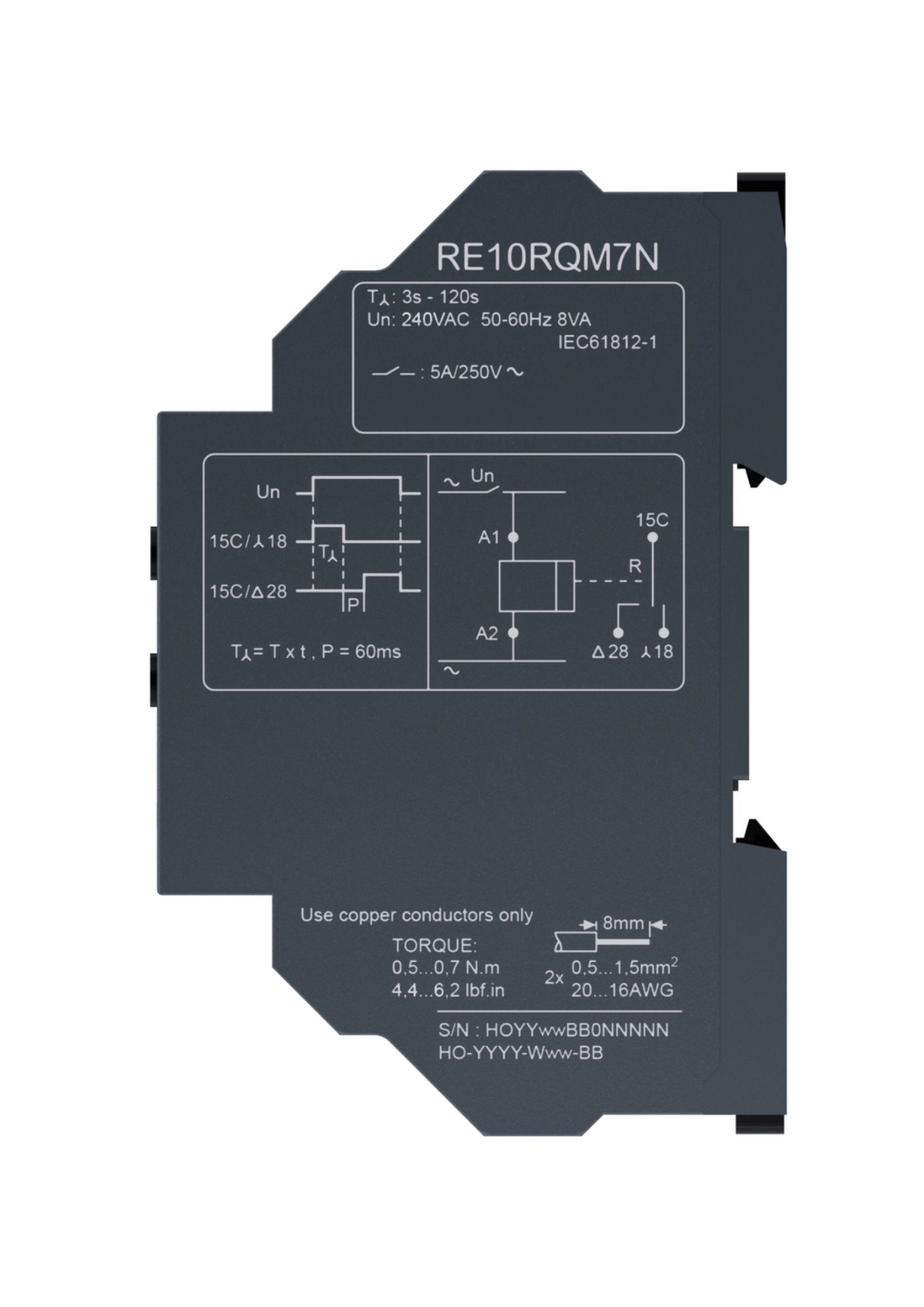

  • Function available: Q-Star-delta relay (2 NO outputs with same common)-1 NO + 1 NO
  • Number of functions: 1
