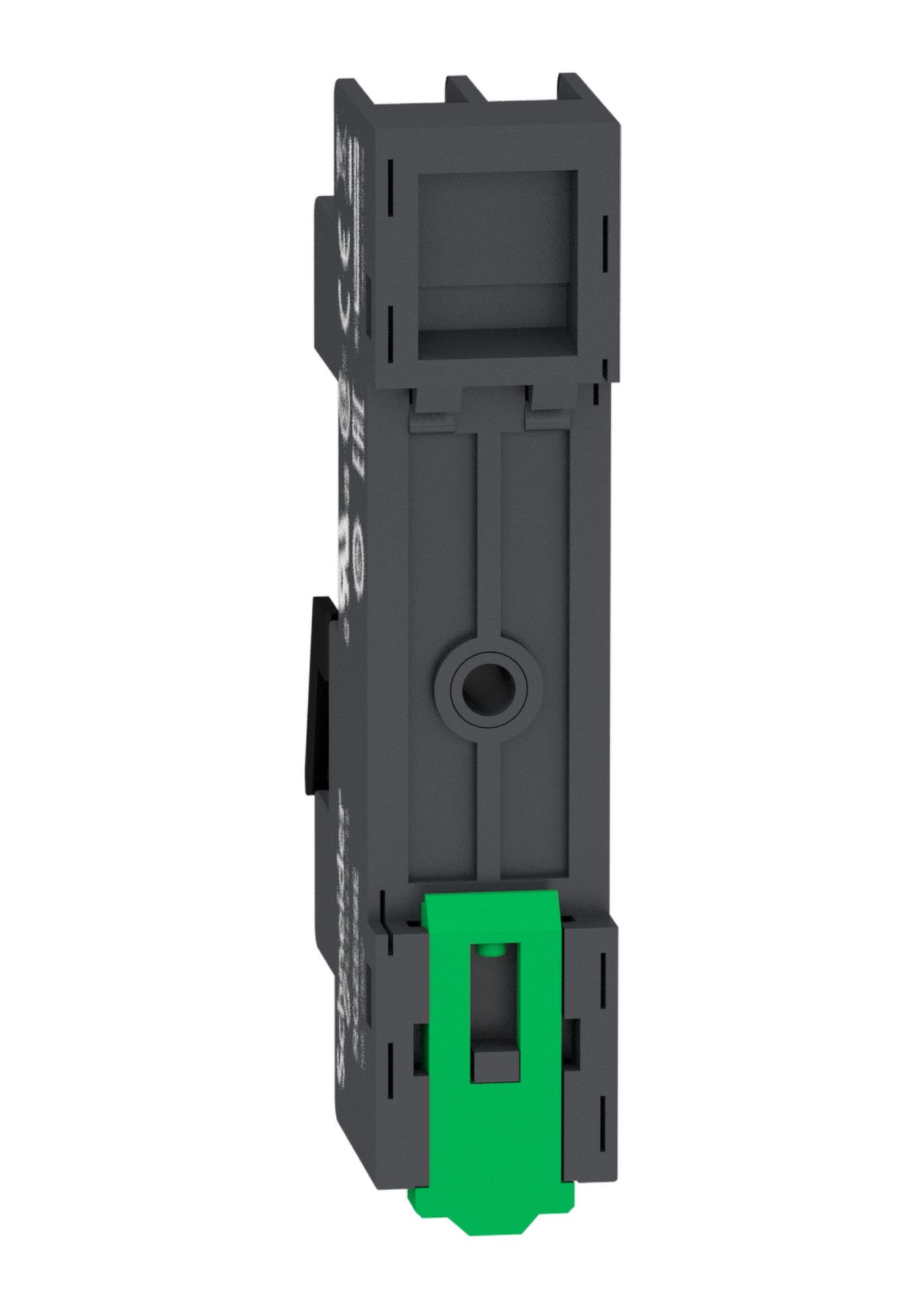

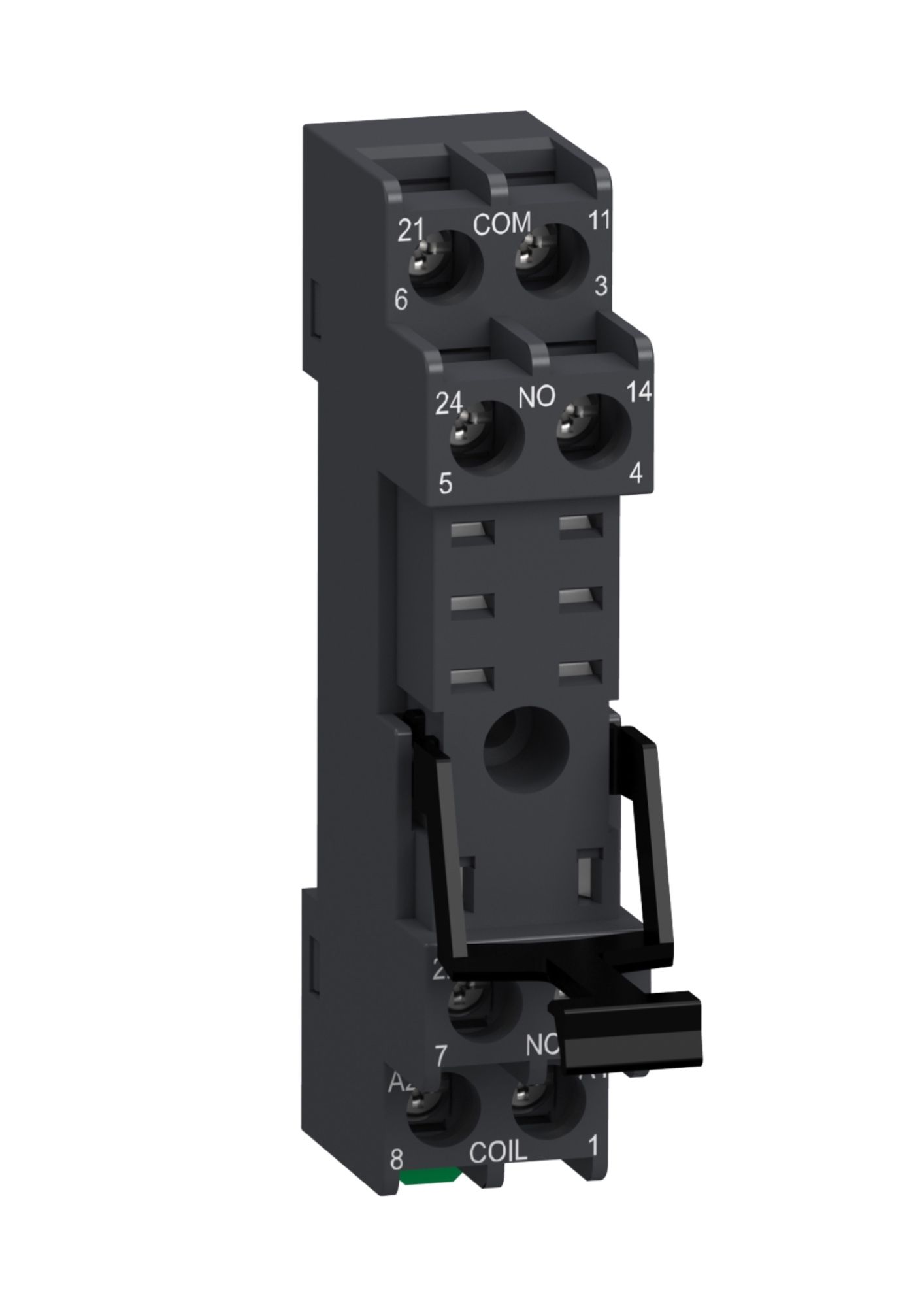

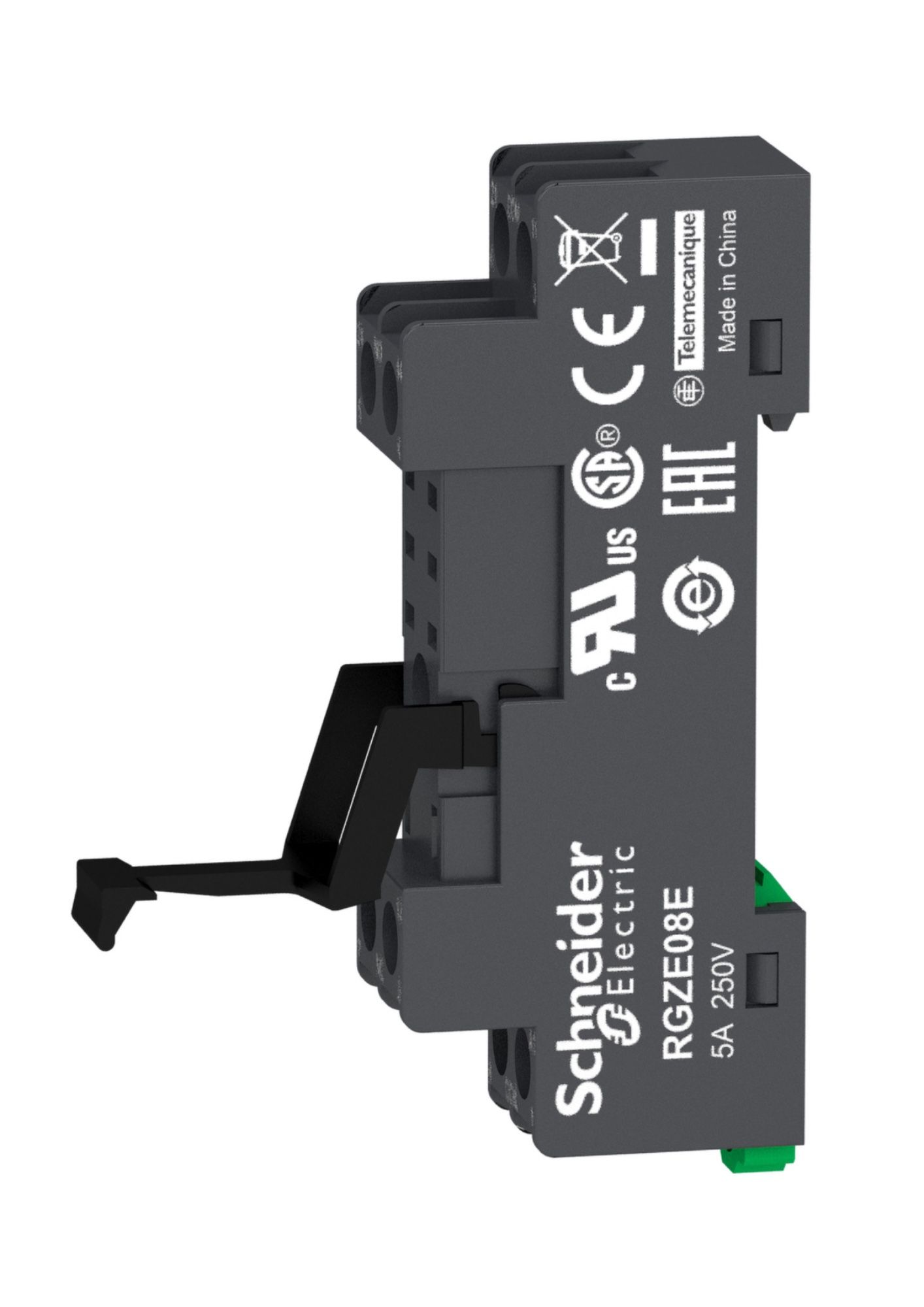

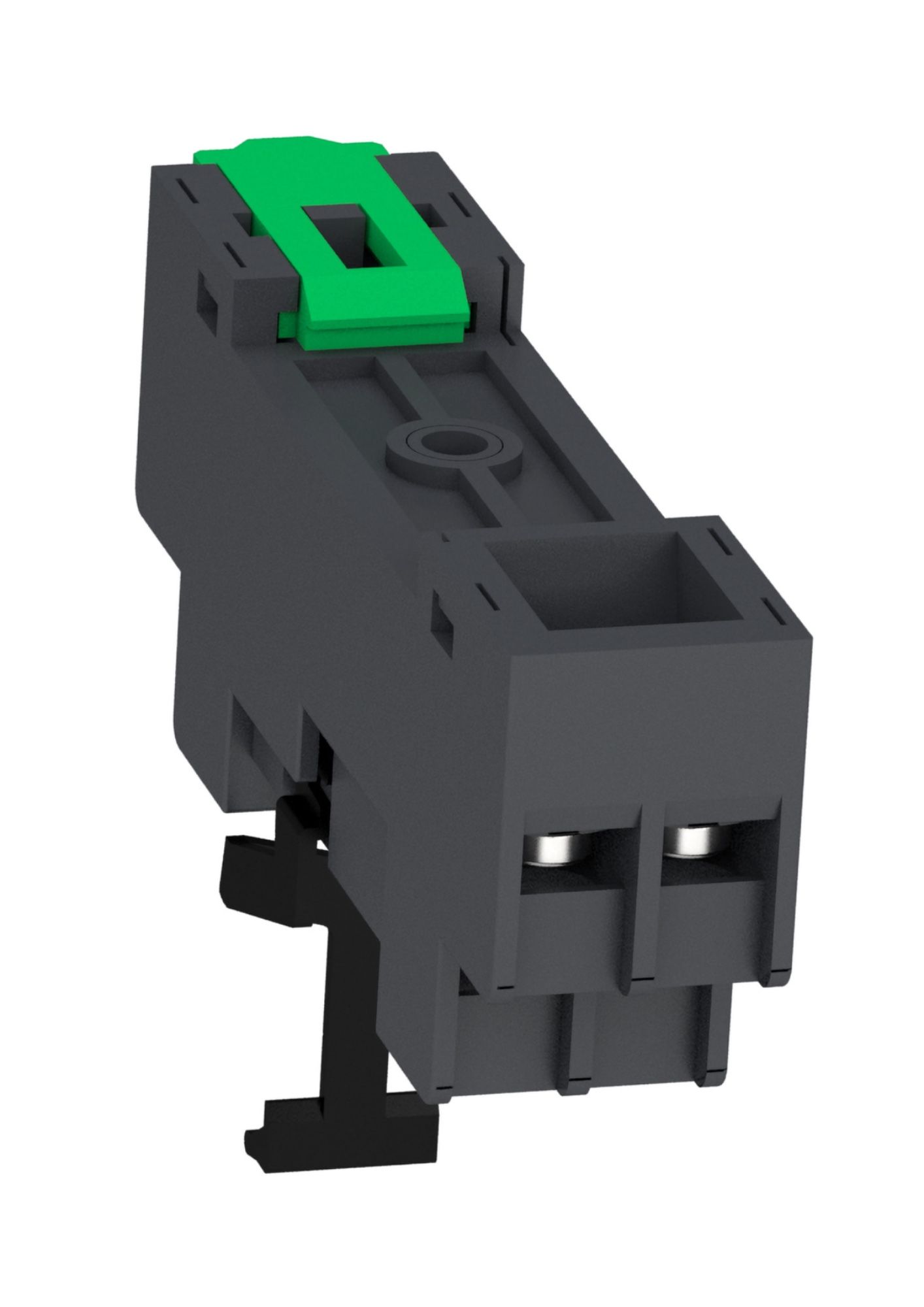

Schneider RGZE08E, Socket, Harmony Electromechanical Relays, Screw Clamp Socket with Maintaining Clamp, for RXG2 Relays, 5A, Mixed Contact Terminal
In stock
SKU
RGZE08E
Special Price
₹72.66
Regular Price
₹173.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony Electromechanical Relays |
| Product or component type | Socket |
| Product compatibility | Plug-in relay RXG with 2 C/O contact |
| [Ui] rated insulation voltage | 250 V |
| Complementary | |
| [Uimp] rated impulse withstand voltage |
4 kV between coil and contact with basic insulation 4 kV between poles with basic insulation 4 kV between terminals and DIN rail with basic insulation |
| [Ue] rated operational voltage | 250 V conforming to IEC 300 V conforming to UL |
| Dielectric strength |
4 kV between coil and contact with basic insulation 3 kV between poles with basic insulation 3 kV between terminals and DIN rail with basic insulation |
| Shape of pin | Flat |
| Connections - terminals |
Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) flexible with cable end Screw terminals, 2 x 0.5...2 x 1 mm² (AWG 20...AWG 17) flexible with cable end Screw terminals, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Fixing mode | Clip-on (35 mm symmetrical DIN rail) |
| Length | 69.6 mm |
| Contact terminal arrangement | Mixed |
| Overvoltage category | III |
| Pollution degree | 3 |
| Width | 16 mm |
| Height | 50.2 mm |
No specifications available for this product.
