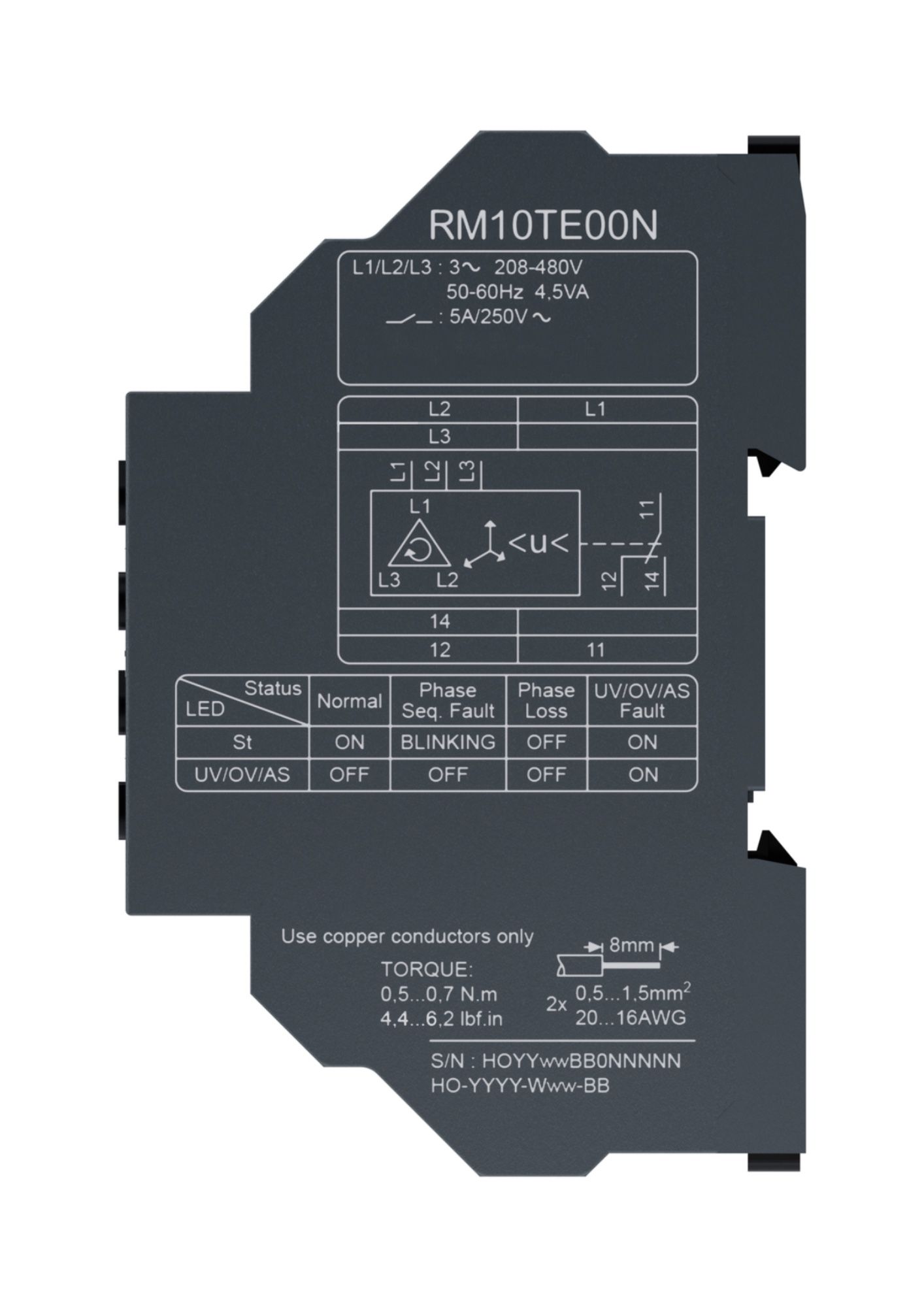

Schneider RM10TE00N, Harmony 3 phase voltage monitoring relay, Range 208 to 480 VAC, phase sequence, phase failure, Phase imbalance, 1 CO
In stock
SKU
RM10TE00N
Special Price
₹988.00
Regular Price
₹2,600.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
- Range of product: Harmony Control Relays
- Relay type: Control relay
- Product or component type: 3-phase control relay
- Relay name: RM10TE
- Relay monitored parameters: Phase sequence, Phase failure detection, Asymmetry, Overvoltage and undervoltage detection
- Measurement range: 208...480 V AC
- Time delay type: Adjustable 0...100 s, ±10 % of full scale
- Output contacts: 1 C/O
- Nominal output current: 5 A
- Product specific application: For 3-phase supply
- Supply voltage limits: 183…528 V AC, 3 phases
- Rated operational current: 5 A 250 V AC-1, 5 A 28 V DC-1, 1.5 A 240 V AC-15, 2 A 24 V DC-13
- Reset time: 1.5 s time delay
- Power consumption in VA: 0…4.5 VA
- Voltage detection threshold: < 175 V AC
- Hysteresis: 2 %
- Delay at power up: 5 s
- Maximum measuring cycle: 150 ms measurement cycle as true RMS value
- Voltage range: 208...480 V
- Repeat accuracy: 0.5 % for input/measurement, 3 % for time delay
- Measurement error: < 0.05 %/°C with temperature variation, < 1 % over whole range with voltage variation
- Response time: < 550 ms (in event of a fault)
- Insulation resistance: > 100 MΩ at 500 V DC
- Rated insulation voltage: 400 V
- Supply frequency: 47...63 Hz

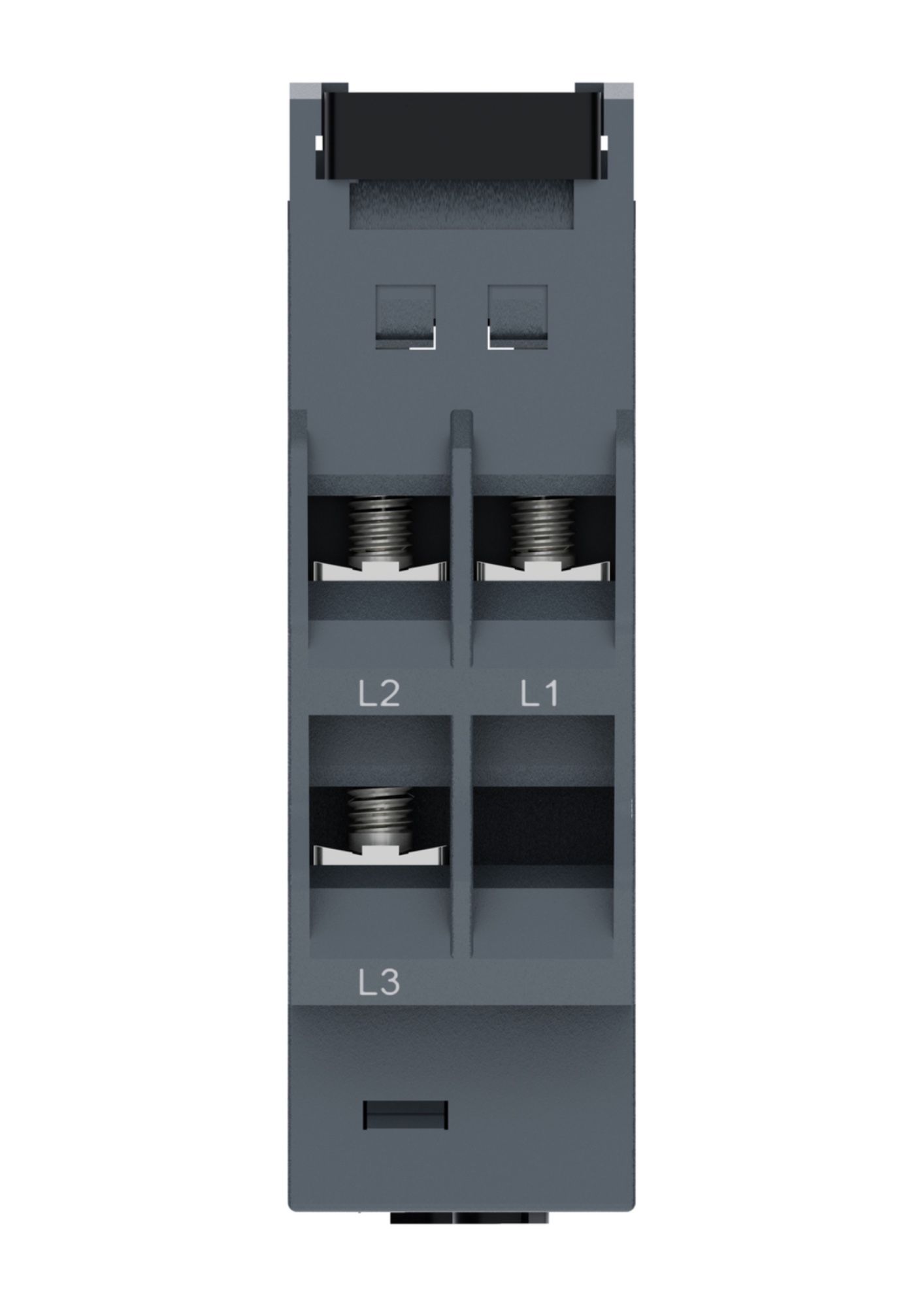

- Connections - terminals: Screw terminals, 2 x 0.5...2 x 1.5 mm² solid with or without cable end
- Tightening torque: 0.5…0.7 N.m
- Housing material: Polycarbonate
- Local signalling: LED (green) for ST, LED (red) for overvoltage, LED (red) for undervoltage, LED (red) for alarm asymmetry failure
- Mounting support: 35 mm symmetrical DIN rail conforming to IEC 60715
- Electrical durability: 100,000 cycles
- Mechanical durability: 10,000,000 cycles
- Safety reliability data: MTTFd = 158 years
- Height: 58.5 mm
- Width: 18 mm
- Depth: 90 mm
