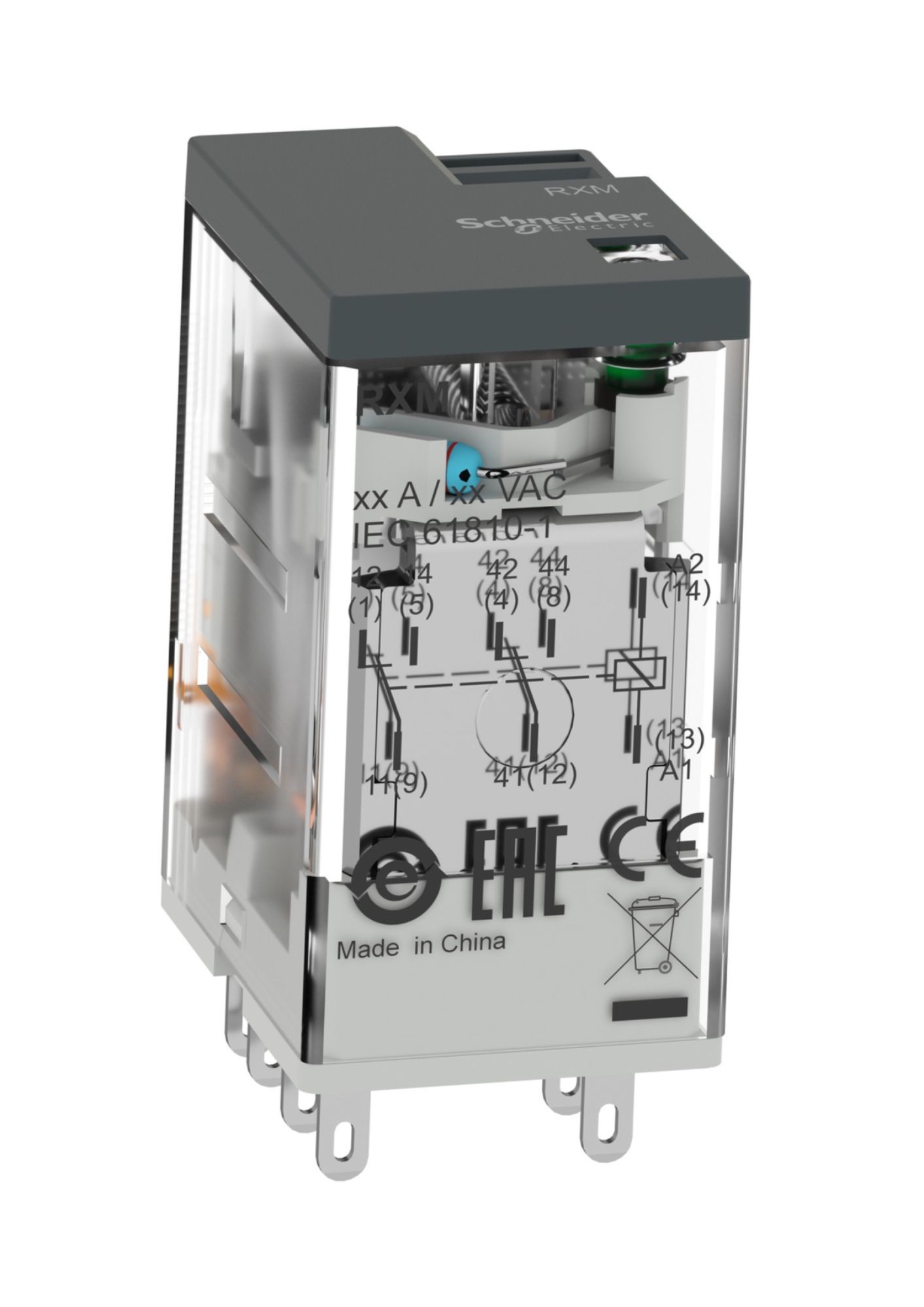

Schneider RXM2LB2B7, Miniature Plug-in Relay - HARMONY RXM2L - 2 C/O - 24 V AC - 5 A - with LED

In stock

SKU

RXM2LB2B7

Special Price ₹196.46 Regular Price ₹517.00

(18% GST Extra)

Qty

Add to Wish List

RXM miniature relays are part of Harmony Electromechanical Relays, designed as plug-in relays to be mounted on RXZE sockets.

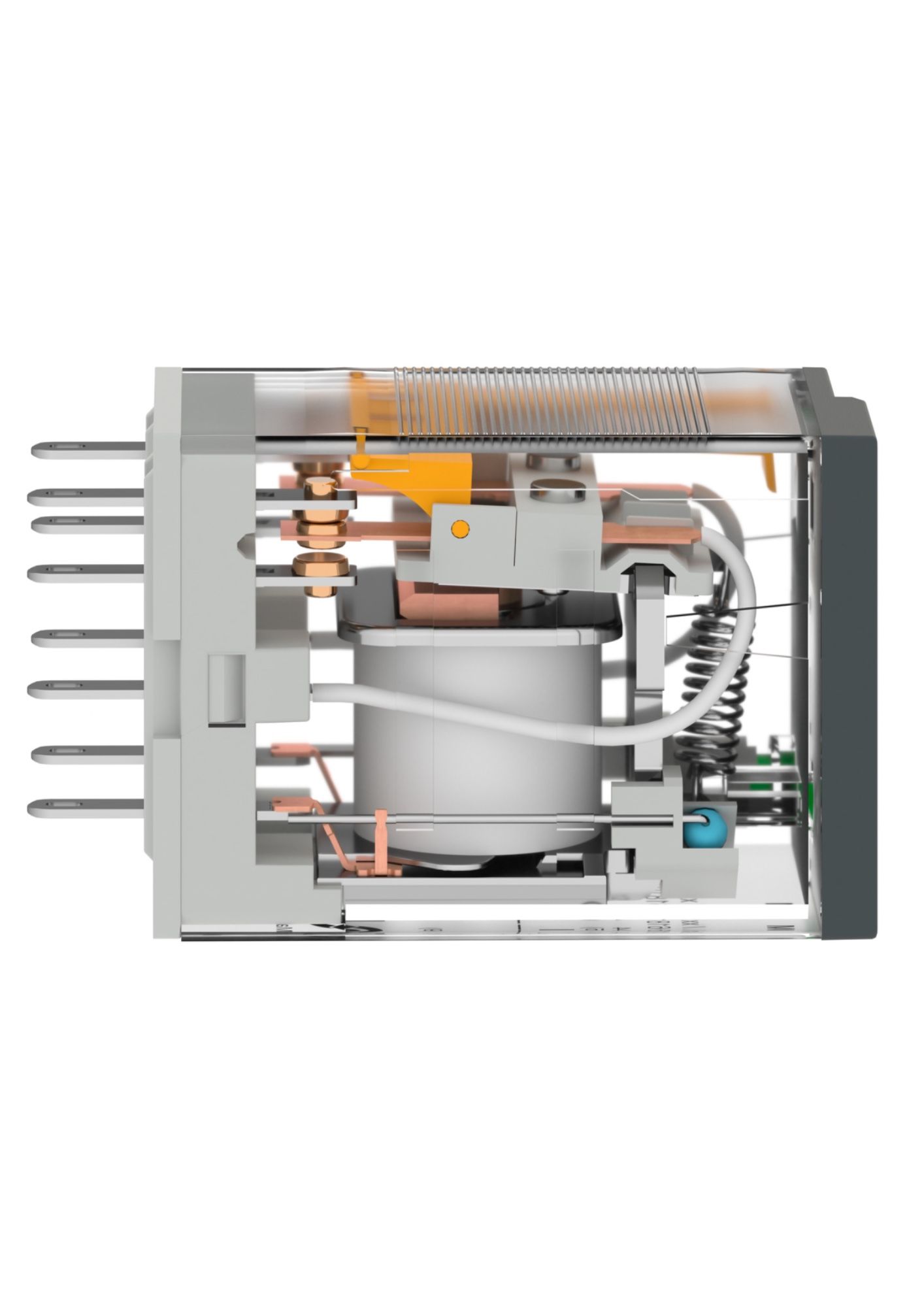

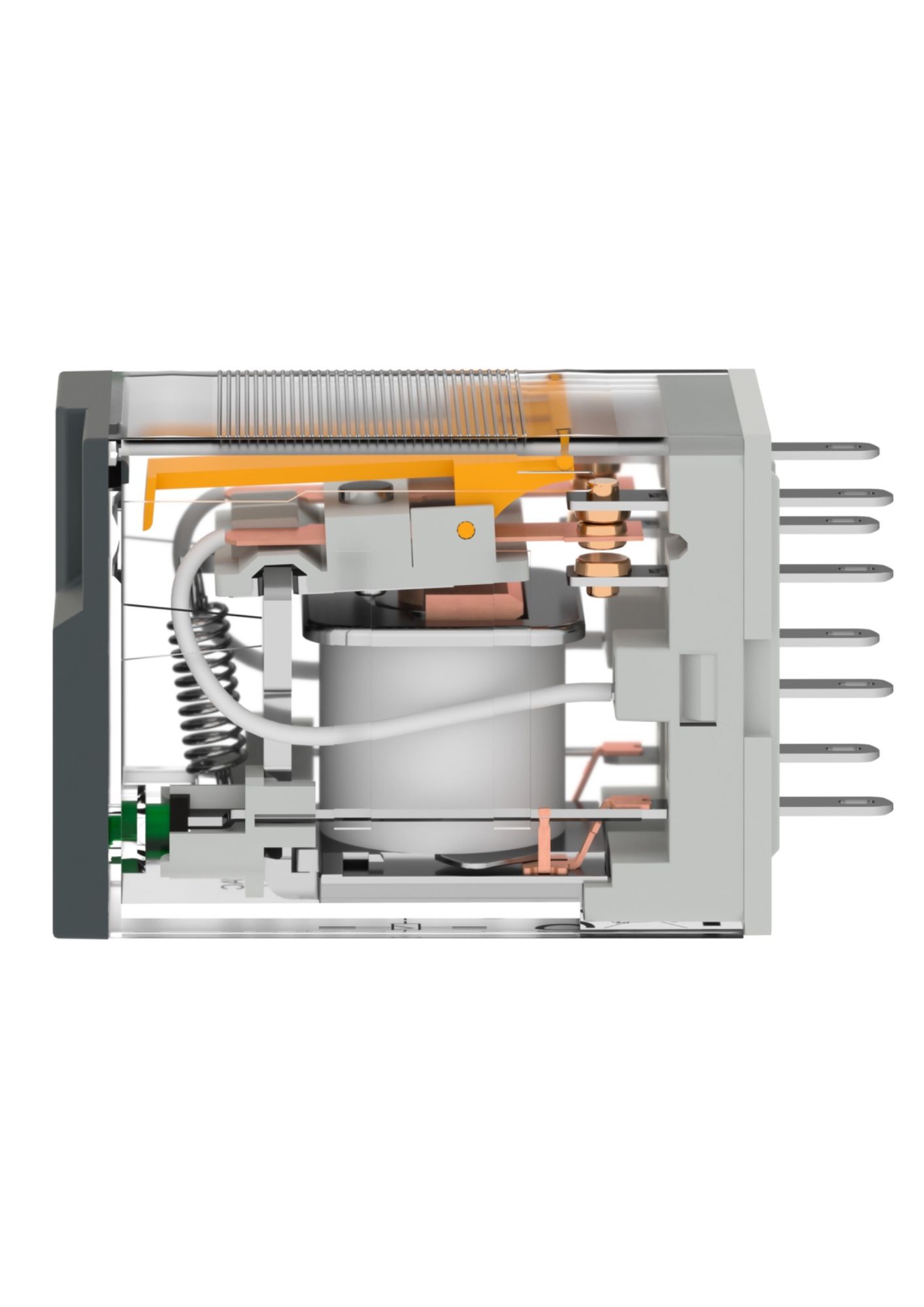

It features 2 C/O contacts with 5A current rating, 24 V AC 50/60 Hz control voltage, IP40 protection, mechanical indicator, and transparent cover for visual inspection.

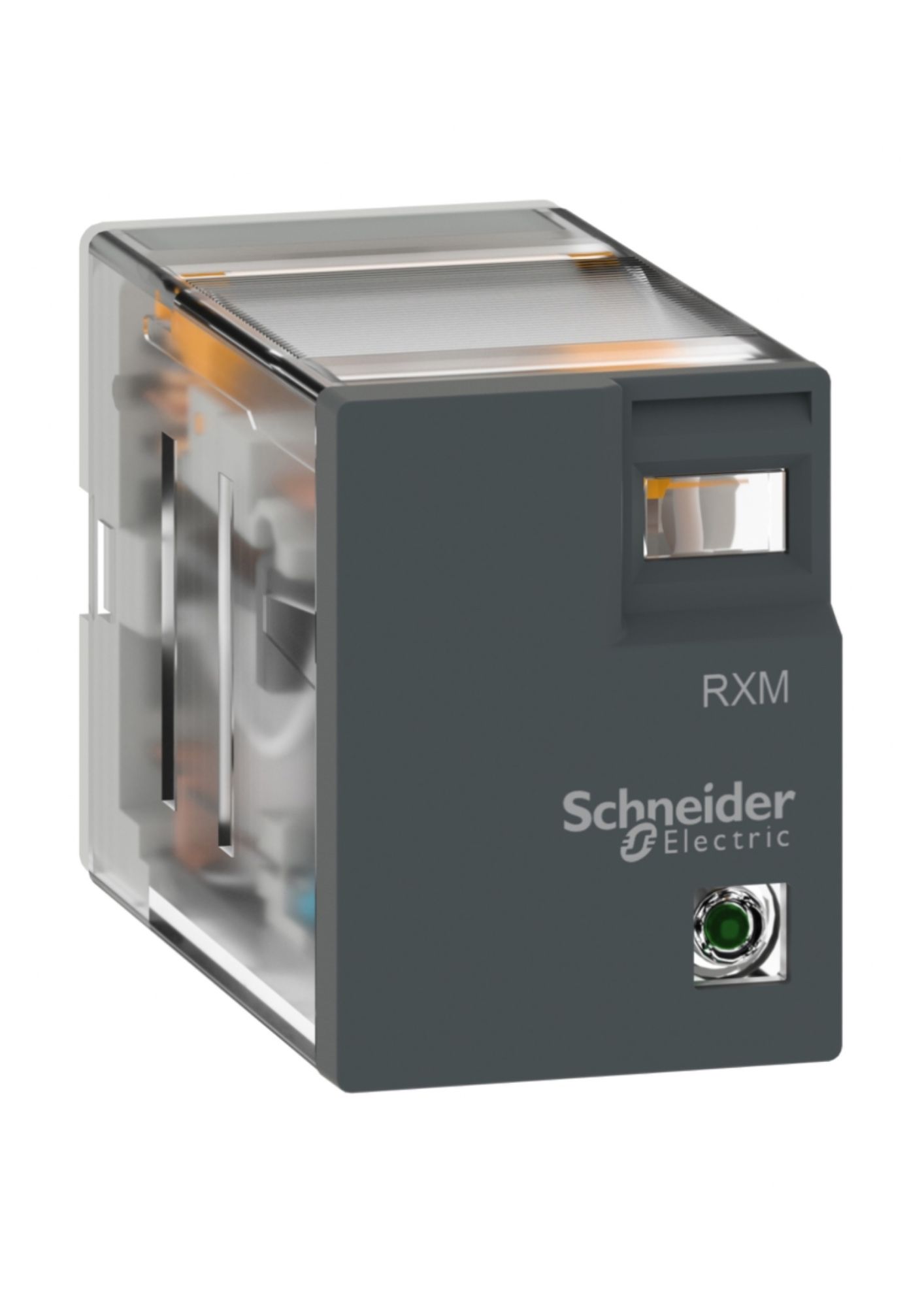

A green LED provides clear status indication both day and night, while an orange flag shows relay contact status.
Suitable for industrial machines, packaging, textile, HVAC, automation control panels, switchgear, motor controls, PLC interfaces, power supplies, building/medical equipment, and lighting controls.
Conforms to IEC and CE standards, used with RXZE1M2C socket and optional RXZ410/RXZ420 clamp, sold in lots of 10 (relay only), with RXMLB series also available in 2 CO (5A) and 4 CO (3A) variants.

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Main
Range of product	Harmony Electromechanical Relays
Series name	RXM series
Product or component type	Plug-in relay
Relay type	Miniature relay
Contacts type and composition	2 C/O
[Uc] control circuit voltage	24 V AC 50/60 Hz
[Ithe] conventional enclosed thermal current	5 A at -40…55 °C
Complementary
Status LED	With
Control type	Without lockable test button
Minimum switching capacity	25 mW subject to switching frequency, environment or expected reliability level etc
Rated operational voltage limits	19.2...26.4 V AC
[Ui] rated insulation voltage	250 V conforming to IEC
Maximum switching voltage	250 V AC / 28 V DC
Drop-out voltage threshold	≥ 0.15 Uc AC
Load current	5 A at 250 V AC / 5 A at 28 V DC
Maximum switching capacity	1250 VA AC / 140 W DC
Minimum switching current	5 mA (subject to conditions)
Minimum switching voltage	5 V (subject to conditions)
Average resistance	180 Ω at 23 °C ± 10 %
Mechanical durability	20,000,000 cycles
Electrical durability	100,000 cycles resistive load / 50,000 cycles (1 A, 28 V DC-13 NO)
Safety reliability data	B10d = 100,000
Operating rate	≤ 1200 cycles/hour (under load) / ≤ 18000 cycles/hour (no-load)
Utilisation coefficient	20 %
Dielectric strength	2000 V AC (coil-contact) / 2000 V AC (poles) / 1000 V AC (contacts)
Protection category	RT I
Pollution degree	3
Operating position	Any position
Test levels	Level A group mounting
Sale per indivisible quantity	10
Contacts material	Silver alloy (Ag/Ni)

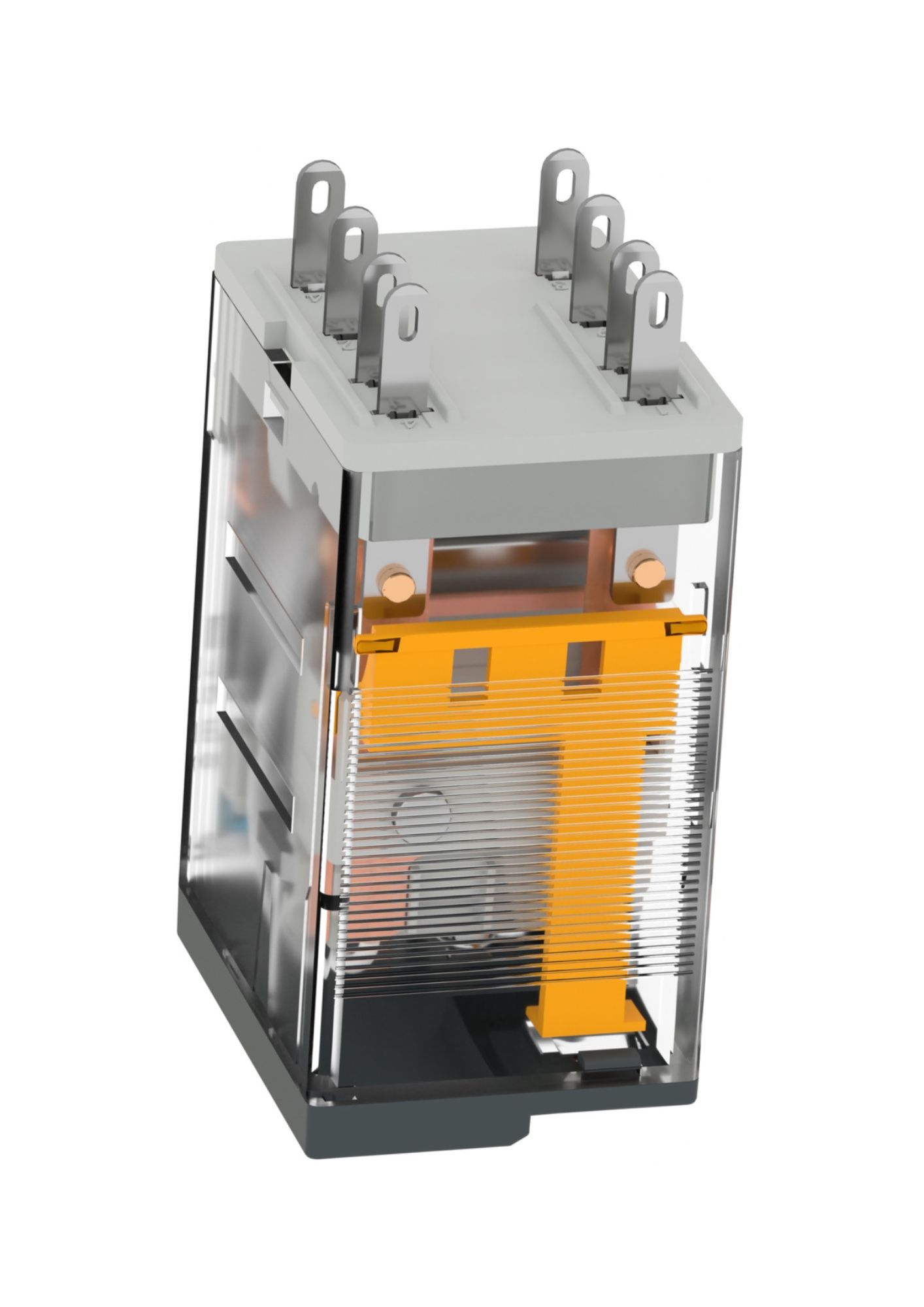

Shape of pin	Flat (faston type)
