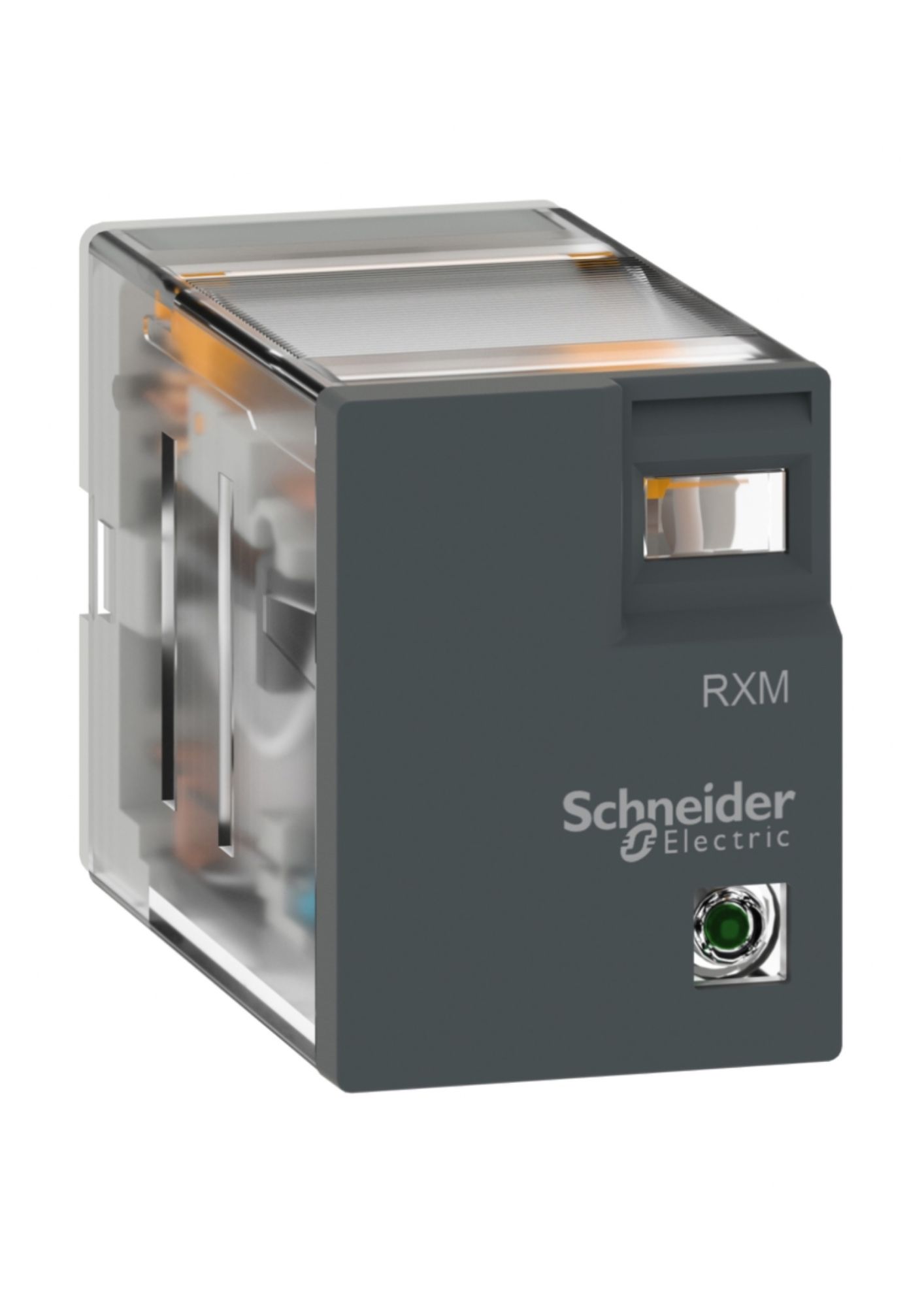

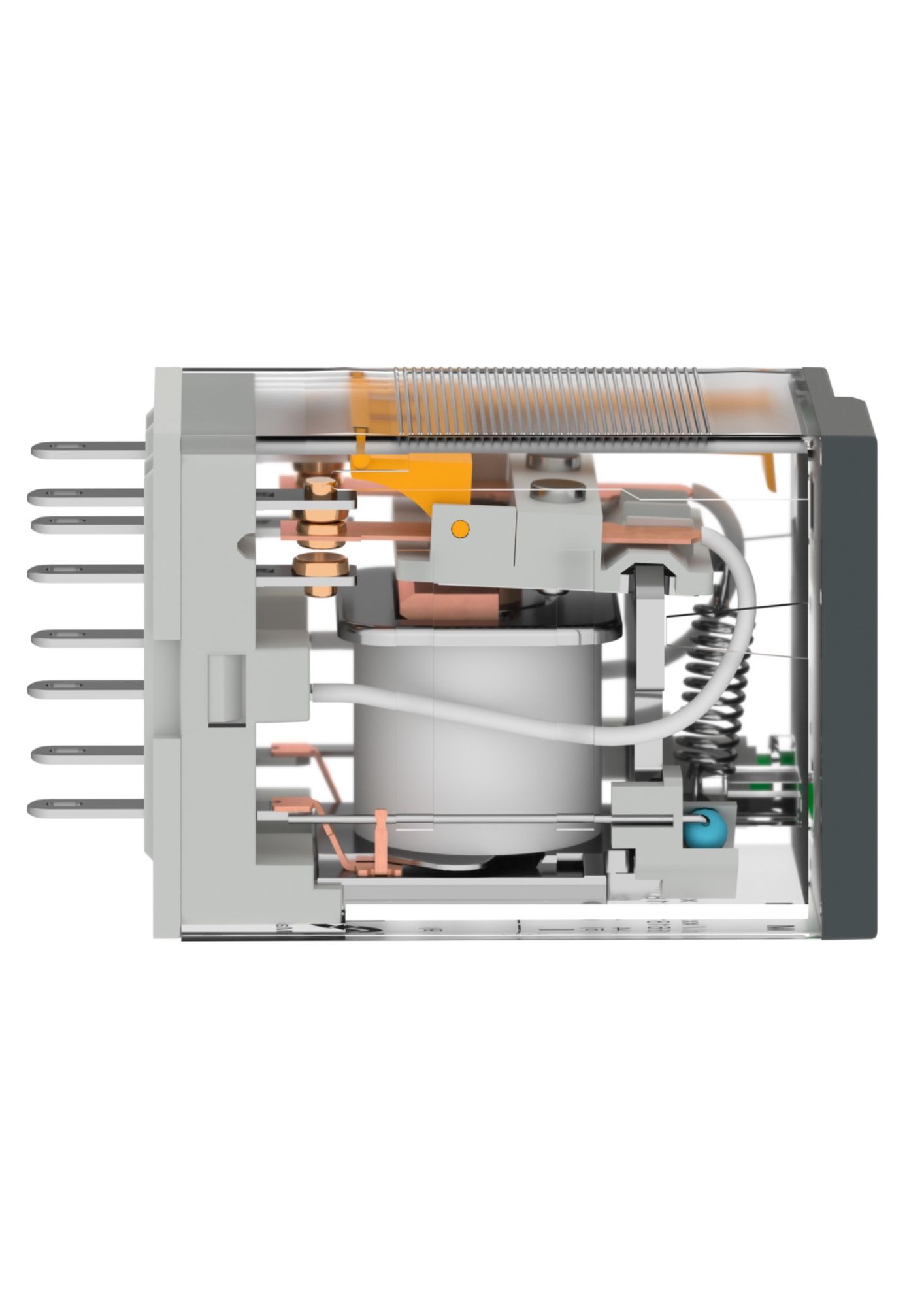

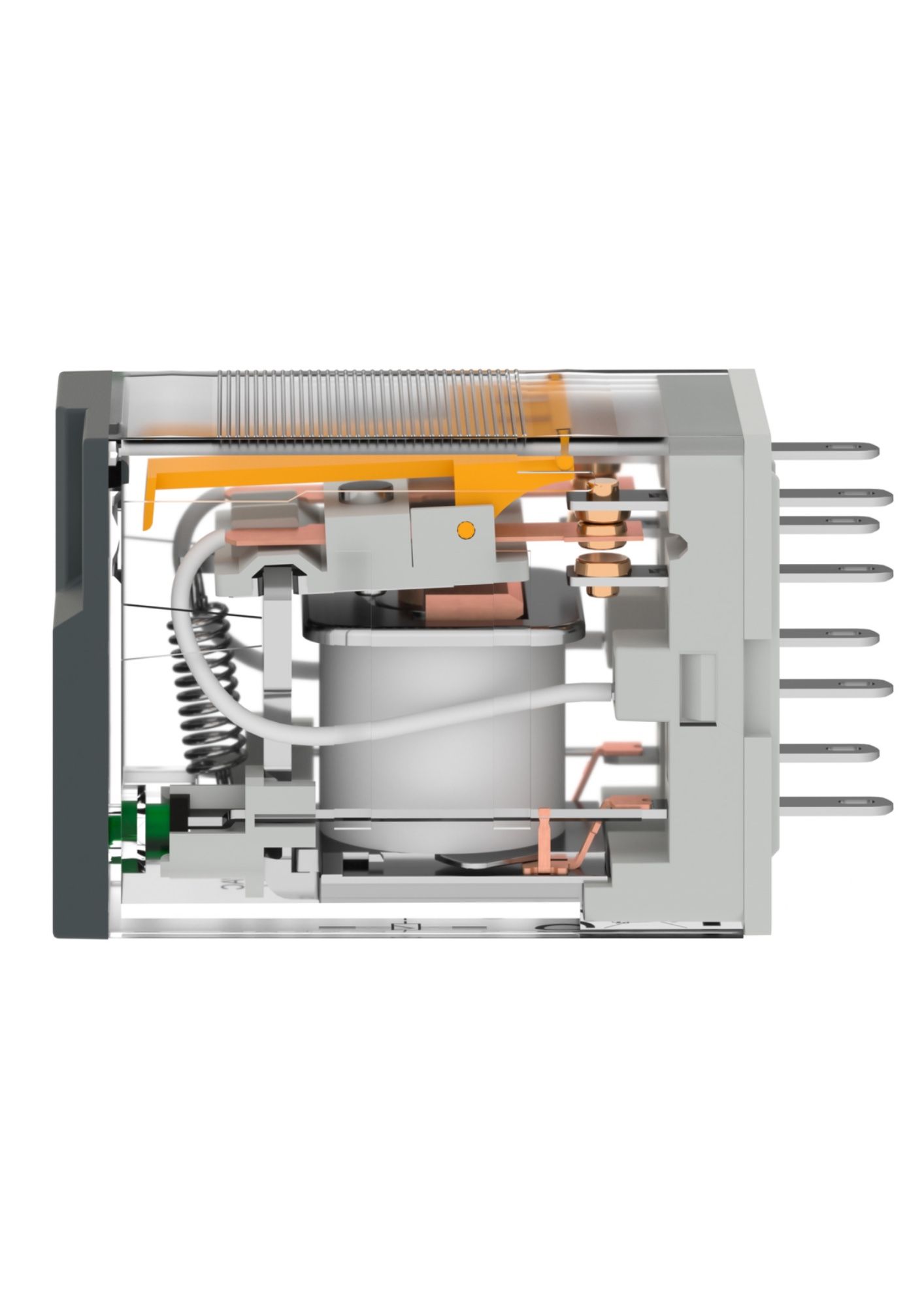

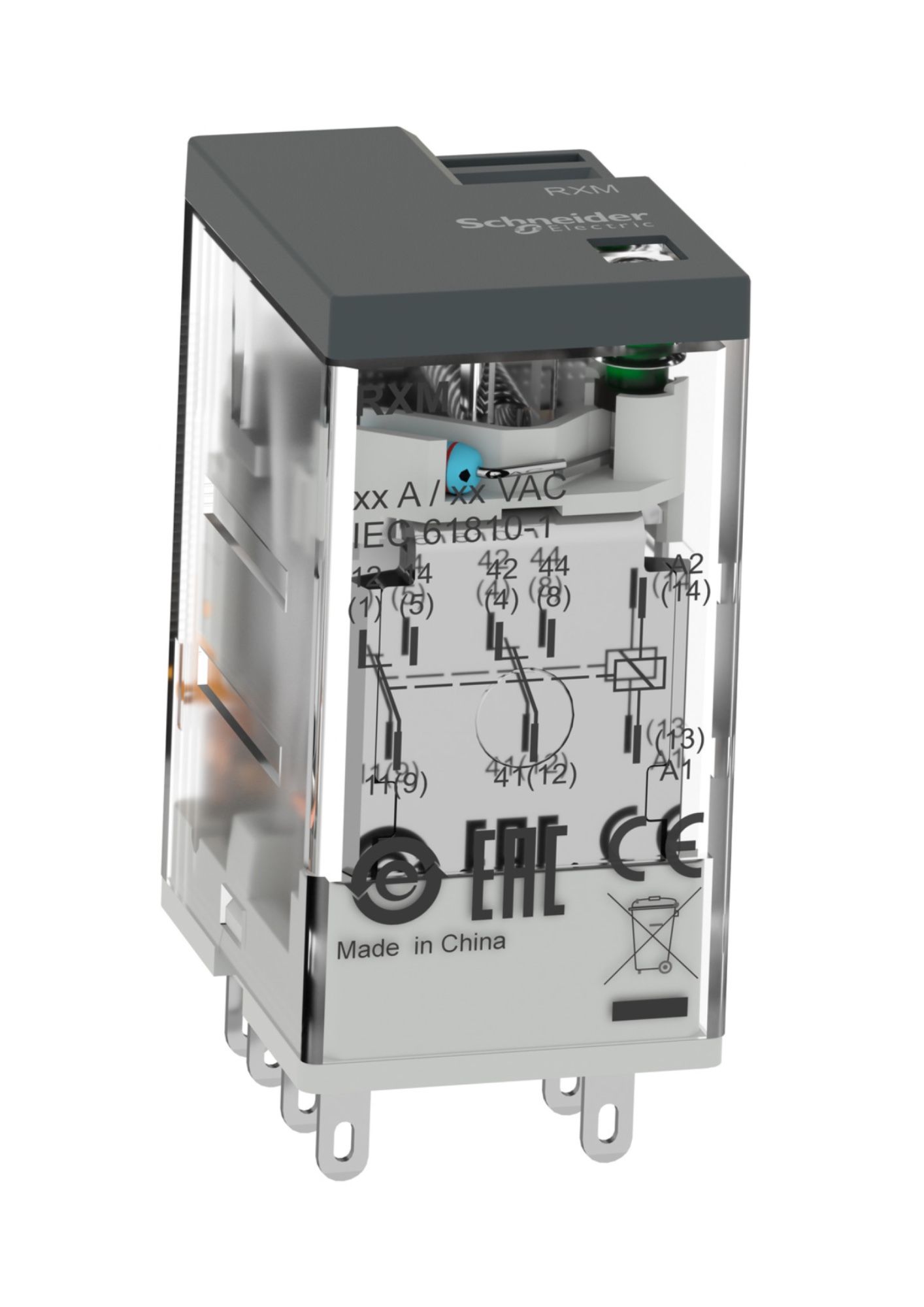

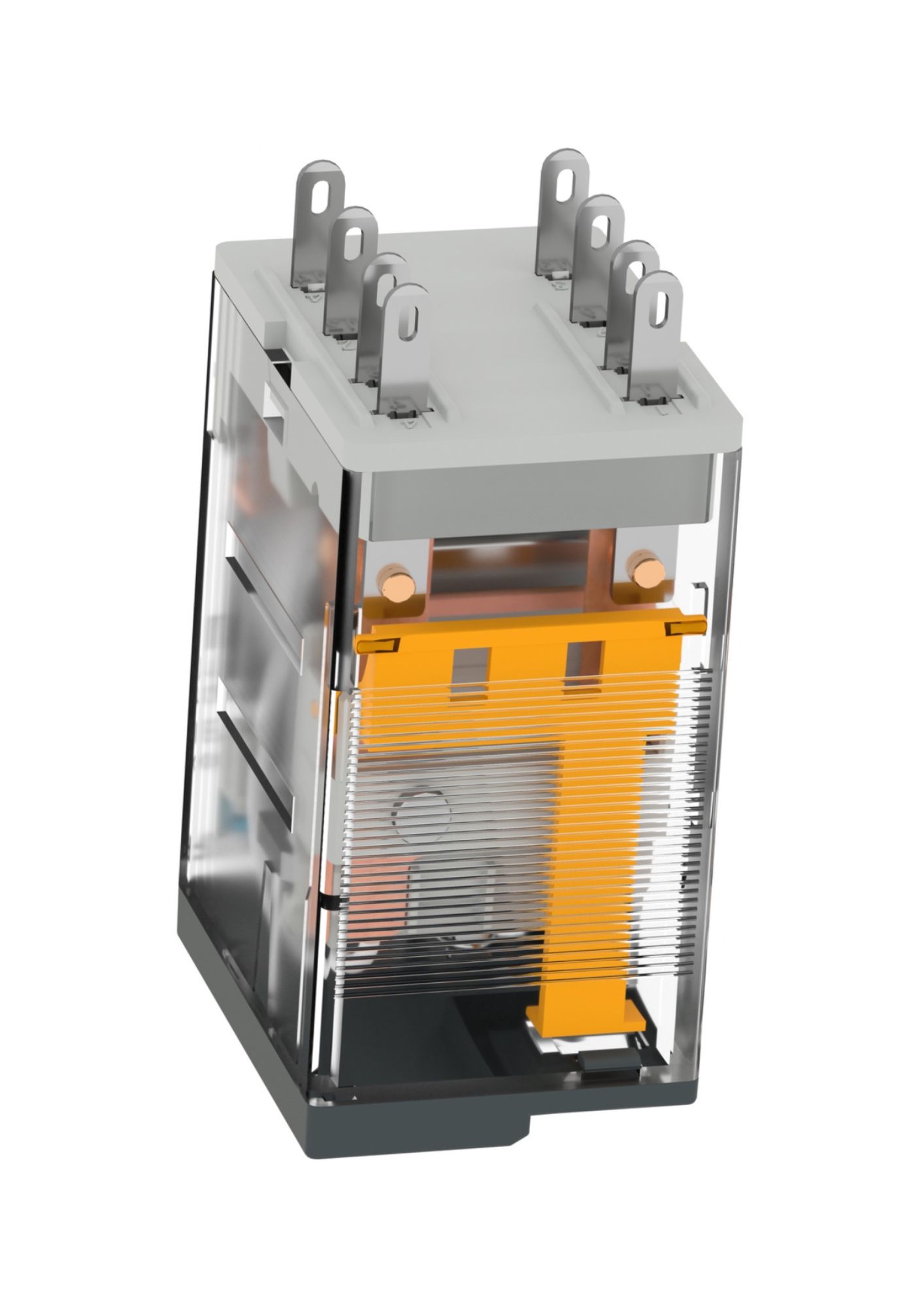

Schneider RXM2LB2ED, Miniature Plug-in Relay - HARMONY RXM2L - 2 C/O - 48 V DC - 5 A - with LED

In stock

SKU

RXM2LB2ED

Special Price ₹196.46 Regular Price ₹517.00

(18% GST Extra)

Qty

Add to Wish List

RXM miniature relays are part of Harmony Electromechanical Relays, designed as plug-in relays to be mounted on RXZE sockets.
Features a 2 C/O relay with 5A current rating and 48 V DC control circuit voltage.
Provides mechanical indicator (orange flag) and a green LED for status display, ensuring clear signaling both day and night.
IP40 rated with transparent cover for easy visual inspection; suitable for industrial machines, packaging, textile, HVAC, automation control panels, motor controls, PLC interfaces, power supplies, building, medical equipment, and lighting controls.
Compatible with RXZE1M2C sockets; optional RXZ410/RXZ420 metal clamps provide vibration protection. Conforms to IEC and CE standards. Sold in lots of 10 (relay only). Also available in RXMLB series with 2 CO (5A) or 4 CO (3A) contacts.

Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

100% Secure Payment

Main
Range of product	Harmony Electromechanical Relays
Series name	RXM series
Product or component type	Plug-in relay
Relay type	Miniature relay
Contacts type and composition	2 C/O
[Uc] control circuit voltage	48 V DC
[Ithe] conventional enclosed thermal current	5 A at -40…55 °C
Complementary
Status LED	With
Control type	Without lockable test button
Minimum switching capacity	25 mW (depends on frequency, environment, reliability)
Rated operational voltage limits	38.4...52.8 V DC
[Ui] rated insulation voltage	250 V (IEC)
Maximum switching voltage	250 V AC / 28 V DC
Drop-out voltage threshold	≥ 0.1 Uc DC
Load current	5 A at 250 V AC / 5 A at 28 V DC
Maximum switching capacity	1250 VA AC / 140 W DC
Minimum switching current	5 mA (depends on frequency, environment, reliability)
Minimum switching voltage	5 V (depends on frequency, environment, reliability)
Average resistance	2600 Ω at 23 °C ± 10 %
Average coil consumption	0.9 W (DC)
Mechanical durability	20,000,000 cycles
Electrical durability	100,000 cycles (resistive load) 50,000 cycles, 1 A at 28 V DC-13 NO
Safety reliability data	B10d = 100,000
Operating rate	≤ 1200 cycles/h (under load) ≤ 18000 cycles/h (no-load)
Utilisation coefficient	20 %
Dielectric strength	2000 V AC (coil to contact) 2000 V AC (between poles) 1000 V AC (between contacts)
Protection category	RT I
Pollution degree	3
Operating position	Any position
Test levels	Level A group mounting
Sale per indivisible quantity	10
Contacts material	Silver alloy (Ag/Ni)
Shape of pin	Flat (faston type)

No specifications available for this product.
