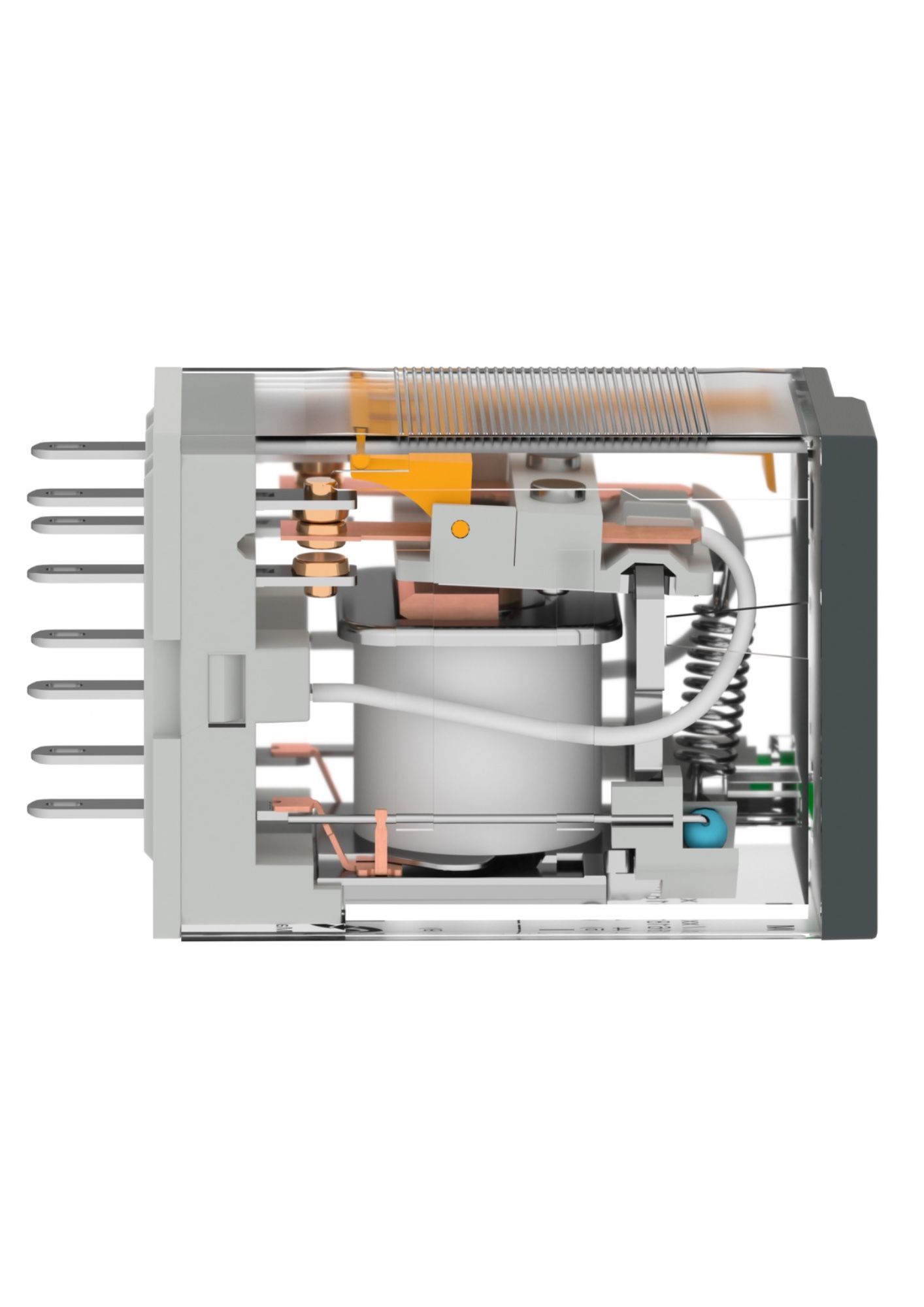

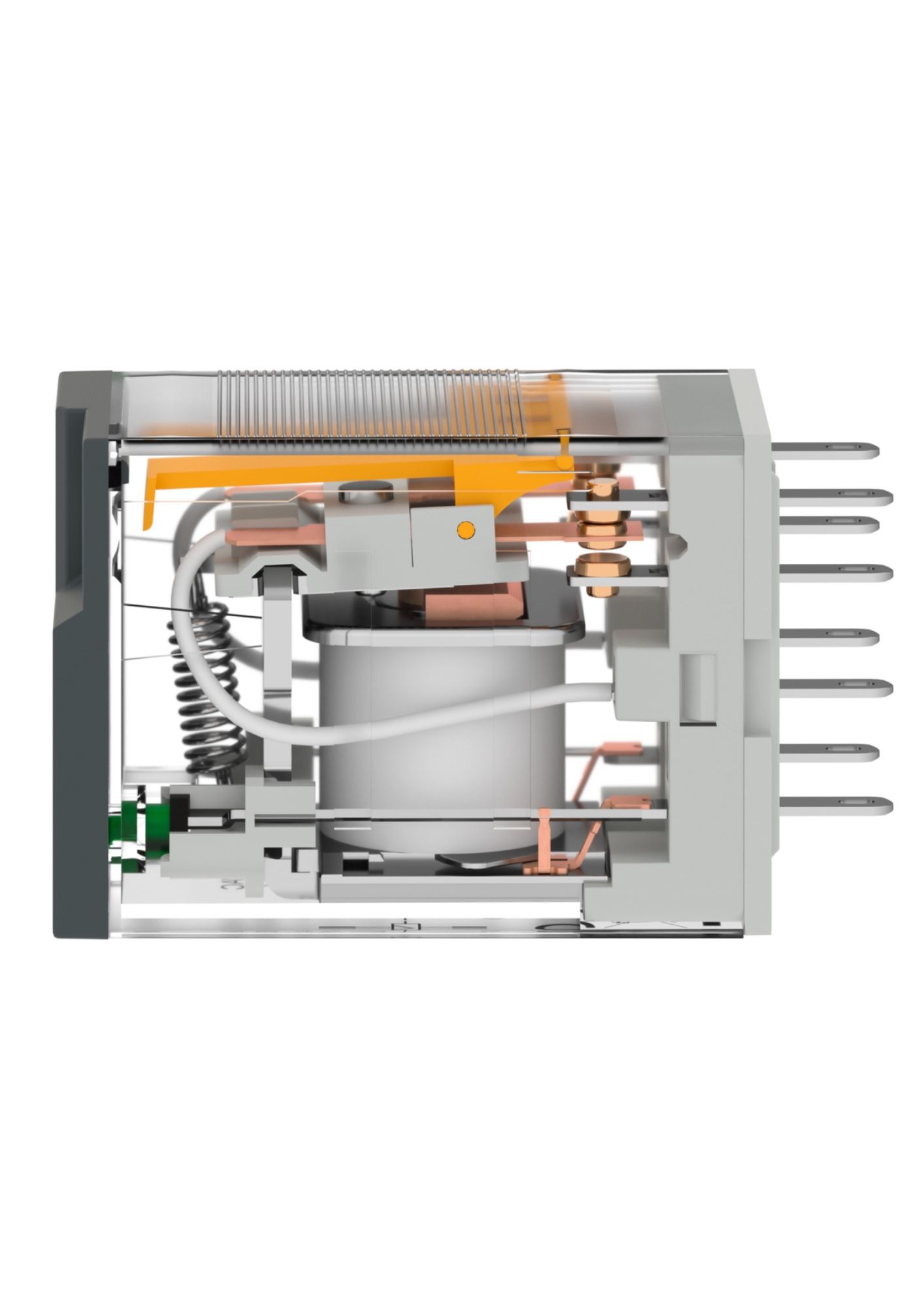

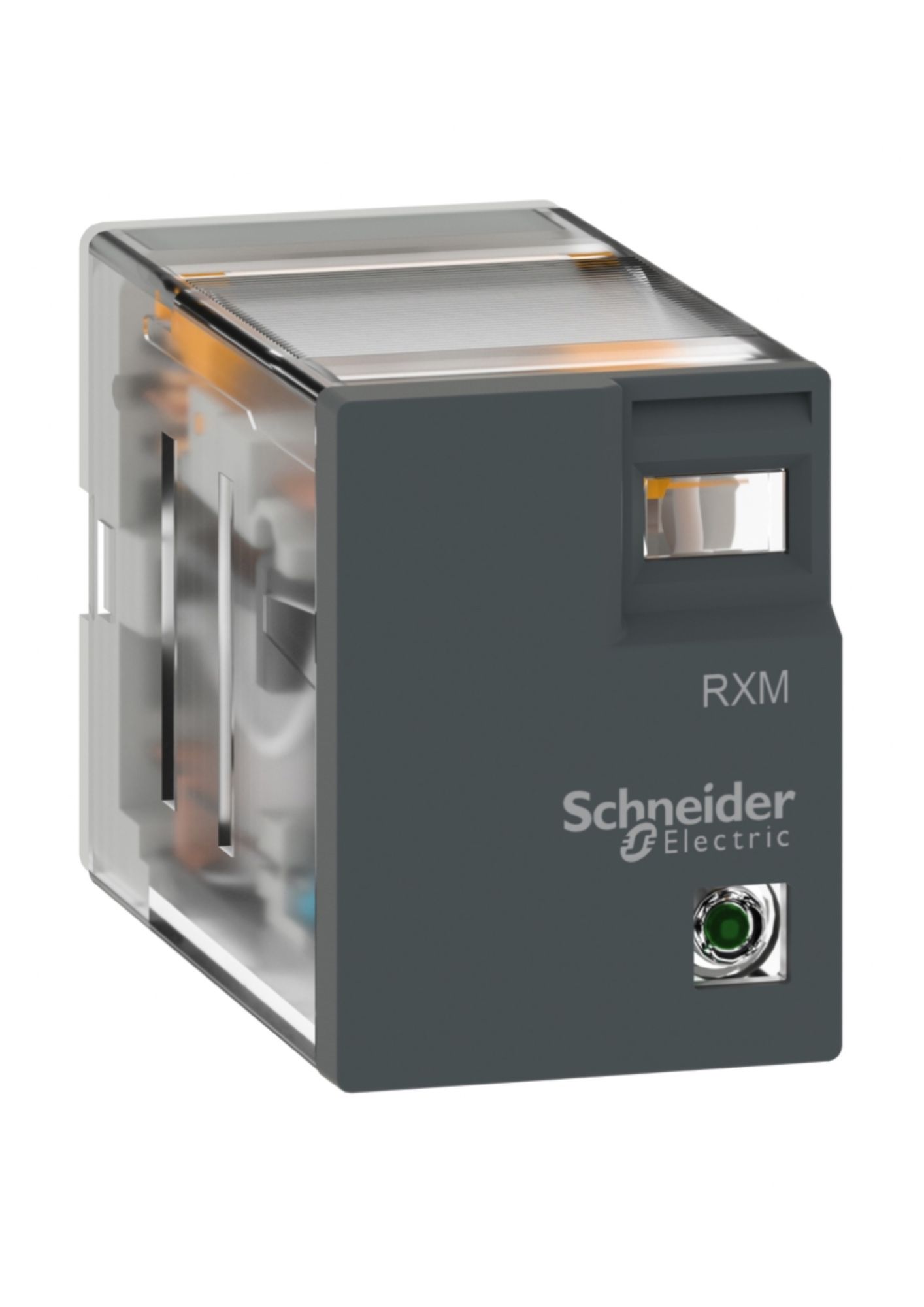

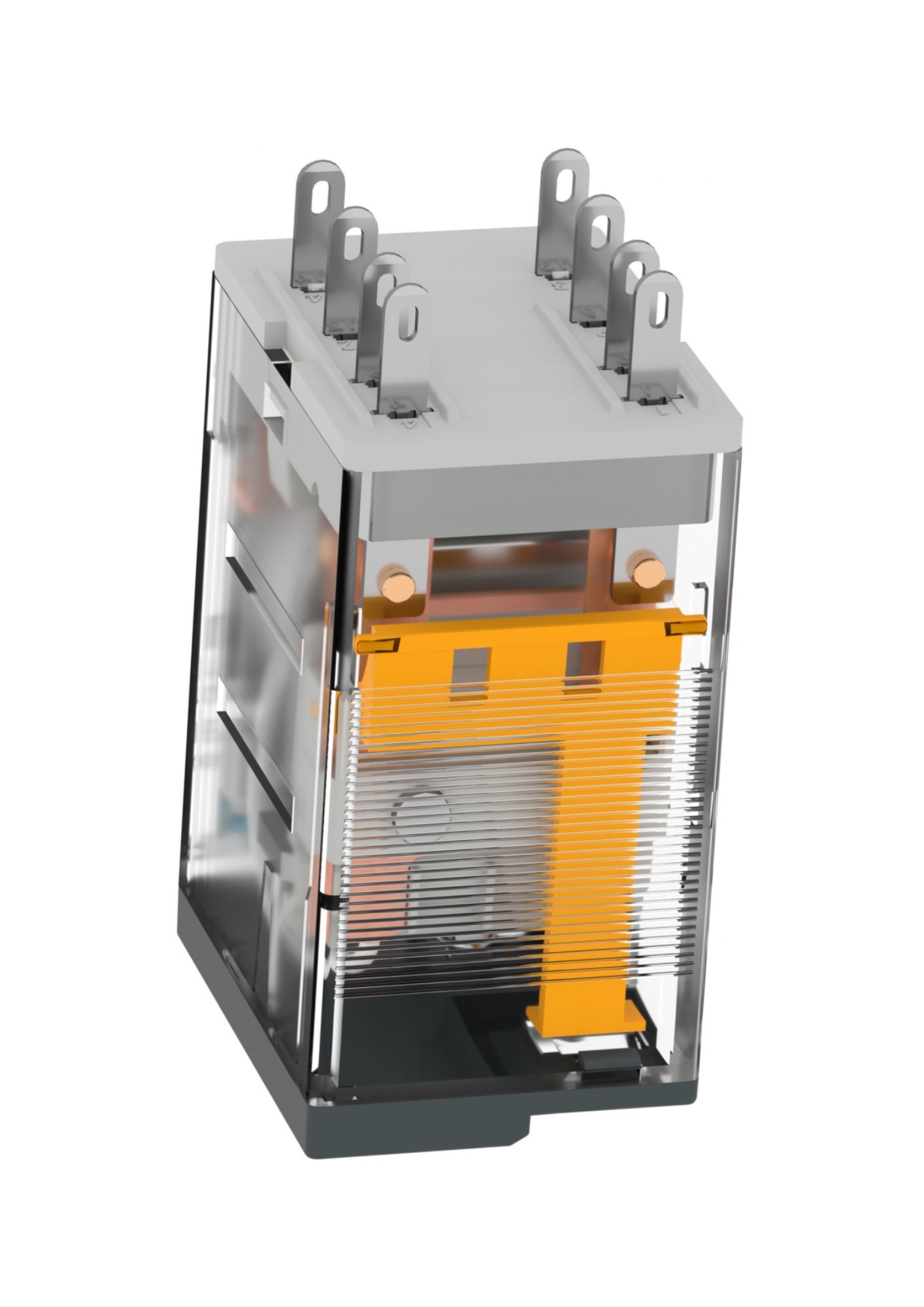

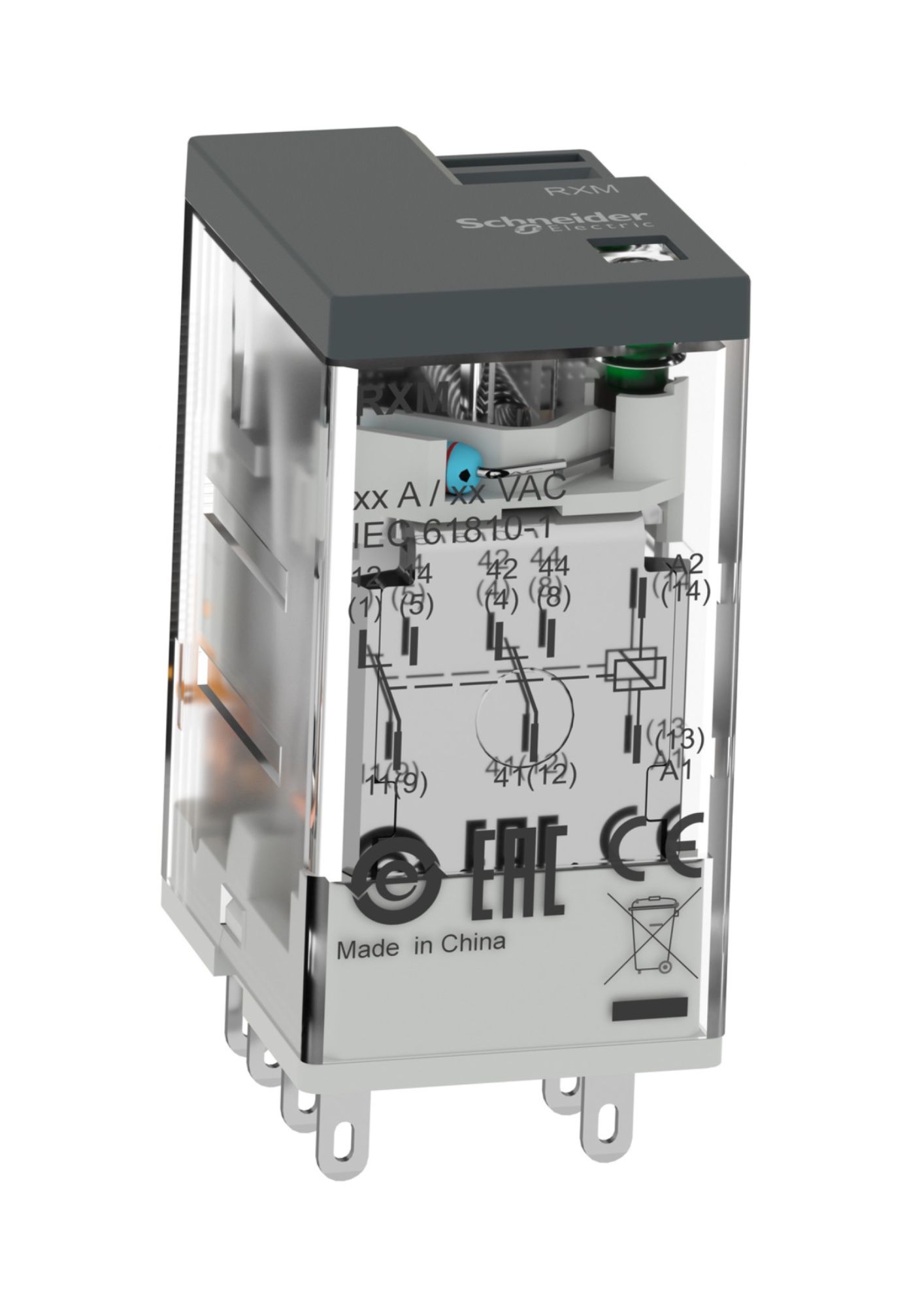

Schneider RXM2LB2P7, Miniature Plug-in Relay - HARMONY RXM2L - 2 C/O - 230 V AC - 5 A - with LED
In stock
SKU
RXM2LB2P7
Special Price
₹183.16
Regular Price
₹482.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony Electromechanical Relays |
| Series name | RXM series |
| Product or component type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 2 C/O |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 5 A at -40…55 °C |
| Complementary | |
| Status LED | With |
| Control type | Without lockable test button |
| Minimum switching capacity | 25 mW subject to switching frequency, environment or expected reliability level etc |
| Rated operational voltage limits | 184...253 V AC |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| Maximum switching voltage | 250 V AC / 28 V DC |
| Drop-out voltage threshold | >= 0.15 Uc AC |
| Load current | 5 A at 250 V AC / 5 A at 28 V DC |
| Maximum switching capacity | 1250 VA AC / 140 W DC |
| Minimum switching current | 5 mA subject to switching frequency, environment or expected reliability level etc |
| Minimum switching voltage | 5 V subject to switching frequency, environment or expected reliability level etc |
| Average resistance | 16500 Ohm at 23 °C +/- 15 % |
| Mechanical durability | 20000000 cycles |
| Electrical durability | 100000 cycles for resistive load 50000 cycles, 1 A at 28 V, DC-13 NO |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation 1000 V AC between contacts with micro disconnection |
| Protection category | RT I |
| Pollution degree | 3 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Sale per indivisible quantity | 10 |
| Contacts material | Silver alloy (Ag/Ni) |
| Shape of pin | Flat (faston type) |
