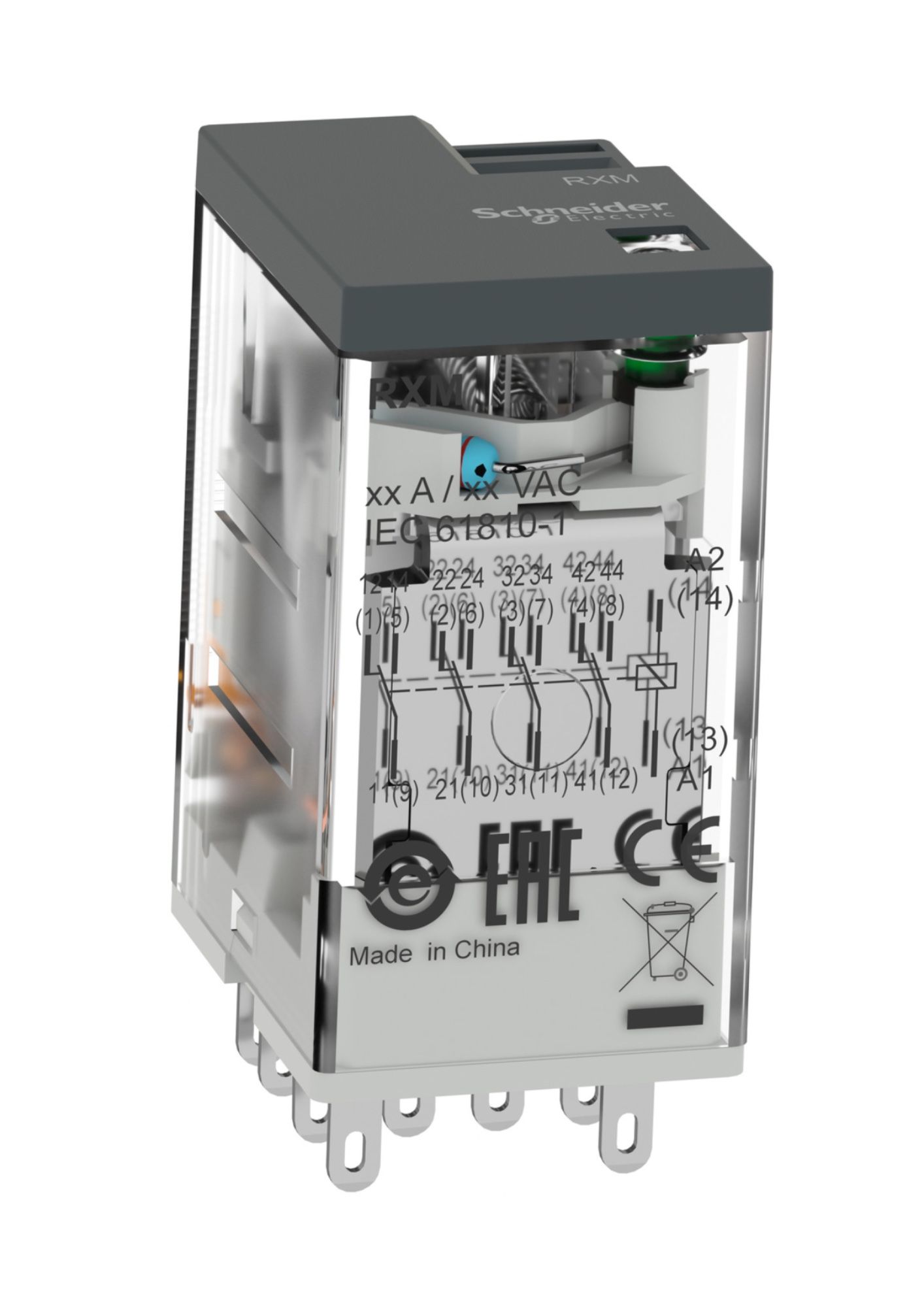

Schneider RXM4LB2BD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 24 V DC - 3 A - with LED
Schneider RXM4LB2BD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 24 V DC - 3 A - with LED Schneider RXM4LB2BD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 24 V DC - 3 A - with LED Schneider RXM4LB2BD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 24 V DC - 3 A - with LED Schneider RXM4LB2BD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 24 V DC - 3 A - with LED Schneider RXM4LB2BD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 24 V DC - 3 A - with LED

Schneider RXM4LB2BD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 24 V DC - 3 A - with LED

Be the first to review this product
In stock
SKU
RXM4LB2BD
Special Price ₹207.48 Regular Price ₹546.00
(18% GST Extra)
Add to Wish List

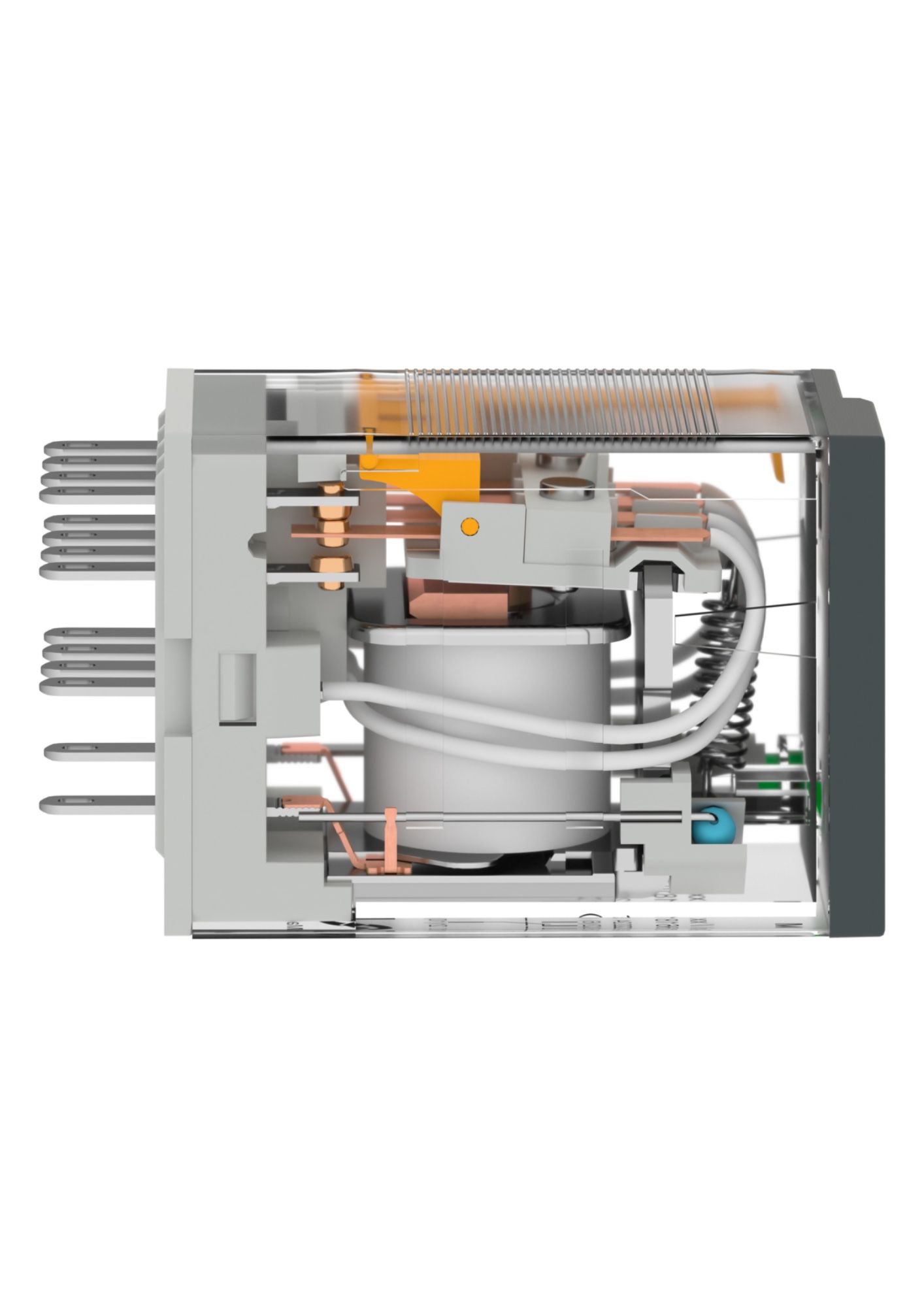

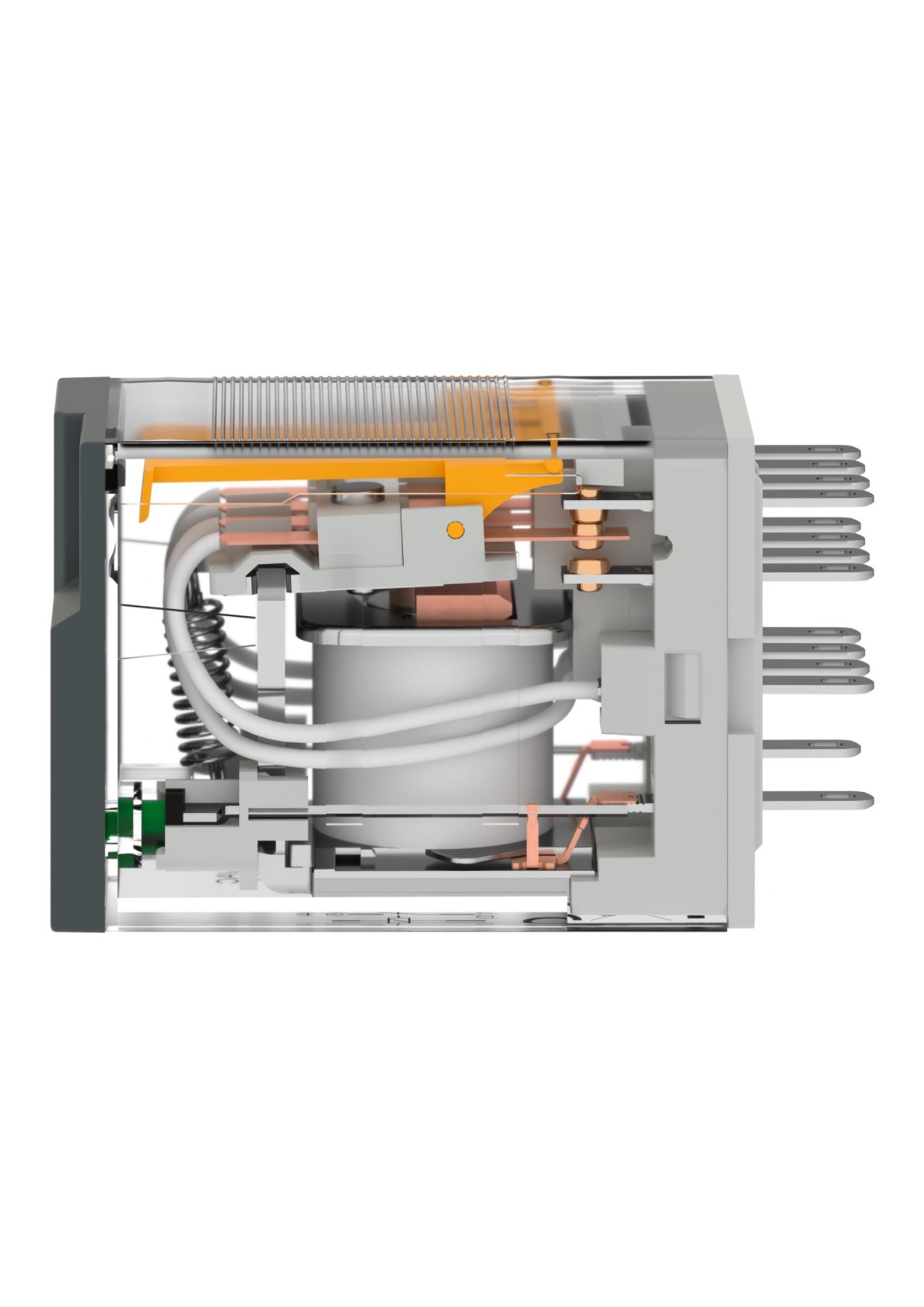

  • RXM miniature relays are part of Harmony Electromechanical Relays and are plug-in relays designed to be mounted on a RXZE socket. Available with 4 C/O (3A) or 2 C/O (5A) contacts.

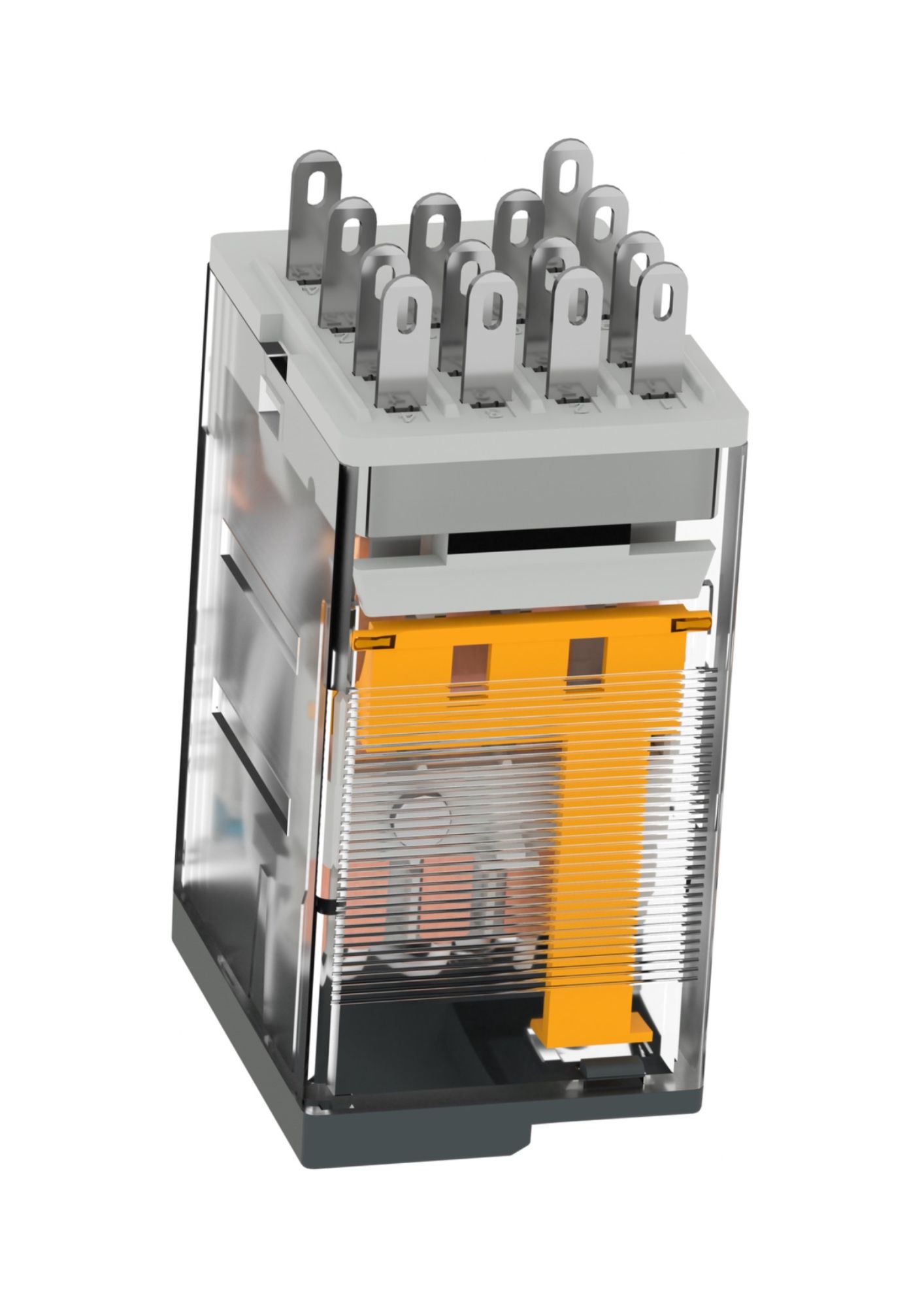

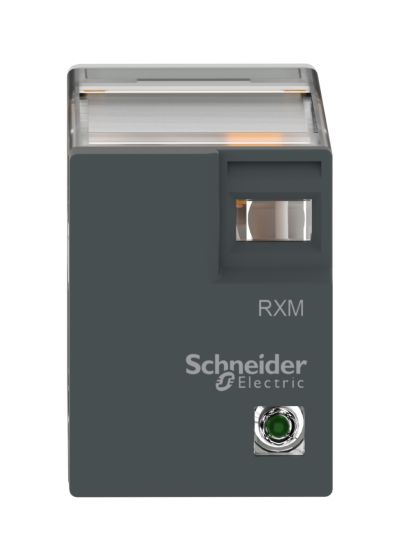

  • Operates at 24 V DC control voltage, features a mechanical indicator (orange flag) for contact status, a green LED for relay ON status, and an IP40 transparent cover for visual inspection. LED status is visible both day and night.
  • Designed for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC interfaces, power supplies, building or medical equipment, and lighting controls.
  • Conforms to international standards and certifications like IEC and CE. Requires RXZE socket (RXZE1M4C). For vibration protection, a metal clamp (RXZ410) can be added.
  • Sold in lots of 10, reference includes relay only. RXMLB plug-in relays are available with 2 CO (5A) or 4 CO (3A) contacts for both simple and complex automation systems.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

RXM Relay Specifications
Main
Range of productHarmony Electromechanical Relays
Series nameRXM series
Product or component typePlug-in relay
Relay typeMiniature relay
Contacts type and composition4 C/O
[Uc] control circuit voltage24 V DC
[Ithe] conventional enclosed thermal current3 A at -40…55 °C
Complementary
Status LEDWith
Control typeWithout lockable test button
Minimum switching capacity25 mW subject to switching frequency, environment or expected reliability level etc
Rated operational voltage limits19.2...26.4 V DC
[Ui] rated insulation voltage250 V conforming to IEC
Maximum switching voltage250 V AC / 28 V DC
Drop-out voltage threshold>= 0.1 Uc DC
Load current3 A at 250 V AC / 3 A at 28 V DC
Maximum switching capacity750 VA AC / 84 W DC
Minimum switching current5 mA subject to switching frequency, environment or expected reliability level etc
Minimum switching voltage5 V subject to switching frequency, environment or expected reliability level etc
Average resistance640 Ohm at 23 °C +/- 10 %
Average coil consumption0.9 W, DC
Mechanical durability20,000,000 cycles
Electrical durability100,000 cycles for resistive load
Safety reliability dataB10d = 100,000
Operating rate<= 1200 cycles/hour under load / <= 18,000 cycles/hour no-load
Utilisation coefficient20 %
Dielectric strength2000 V AC between coil and contact with basic insulation / 2000 V AC between poles with basic insulation / 1000 V AC between contacts with micro disconnection
Protection categoryRT I
Pollution degree2
Operating positionAny position
Test levelsLevel A group mounting
Sale per indivisible quantity10
Contacts materialSilver alloy (Ag/Ni)
Shape of pinFlat (faston type)
