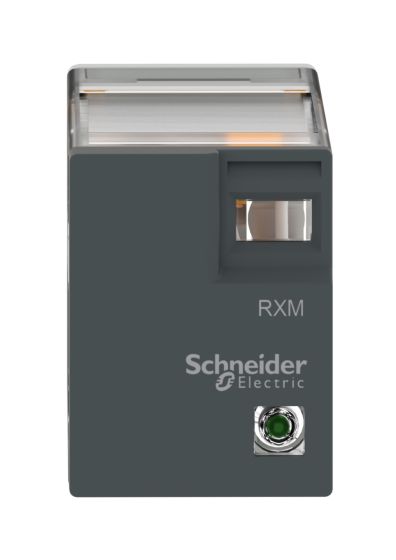

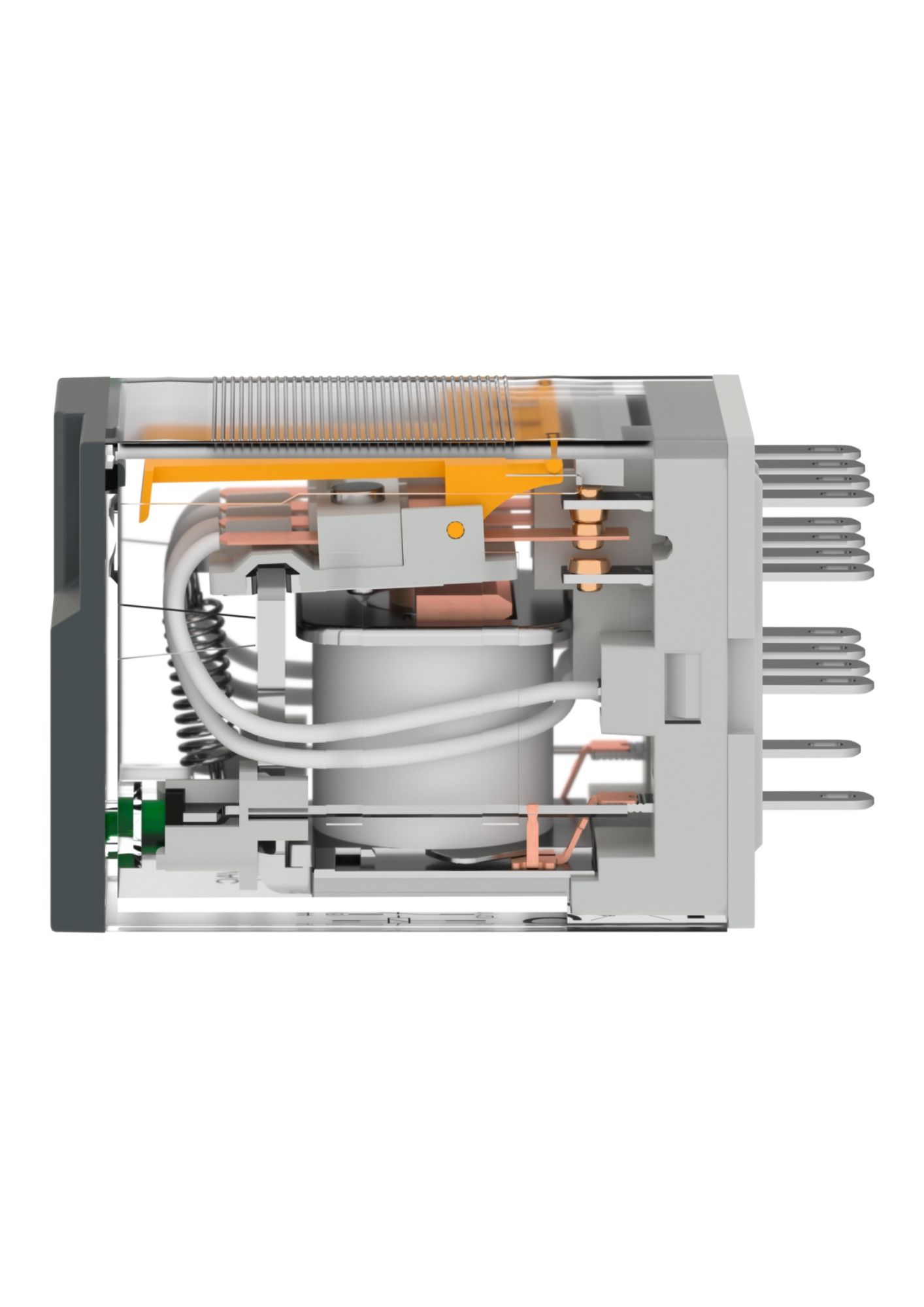

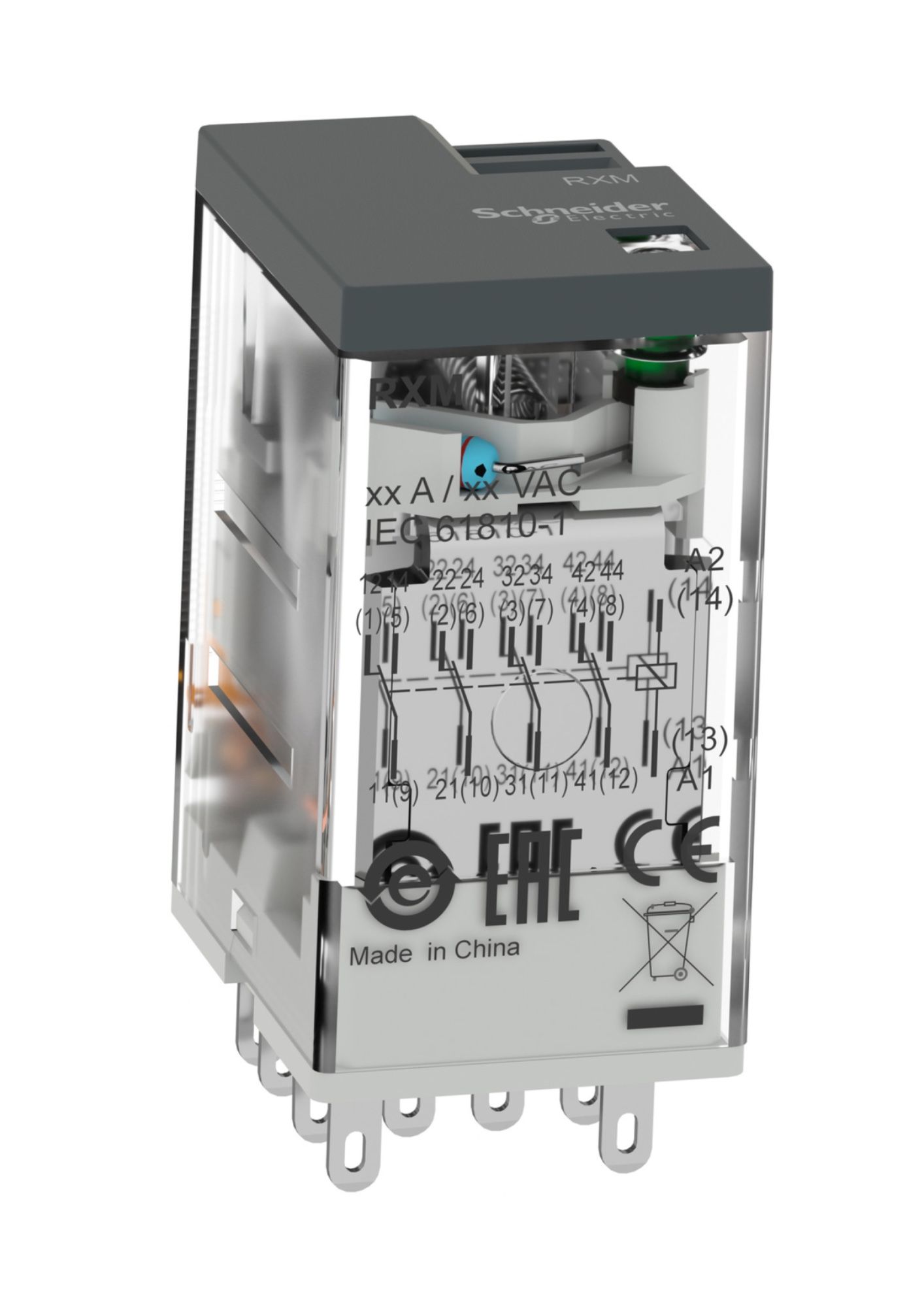

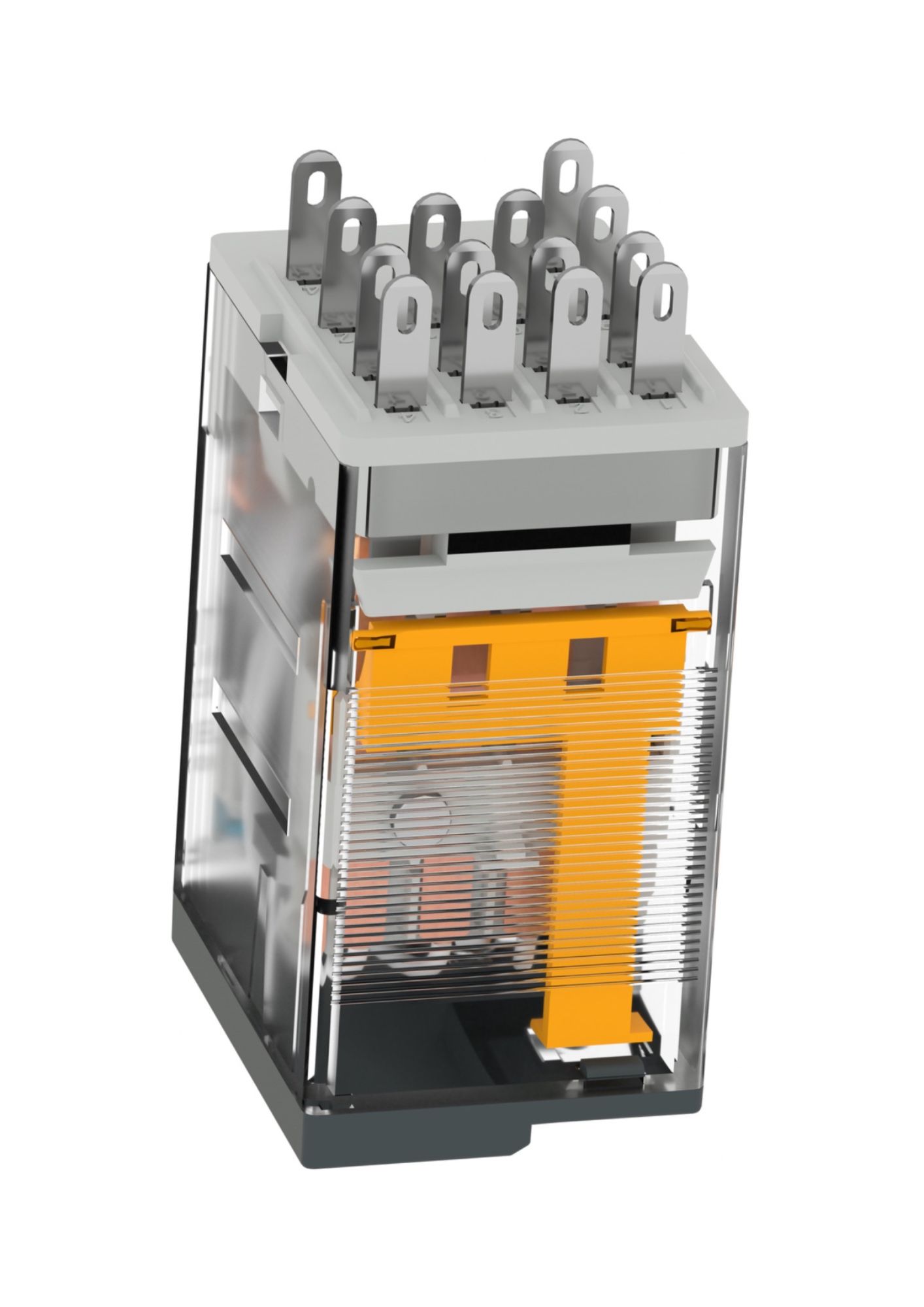

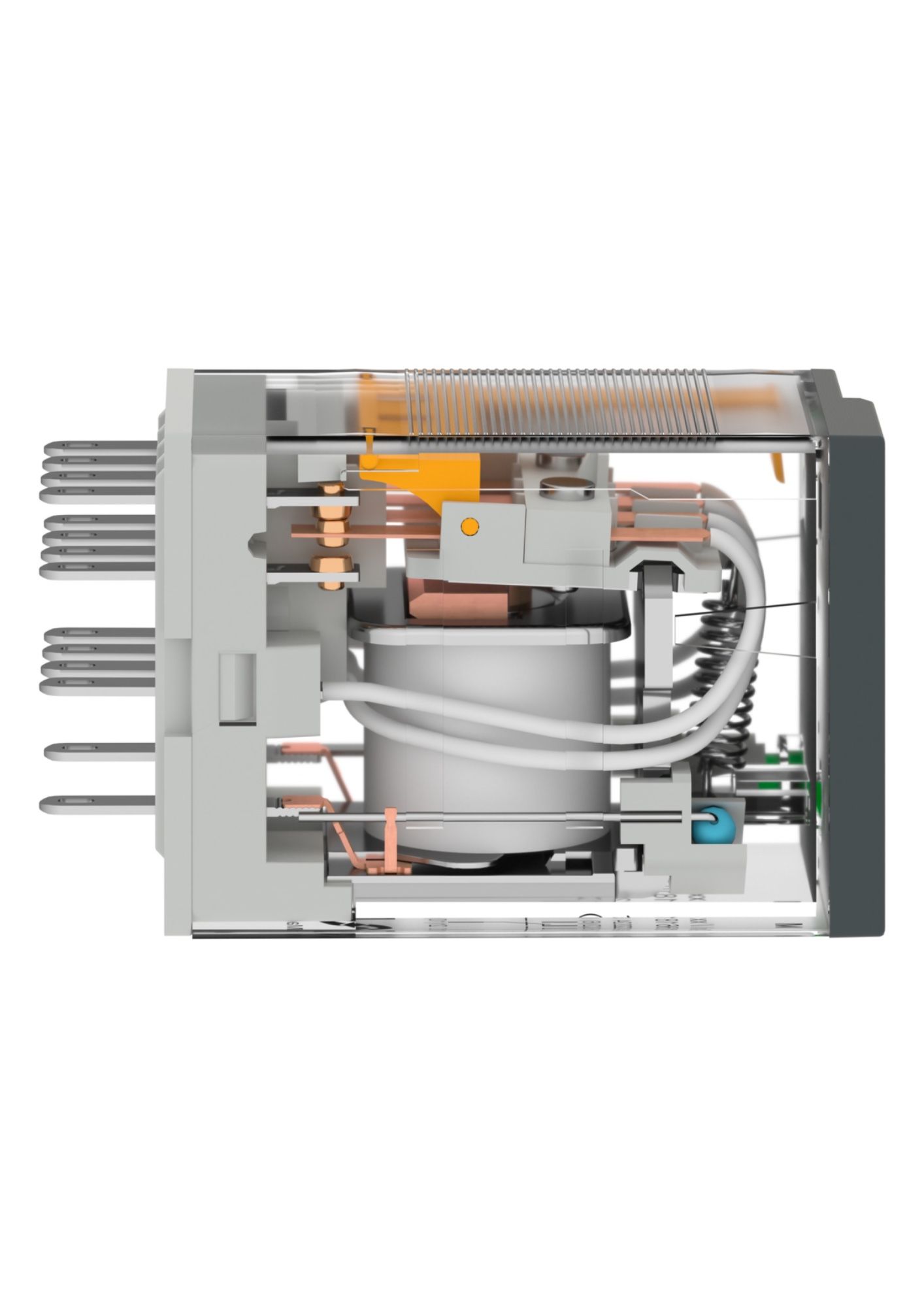

Schneider RXM4LB2ED, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 48 V DC - 3 A - with LED
In stock
SKU
RXM4LB2ED
Special Price
₹221.54
Regular Price
₹583.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony Electromechanical Relays |
| Series name | RXM series |
| Product or component type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 4 C/O |
| [Uc] control circuit voltage | 48 V DC |
| [Ithe] conventional enclosed thermal current | 3 A at -40…55 °C |
| Complementary | |
| Status LED | With |
| Control type | Without lockable test button |
| Minimum switching capacity | 25 mW (subject to switching frequency, environment, or expected reliability level etc) |
| Rated operational voltage limits | 38.4...52.8 V DC |
| [Ui] rated insulation voltage | 250 V conforming to IEC |
| Maximum switching voltage | 250 V AC / 28 V DC |
| Drop-out voltage threshold | >= 0.1 Uc DC |
| Load current | 3 A at 250 V AC / 3 A at 28 V DC |
| Maximum switching capacity | 750 VA AC / 84 W DC |
| Minimum switching current | 5 mA (subject to switching frequency, environment, or expected reliability level etc) |
| Minimum switching voltage | 5 V (subject to switching frequency, environment, or expected reliability level etc) |
| Average resistance | 2600 Ohm at 23 °C +/- 10 % |
| Average coil consumption | 0.9 W, DC |
| Mechanical durability | 20,000,000 cycles |
| Electrical durability | 100,000 cycles for resistive load |
| Safety reliability data | B10d = 100,000 |
| Operating rate | <= 1200 cycles/hour under load / <= 18,000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| Dielectric strength | 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation 1000 V AC between contacts with micro disconnection |
| Protection category | RT I |
| Pollution degree | 2 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Sale per indivisible quantity | 10 |
| Contacts material | Silver alloy (Ag/Ni) |
| Shape of pin | Flat (faston type) |
