Schneider RXM4LB2JD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 12 V DC - 3 A - with LED
Schneider RXM4LB2JD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 12 V DC - 3 A - with LED Schneider RXM4LB2JD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 12 V DC - 3 A - with LED Schneider RXM4LB2JD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 12 V DC - 3 A - with LED Schneider RXM4LB2JD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 12 V DC - 3 A - with LED Schneider RXM4LB2JD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 12 V DC - 3 A - with LED

Schneider RXM4LB2JD, Miniature Plug-in Relay - HARMONY RXM4L - 4 C/O - 12 V DC - 3 A - with LED

Be the first to review this product
In stock
SKU
RXM4LB2JD
Special Price ₹221.54 Regular Price ₹583.00
(18% GST Extra)
Add to Wish List

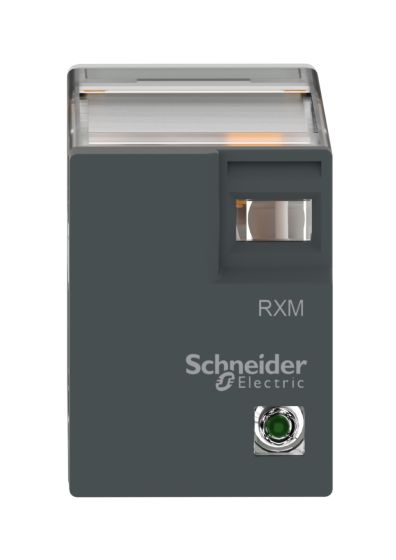

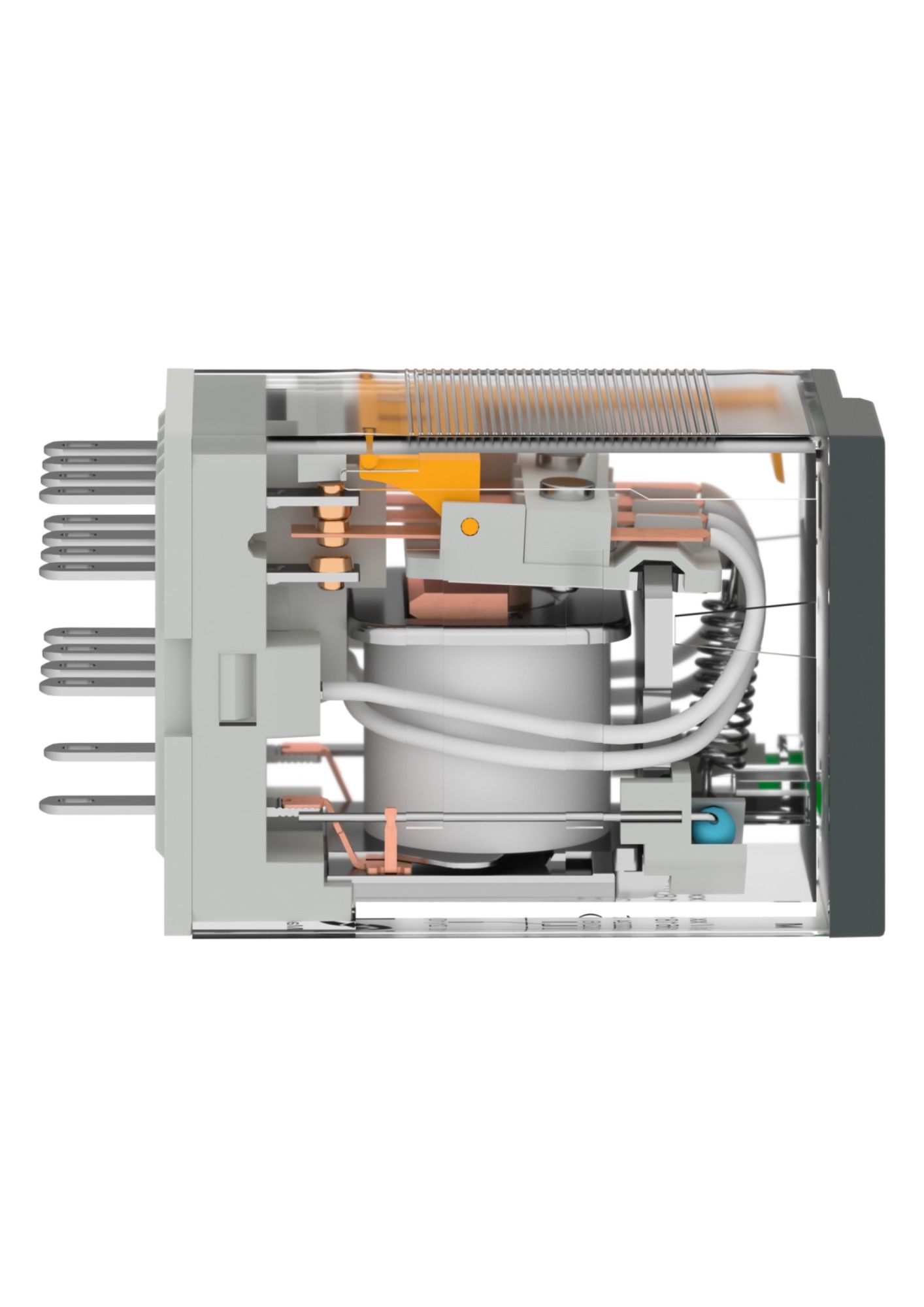

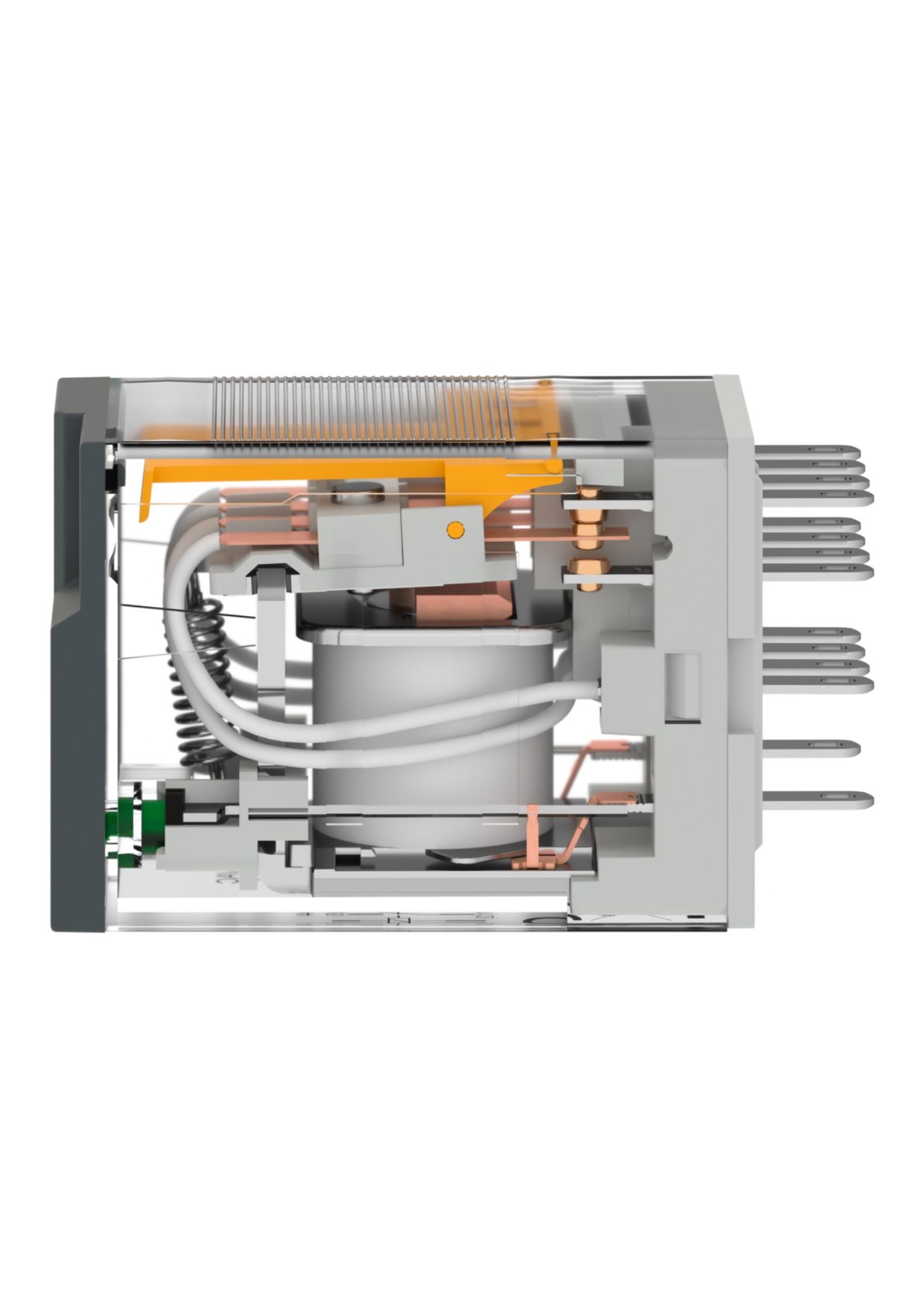

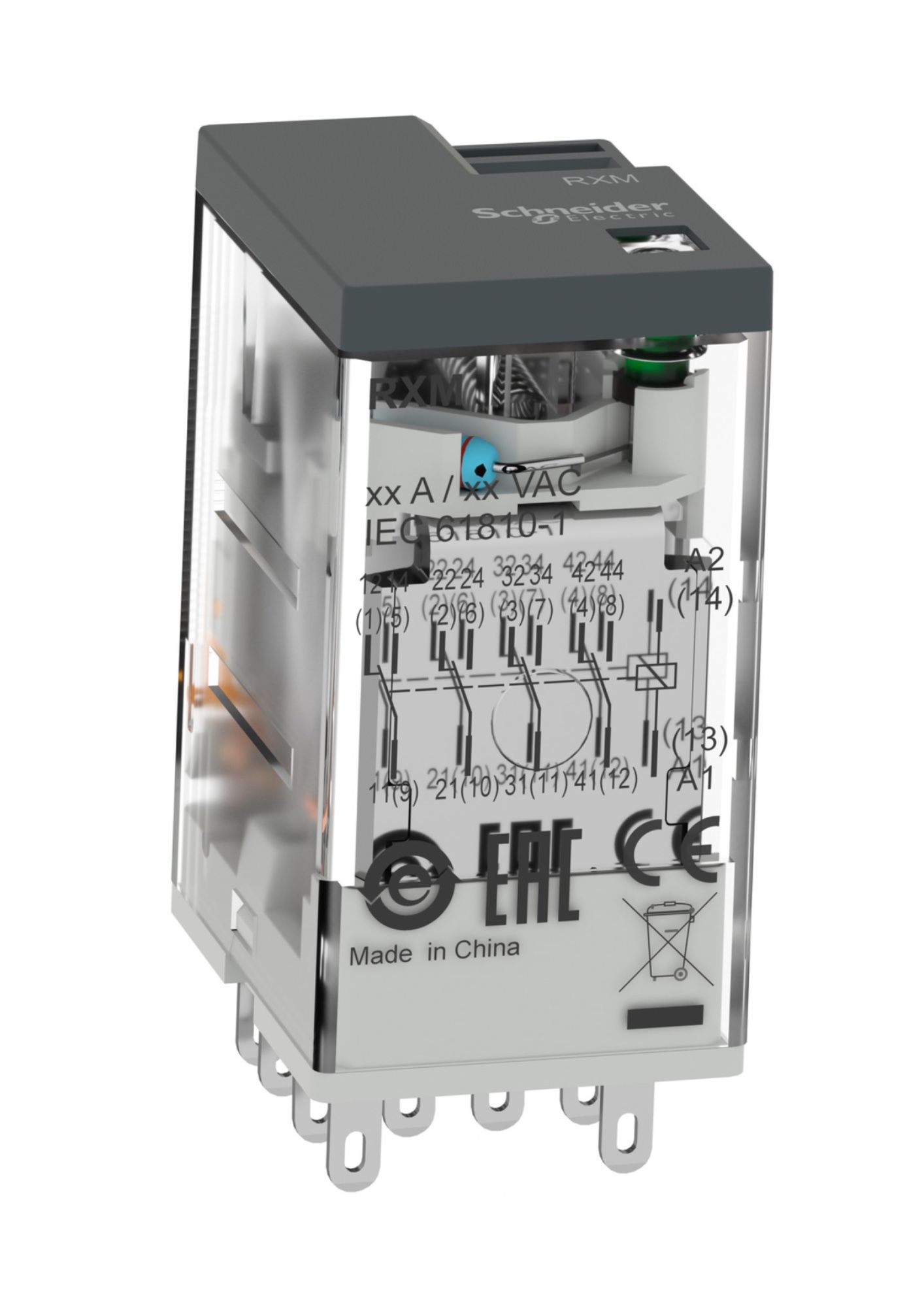

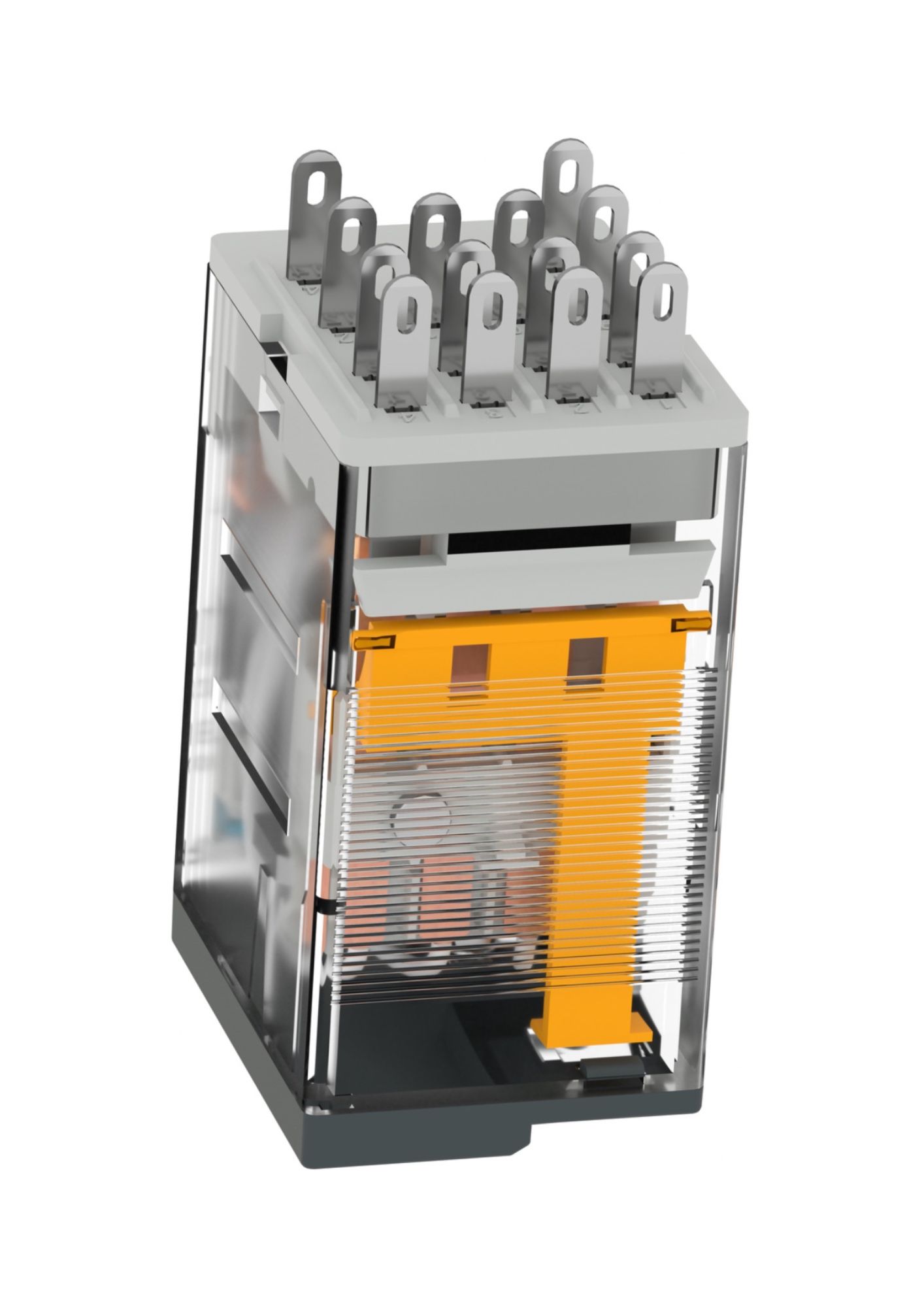

  • RXM miniature relays are plug-in relays from Harmony Electromechanical Relays, designed to be mounted on RXZE sockets (RXZE1M4C).
  • This model features 4 C/O contacts, 3A current rating, and 12 V DC control voltage, with a mechanical indicator (orange flag) showing contact status.
  • It has a transparent cover and IP40 rating; a green LED signals relay activation for clear day/night status visibility.
  • Suitable for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC interfaces, power supplies, building or medical equipment, and lighting controls.
  • Compliant with international standards like IEC and CE; optional RXZ410 metal clamp protects against vibrations. Sold in lots of 10, reference includes relay only.
Check Delivery Options at your Area

FREE SHIPPING

Free Shipping by Surface Only*

SECURE PAYMENT

100% Secure Payment

Main
Range of product Harmony Electromechanical Relays
Series name RXM series
Product or component type Plug-in relay
Relay type Miniature relay
Contacts type and composition 4 C/O
Control circuit voltage [Uc] 12 V DC
Conventional enclosed thermal current [Ithe] 3 A at -40…55 °C
Complementary
Status LED With
Control type Without lockable test button
Minimum switching capacity 25 mW subject to switching frequency, environment or expected reliability level
Rated operational voltage limits 9.6...13.2 V DC
Rated insulation voltage [Ui] 250 V (IEC)
Maximum switching voltage 250 V AC / 28 V DC
Drop-out voltage threshold ≥ 0.1 Uc DC
Load current 3 A at 250 V AC / 3 A at 28 V DC
Maximum switching capacity 750 VA AC / 84 W DC
Minimum switching current 5 mA subject to switching frequency, environment or expected reliability level
Minimum switching voltage 5 V subject to switching frequency, environment or expected reliability level
Average resistance 160 Ohm at 23 °C ±10%
Average coil consumption 0.9 W, DC
Mechanical durability 20,000,000 cycles
Electrical durability 100,000 cycles for resistive load
Safety reliability data B10d = 100,000
Operating rate ≤ 1,200 cycles/hour under load / ≤ 18,000 cycles/hour no-load
Utilisation coefficient 20%
Dielectric strength 2000 V AC between coil and contact (basic insulation), 2000 V AC between poles (basic insulation), 1000 V AC between contacts (micro disconnection)
Protection category RT I
Pollution degree 2
Operating position Any position
Test levels Level A group mounting
Sale per indivisible quantity 10
Contacts material Silver alloy (Ag/Ni)
Shape of pin Flat (faston type)
