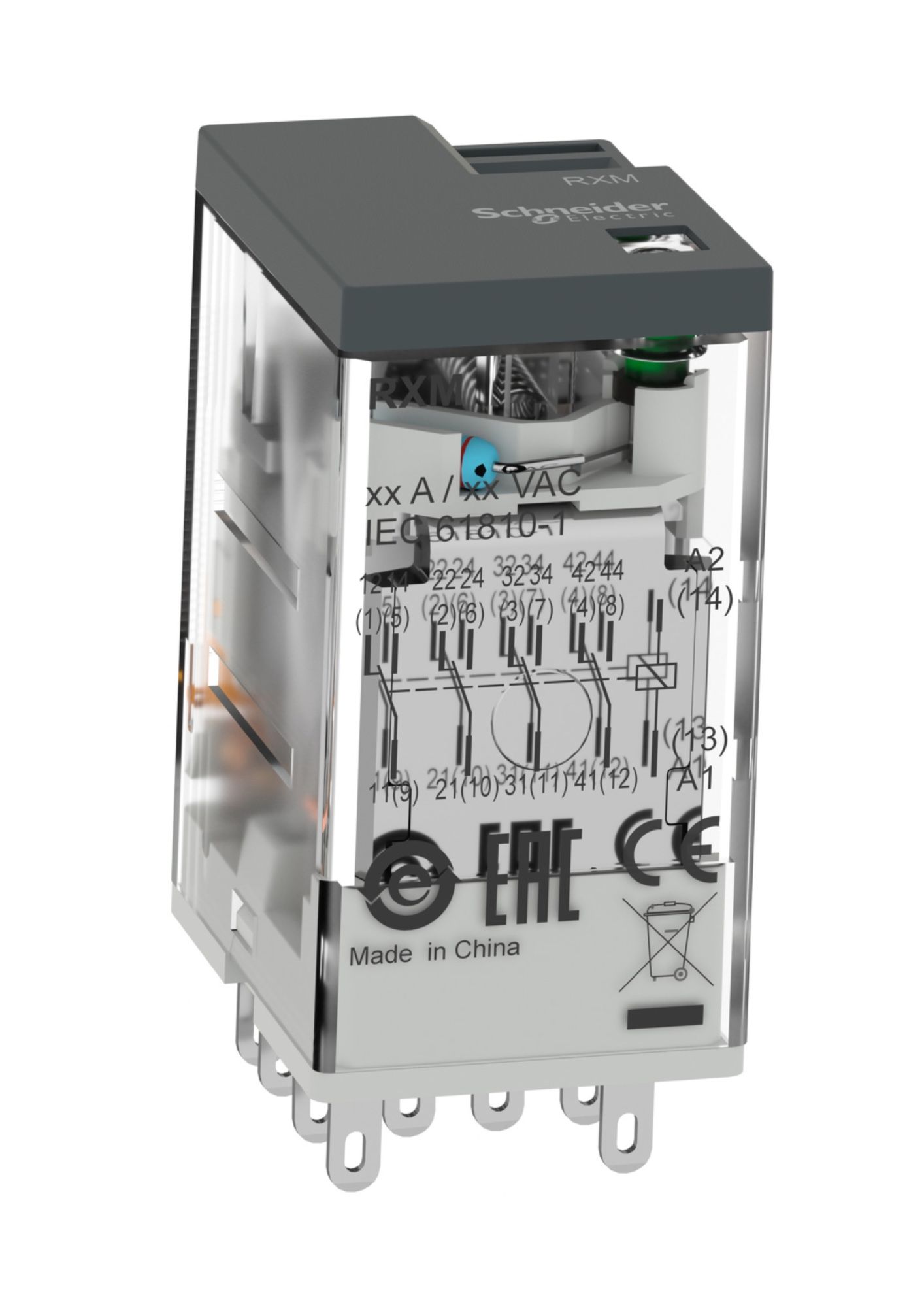

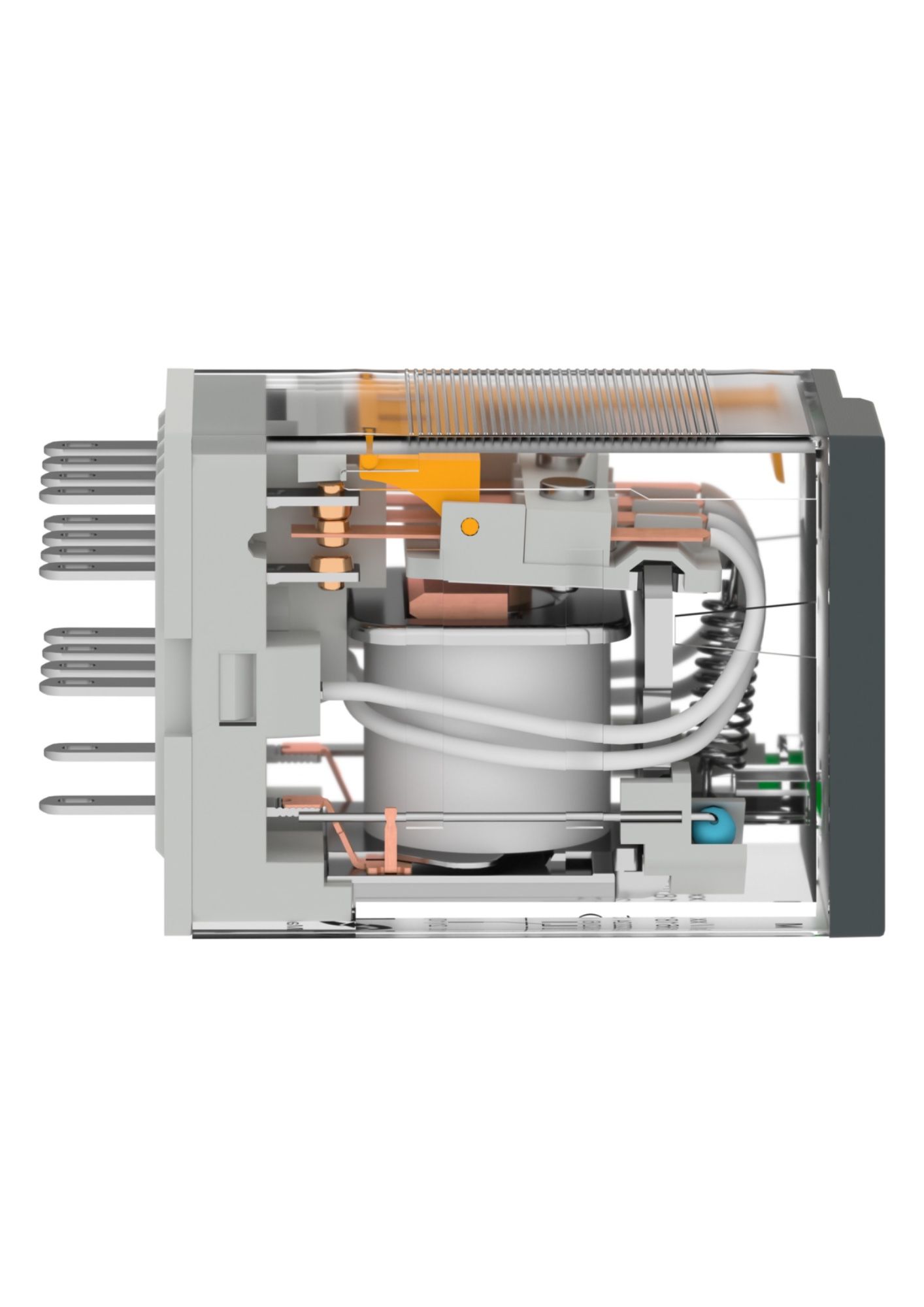

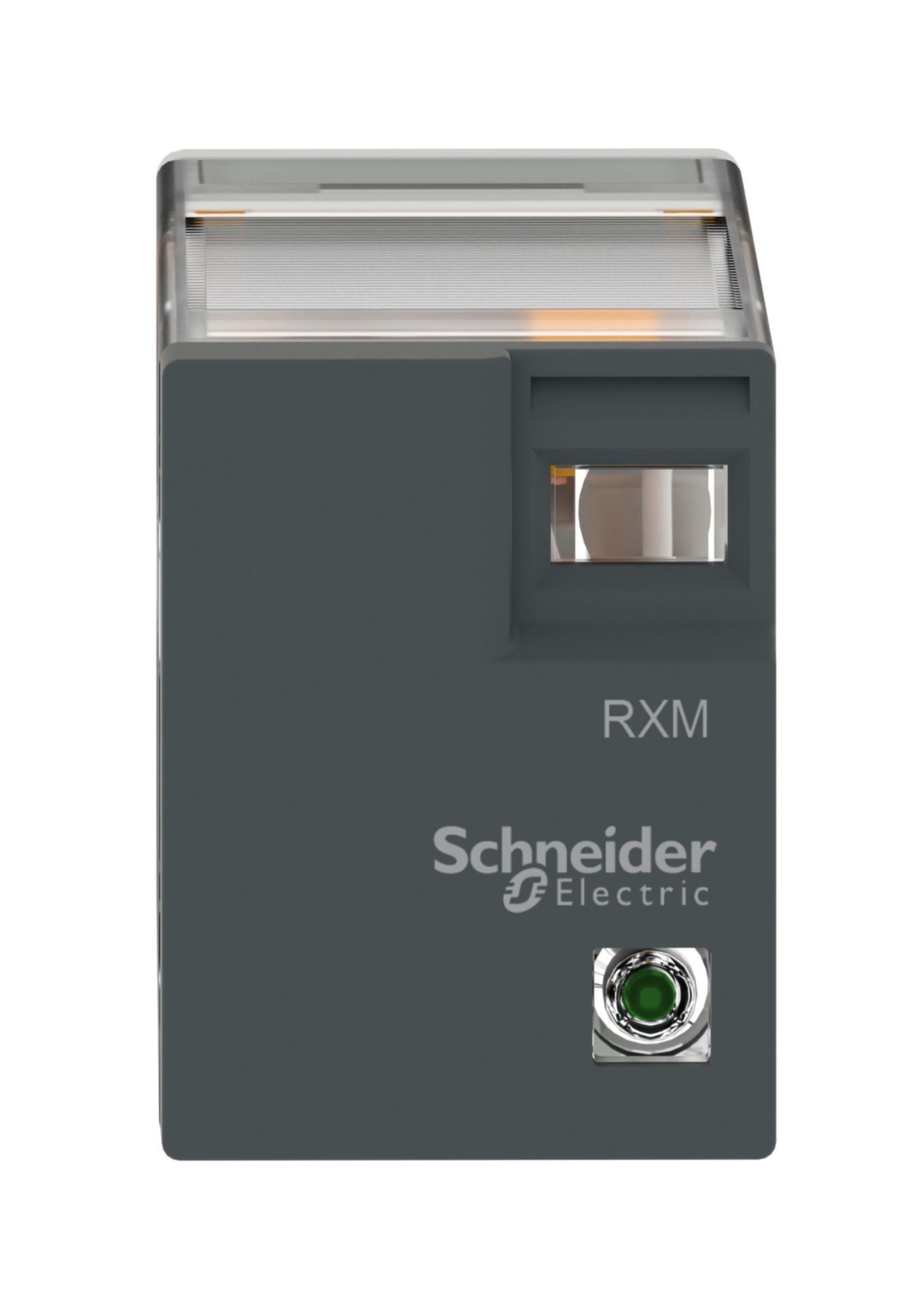

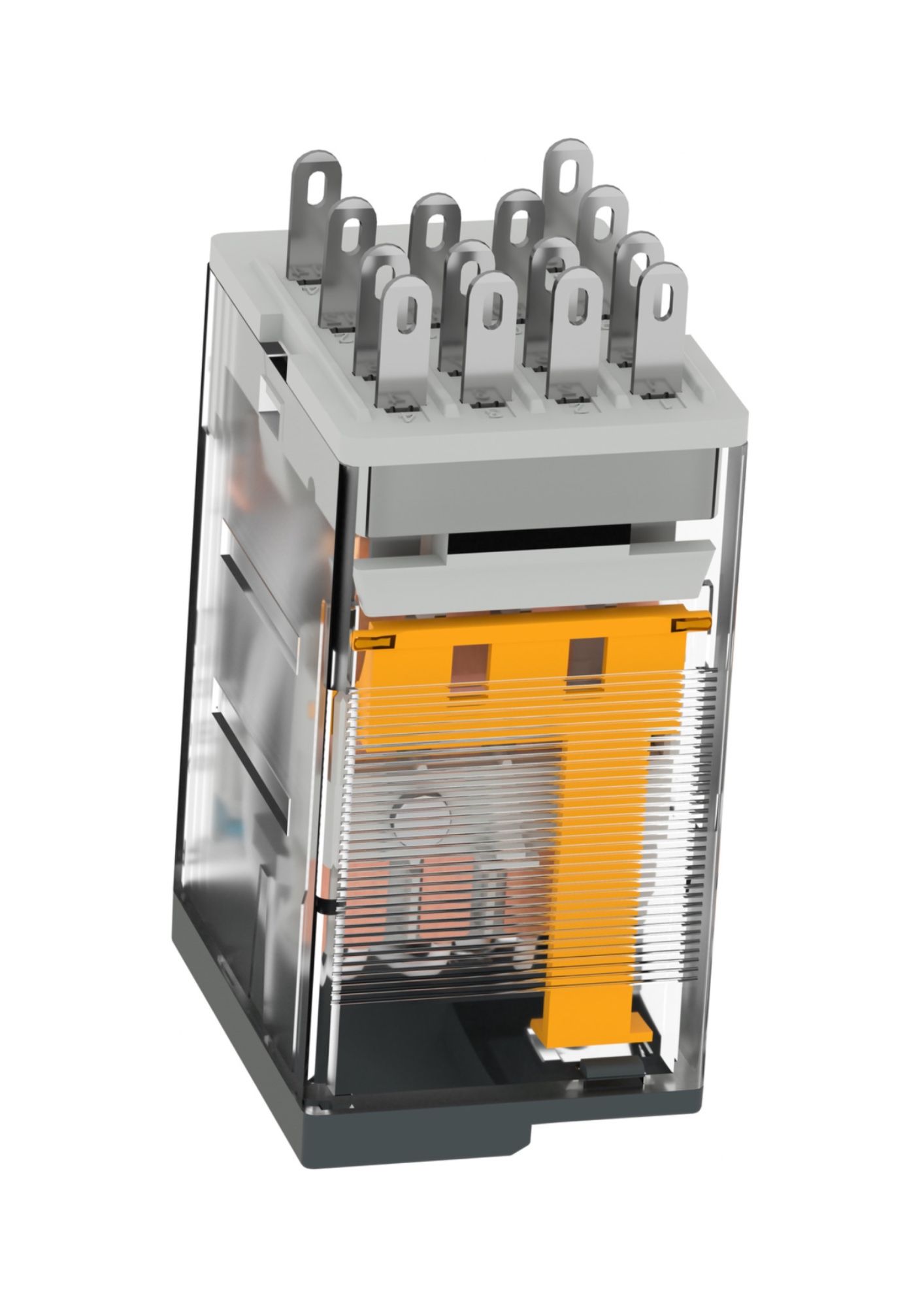

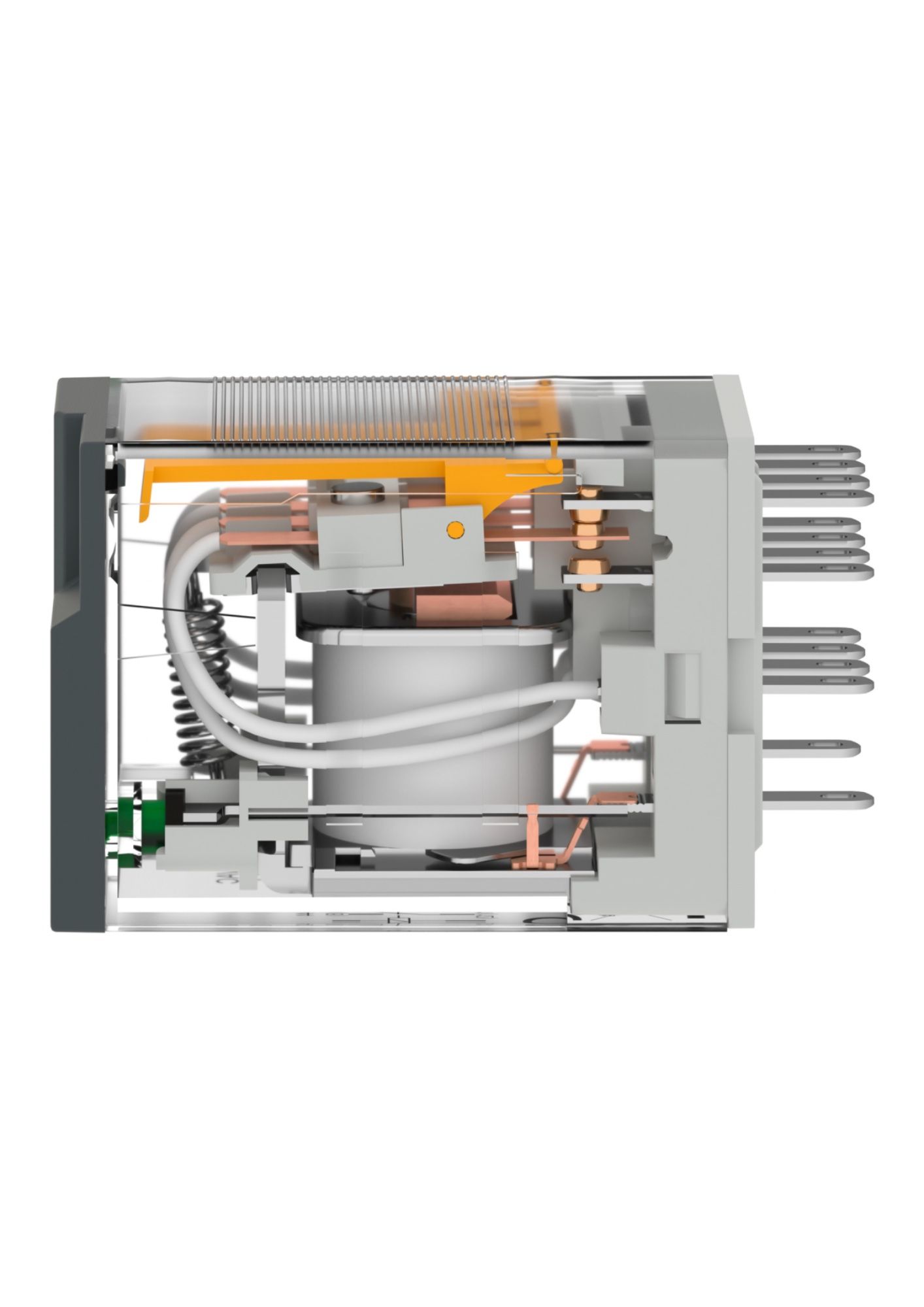

Schneider RXM4LB2P7, Miniature Plug-in Relay - HARMONY RXM2L - 4 C/O - 230 V AC - 3 A - with LED
In stock
SKU
RXM4LB2P7
Special Price
₹207.48
Regular Price
₹546.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony Electromechanical Relays |
| Series name | RXM series |
| Product type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 4 C/O |
| [Uc] control circuit voltage | 230 V AC 50/60 Hz |
| [Ithe] conventional enclosed thermal current | 3 A at -40…55 °C |
| Complementary | |
| Status LED | With |
| Control type | Without lockable test button |
| Minimum switching capacity | 25 mW (depends on switching frequency, environment, reliability) |
| Rated operational voltage limits | 184...253 V AC |
| [Ui] rated insulation voltage | 250 V (IEC) |
| Maximum switching voltage | 250 V AC / 28 V DC |
| Drop-out voltage threshold | ≥ 0.15 Uc AC |
| Load current | 3 A at 250 V AC / 3 A at 28 V DC |
| Maximum switching capacity | 750 VA AC / 84 W DC |
| Minimum switching current | 5 mA |
| Minimum switching voltage | 5 V |
| Average resistance | 16,500 Ω at 23 °C ± 15 % |
| Mechanical durability | 20,000,000 cycles |
| Electrical durability | 100,000 cycles (resistive load) |
| Safety reliability data | B10d = 100,000 |
| Operating rate | ≤ 1200 cycles/hour (under load), ≤ 18,000 cycles/hour (no-load) |
| Utilisation coefficient | 20 % |
| Dielectric strength | 2000 V AC (coil ↔ contact, basic insulation) 2000 V AC (between poles, basic insulation) 1000 V AC (between contacts, micro disconnection) |
| Protection category | RT I |
| Pollution degree | 2 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Sale per indivisible quantity | 10 |
| Contacts material | Silver alloy (Ag/Ni) |
| Shape of pin | Flat (faston type) |
