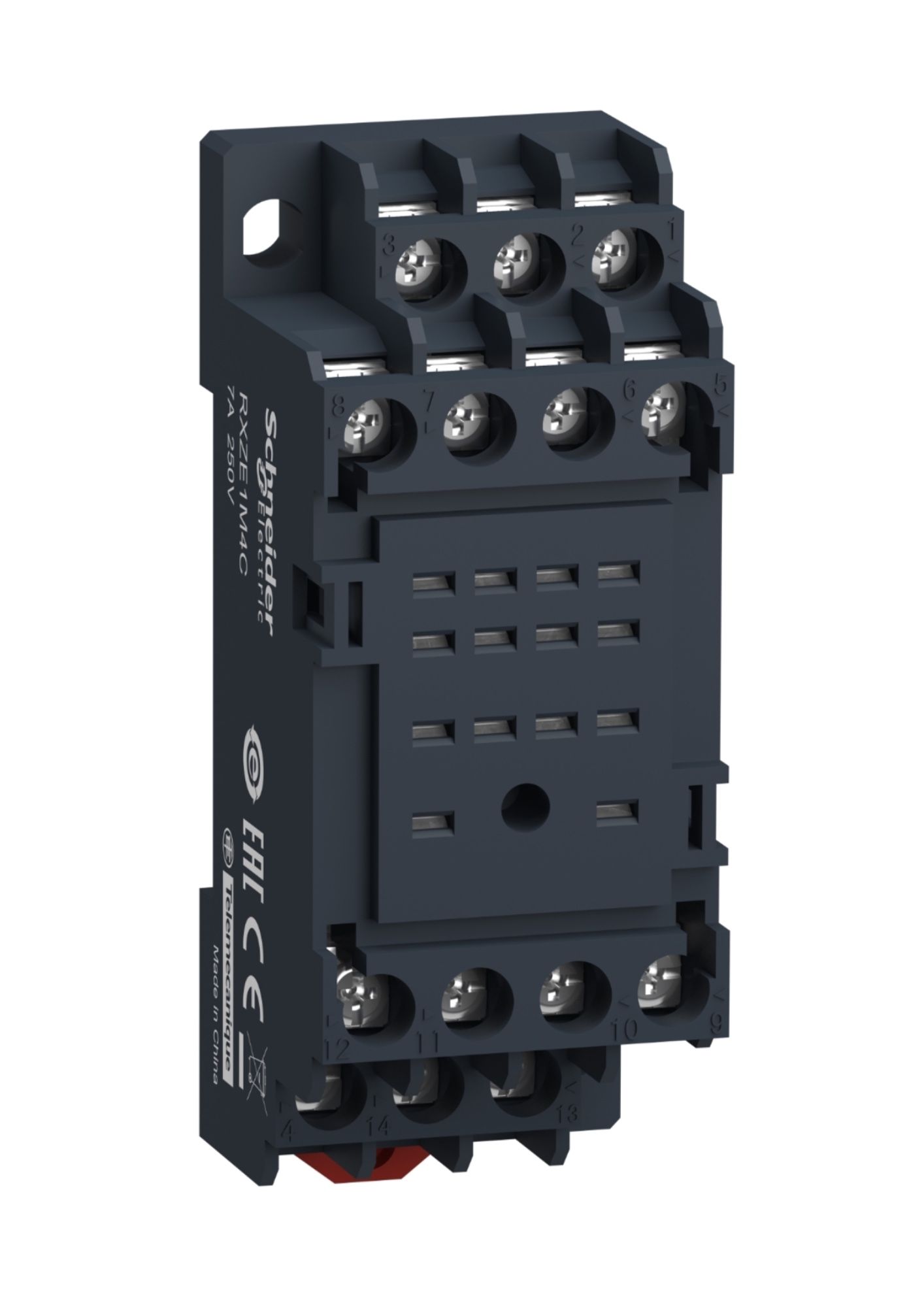

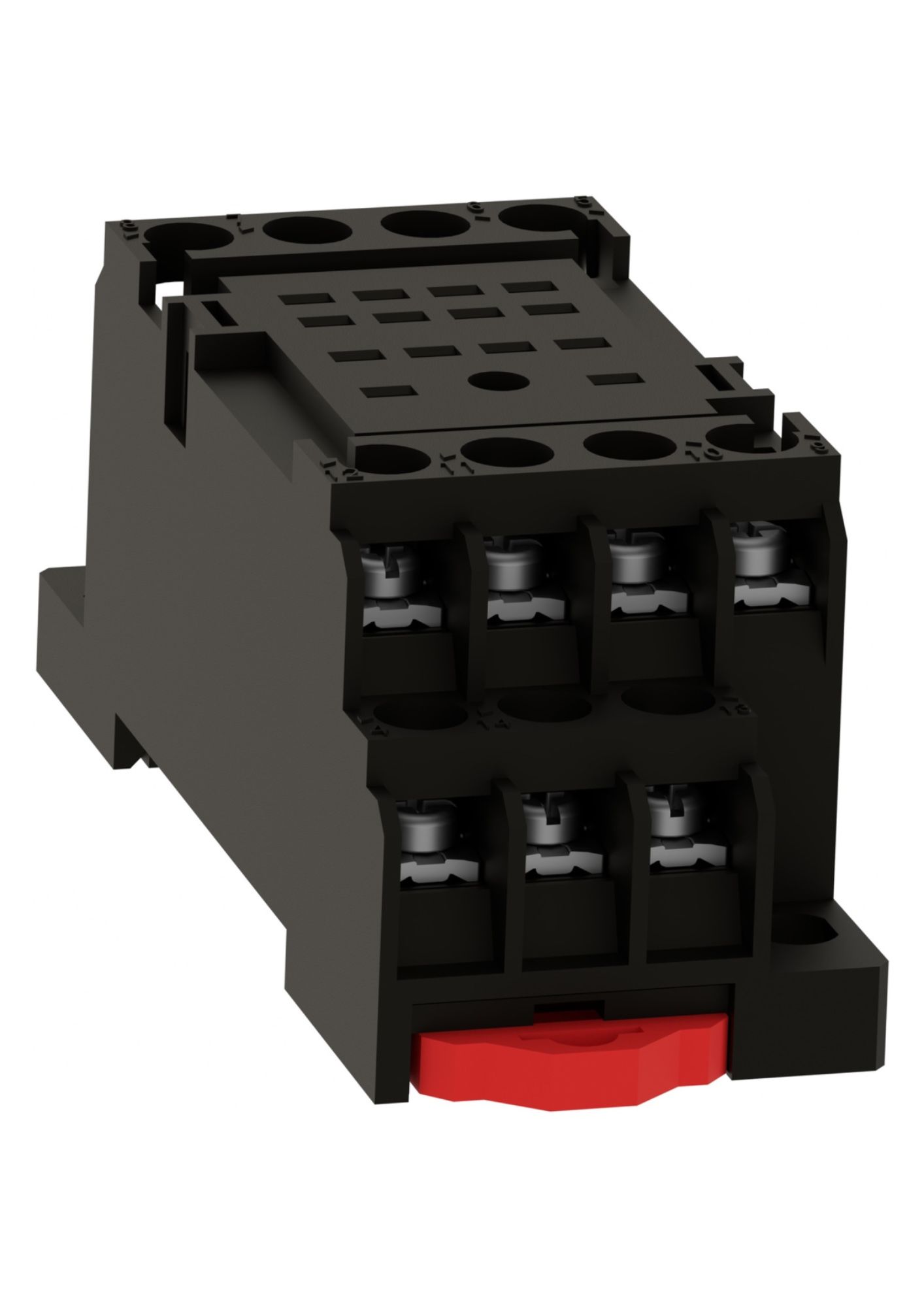

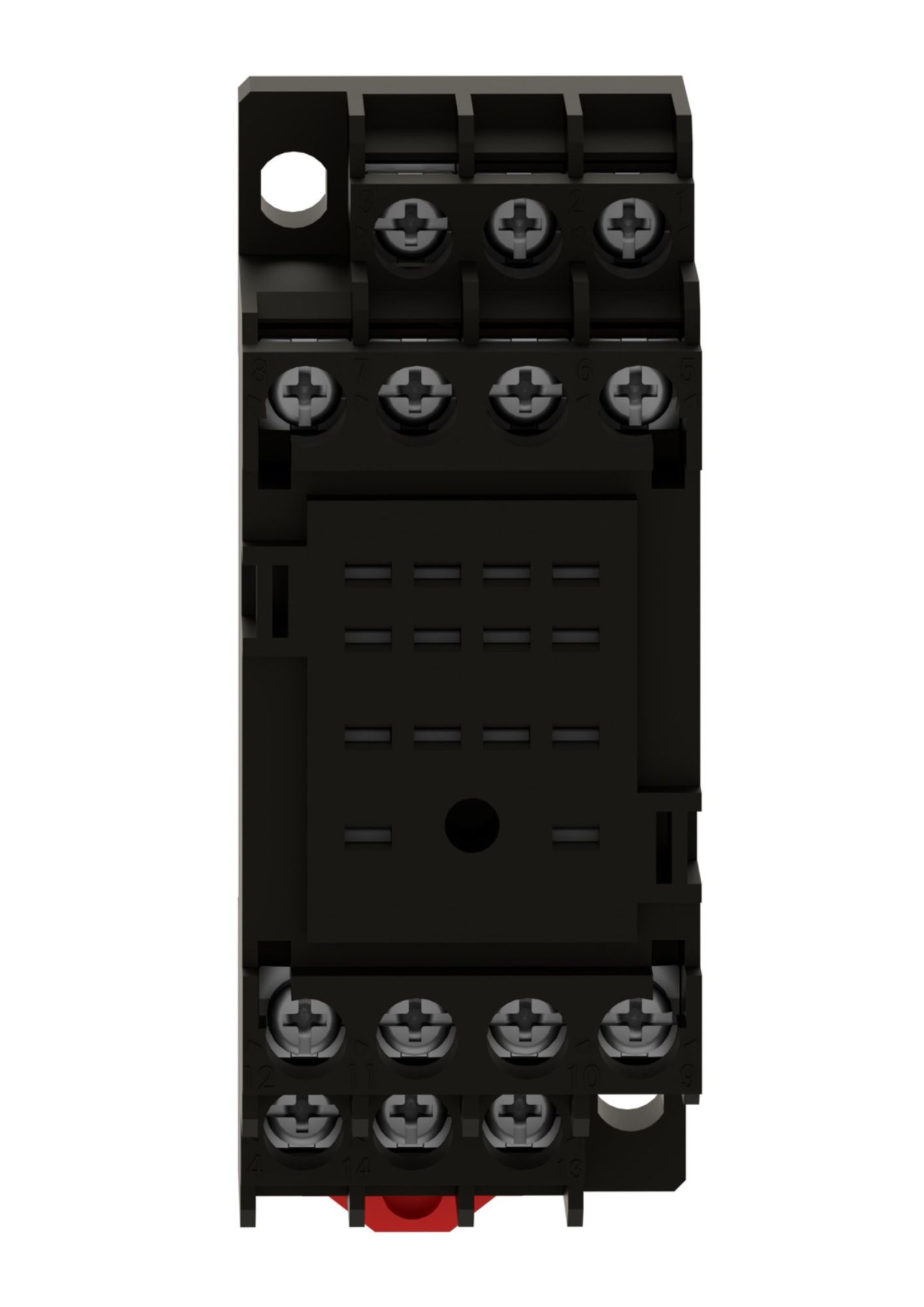

Schneider RXZE1M4C, Socket, Harmony Electromechanical Relays, for RXM2LB RXM4LB Relays, 7A, Screw Clamp Socket, Mixed Contact Terminal
In stock
SKU
RXZE1M4C
Special Price
₹109.82
Regular Price
₹289.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony Electromechanical Relays |
| Product compatibility |
Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 7 A 20 A + 0.5 ms per user registered |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| Complementary | |
| [Ue] rated operational voltage | 250 V AC conforming to IEC |
| Connections - terminals |
Screw clamp terminals, 1 x 0.2...1 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end Screw clamp terminals, 2 x 0.2...2 x 1.0 mm² (AWG 24...AWG 17) flexible with cable end Screw clamp terminals, 1 x 0.5...1 x 1.5 mm² (AWG 20...AWG 16) solid without cable end Screw clamp terminals, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Tightening torque | < 0.8 N.m for M3 screw(s) |
| Fixing mode | By screw (panel) Clip-on (35 mm symmetrical DIN rail) |
| Contact terminal arrangement | Mixed |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 29 mm |
No specifications available for this product.
