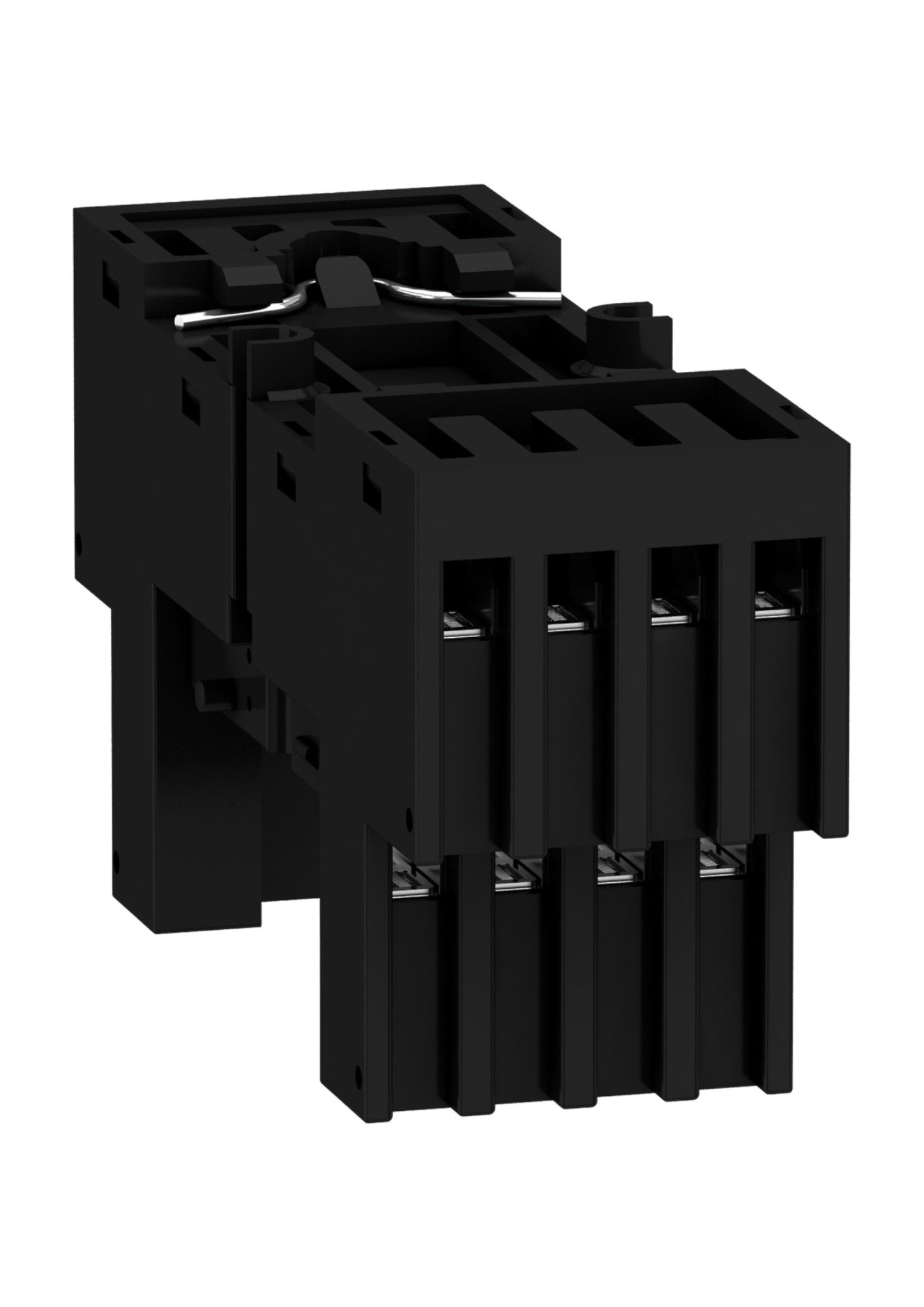

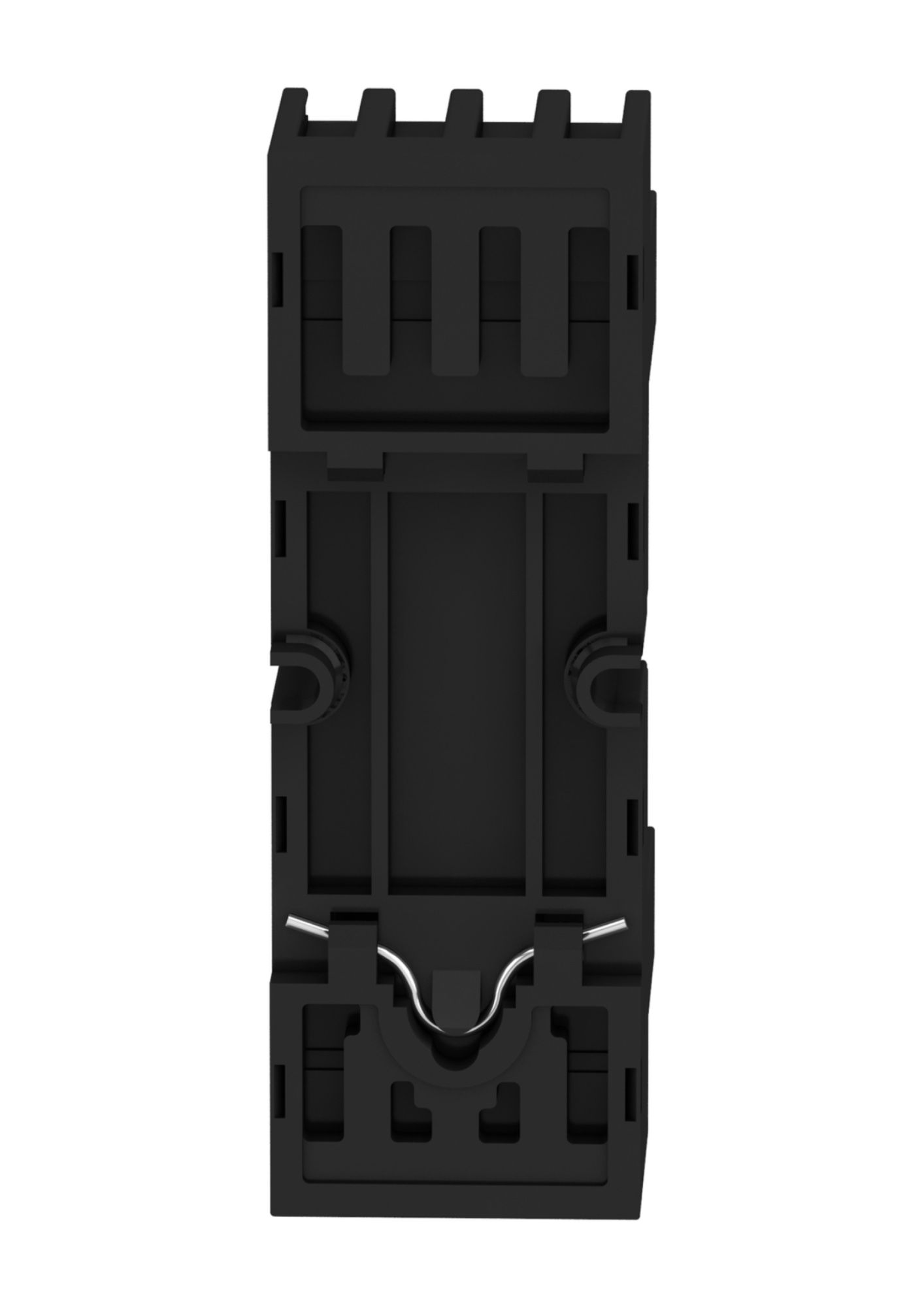

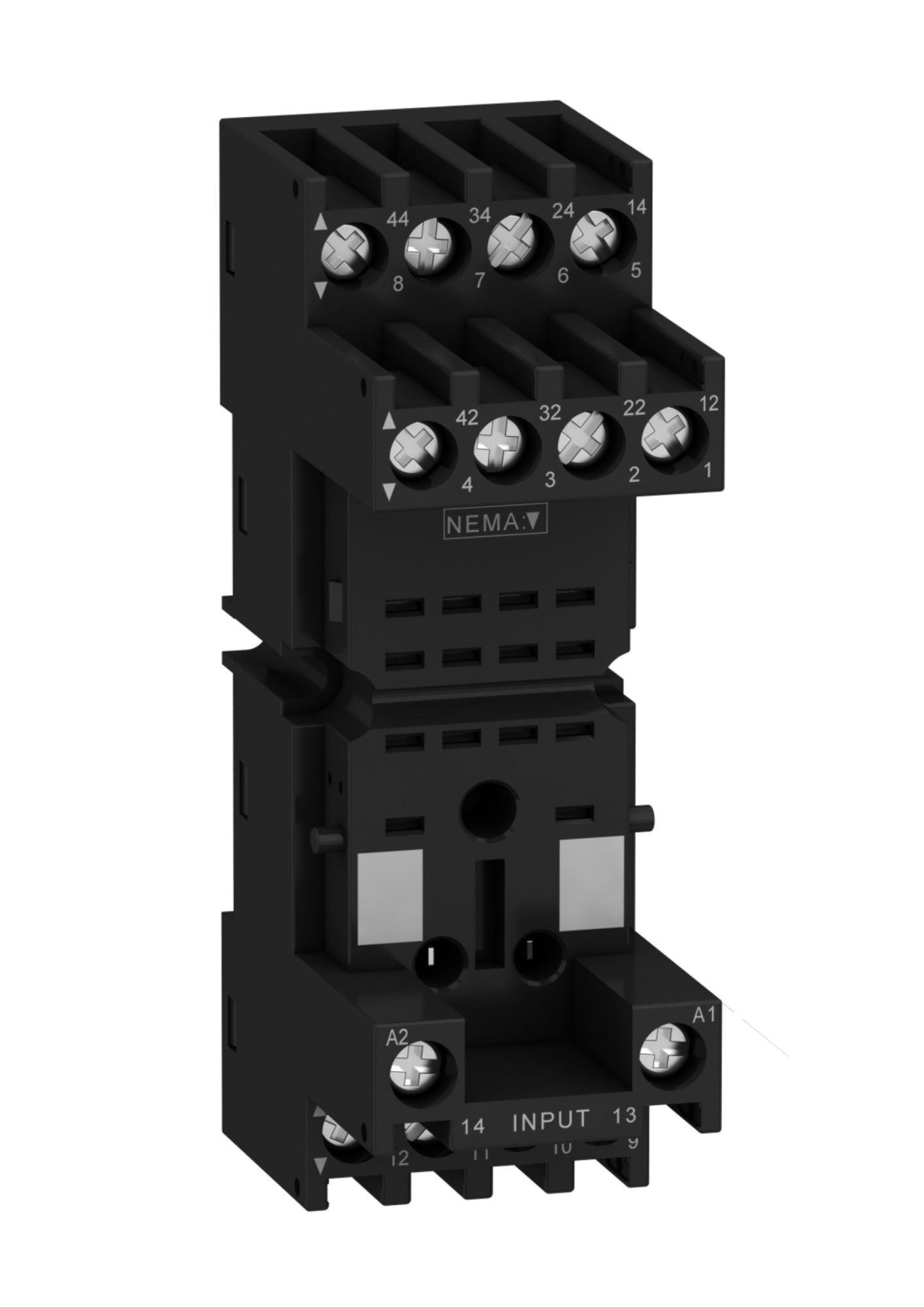

Schneider RXZE2M114M, Socket, 8pin & 14pin, Mixed Contact, Relay Type RXM2 RXM4, Connector Connection, 250V AC
In stock
SKU
RXZE2M114M
Special Price
₹133.56
Regular Price
₹318.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
| Range of product | Harmony Electromechanical Relays, Harmony Timer Relays |
| Product compatibility |
Plug-in relay RXM with 2 C/O contact Plug-in relay RXM with 4 C/O contact Plug-in relay REXL with 2 C/O contact Plug-in relay REXL with 4 C/O contact Plug-in relay 782H with 4 C/O contact |
| Device short name | RXZ |
| [Ith] conventional free air thermal current | 10 A |
| Product or component type | Socket |
| Contacts type and composition | 4 C/O |
| Complementary | |
| [Ue] rated operational voltage | < 250 V conforming to IEC < 300 V conforming to UL |
| Connections - terminals |
Screw connectors, 1 x 0.34...1 x 2.5 mm² (AWG 22...AWG 14) flexible with cable end Screw connectors, 2 x 0.34...2 x 1 mm² (AWG 22...AWG 17) flexible with cable end Screw connectors, 1 x 0.5...1 x 2.5 mm² (AWG 20...AWG 14) solid without cable end Screw connectors, 2 x 0.5...2 x 1.5 mm² (AWG 20...AWG 16) solid without cable end |
| Shape of pin | Flat |
| Tightening torque | < 1 N.m for M3 screw(s) |
| Fixing mode | By screw (panel), Clip-on (35 mm symmetrical DIN rail) |
| Wire stripping length | 8 mm |
| Contact terminal arrangement | Mixed |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Overvoltage category | III |
| Pollution degree | 3 |
| Sale per indivisible quantity | 10 |
| Width | 27 mm |
No specifications available for this product.
