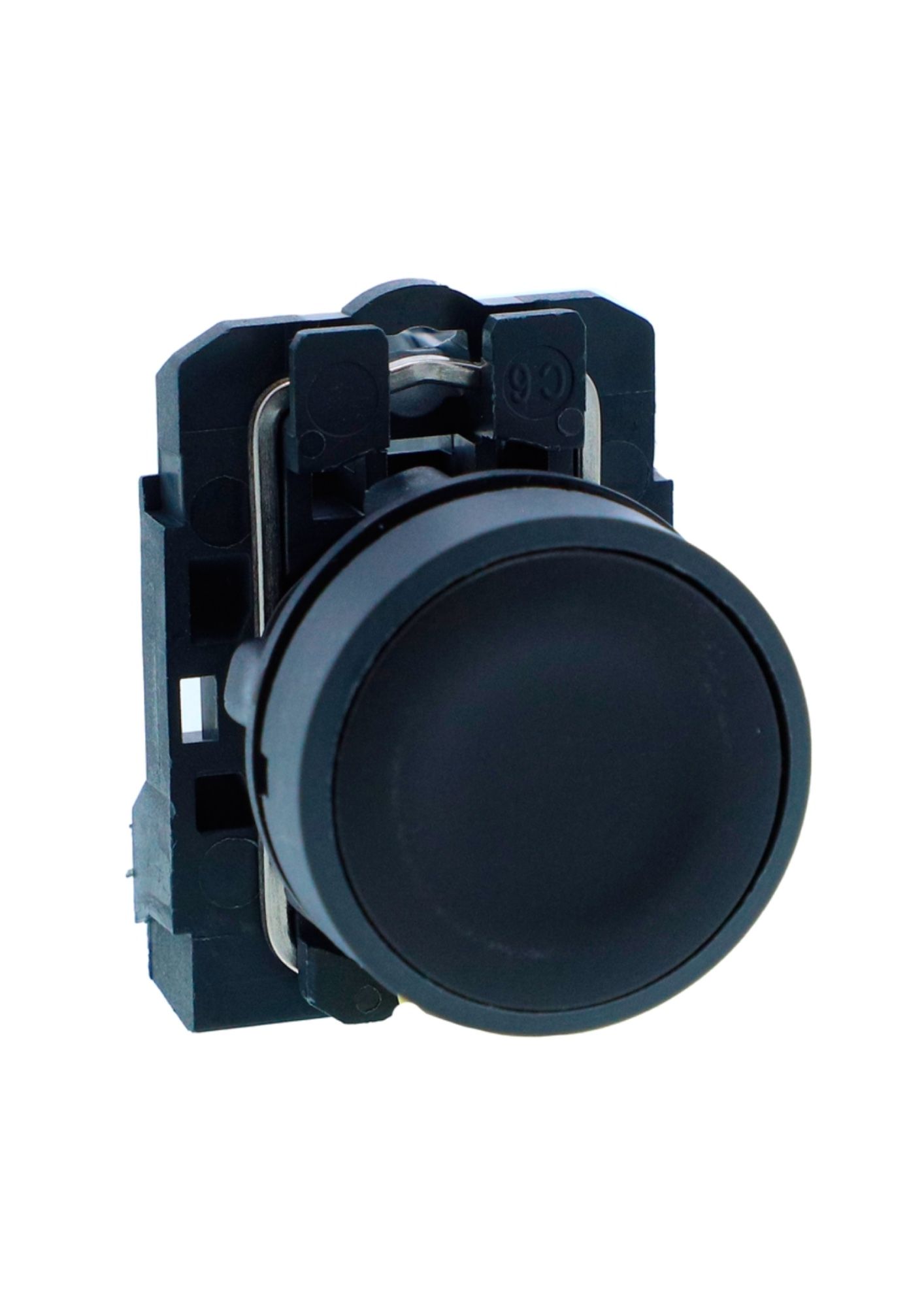

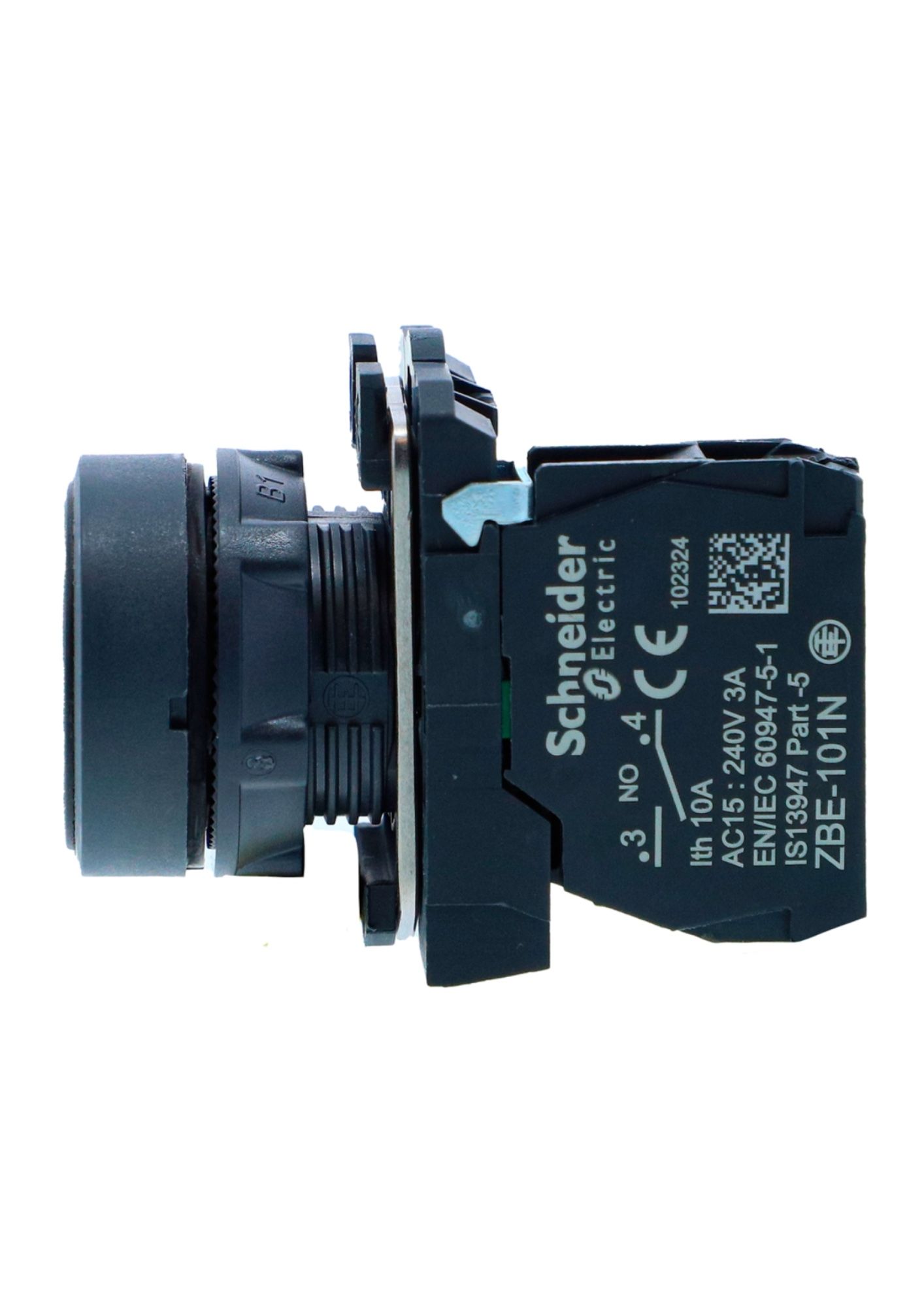

Schneider XB5AA21N, Push button, Harmony XB5, Plastic, Flush, Black, 22mm, Spring Return, Unmarked, 1 NO
In stock
SKU
XB5AA21N
Special Price
₹94.56
Regular Price
₹197.00
Check Delivery Options at your Area
FREE SHIPPING
Free Shipping by Surface Only*
SECURE PAYMENT
100% Secure Payment
| Main | |
|---|---|
| Range of product | Harmony XB5N |
| Product or component type | Push-button |
| Device short name | XB5N |
| Product compatibility | ZB5...N |
| Bezel material | Dark grey plastic |
| Head type | Standard |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Type of operator | Spring return |
| Operator profile | Black flush, unmarked |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals |
Screw clamp terminals, ≤ 2 × 1.5 mm² with cable end (IEC 60947-1) Screw clamp terminals, ≥ 1 × 0.22 mm² without cable end (IEC 60947-1) |
| [Us] rated supply voltage | 24 V AC/DC at 50/60 Hz |
| Complementary | |

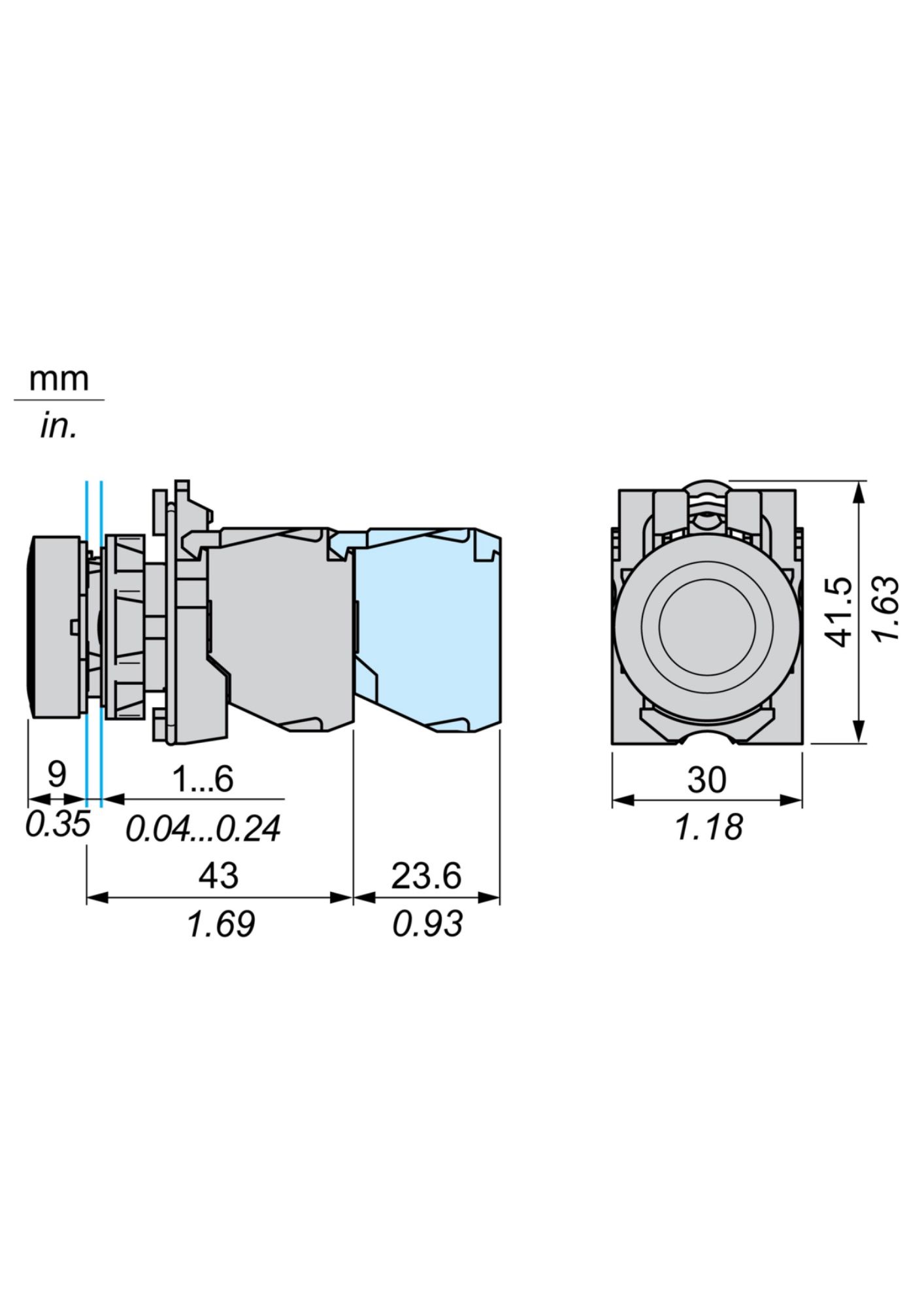

| Height | 42 mm |
| Width | 30 mm |
| Depth | 52 mm |
| Terminals description ISO n°1 | (13-14) NO |
| Device mounting | Fixing hole diameter: 22.5 mm (22.3 +0.4/0) — IEC 60957-5-1 |
| Fixing mode | Fixing nut torque: 2.2 N·m ± 0.2 N·m |
| Contacts usage | Standard contacts |
| Positive opening | Without |
| Operating travel |
1.5 mm (NC switching) 2.6 mm (NO switching) 4.3 mm (total travel) |
| Operating force |
3.5 N (NC switching) 3.8 N (NO switching) |
| Mechanical durability | 5,000,000 cycles |
| Tightening torque | 0.8…1.2 N·m (IEC 60947-1) |
| Shape of screw head |
Cross (Philips No.1) Cross (Pozidriv No.1) Slotted flat Ø 4 mm Slotted flat Ø 5.5 mm |
| Contacts material | Silver alloy (Ag/Ni) |
| Short-circuit protection | 10 A cartridge fuse gG (IEC 60947-5-1) |
| [Ith] thermal current | 10 A (IEC 60947-5-1) |
| [Ui] insulation voltage | 600 V (pollution degree 3, IEC 60947-1) |
| [Uimp] impulse withstand | 6 kV (IEC 60947-1) |
| [Ie] operational current |
3 A at 240 V AC-15 (A600) 1.2 A at 600 V AC-15 (A600) 6 A at 120 V AC-15 (A600) 0.55 A at 125 V DC-13 (Q600) 0.27 A at 250 V DC-13 (Q600) 0.1 A at 600 V DC-13 (Q600) |
| Electrical durability |
1,000,000 cycles AC-15, 2 A at 230 V 1,000,000 cycles AC-15, 3 A at 120 V 1,000,000 cycles AC-15, 4 A at 24 V 1,000,000 cycles DC-13, 0.2 A at 110 V 1,000,000 cycles AC-13, 0.5 A at 24 V |
| Electrical reliability |
Λ < 10⁻⁶ at 5 V, 1 mA (IEC 60947-5-4) Λ < 10⁻⁸ at 17 V, 5 mA (IEC 60947-5-4) |
| Device presentation | Complete product |
| Customizable | No |
| Compatibility code | XB5 |
